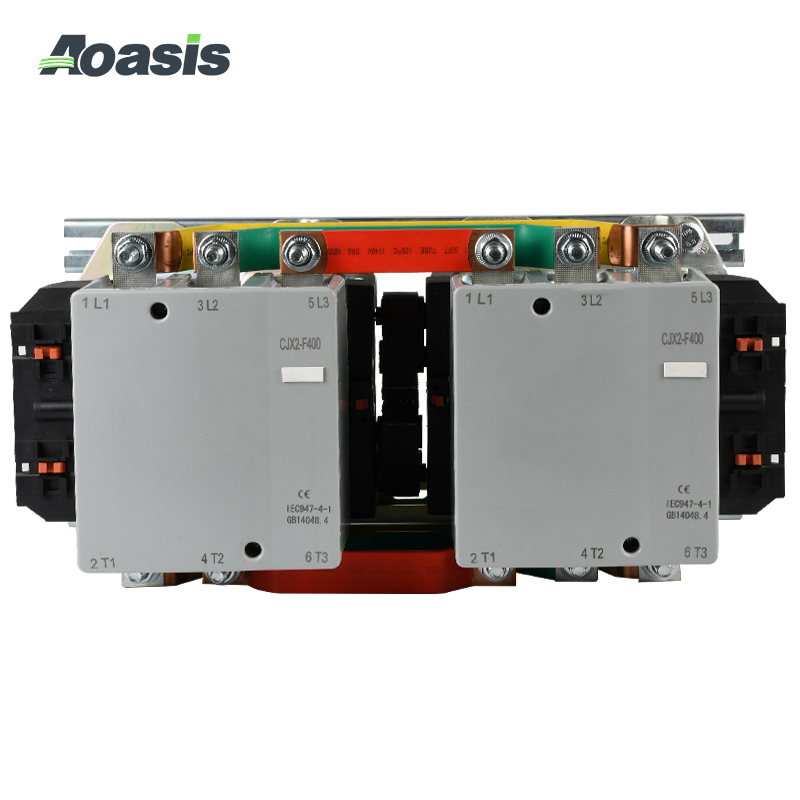

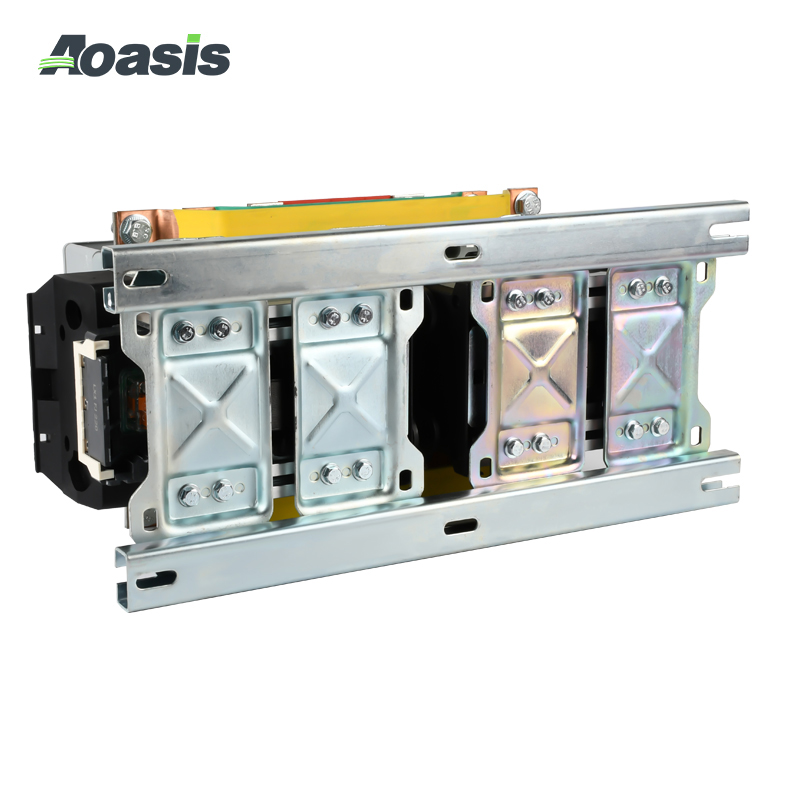

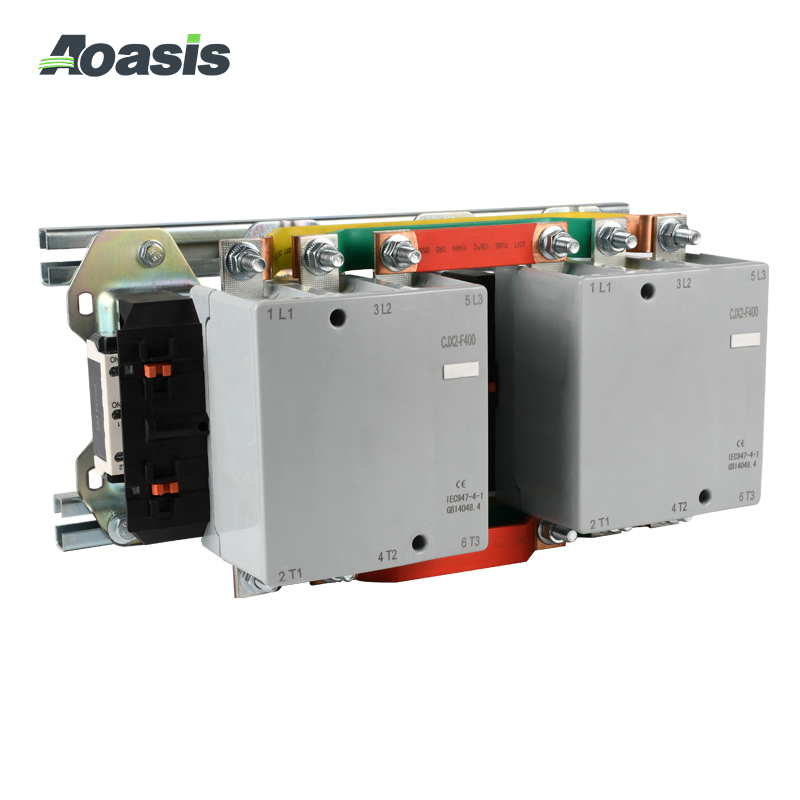

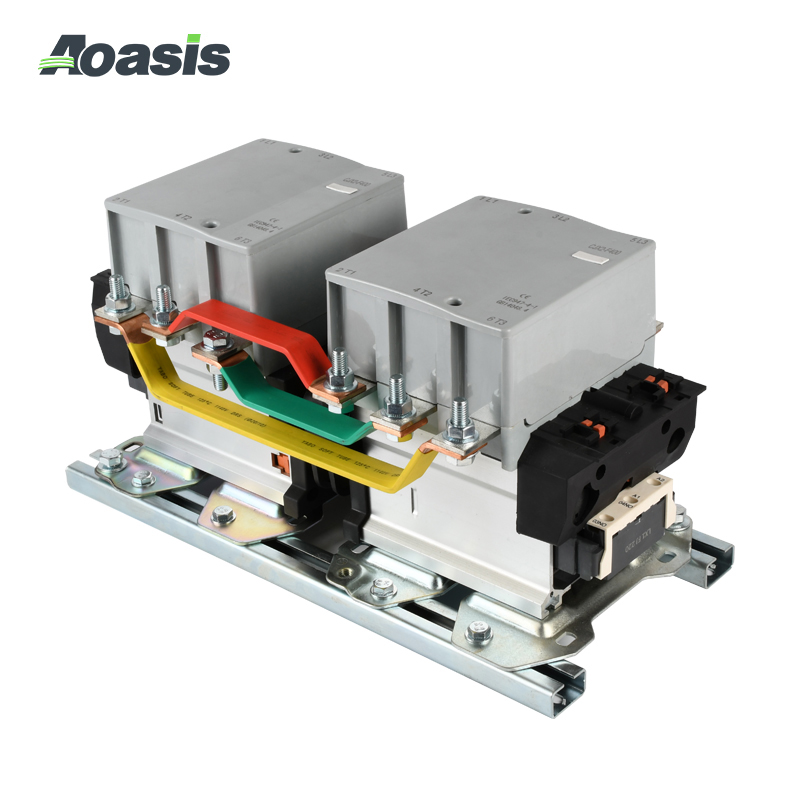

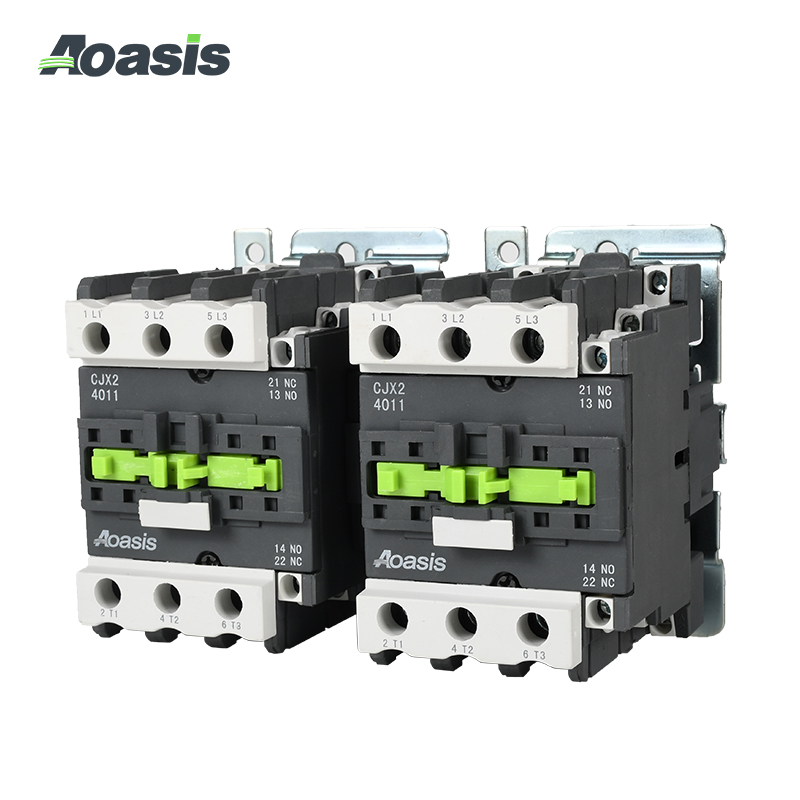

CJX2-N Reversing Contactors is suitable to use in the circuit with 50/60Hz, rated working voltage to 660V, rated working current to 95A below the circuit, for motor reversible control. Its interlocking mechanism ensures the reliable operation of the two reversible contactor contacts.
Main Technical Parameters：
Type
Maximum Rated Current
Controlled Power(kW)
Auxiliary Contacts
380V,AC-3(A)
220V
380V
415V
440V
660V
CJX2-09N
9
2.2
4
4
4
5.5
Optional
CJX2-12N
12
5.5
5.5
5.5
5.5
7.5
Optional
CJX2-18N
18
7.5
7.5
9
9
11
Optional
CJX2-25N
25
5.5
11
11
11
15
Optional
CJX2-32N
32
7.5
15
15
15
18.5
Optional
CJX2-40N
40
18.5
18.5
22
22
30
Optional
CJX2-50N
50
15
22
25
30
33
Optional
CJX2-65N
65
18.5
30
37
37
37
Optional
CJX2-80N
80
22
37
45
45
45
Optional
CJX2-95N
95
22
45
45
45
45
Optional

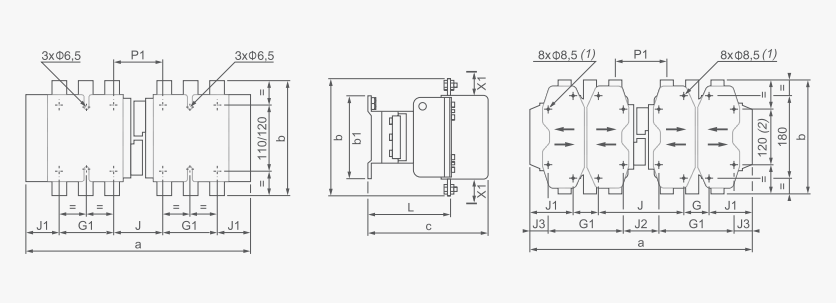

Dimensions(mm)：
CJX2-9N~32N
CJX2-40N~95N
Circuits Diagram：
