Technical parameters：
|
Type
|
(AC-3） Rated Current 400V
|
(50/60Hz)AC-3(kW)Rated Power of Three-phase Motor
|
||||||
|
220V 230V
|
380V 400V
|
415V |
440V |
500V |
660V 690V |
1000V |
||
|
CJX2-F115N |
115 |
30 |
55 |
59 |
59 |
75 |
80 |
65 |
|
CJX2-F150N |
150 |
40 |
75 |
80 |
80 |
90 |
100 |
65 |
|
CJX2-F185N |
185 |
55 |
90 |
100 |
100 |
110 |
110 |
100 |
|
CJX2-F225N |
225 |
63 |
110 |
110 |
110 |
129 |
129 |
100 |
|
CJX2-F265N |
265 |
75 |
132 |
140 |
140 |
160 |
160 |
147 |
|
CJX2-F330N |
330 |
100 |
160 |
180 |
200 |
200 |
220 |
160 |
|
CJX2-F400N |
400 |
110 |
200 |
220 |
250 |
257 |
280 |
185 |
|
CJX2-F500N |
500 |
147 |
250 |
280 |
295 |
355 |
335 |
335 |
|
CJX2-F630N |
630 |
200 |
335 |
375 |
400 |
400 |
450 |
425 |
|
CJX2-F800N |
800 |
220 |
450 |
425 |
425 |
450 |
475 |
450 |

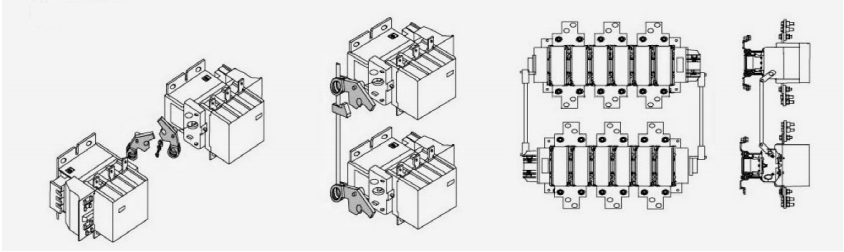

Product Mix:

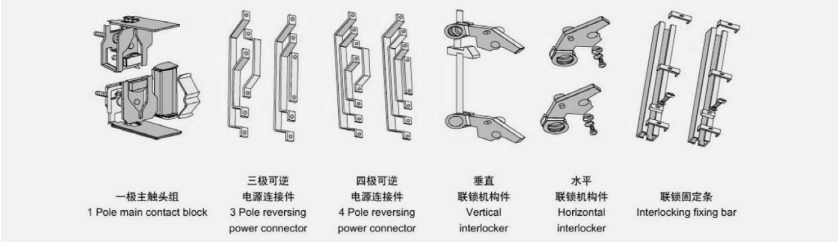

ProductAccessories:

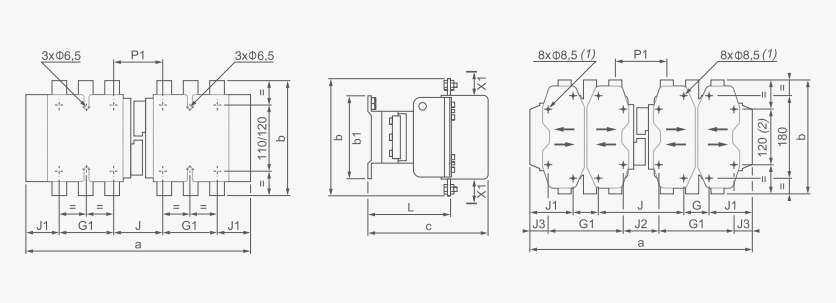

Dimensions(mm):
CJX2-F/N Reversing Contactors(CJX2-F115N\1154N-800N)
|
CJX2-F/N |
a |
b |
b1 |
C |
G |
G1 |
J |
J1 |
J2 |
J3 |
L |
P1 |
|
115 |
345 |
162 |
137 |
171 |
- |
80 |
71 |
57 |
- |
- |
107 |
77 |
|
1154 |
419 |
162 |
137 |
171 |
- |
80 |
108 |
75.5 |
- |
- |
107 |
77 |
|
150 |
345 |
170 |
137 |
171 |
- |
80 |
71 |
57 |
- |
- |
107 |
71 |
|
1504 |
422 |
170 |
137 |
171 |
- |
80 |
111 |
75.5 |
- |
- |
107 |
71 |
|
185 |
357 |
174 |
137 |
181 |
- |
80 |
78 |
59.5 |
- |
- |
113.5 |
78 |
|
1854 |
437 |
174 |
137 |
181 |
- |
80 |
118 |
79.5 |
- |
- |
113.5 |
78 |
|
225 |
357 |
197 |
137 |
181 |
- |
80 |
78 |
59.5 |
- |
- |
113.5 |
62 |
|
2254 |
437 |
197 |
137 |
181 |
- |
80 |
118 |
79.5 |
- |
- |
113.5 |
54 |
|
265 |
425 |
203 |
145 |
213 |
- |
96 |
109 |
61.5 |
- |
- |
141 |
100 |
|
2654 |
521 |
203 |
145 |
213 |
- |
96 |
157 |
85.5 |
- |
- |
141 |
100 |
|
330 |
447 |
206 |
145 |
219 |
- |
96 |
124 |
65.5 |
- |
- |
145 |
107 |
|
3304 |
543 |
206 |
145 |
219 |
- |
96 |
172 |
89.5 |
- |
- |
145 |
107 |
|
400 |
446 |
206 |
209 |
219 |
80 |
170 |
157 |
64.5 |
67 |
19.5 |
145 |
107 |
|
4004 |
542 |
206 |
209 |
219 |
80 |
170 |
157 |
112.5 |
67 |
67.5 |
145 |
107 |
|
500 |
485 |
238 |
209 |
232 |
80 |
170 |
156 |
84.5 |
66 |
39.5 |
146 |
112 |
|
5004 |
595 |
238 |
209 |
232 |
140 |
230 |
156 |
79.5 |
66 |
34.5 |
146 |
112 |
|
630 |
636 |
304 |
280 |
255 |
180 |
- |
139 |
68.5 |
- |
- |
155 |
137 |
|
6304 |
796 |
304 |
280 |
255 |
240 |
- |
139 |
68.5 |
- |
- |
155 |
137 |
|
800 |
636 |
304 |
280 |
255 |
180 |
- |
139 |
68.5 |
- |
- |
155 |
137 |
(1)Except AOC -F630 and F800 : 4 x中10.5.
(2)ExceptAOC -F630and F800.
