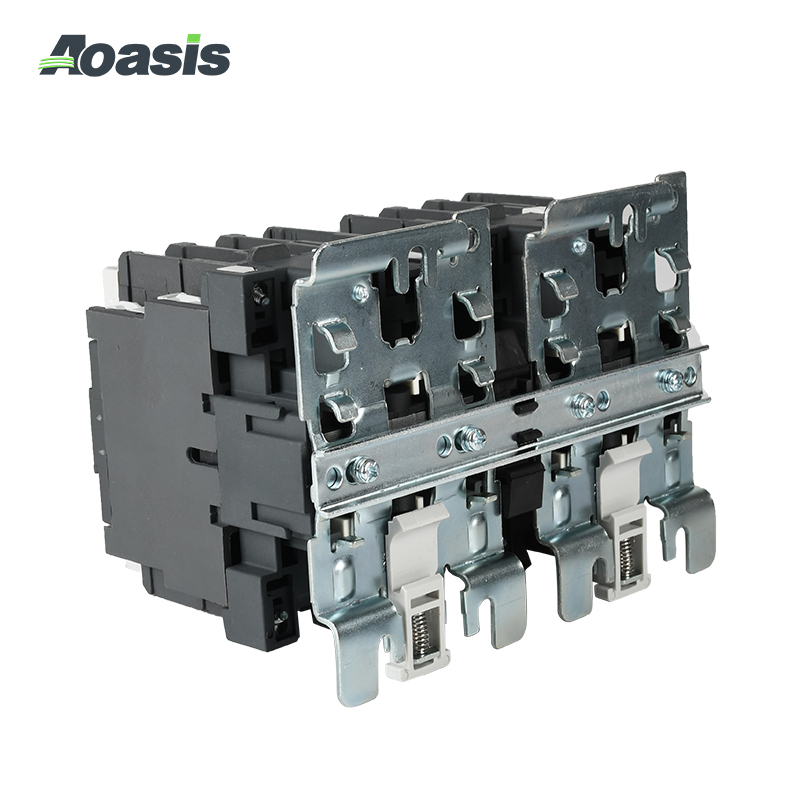

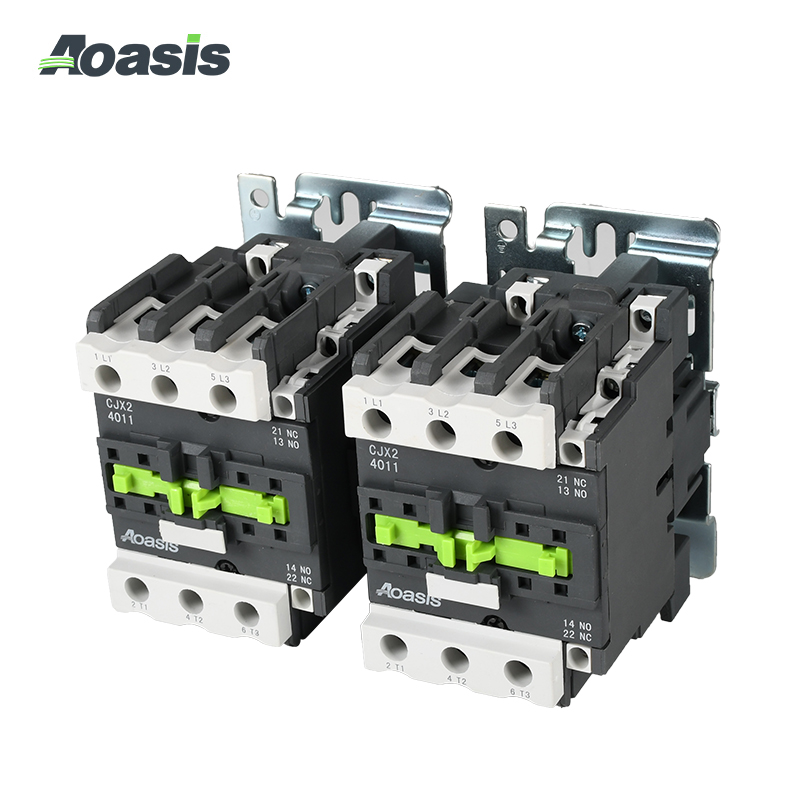

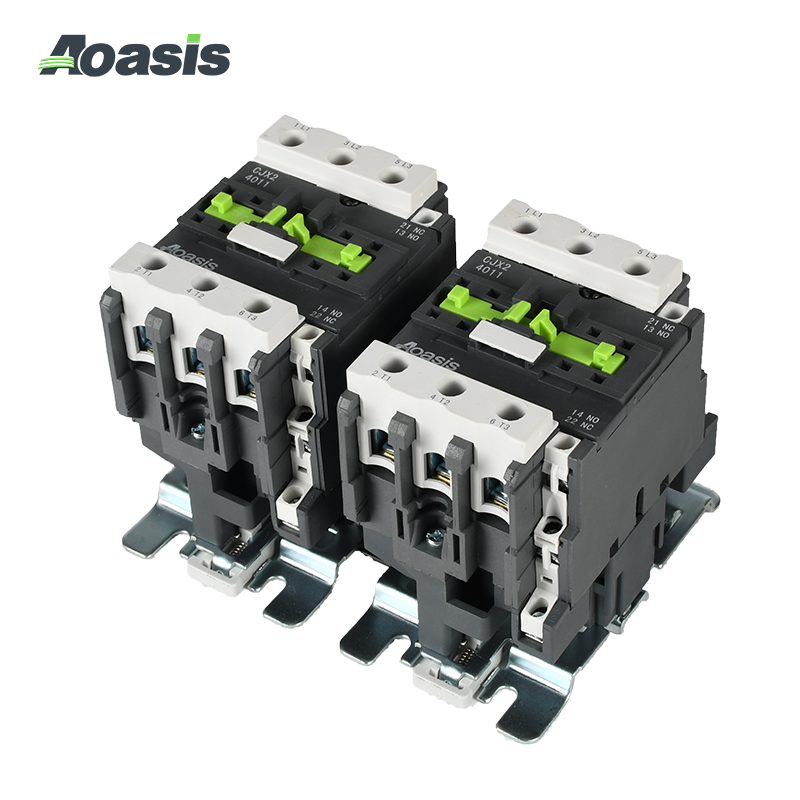

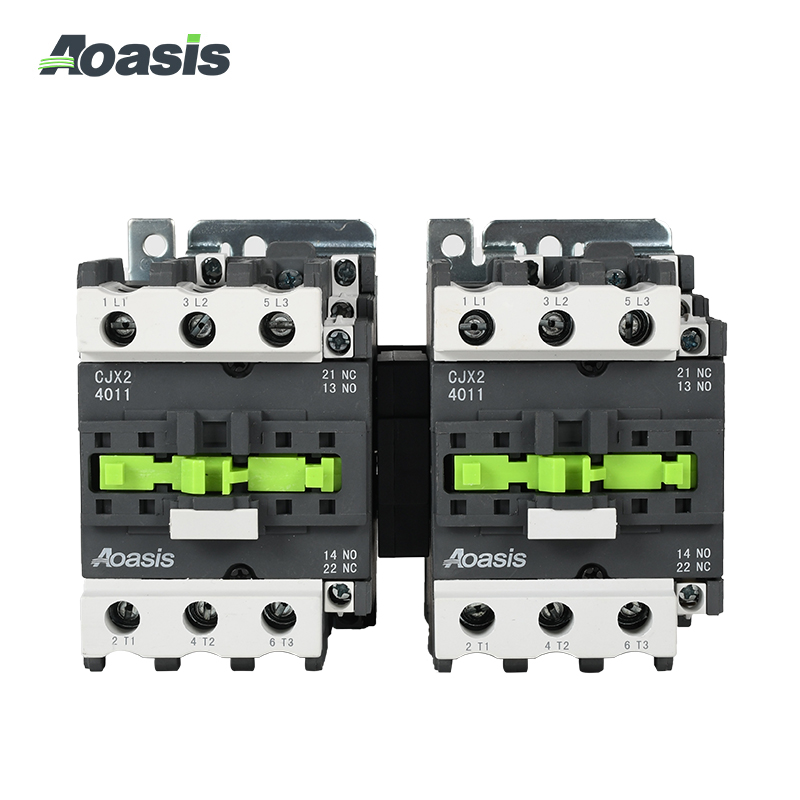

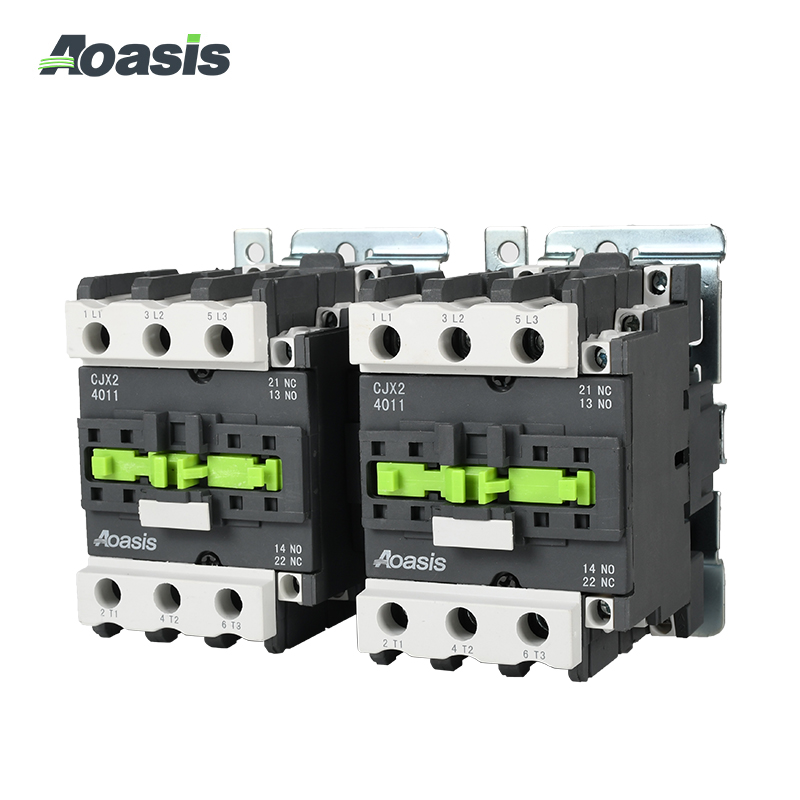

CJX2-N Reversing Contactors is suitable to use in the circuit with 50/60Hz, rated working voltage to 660V, rated working current to 95A below the circuit, for motor reversible control. Its interlocking mechanism ensures the reliable operation of the two reversible contactor contacts.
Main Technical Parameters：
|
Type |
Maximum Rated Current |
Controlled Power(kW) |
Auxiliary Contacts |
||||
|
380V,AC-3(A) |
220V |
380V |
415V |
440V |
660V |
||
|
CJX2-09N |
9 |
2.2 |
4 |
4 |
4 |
5.5 |
Optional |
|
CJX2-12N |
12 |
5.5 |
5.5 |
5.5 |
5.5 |
7.5 |
Optional |
|
CJX2-18N |
18 |
7.5 |
7.5 |
9 |
9 |
11 |
Optional |
|
CJX2-25N |
25 |
5.5 |
11 |
11 |
11 |
15 |
Optional |
|
CJX2-32N |
32 |
7.5 |
15 |
15 |
15 |
18.5 |
Optional |
|
CJX2-40N |
40 |
18.5 |
18.5 |
22 |
22 |
30 |
Optional |
|
CJX2-50N |
50 |
15 |
22 |
25 |
30 |
33 |
Optional |
|
CJX2-65N |
65 |
18.5 |
30 |
37 |
37 |
37 |
Optional |
|
CJX2-80N |
80 |
22 |
37 |
45 |
45 |
45 |
Optional |
|
CJX2-95N |
95 |
22 |
45 |
45 |
45 |
45 |
Optional |
Dimensions(mm)：

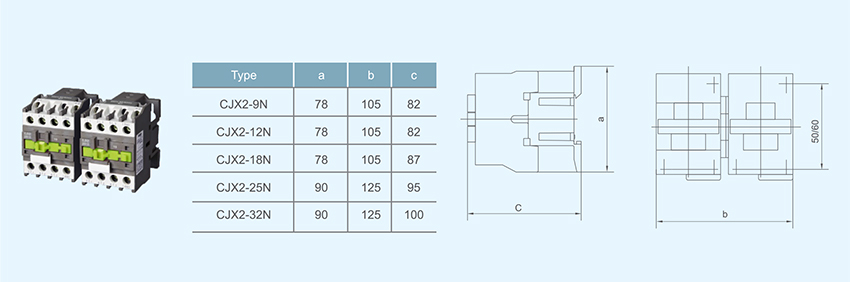

CJX2-9N~32N

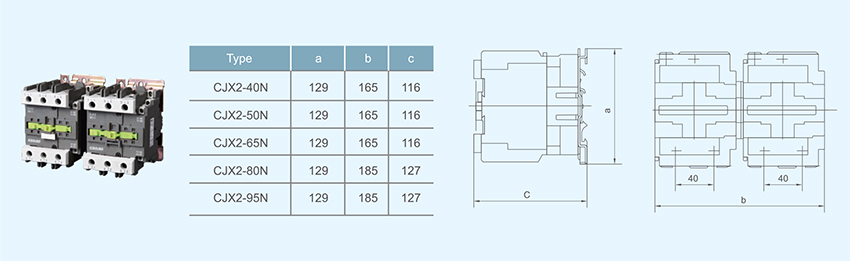

CJX2-40N~95N

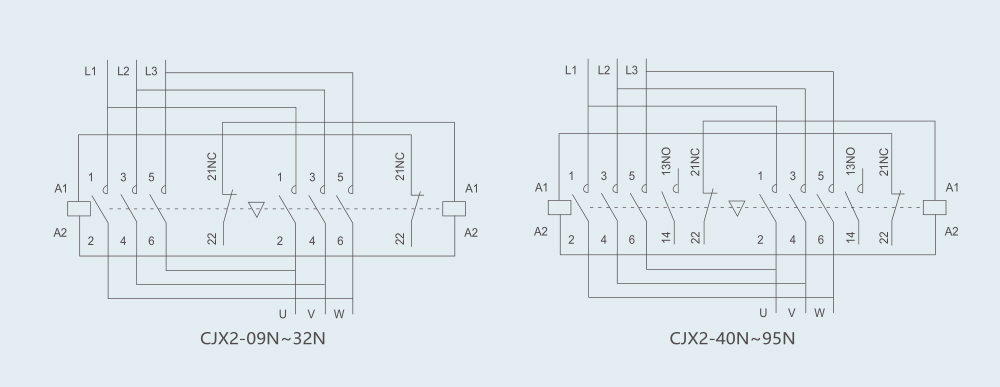

Circuits Diagram：
