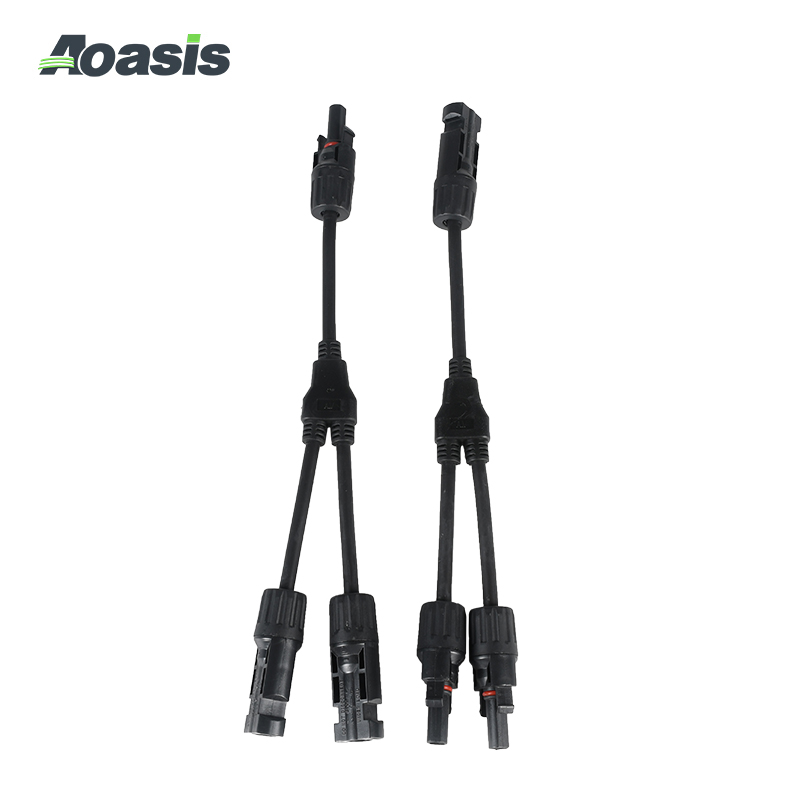

PV-BMY2 PV Connector

Characteristics

Product Description

Technical Parameters:

Rated voltage (V)
1000V DC(IEC)'
Rated current (A)
30A
Test voltage
6kV(50HZ,1min)
Ambient temperature range
-40℃~+90C(IEC)-40F~+194F(UL)
Upper temperature limit
+105℃(IEC)
Class of protection
IP67
Touch protected, unplugged
IP2X
Connector contact impedance
0.5mΩ
Safety level
II
Terminal material
Copper tin/copper silver
Insulating material
PC/PPO
Locking system
Snap-in
Flame retardant grade
UL-94-Vo
Corrosion test grade
IEC 60068-2-52

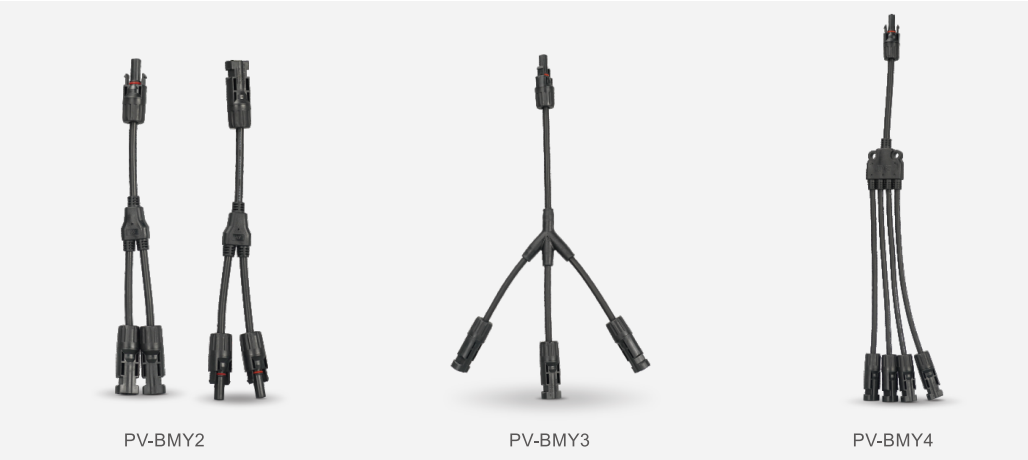

product picture:
