Technical Parameters：
|
Rated voltage (V) |
1000V/1500V DC |
|
Rated current (A) |
30A(2.5mm²,4mm2,6mm2;14AWG,12AWG,10AWG) 45A(4mm²;6mm;12AWG,10AWG) 60A(10mm; 8AWG) 80A(16mm; 7AWG) |
|
Test voltage |
6kV(50HZ,1min) |
|
Ambient temperature range |
-40℃~+90°C(IEC)-40F~+194F(UL) |
|
Upper temperature limit |
+105C(IEC) |
|
Class of protection |
lp67 |
|
Touch protected, unplugged |
IP2X |
|
Connector contact impedance |
0.5mΩ |
|
Safety level |
ll |
|
Terminal material |
Copper tin/copper silver |
|
Insulating material |
PC/PPO |
|
Locking system |
Snap-in |
|
Flame retardant grade |
UL-94-Vo |
|
Corrosion test grade |
IEC 60068-2-52 |

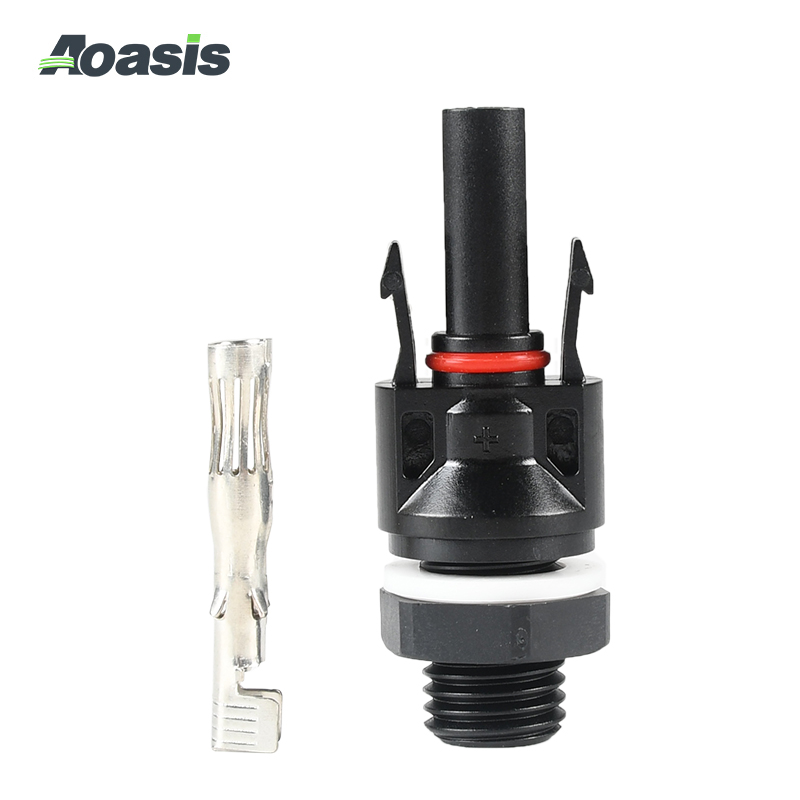

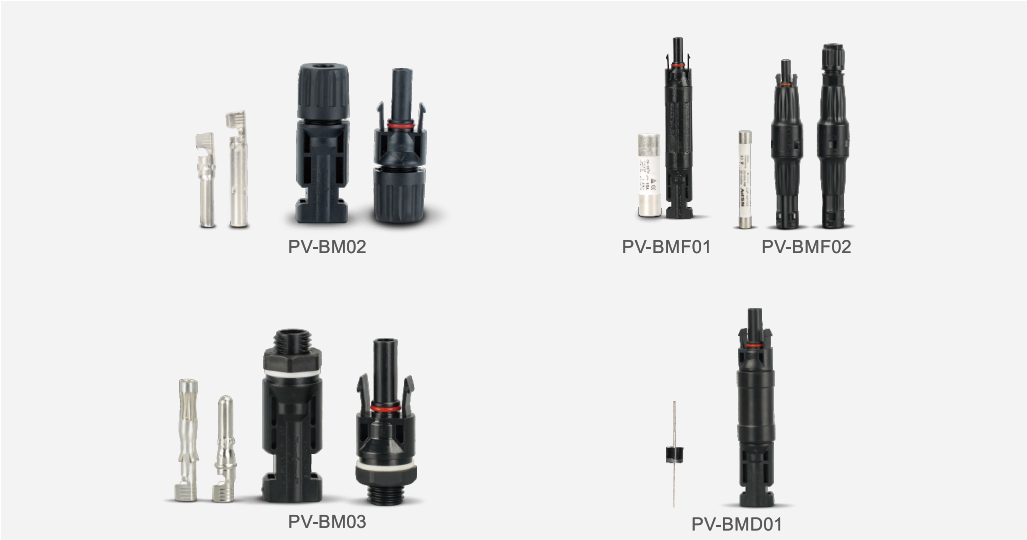

product picture：
