Technical Parameters：
|
Rated voltage (V) |
1000V (TUV) 600V (UL) |
|
Rated current (A) |
50A |
|
Test voltage |
6kV(50HZ,1min) |
|
Connector contact impedance |
<0.5mΩ |
|
Class of protection |
IP67 |
|
Ambient temperature range |
-40℃~+85℃ |
|
Flame retardant grade |
UL-94-Vo |
|
Safety level |
II |
|
Insulating material |
PC/PPO |
|
Terminal material |
Brass rod |
|
Aperture |
Φ4 |

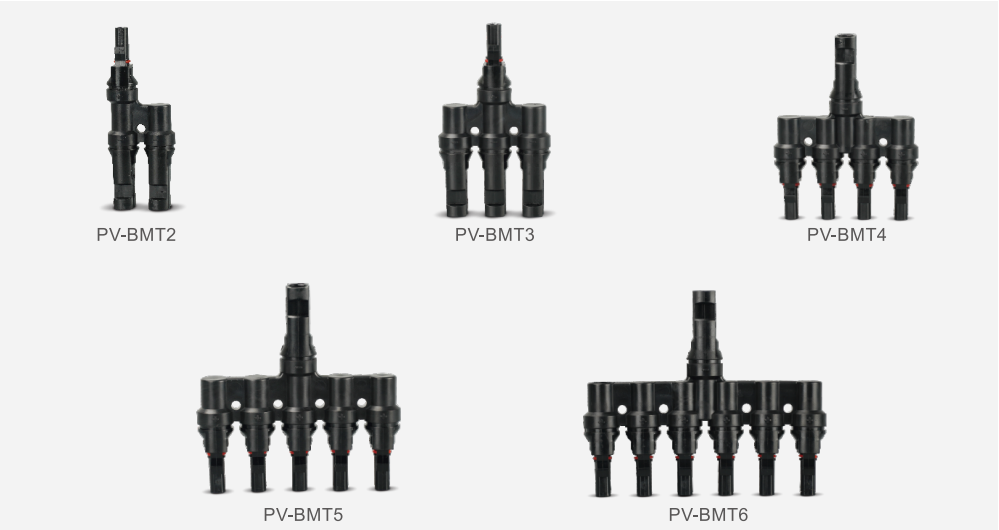

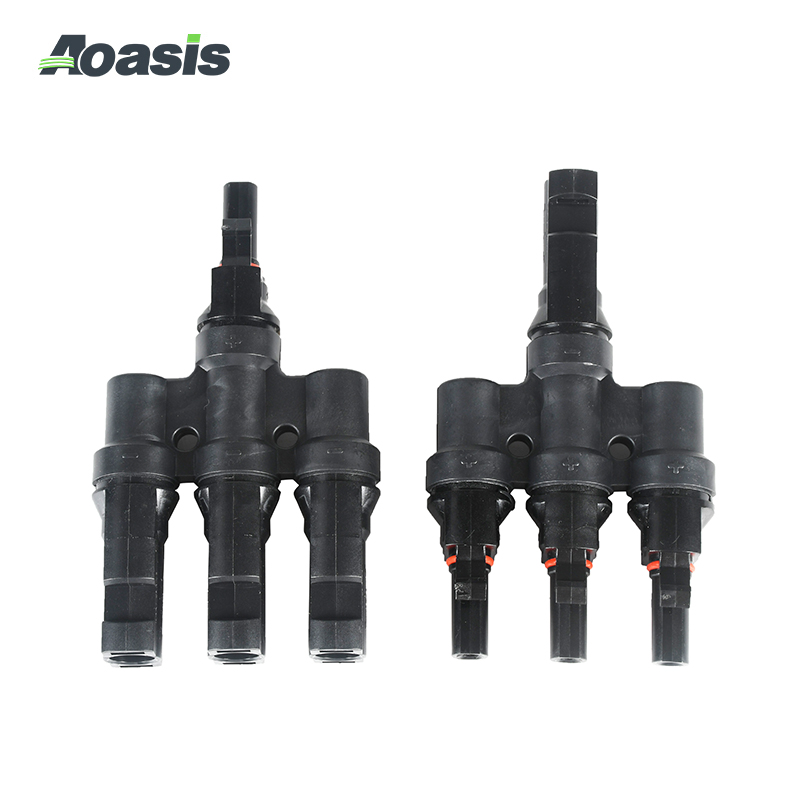

product picture：
