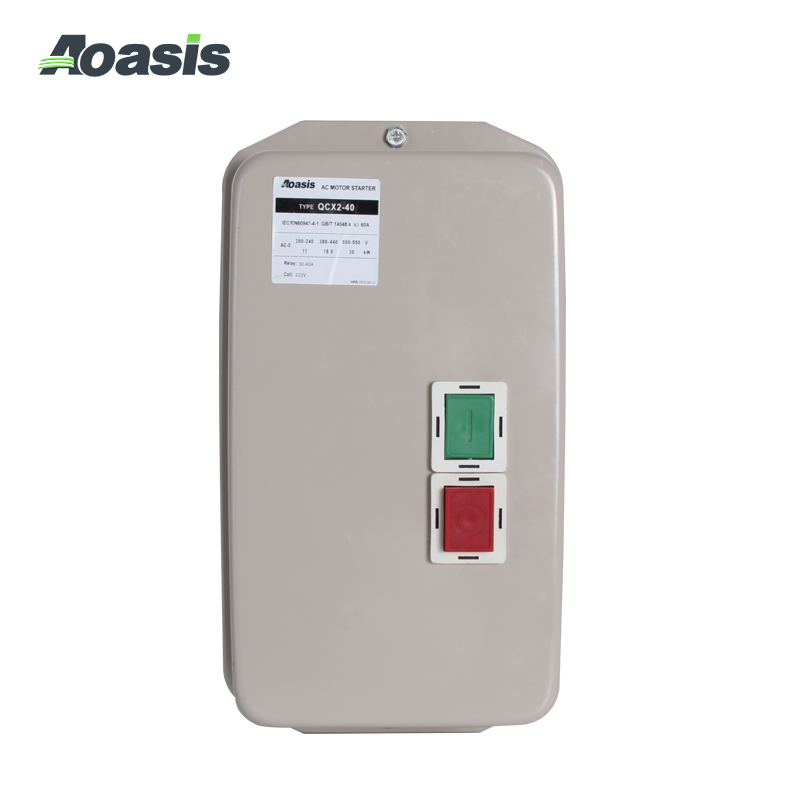

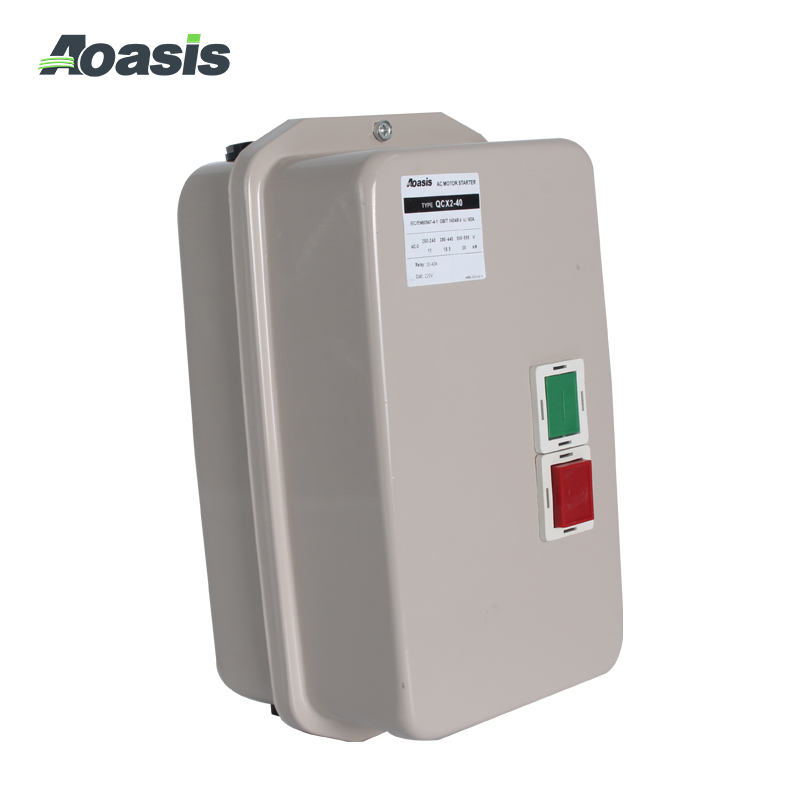

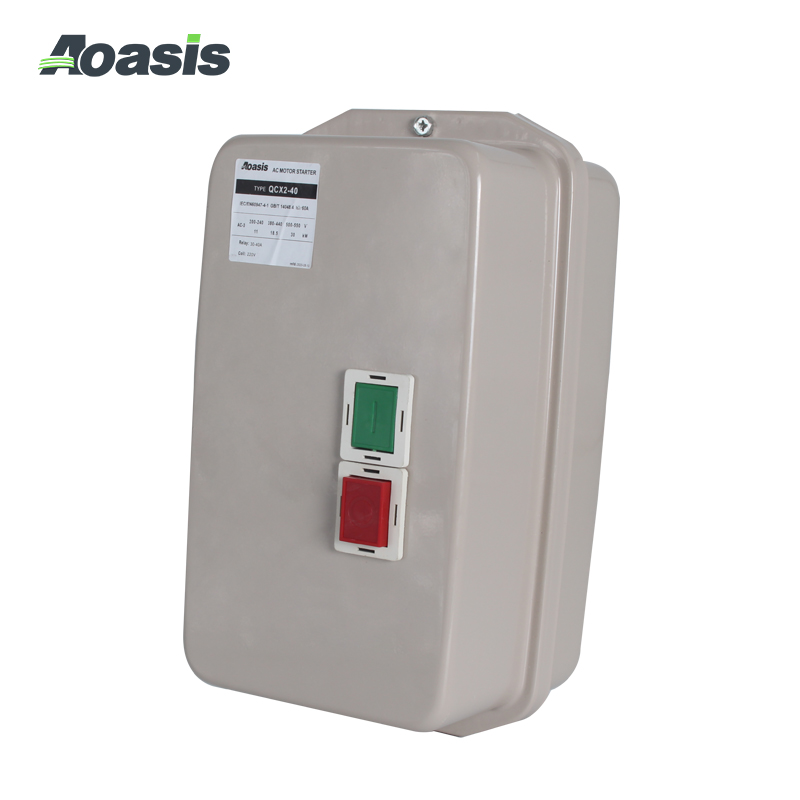

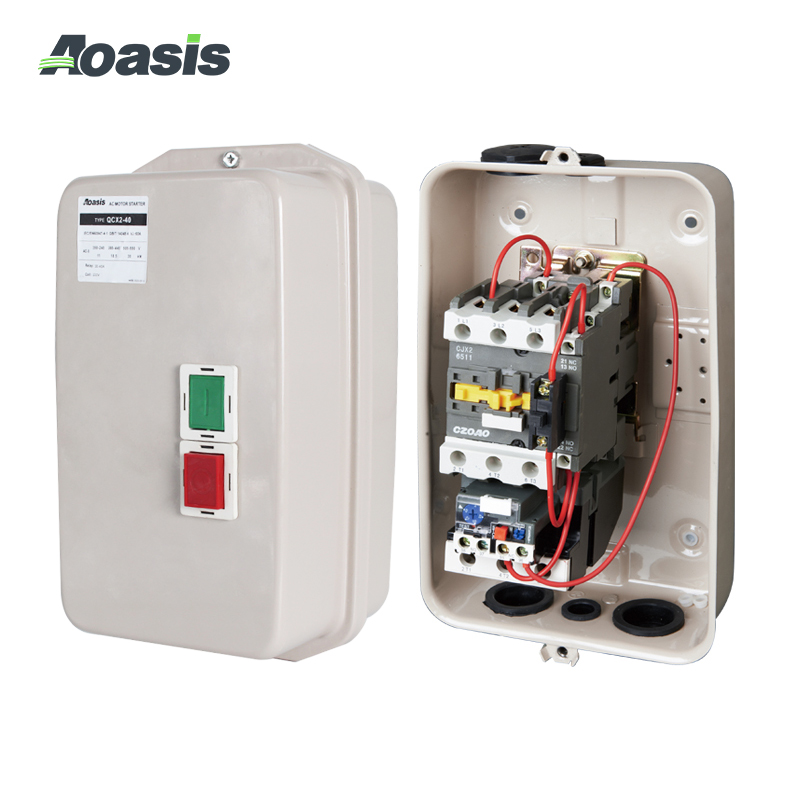

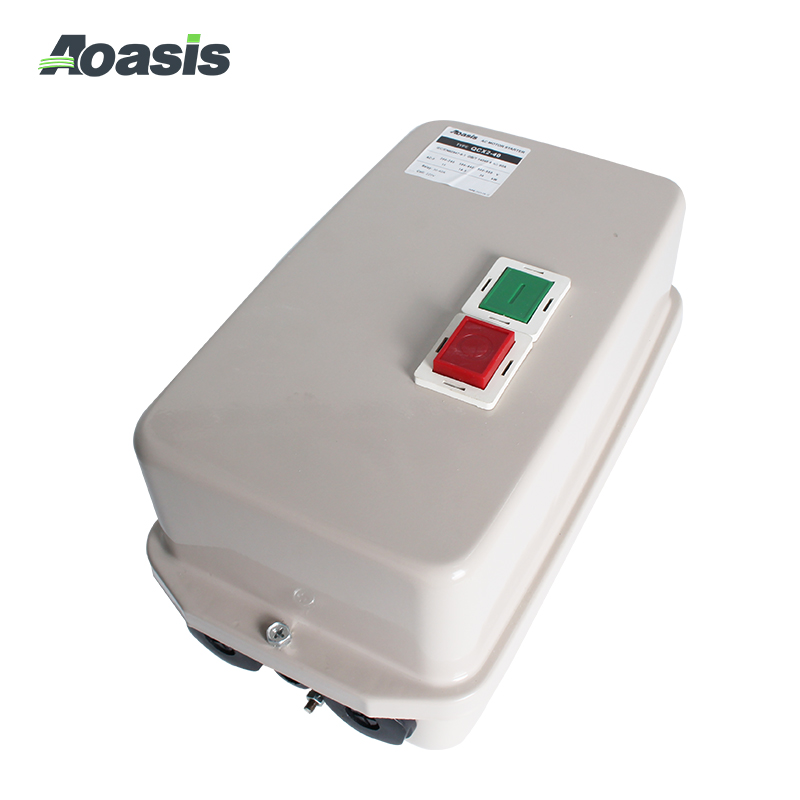

QCX2-口□seriesD.O.L Motor Starters mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 440V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.

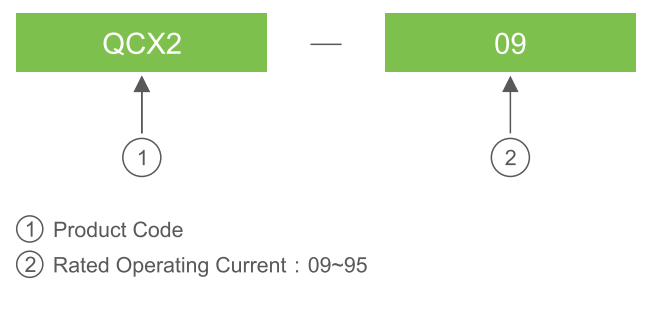

Type and Signification：
Characteristics：
● Protection Grade: IP54,water-proof, dust-proof.
● Can be equipped with indicator light(if need).
Application Condition：
● Altitude: not exceed 2000m.
● Temperature: -5℃~+40℃, average not exceed +35℃ in 24 hours.
● Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature.
● Pollution Grade: Grade lll.
● Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°.
● The product shall be installed and operated at a place without obvious shake, impact and vibration.
Technical Parameters：
|
Type |
Selected AC Contactor |
Thermal Relay |
Setting Range |
Rated Power (AC-3)
IEC60947-4-1 GB14048.4
|
|||
|
200-240V |
380-440V |
||||||
|
kW |
HP |
kW |
HP |
||||
|
QCX2-40 |
CJX2-40 |
JR28-33 |
30-40A |
11 |
15 |
15 |
20 |
|
QCX2-50 |
CJX2-50 |
JR28-33 |
37-50A |
15 |
20 |
18.5 |
25 |
|
QCX2-65 |
CJX2-65 |
JR28-33 |
48-65A |
18.5 |
25 |
22 |
30 |
|
QCX2-65 |
CJX2-65 |
JR28-33 |
55-70A |
18.5 |
25 |
30 |
40 |
|
QCX2-80 |
CJX2-80 |
JR28-33 |
63-80A |
22 |
30 |
30 |
40 |
|
QCX2-95 |
CJX2-95 |
JR28-33 |
80-93A |
25 |
35 |
37 |
50 |

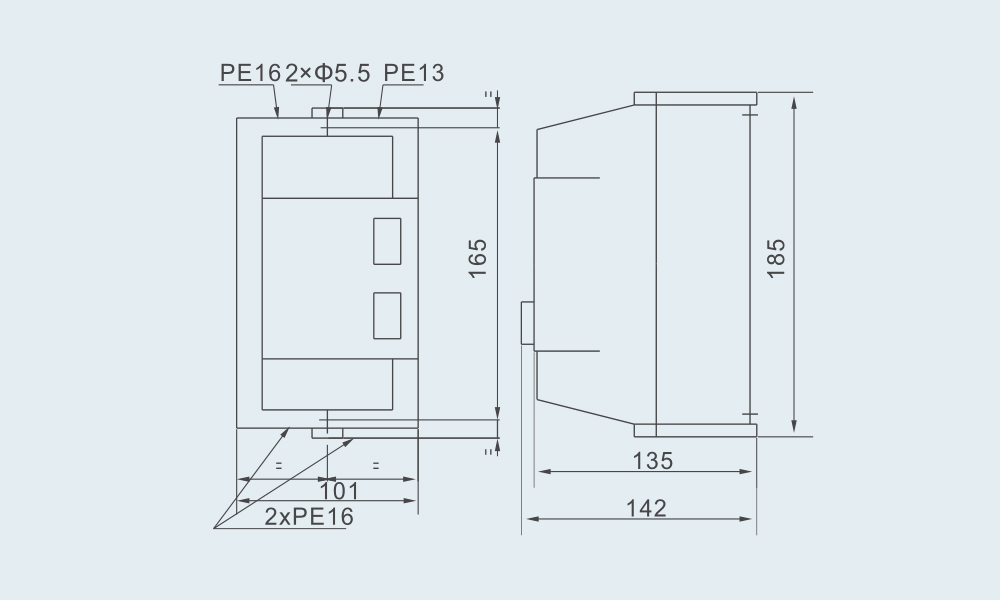

External Dimensions(mm)：
 |
| QCX2-40/50/65/80/95 |
