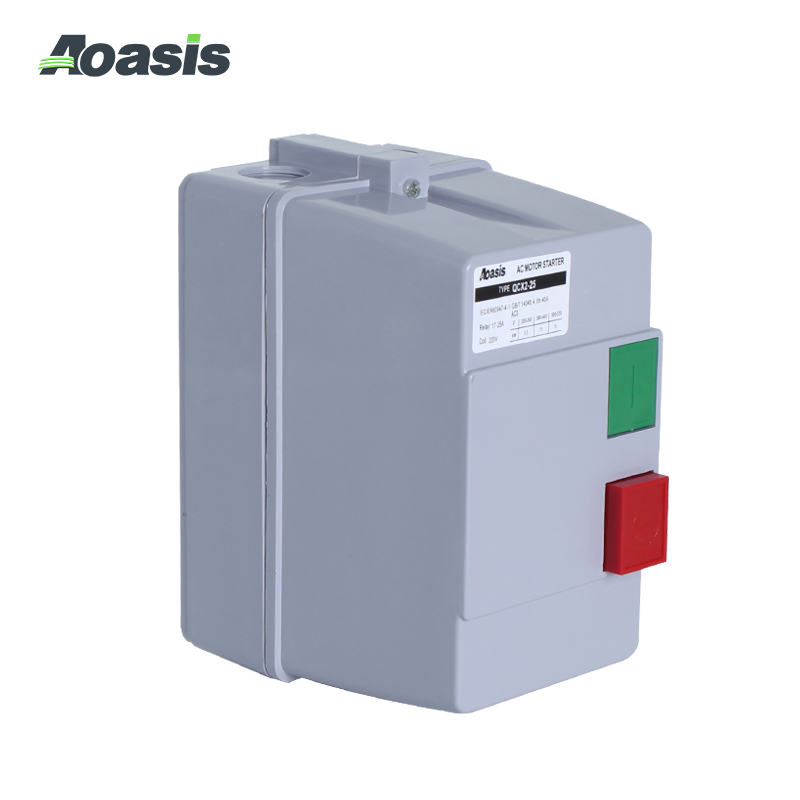

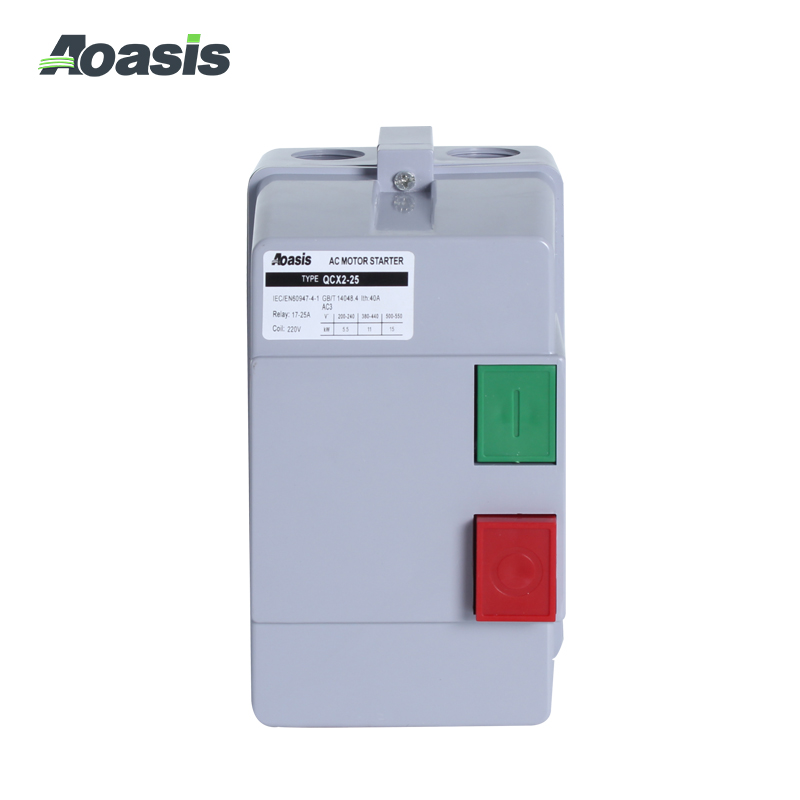

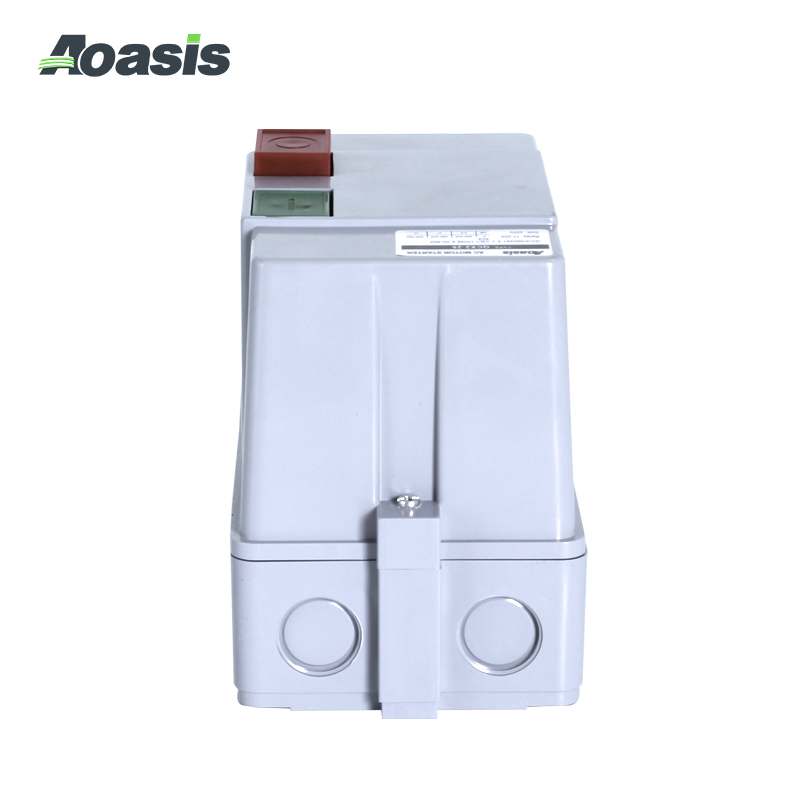

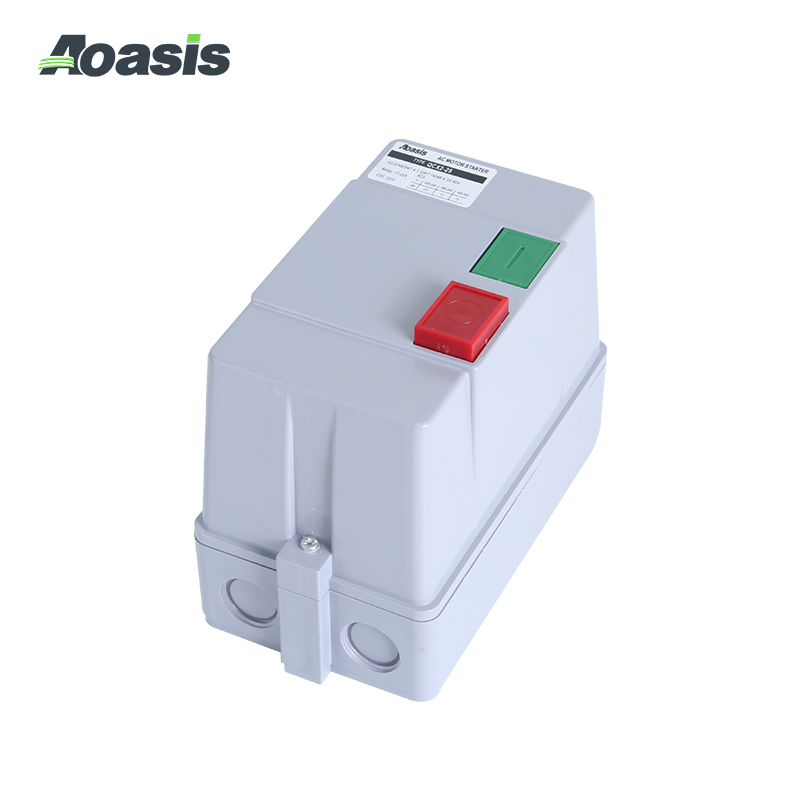

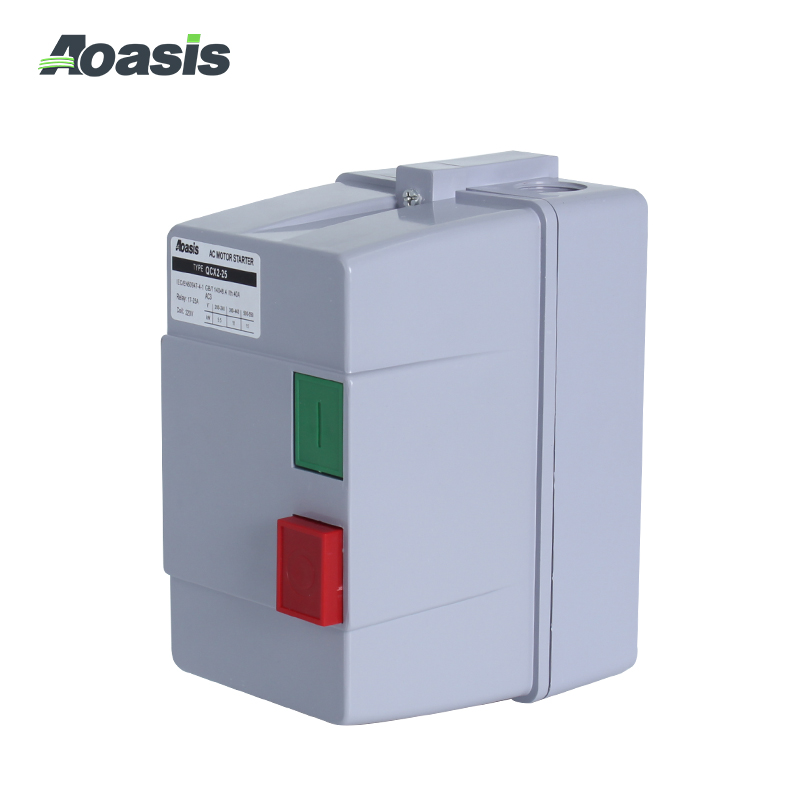

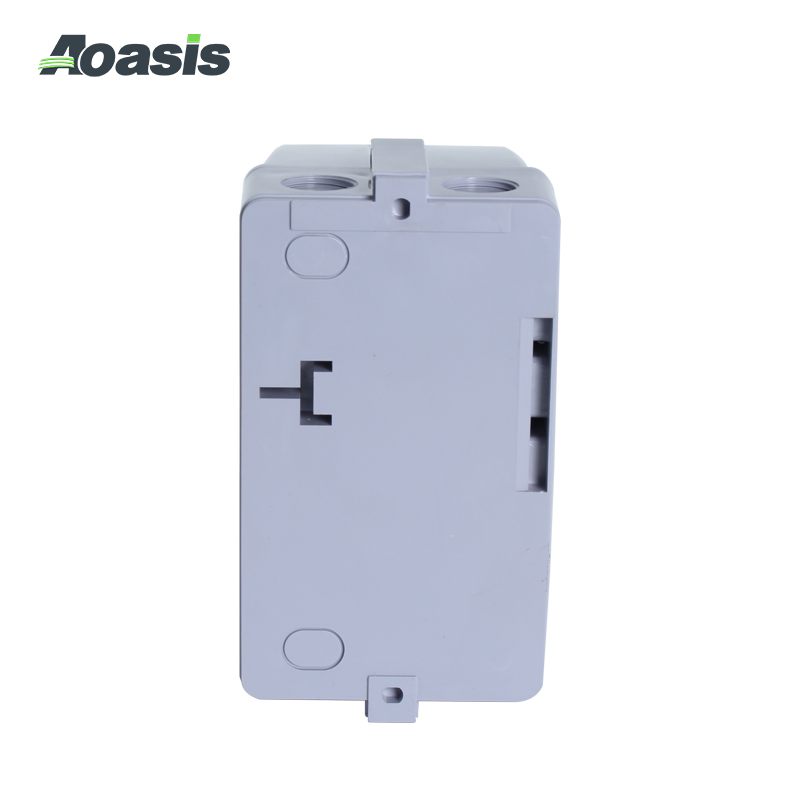

QCX2-口□seriesD.O.L Motor Starters mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 440V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.

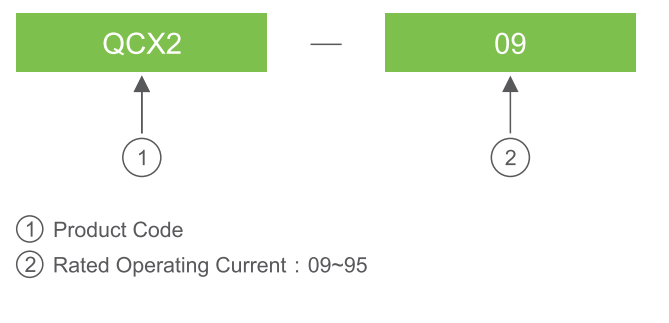

Type and Signification：
Characteristics：
● Protection Grade: IP54,water-proof, dust-proof.
● Can be equipped with indicator light(if need).
Application Condition：
● Altitude: not exceed 2000m.
● Temperature: -5℃~+40℃, average not exceed +35℃ in 24 hours.
● Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature.
● Pollution Grade: Grade lll.
● Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°.
● The product shall be installed and operated at a place without obvious shake, impact and vibration.
Technical Parameters：
|
Type |
Selected AC Contactor |
Thermal Relay |
Setting Range |
Rated Power (AC-3)
IEC60947-4-1 GB14048.4
|
|||
|
200-240V |
380-440V |
||||||
|
kW |
HP |
kW |
HP |
||||
|
QCX2-09 |
CJX2-09 |
JR28-13 |
0.1-0.16A |
0.02 |
1/38 |
0.06 |
1/13 |
|
JR28-13 |
0.16-0.25A |
0.03 |
1/25 |
0.09 |
1/9 |
||
|
JR28-13 |
0.25-0.4A |
0.06 |
1/13 |
0.12 |
1/6 |
||
|
JR28-13 |
0.4-0.63A |
0.09 |
1/9 |
0.25 |
1/3 |
||
|
JR28-13 |
0.63-1A |
0.18 |
1/4 |
0.37 |
1/2 |
||
|
JR28-13 |
1-1.6A |
0.25 |
1/3 |
0.55 |
3/4 |
||
|
JR28-13 |
1.25-2A |
0.37 |
1/2 |
0.55 |
3/4 |
||
|
JR28-13 |
1.6-2.5A |
0.55 |
3/4 |
0.75 |
1 |
||
|
JR28-13 |
2.5-4A |
0.75 |
1 |
1.1 |
1.5 |
||
|
JR28-13 |
4-6A |
1.1 |
1.5 |
2.2 |
3 |
||
|
JR28-13 |
5.5-8A |
1.5 |
2 |
3 |
4 |
||
|
JR28-13 |
7-10A |
2.2 |
3 |
4 |
5.5 |
||
|
QCX2-12 |
CJX2-12 |
JR28-13 |
9-13A |
3 |
4 |
4 |
5.5 |
|
QCX2-18 |
CJX2-18 |
JR28-13 |
12-18A |
4 |
5.5 |
5.5 |
7.5 |
|
QCX2-25 |
CJX2-25 |
JR28-13 |
17-25A |
5.5 |
7.5 |
7.5 |
10 |
|
QCX2-32 |
CJX2-32 |
JR28-13 |
23-32A |
7.5 |
10 |
11 |
15 |

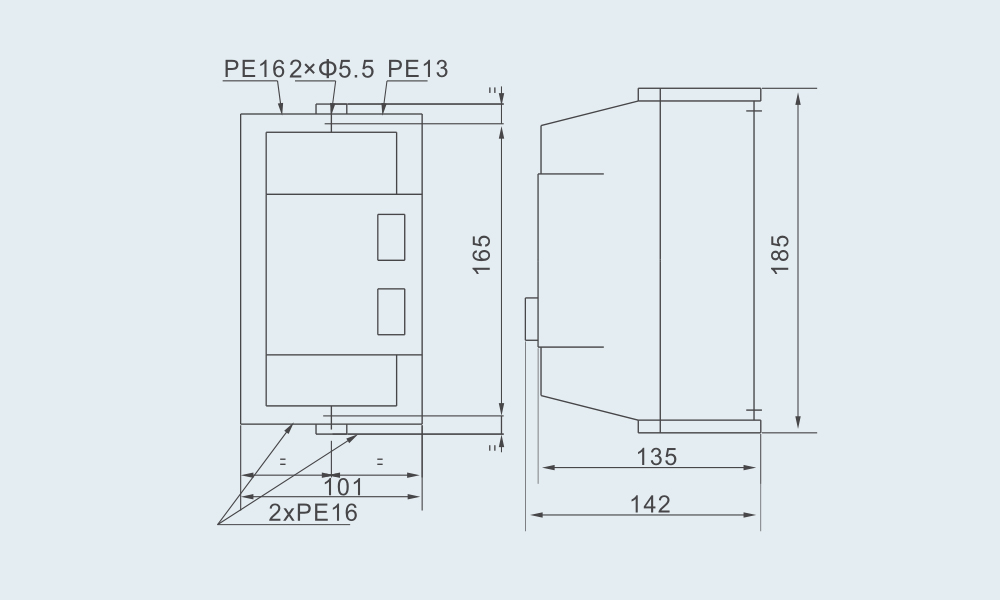

External Dimensions(mm)：
 |
| QCX2-25/32 |
