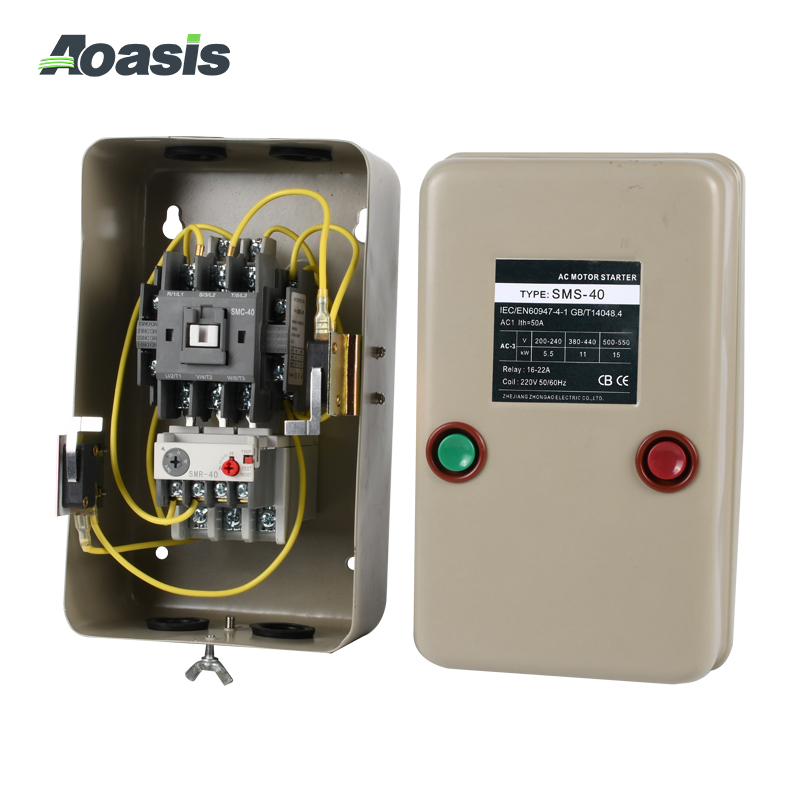

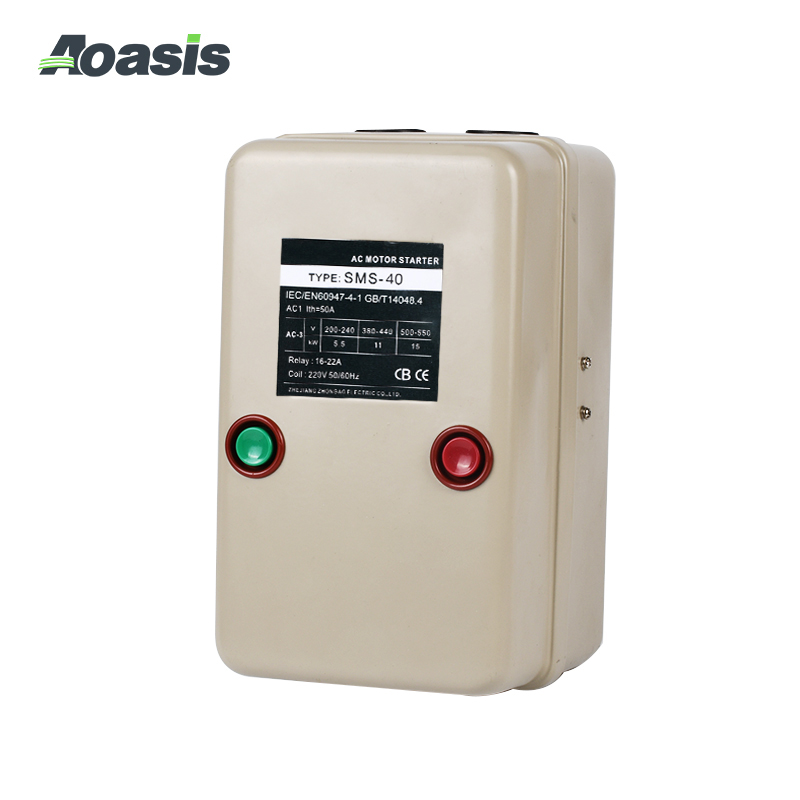

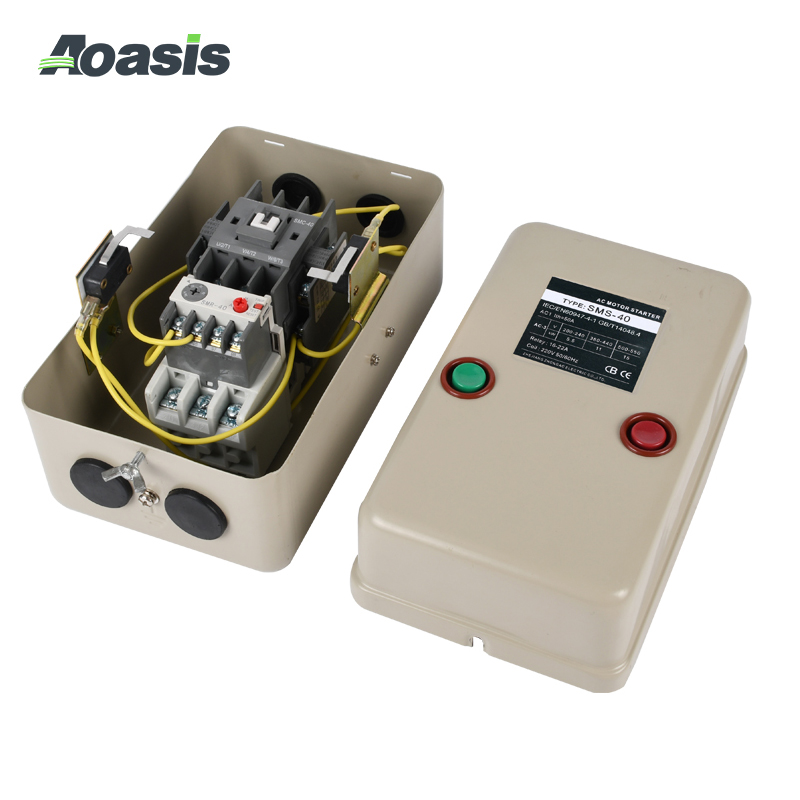

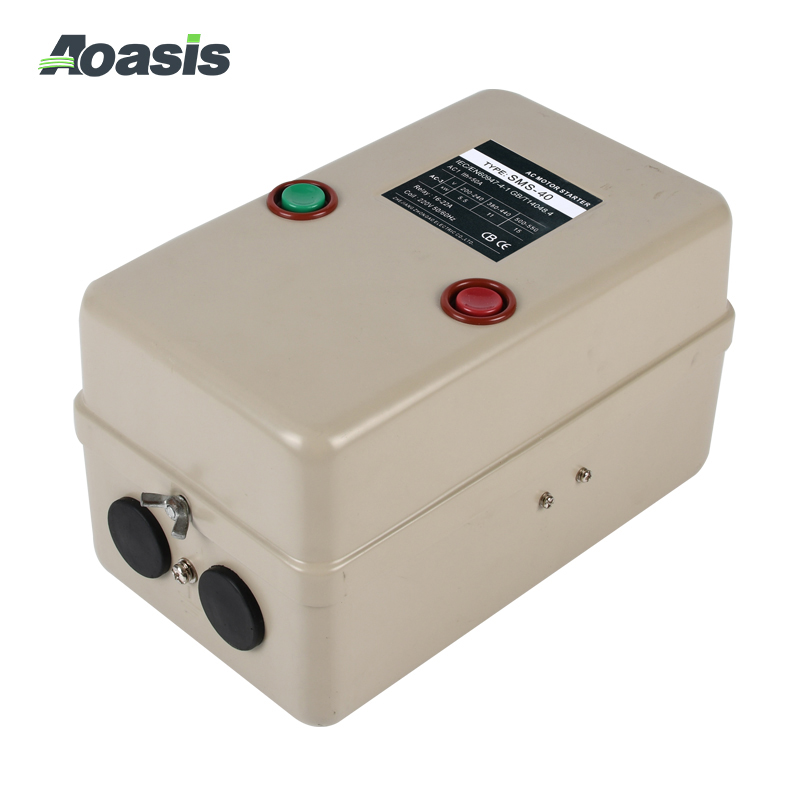

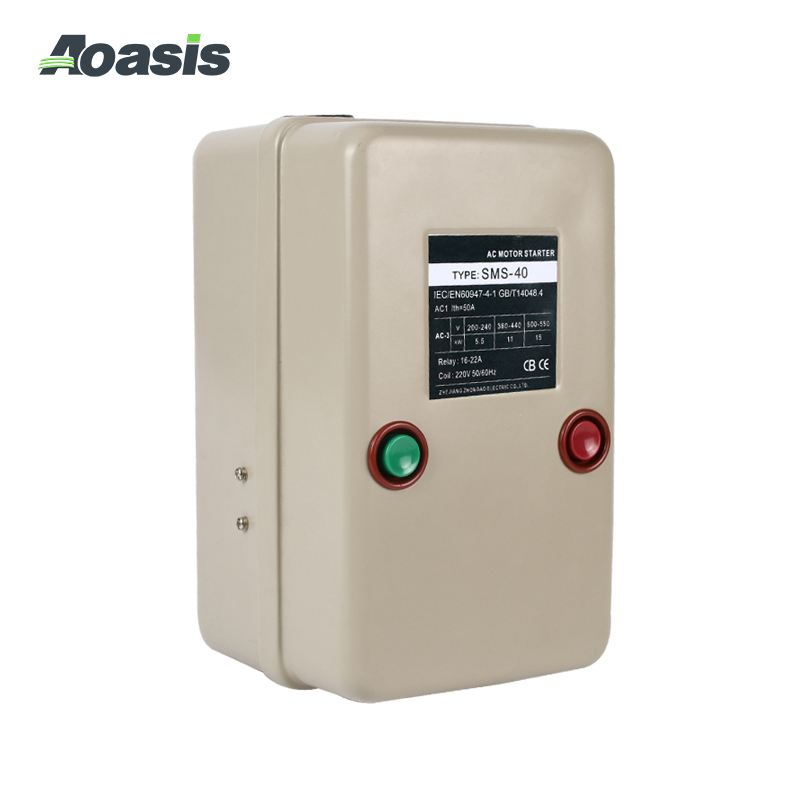

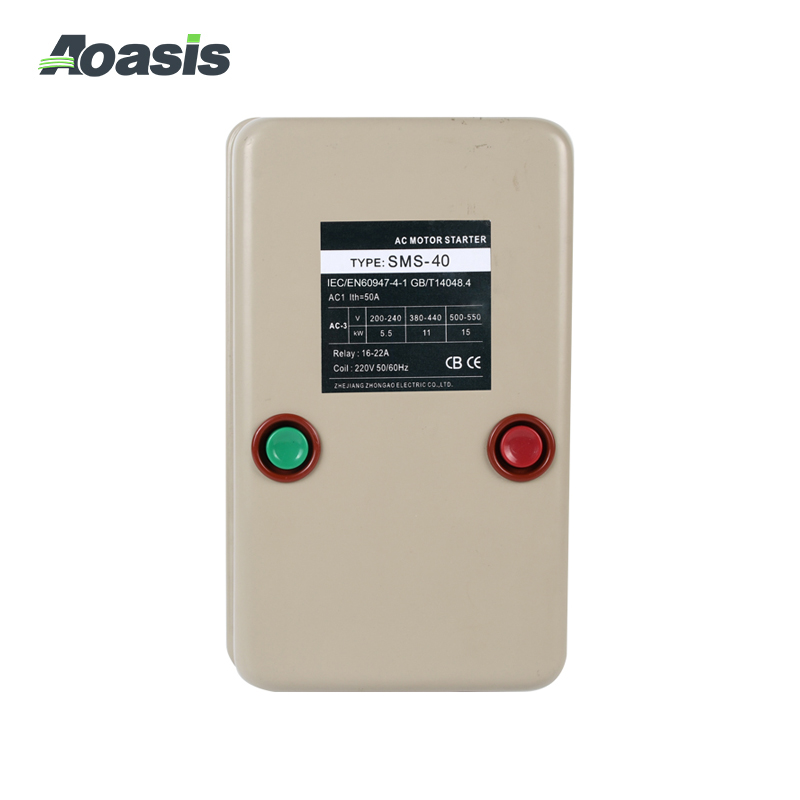

SMS-口口series magnetic starter mainly be applicable to the AC circuits of 5O0Hz/6OHz under rated voltage up to 380V and rated current up to 85A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse.And it can protect the motor from overload and interruption.
Type and Signification：
Application Range：
• Altitude : not exceed 2000m.
• Temperature: -5°C~+40°C,average not exceed +35°C in 24 hour.
• Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of 40°C, higher relativeHumidity is allowable under lower temperature.
• Pollution Grade: Grade lll.
• Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°.
• The product shall be installed and operated at a place without obvious shake, impact and vibration.
Technical Parameters：
|
Type |
Selected AC Contactor |
Thermal Relay |
Setting Range |
Rated Power (AC-3) |
|||
|
200-240V |
380-440V |
||||||
|
kW |
HP |
kW |
HP |
||||
|
SMS-32 |
SMC-32 |
SMR-40 |
18-26A |
5.5 |
7.5 |
7.5 |
10 |
|
7.5 |
10 |
11 |
15 |
||||
|
SMS-40 |
SMC-40 |
SMR-40 |
28-40A |
11 |
15 |
15 |
20 |
| SMS-48 | SMC-48 | SMR-40 | 32-48A |
|
|
|
|

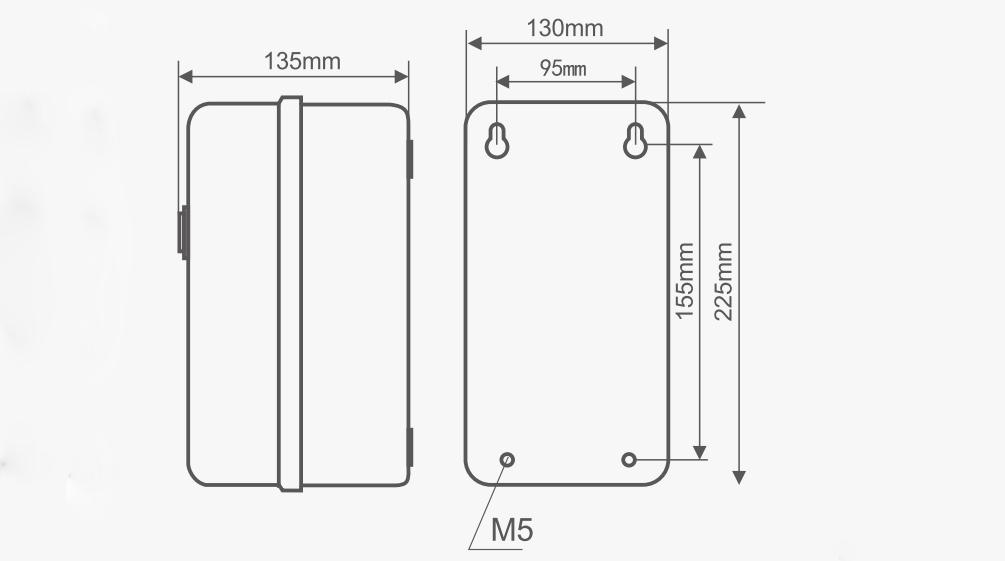

External Dimensions(mm)：
 |
| SMS-32/40 |
