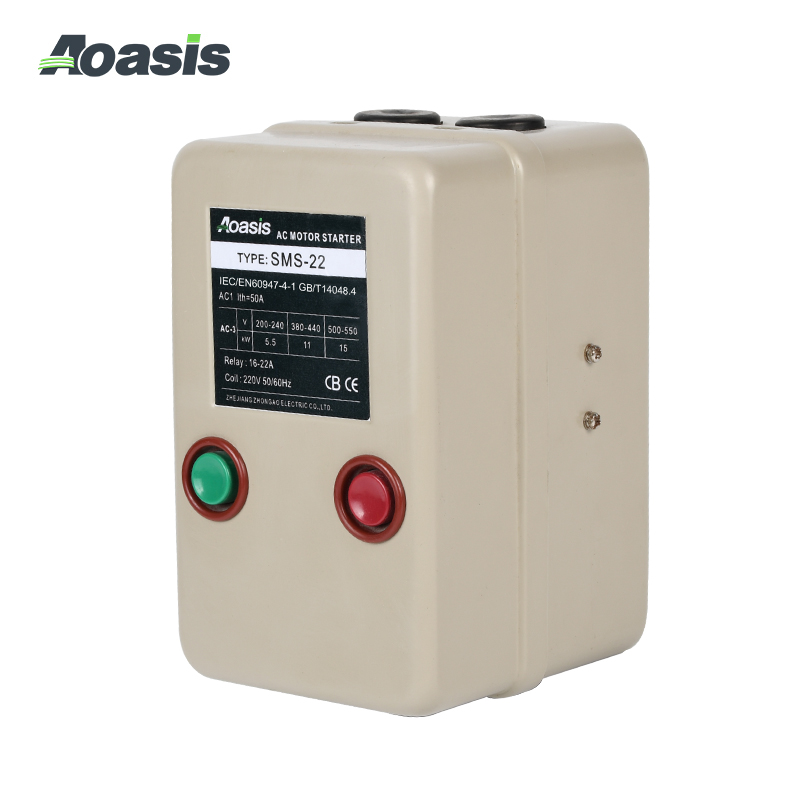

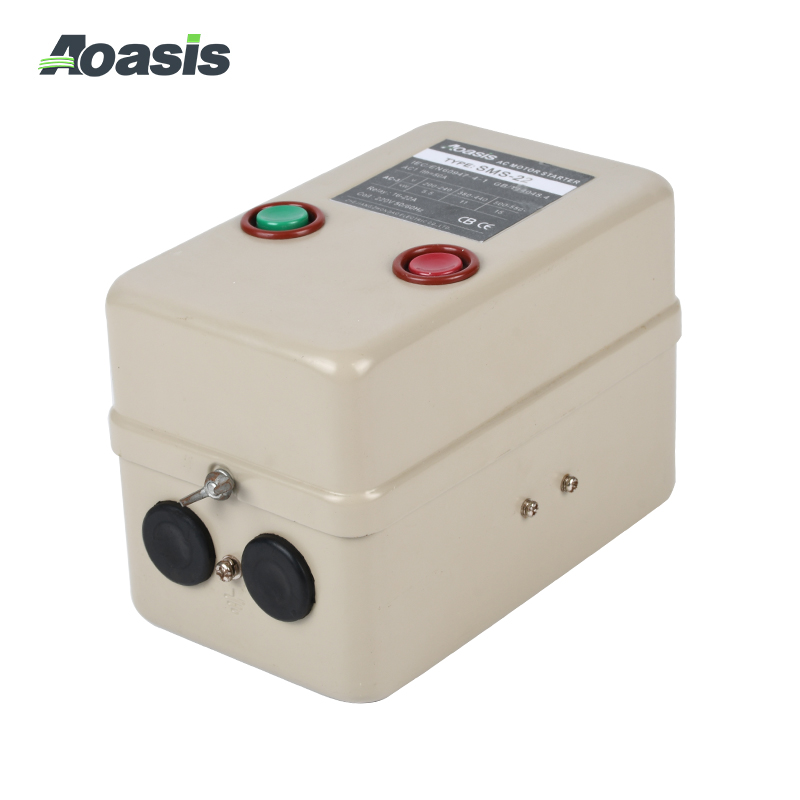

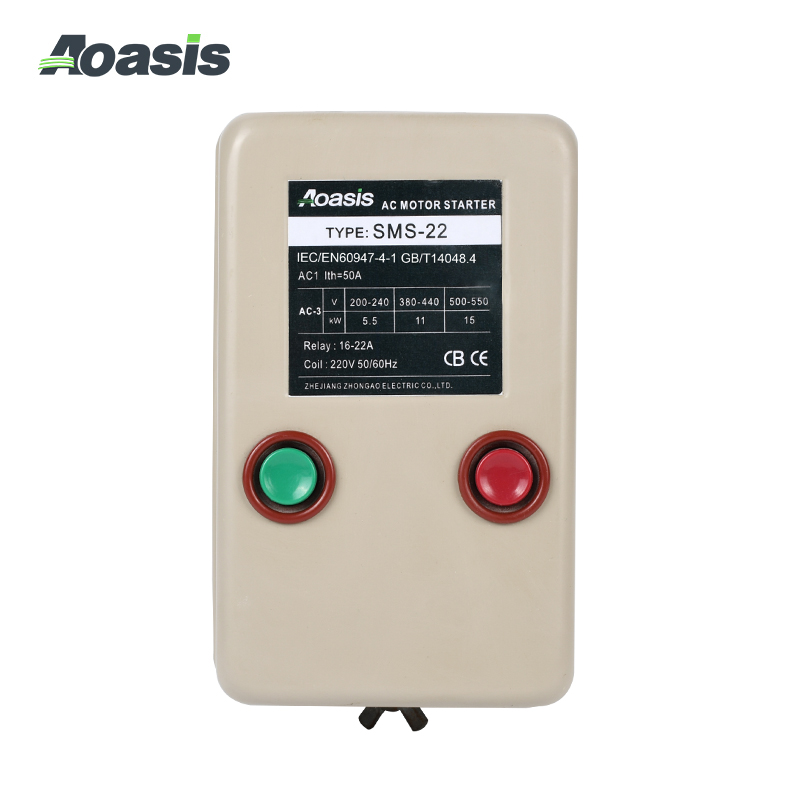

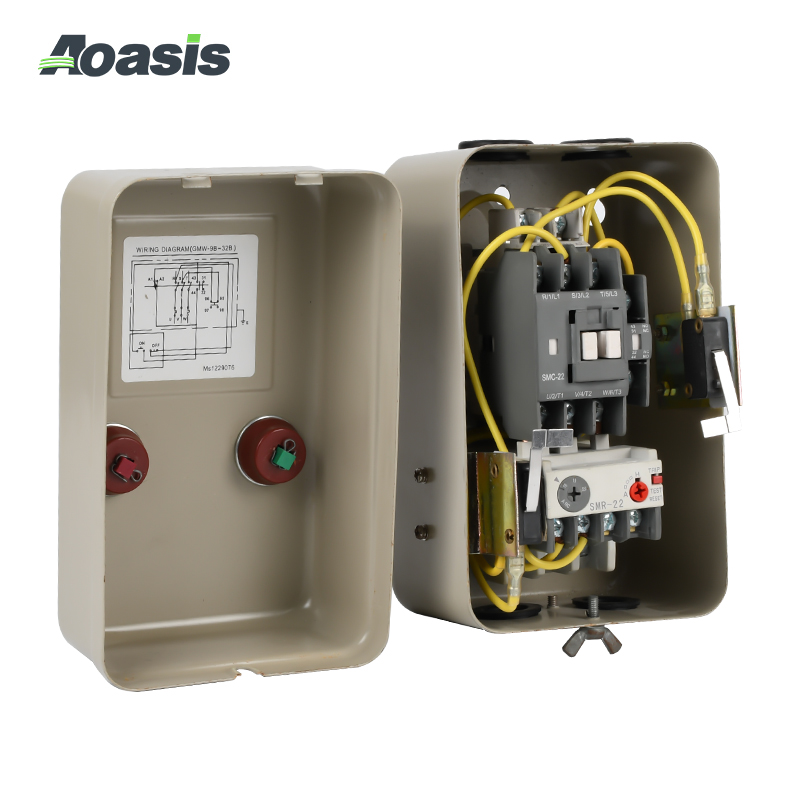

SMS-口口series magnetic starter mainly be applicable to the AC circuits of 5O0Hz/6OHz under rated voltage up to 380V and rated current up to 85A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse.And it can protect the motor from overload and interruption.
Type and Signification：
Application Range：
• Altitude : not exceed 2000m.
• Temperature: -5°C~+40°C,average not exceed +35°C in 24 hour.
• Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of 40°C, higher relativeHumidity is allowable under lower temperature.
• Pollution Grade: Grade lll.
• Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°.
• The product shall be installed and operated at a place without obvious shake, impact and vibration.
Technical Parameters：
|
Type |
Selected AC Contactor |
Thermal Relay |
Setting Range |
Rated Power (AC-3)
IEC60947-4-1 GB14048.4
|
|||
|
200-240V |
380-440V |
||||||
|
kW |
HP |
kW |
HP |
||||
|
SMS-9 |
SMC-9 |
SMR-22 |
0.1-0.16A |
0.02 |
1/38 |
0.06 |
1/13 |
|
SMR-22 |
0.16-0.25A |
0.03 |
1/25 |
0.09 |
1/9 |
||
|
SMR-22 |
0.25-0.4A |
0.06 |
1/13 |
0.12 |
1/6 |
||
|
SMR-22 |
0.4-0.63A |
0.09 |
1/9 |
0.25 |
1/3 |
||
|
SMR-22 |
0.63-1A |
0.18 |
1/4 |
0.37 |
1/2 |
||
|
SMR-22 |
1-1.6A |
0.25 |
1/3 |
0.55 |
3/4 |
||
|
SMR-22 |
16.-2.5A |
0.55 |
3/4 |
0.75 |
1 |
||
|
SMR-22 |
2.5-4A |
0.75 |
1 |
1.1 |
1.5 |
||
|
SMR-22 |
4-6A |
1.1 |
1.5 |
2.2 |
3 |
||
|
SMR-22 |
5-8A |
1.5 |
2 |
3 |
4 |
||
|
SMR-22 |
6-9A |
1.5 |
2 |
4 |
5.5 |
||
|
SMR-22 |
7-10A |
2.2 |
3 |
4 |
5.5 |
||
|
SMS-12 |
SMC-12 |
SMR-22 |
9-13A |
3 |
4 |
4 |
5.5 |
|
SMS-18 |
SMC-18 |
SMR-22 |
12-18A |
4 |
5.4 |
5.5 |
7.5 |
|
SMS-22 |
SMC-22 |
SMR-22 |
16-22A |
5.5 |
7.5 |
7.5 |
10 |

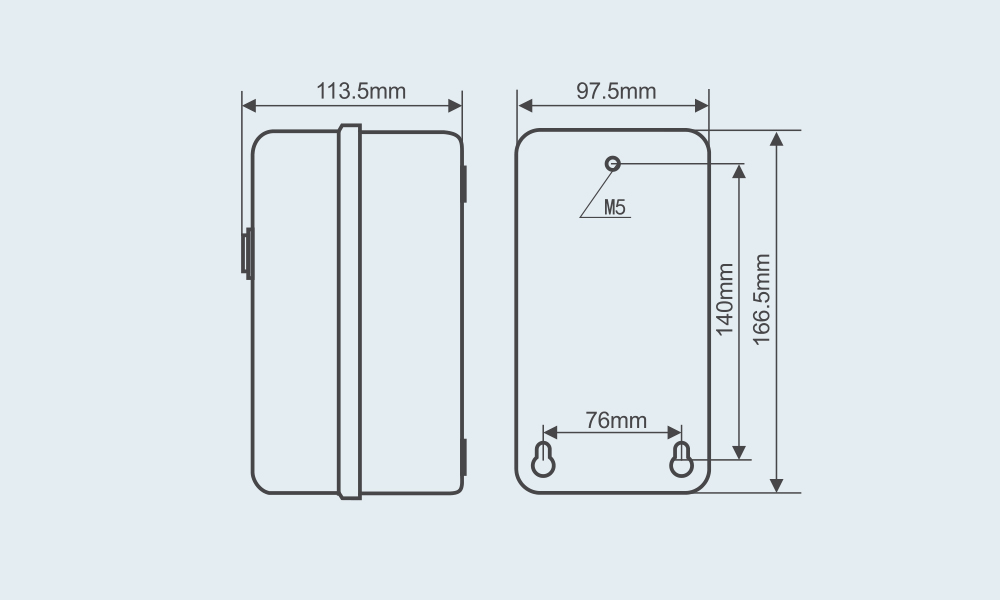

External Dimensions：
 |
| SMS-9/12/18/22 |
