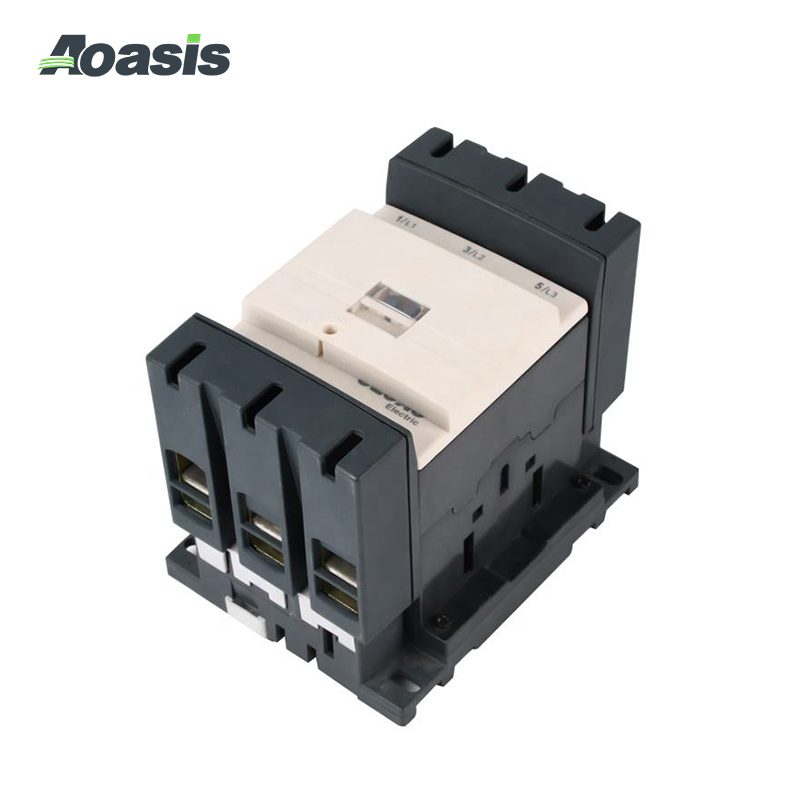

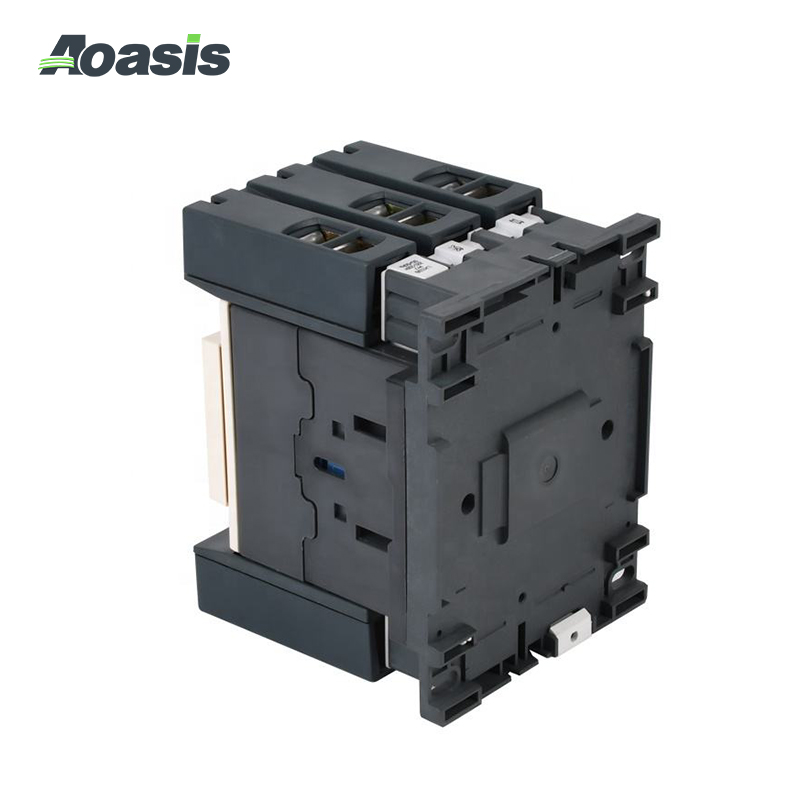

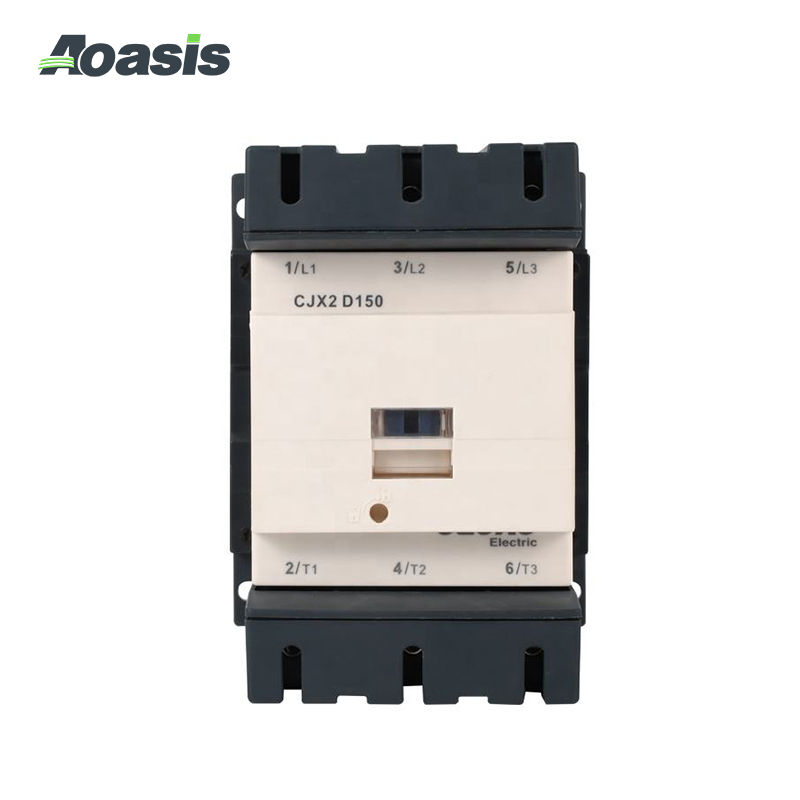

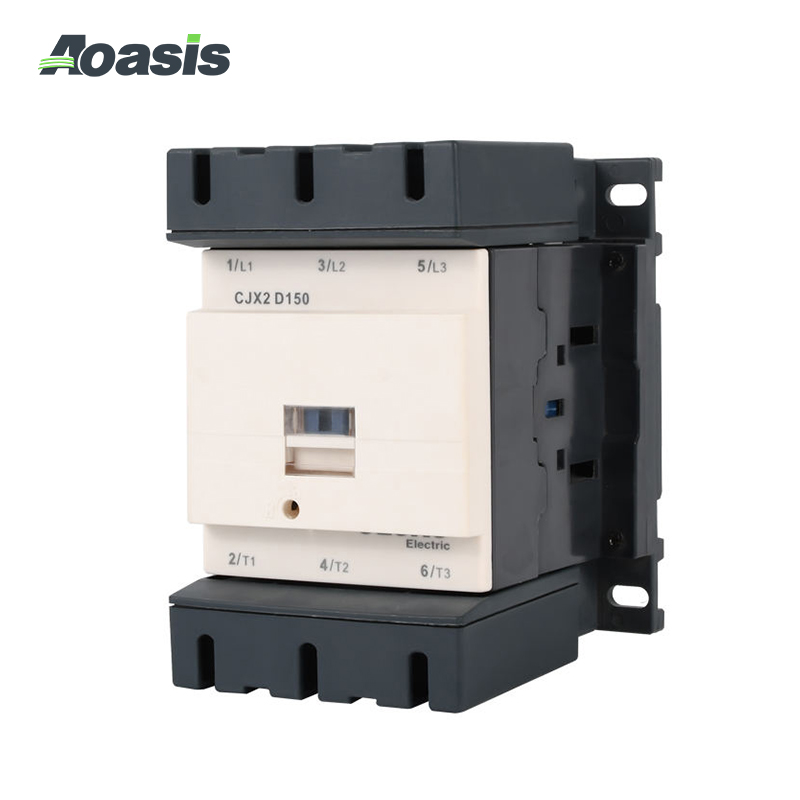

CJX2-口口series contactor is suitable for using in the circuit up to the rated voltage 600V AC 50Hz or 60Hz, rated current 170A, for making and breaking and frequent starting, controlling the AC motor which is combined with the auxiliary contact group, air delay, machine interlock and etc. It is combined into the delay contactor, reversing contactor, switchover capacitor contactor, star-delta starter, with the thermal JR28 relay. It is combined into the D.O.L Motor Starters.
Technical parameters:
|
TYPE |
CJX2-115 |
CJX2-150 |
CJX2-170 |
||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
30/40 |
40/50 |
55/75 |
|
|
380-440V |
55/75 |
75/100 |
90/125 |
||
|
500-550V |
75/100 |
90/125 |
110/145 |
||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
125 |
165 |
175 |
|
|
380-440V |
115 |
150 |
170 |
||
|
500-550V |
200 |
250 |
250 |
||
|
Conventional Thermal Current Ith:(A) |
200 |
250 |
250 |
||
|
Rated Insulated Voltage Ui:(V) |
1000 |
||||
|
Auxiliary Contact
AC-15 |
Contact Arrangement |
Standard |
--- |
||
|
Special |
--- |
||||
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
--- |
|||
|
380-440V |
--- |
||||
|
Conventional Thermal Current Ith:(A) |
--- |
||||
|
Electric Life(Million Times) |
0.8 |
||||
|
Mechanical Life(Million Times) |
5 |
||||

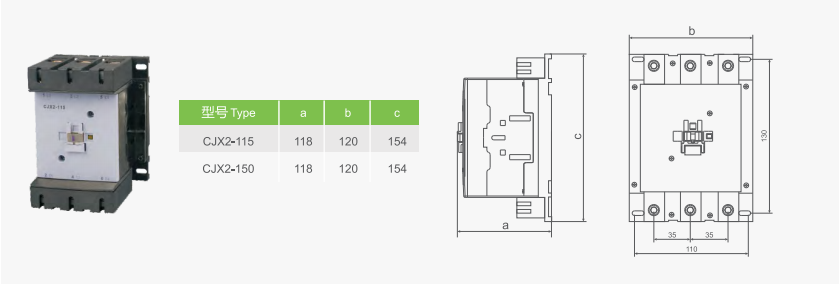

External Dimensions(mm) H(height):
