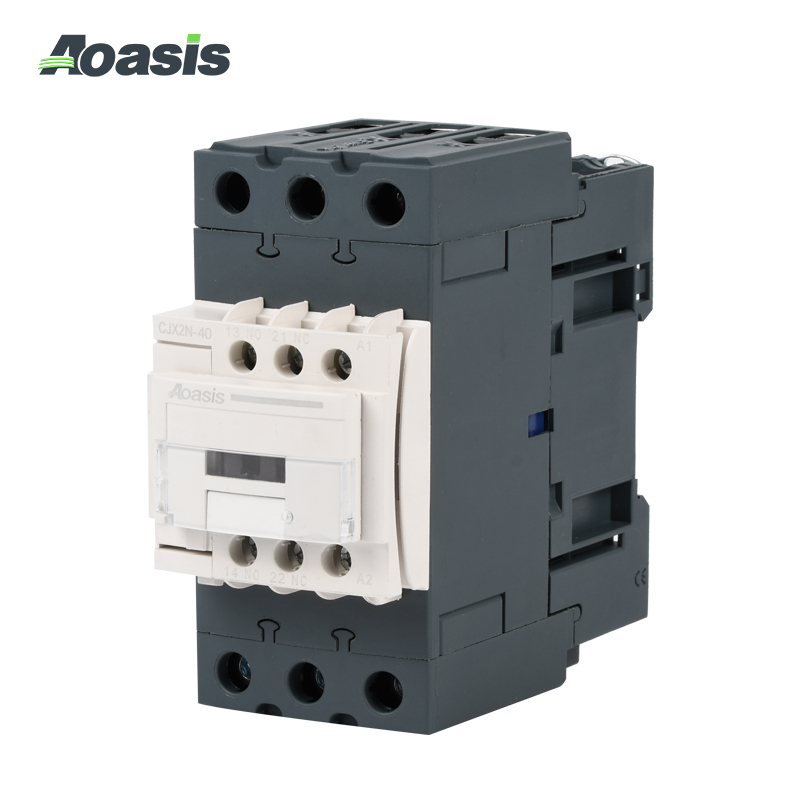

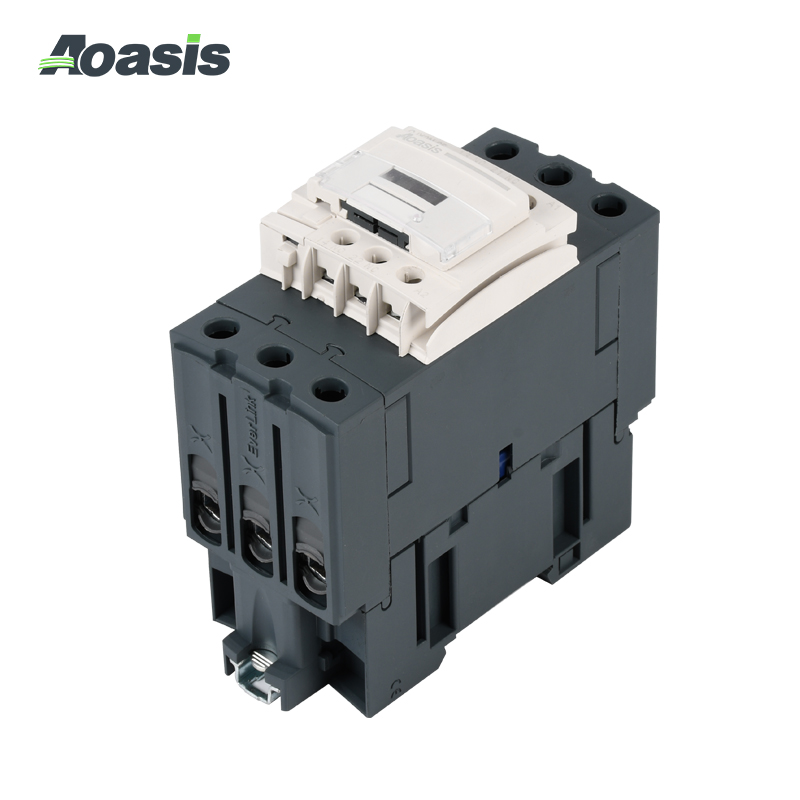

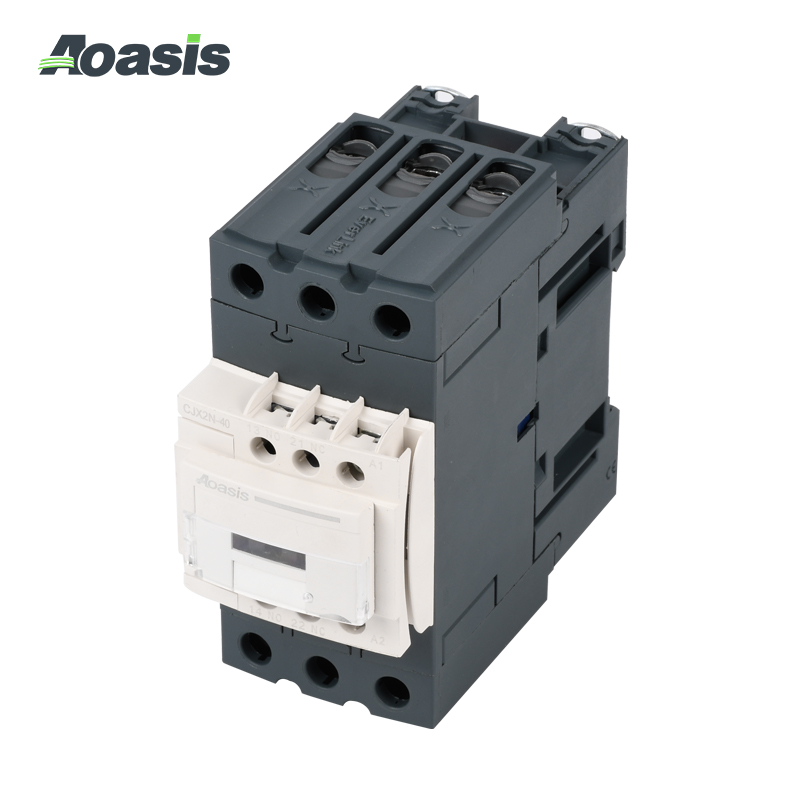

CJX2N series AC contactor is suitable for working voltage AC 50Hz or 60Hz, working voltage up to 660V, current up to 95A circuit, for remote connecting and breaking circuit and frequent start. The AC motor is controlled and can be plugged into the LRD thermal overload relay to form a motor starter.
Technical Parameters:
|
Type |
CJX2N-40 |
CJX2N-50 |
CJX2N-65 |
CJX2N-80 |
CJX2N-95 |
|||
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
11/15 |
15/20 |
18.5/25 |
22/30 |
25/35 |
||
|
380-440V |
18.5/25 |
22/30 |
30/40 |
37/50 |
45/60 |
|||
|
500-550V |
22/30 |
30/40 |
37/50 |
45/60 |
45/60 |
|||
|
Rated Current A(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
50 |
60 |
75 | 90 | 110 | ||
|
380-440V |
40 | 50 | 65 | 80 | 95 | |||
|
380-440V |
34 | 39 | 42 | 49 | 59 | |||
|
Conventional Thermal Current lth:(A) |
60 | 80 | 80 | 110 | 130 | |||
|
Rated Insulated Voltage Ui:(V) |
690 |
|||||||
|
Auxiliary Contact AC-15 |
Contact
Arrangement |
Standard |
1NO+1NC |
|||||
|
Special |
---- | |||||||
|
Rated Current A(AC-15) IEC60947-5-1 GB14048.5 |
200-240V |
1.6 | ||||||
|
380-440V |
0.95 | |||||||
|
Conventional Thermal Current lth:(A) |
16 | |||||||
|
Electric Life(Million Times)(AC-3) |
1 | |||||||
| Mechanical Life(Million Times) | 5 | |||||||
Circuits Characteristic and Terminal Connection:
|
Connection Circuits |
CJX2N-40 |
CJX2N-50 |
CJX2N-65 |
CJX2N-80 |
CJX2N-95 |
|
|
Coil Voltage(V) |
AC 50Hz/60Hz |
24，48，110，220/230，380/400，420/440 |
||||
|
Acting Range |
Attraction(Hot) |
（85%～110%）Us；+40℃ |
||||
|
Release(Cold) |
AC:(20%～75%）Us,DC:(10%～75%）Us;-5℃ |
|||||
|
Installation |
35mm DIN Rail or Screw(M4) |
|||||
|
Control Circuit Connection |
Min./Max,sectional area |
|||||
|
Flexible wire
(without terminal)
|
1wire |
4/50 |
10/120 |
|||
|
2wires |
4/25 |
10/120+10/50 |
||||
|
Flexible wire
(with terminal)
|
1wire |
4/50 |
10/120 |
|||
|
2wires |
4/16 |
10/120+10/50 |
||||
|
Hard wire
(without terminal)
|
1wire |
4/50 |
10/120 |
|||
|
2wires |
4/25 |
10/120+10/50 |
||||
