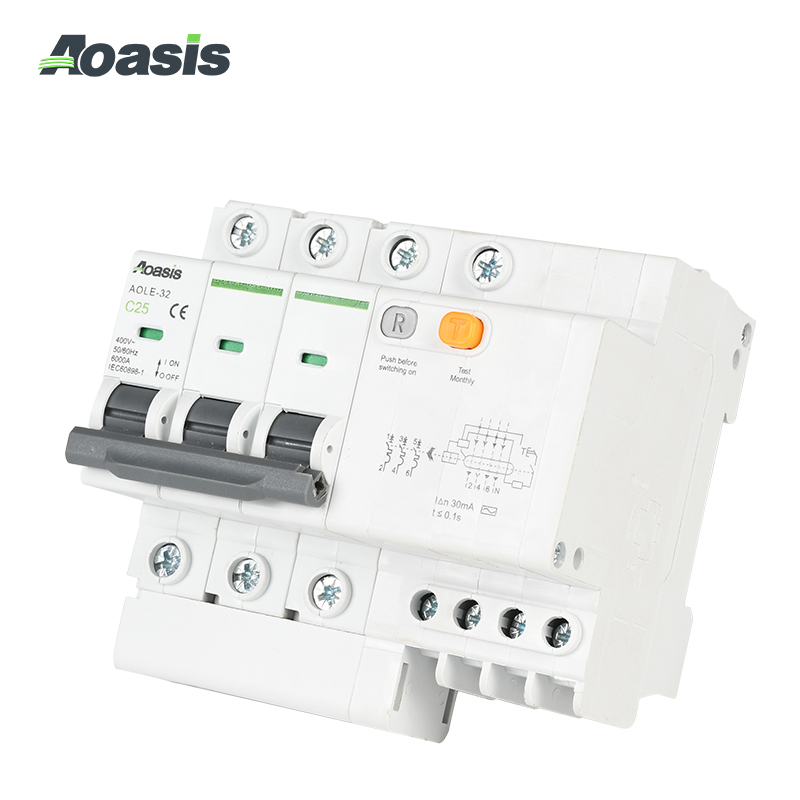

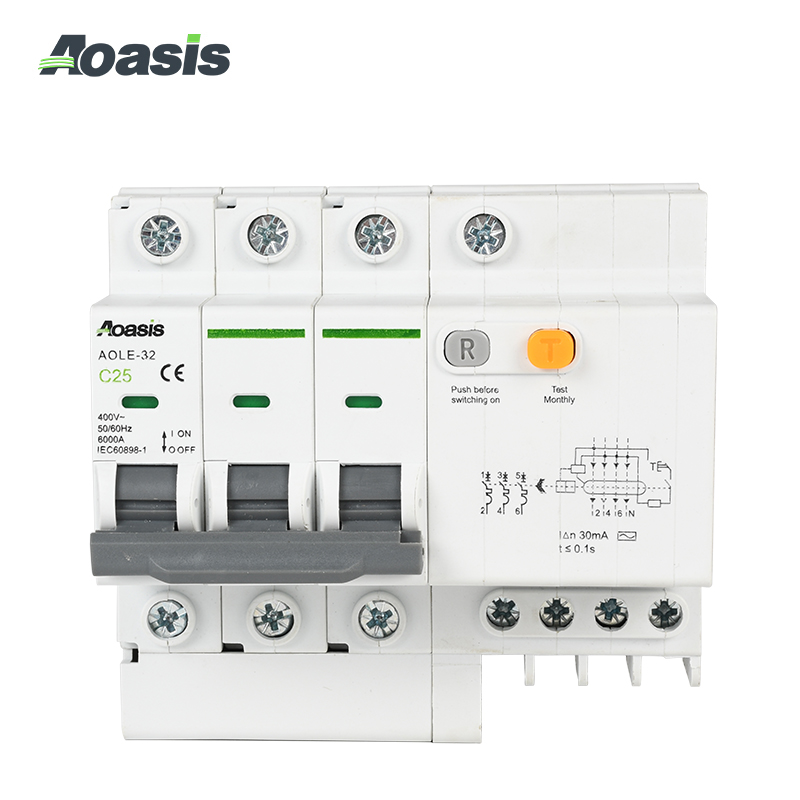

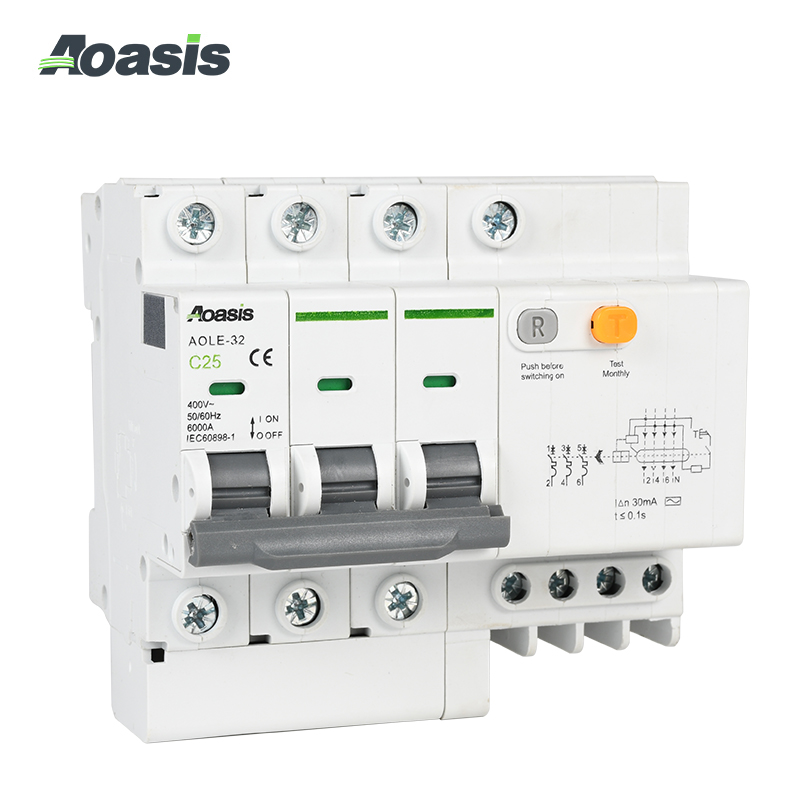

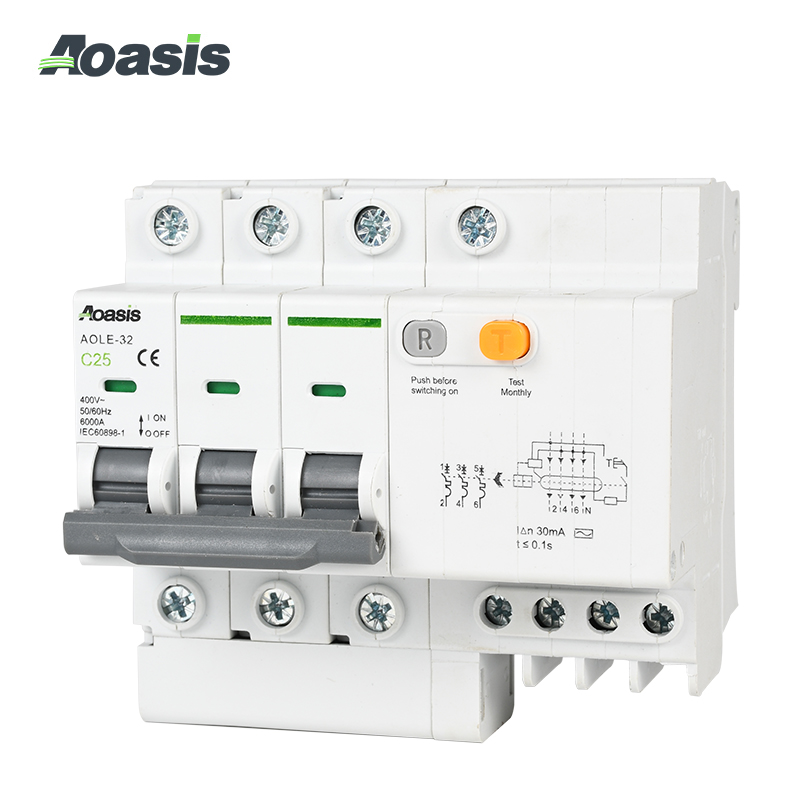

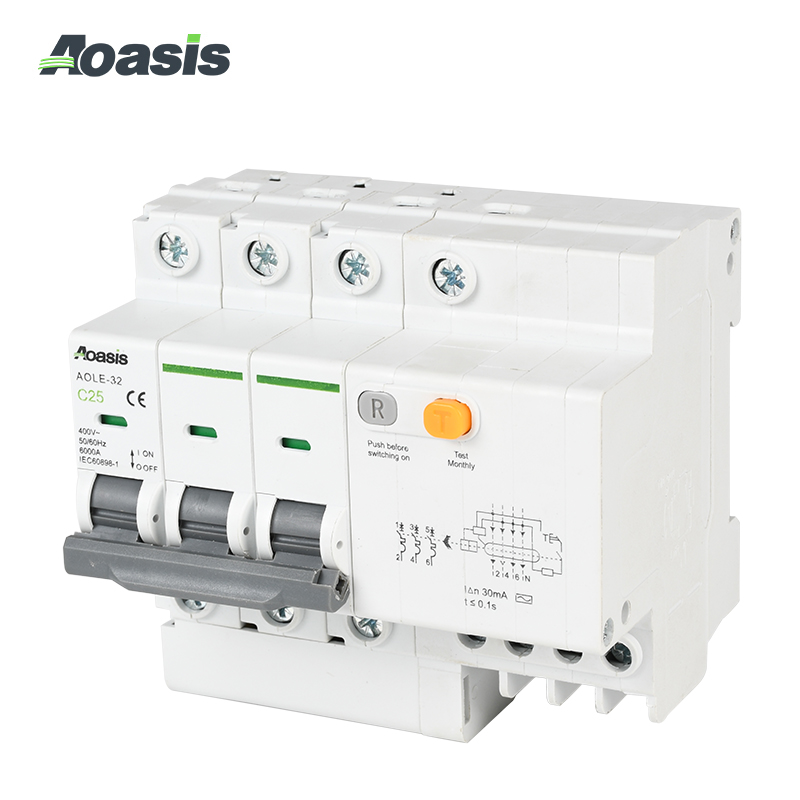

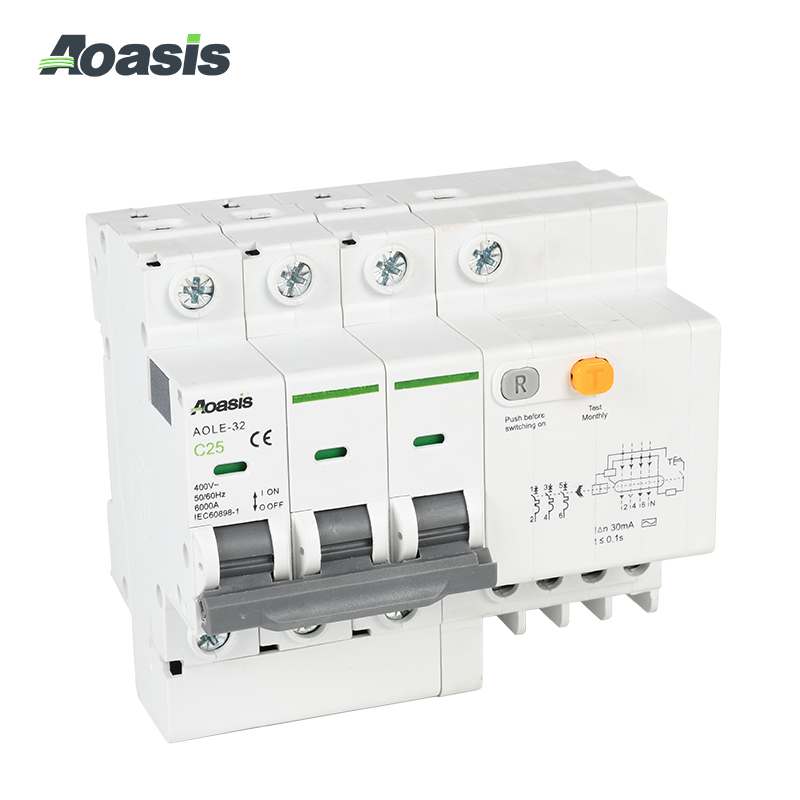

AOLE series residual currentaction circuit breaker is suitable for use in line AC 50Hz/60Hz, rated current up to 63A. Here's how the AOLE series works. When a person is electrocuted or the leakage current of the grid exceeds the specified value, the circuit breaker with the remaining current can quickly cut off the faulty power supply in a very short time, in order to protect the safety of the person and electrical equipment. It can also be used for overload and short circuit protection of lines, and normally can also be used to infrequently switch on and off electrical equipment and lighting lines.AOLE series is suitable for industrial and commerciallighting distribution systems.
Product Selection：
Technical Parameters：
|
Type |
AOLE-32 |
AOLE-63 |
|
Standard |
GB16917.1, 1IEC61009-1 |
|
|
Functions |
Short-circuit protection、Overload protection、Leakage Protection、Isolation function |
|
|
Frame current(A) lnm |
32A | 63A |
| Pole |
1P+N、2P: 230V AC 3P、3P+N、4P: 400V AC |
|
|
Rated current(A) |
6、10、16、20、25、32 |
40、50、63 |
|
Rated voltage(V) Ue |
1P+N、2P: 230V AC 3P、3P+N、4P: 400V AC |
|
|
Rated insulated voltage(V) |
250V（relatively）/500V（relative phase） |
|
|
Rated impulse withstand voltage(kV) Uimp |
4 |
|
|
Rated residual working current(mA) |
30、100、300 |
|
|
Residual current characteristics |
AC Type |
|
|
Rated short-circuit breaking capacity lcn |
4. 5kA、6kA |
|
|
Rated ultimate short-circuit breaking capacity lcu |
4. 5kA、6kA |
|
|
Rated operating short-circuit breaking capacity lcs |
4. 5kA、6kA |
|
|
Trip curve |
B(3In~5In) |
|
|
C(5In~10In) |
||
|
D(10In~14In) |
||
|
Release Form |
Thermomagnetic release |
|
|
Electrical life |
10000 |
|
|
Mechanical life |
20000 |
|
|
Pollution grade |
2 |
|
|
Protection level |
IP20 |
|
|
Temperature |
-35℃~+70℃ |
|
|
Altitude |
Do not exceed 2000m |
|
|
Wiring terminal |
Screw crimping |
|
|
Max. connection capacity(mm2) |
6-32A: 16mm2 |
40-63A: 25mm2 |
|
Max. ultimate torque (Nm) |
6-32A: 2N.m |
40-63A: 2.5 N.m |
|
Installation category |
II、III |
|
|
Installation method |
TH35-7.5、TH37-7.5 type DIN |
|
|
Incoming wiring method |
Install the wire at the top |
|
