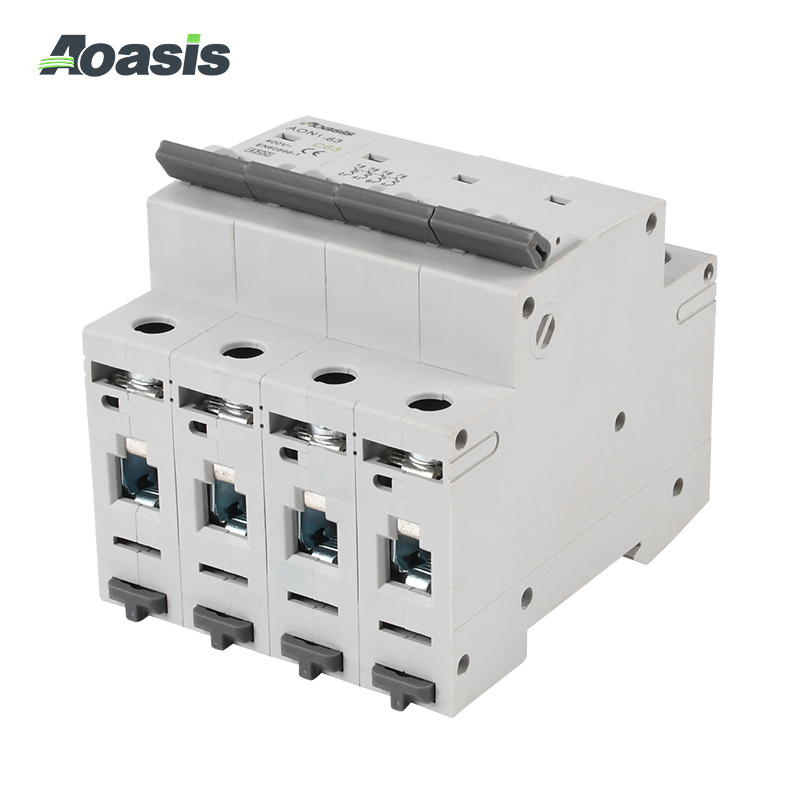

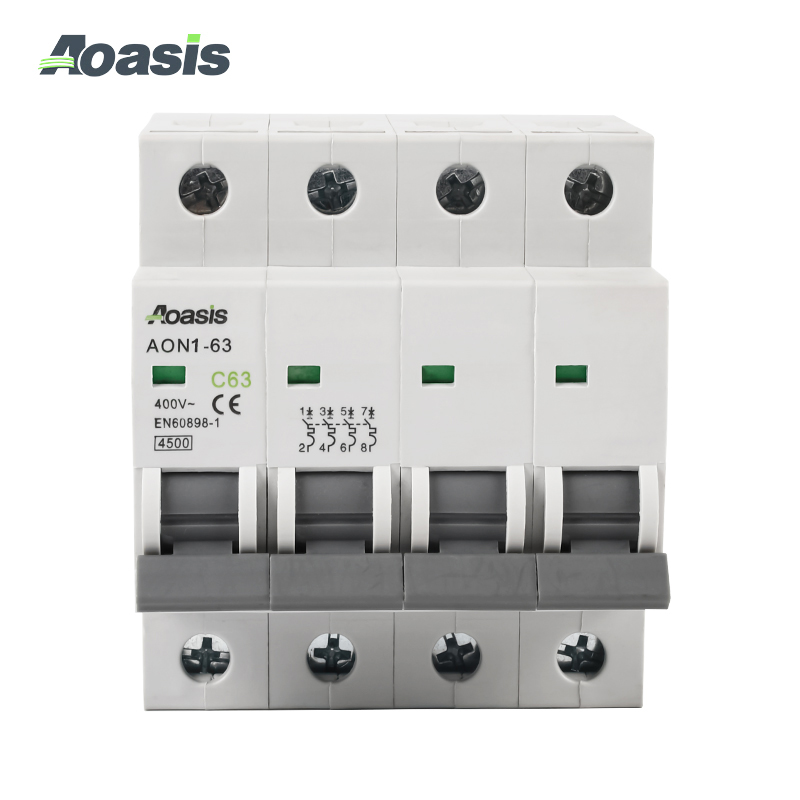

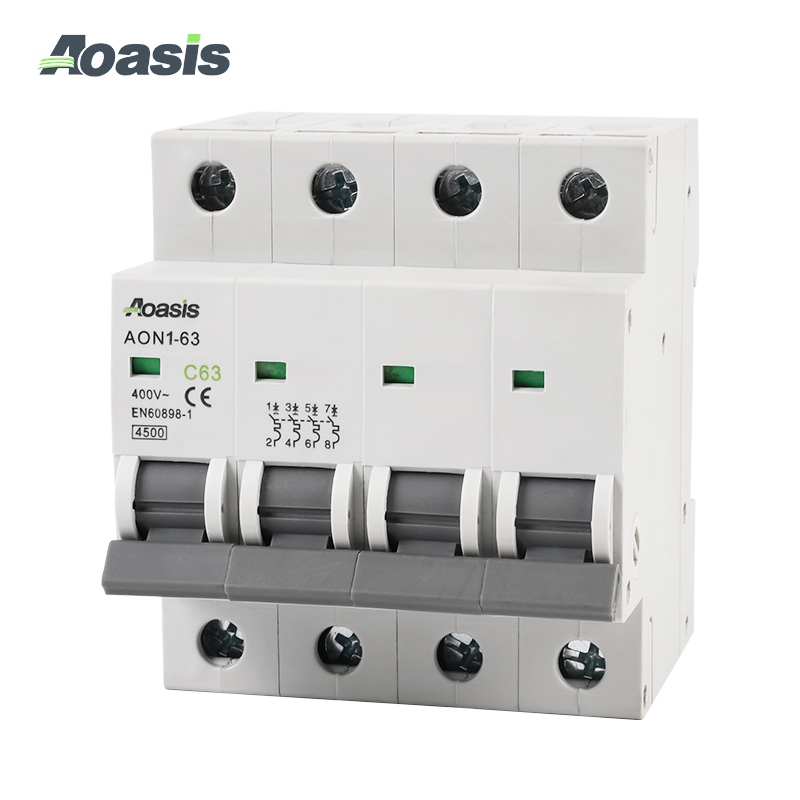

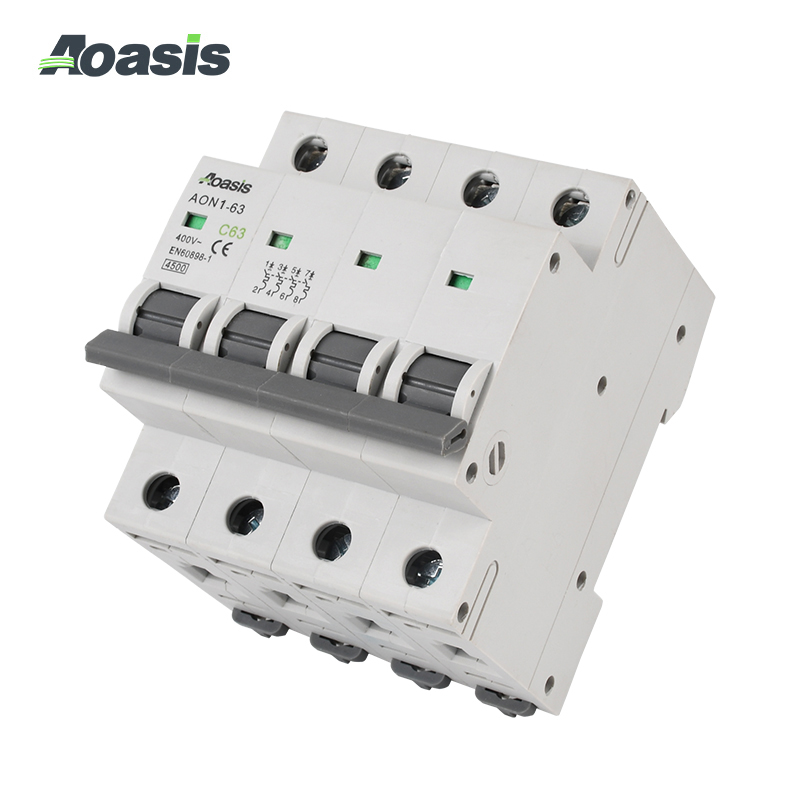

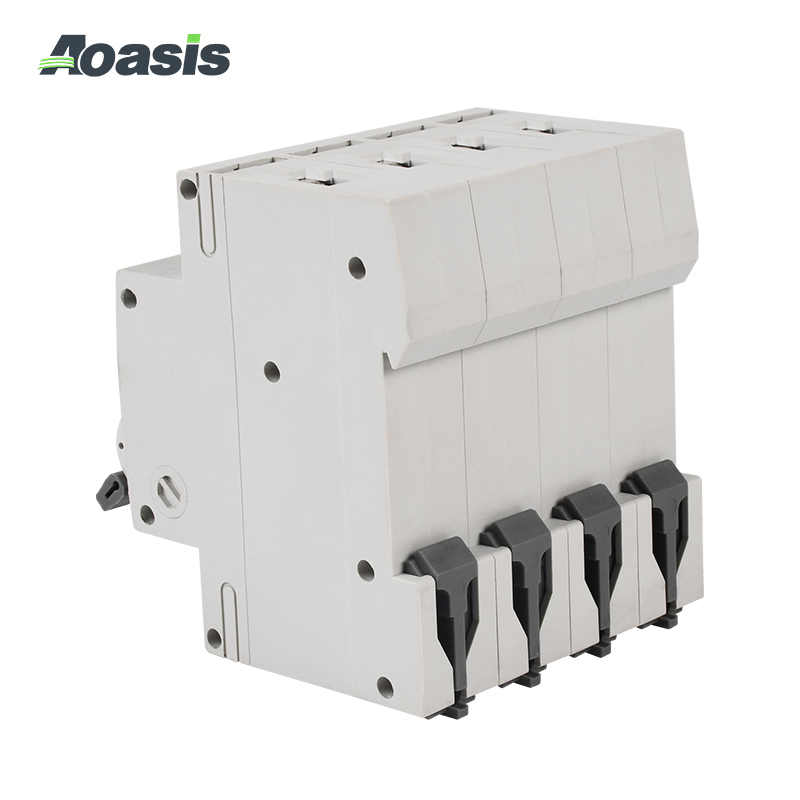

AON series circuit breakers are suitable for use in lines with AC 50/60Hz, rated voltage 230V/400Vand rated current up to 63A. AON series circuit breakers can be used as overload and short circuit protection. Normally it can be used in infrequently operated conversions on lines, also can be used as a disconnecting switch for line and equipment maintenance. AON series miniature circuit breakers are suitable for commercial, high-rise and residential and other places.

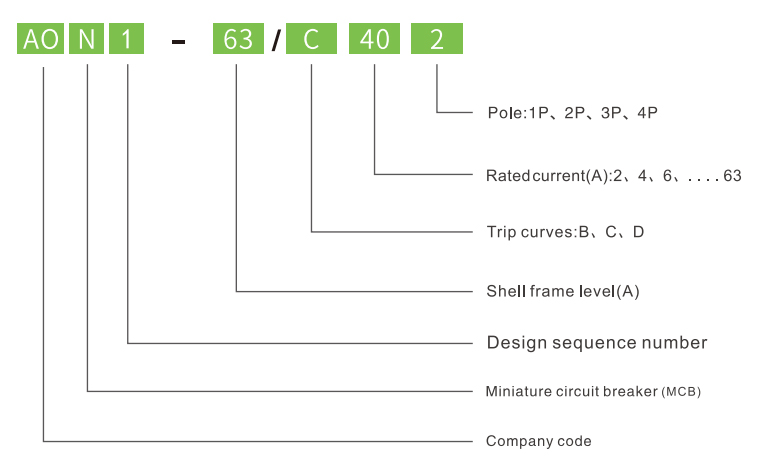

Product Selection：
Technical Parameters：
|
Type |
AON1-63 |
|
Standard |
IEC60898-1,GB10963.1 |
|
Functions |
Short-Circuit Protection、Overload Protection、Isolation Function |
|
Frame Current(A) |
63 |
|
Pole |
1P、2P、3P、4P |
|
Rated Current(A) |
2、4、6、10、16、20、25、32、40、50、63 |
|
Rated Voltage(V) |
AC230(1P)、AC230/400(2p、3p、4p) |
|
Rated Insulation Voltage |
AC 500 |
|
Rated Impulse Withstand Voltage(KV) |
4 |
|
Rated Short-Circuit Breaking Capacity |
4.5KA、6kA |
|
Rated Ultimate Short-Circuit Breaking Capacity |
4.5KA、6kA |
|
Rated Opetating Short-Circuit Breaking Capacity |
4.5KA、6kA |
|
Trip Curve |
B(3In~5In) |
|
C(5In~10In) |
|
|
D(10In~14In) |
|
|
Release Form |
Thermomagnetic Release |
|
Electrical Life |
10000 |
|
Mechanical Life |
20000 |
|
Pollution Grade |
2 |
|
Protection Level |
IP20 |
|
Temperature |
-35℃~ +70℃ |
|
Altitude |
Do not Exceed 2000m |
|
Wiring Terminal |
Screw Crimping |
|
Max. Connection Capacity (m㎡) |
25 |
|
Max.Ultimate Torque (Nm) |
2.5 |
|
Installation Category |
II、III |
|
Installation Method |
TH35-7.5 Standard DIN rail |
|
lncoming Wiring Method |
Can Be Installed Up or Down |

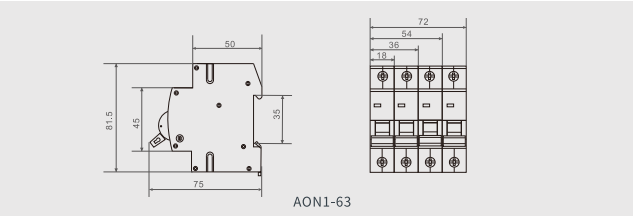

Outline Overall and Installation Dimensions (mm)：
