Technical Parameters：
|
Fuse base |
AORZ-32 |
AORZ-32D |
AORZ-63 |
AORZ-63D |
|
Indicator function |
NO | YES | NO | YES |
|
Rated voltage (V) |
1000V DC |
1500V DC |
||
|
Fuse link |
RZ1038 |
RZ1085 |
RZ1485 |
|
|
Current range (A) |
1A 2A 3A 4A 5A 6A 8A 10A 12A 15A 16A 20A 25A 30A 32A |
2A 3A 4A 5A 6A 8A 10A 12A 15A 20A 25A 30A 32A |
8A 10A 12A 15A 16A 20A 25A 30A 32A 35A 40A 45A 50A |
|
|
Standard |
IEC 60269-6 |
|||
|
Breaking capacity |
20KA |
50KA |
||
|
Time constant |
1-3ms |
|||
|
Class of Operation |
gPV |
|||

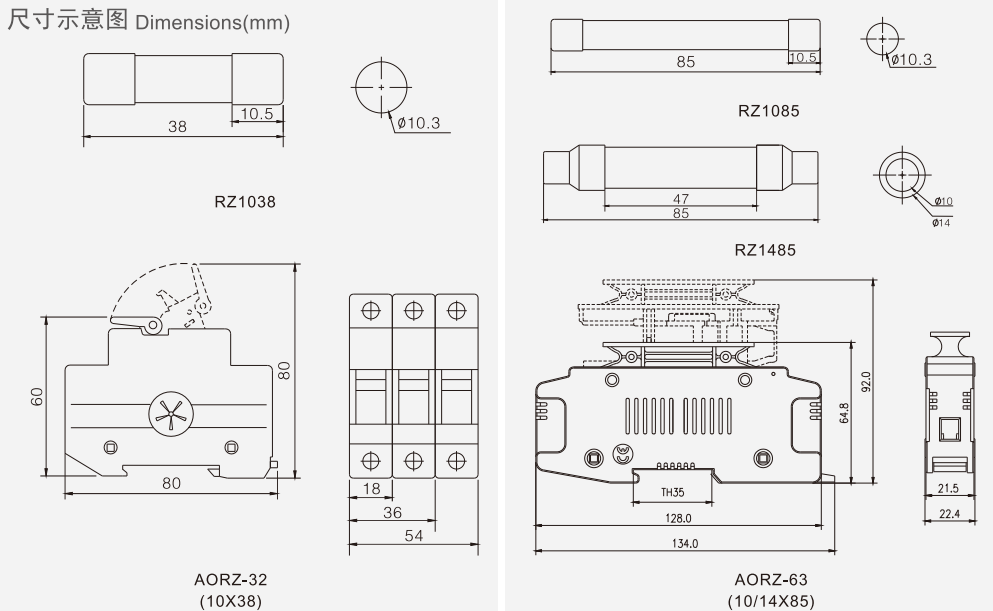

Dimensions (mm):
