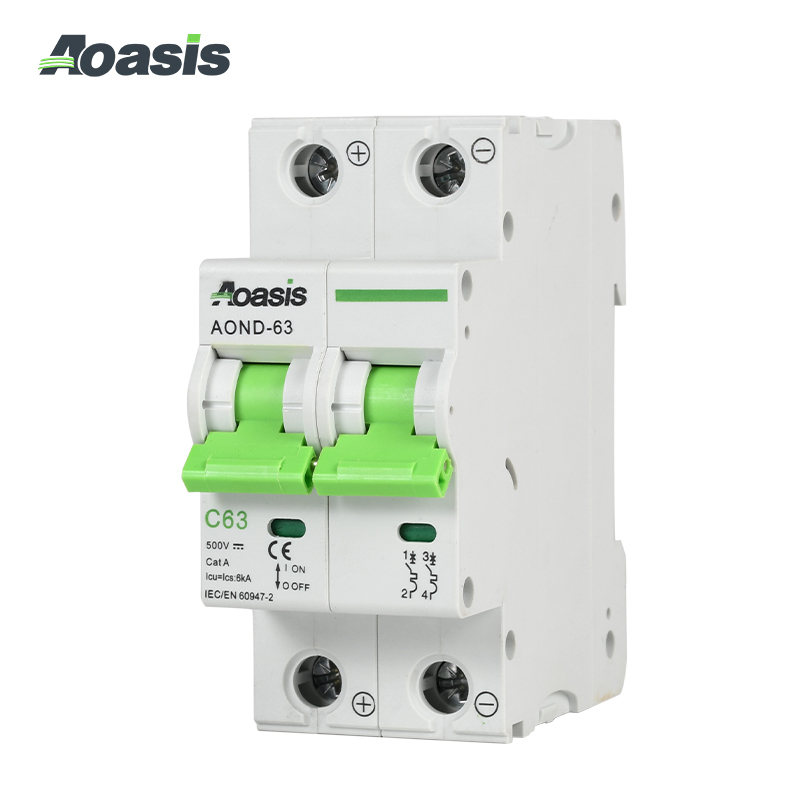

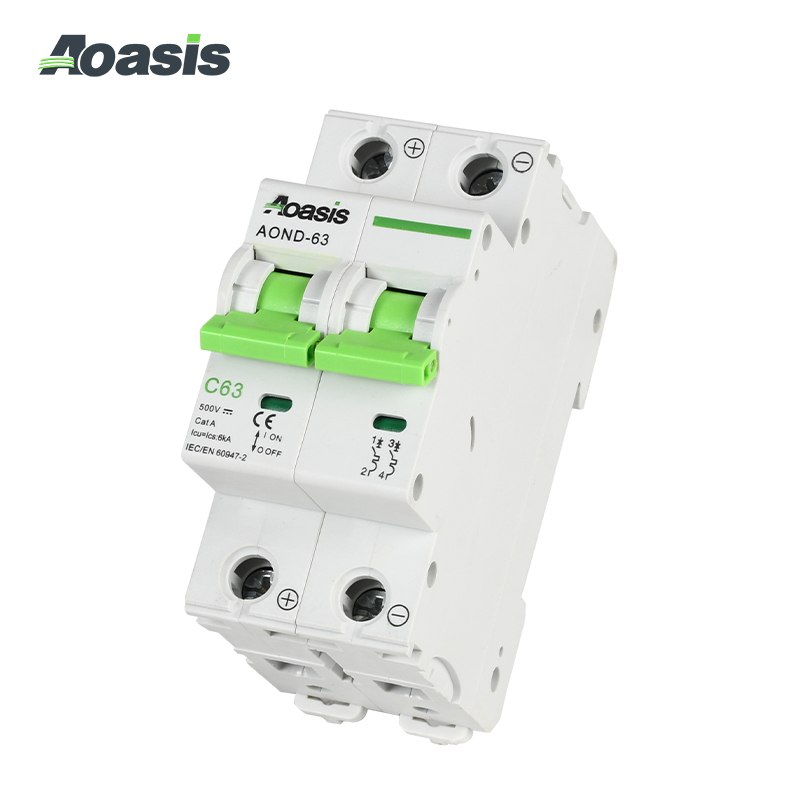

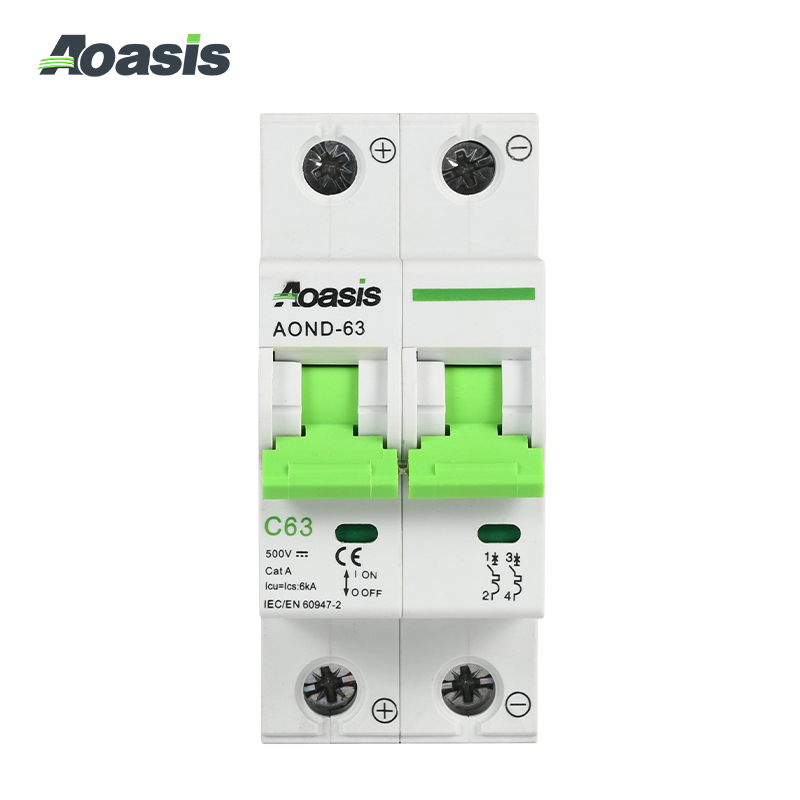

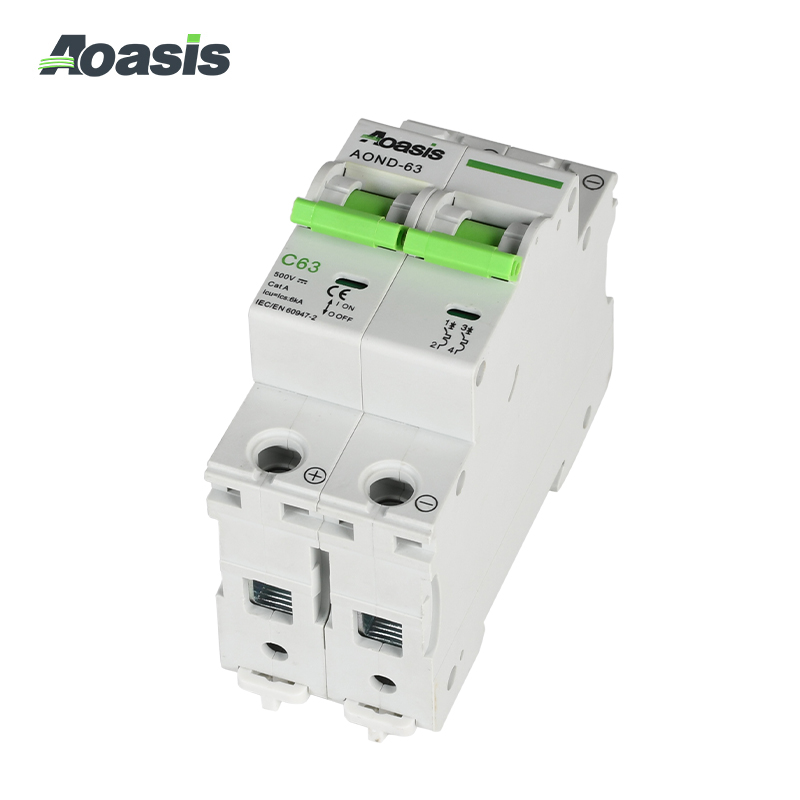

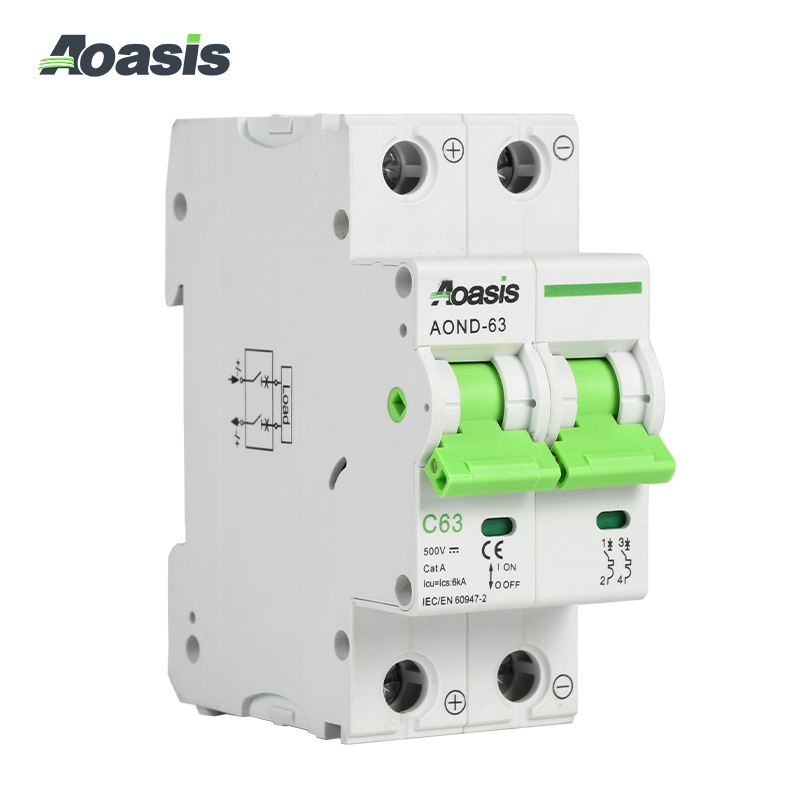

AOND series DC miniature circuit breaker is suitable for overload and short circuit protection in rated voltage DC 250-1000V, rated current up to 125A. The circuit breaker can quickly disconnect the fault current of the DC distribution system, in order to protect the photovoltaic module from the harm of high DC reverse current and AC feedback current caused by the fault of the inverter, and ensure the reliable operation of the solar photovoltaic power generation system.
Product Selection：
Technical Parameters：
|
Model |
AOND-63 |
AOND-125 |
|
Rated current (A) |
6、10、16、20、25、32、40、50、63 |
63、80、100、125 |
|
Pole number |
1P、2P、3P、4P |
|
|
Rated voltage (V) |
1P:DC250V 2P:DC500V 3P:DC750V 4P:DC1000V |
|
|
Rated short-circuit capacity |
6 | |
|
Instantaneous trip form |
Distribution protection |
|
|
Rated impulse withstand voltage |
4 |
|
|
Rated insulation voltage |
1200 |
|
|
Life span |
Electrical life: 10000 times,Mechanical life:20000 times |
|
|
Usage environment |
Ambient temperature:-25℃ to +40℃ |
|
|
Maximum connection capacity |
25mm2 |
|
|
Meet the standard |
IEC 60947-1GB14048-2IEC60898-2 GB14048-1 |
|
|
Pollution |
2 |
|
|
Protection level |
IP20 |
|
|
Temperature |
-35℃~+70℃ |
|
|
Altitude |
Do not exceed 2000m |
|
|
Wiring terminal |
Screw crimping |
|
|
Max.ultimate torque(Nm) |
2.5 |
|
|
Installation category |
II、III |
|
|
Installation method |
TH37-7.5 type DIN rail |
|
|
Incoming wiring method |
Can be installed up or down |
|
Dimensions (mm)：
