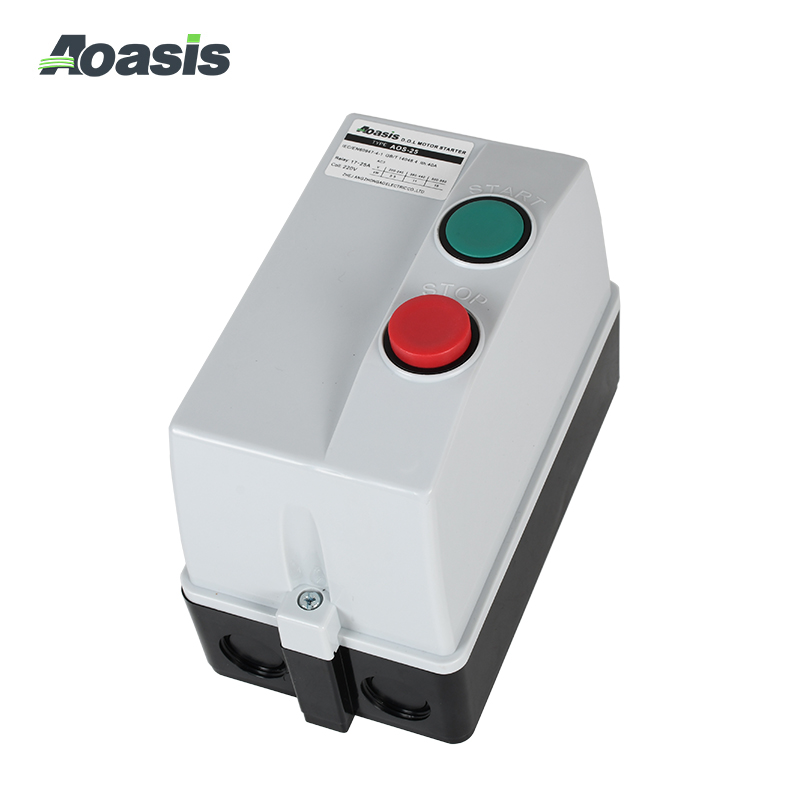

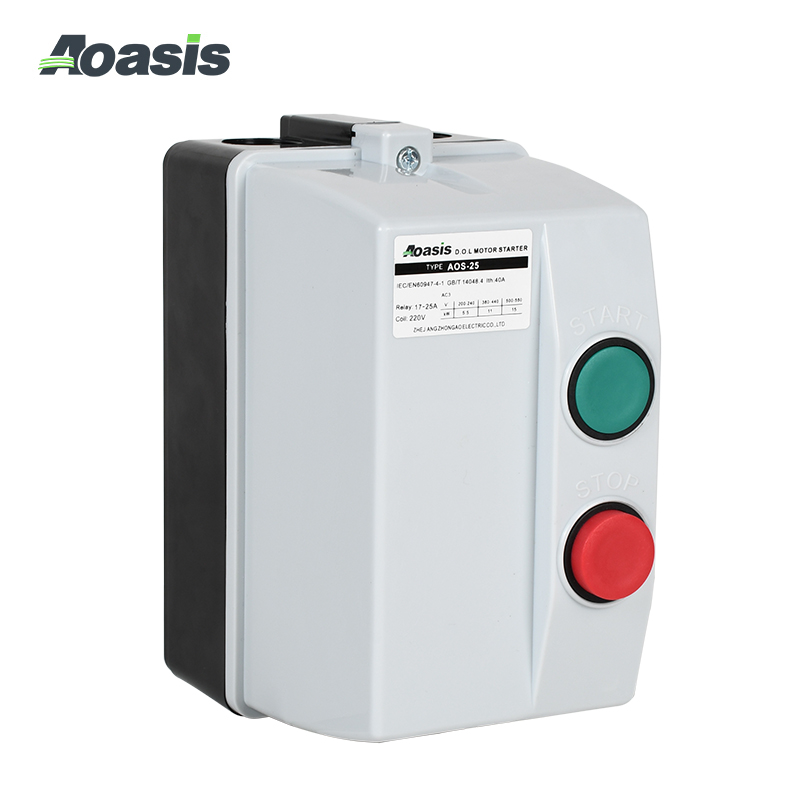

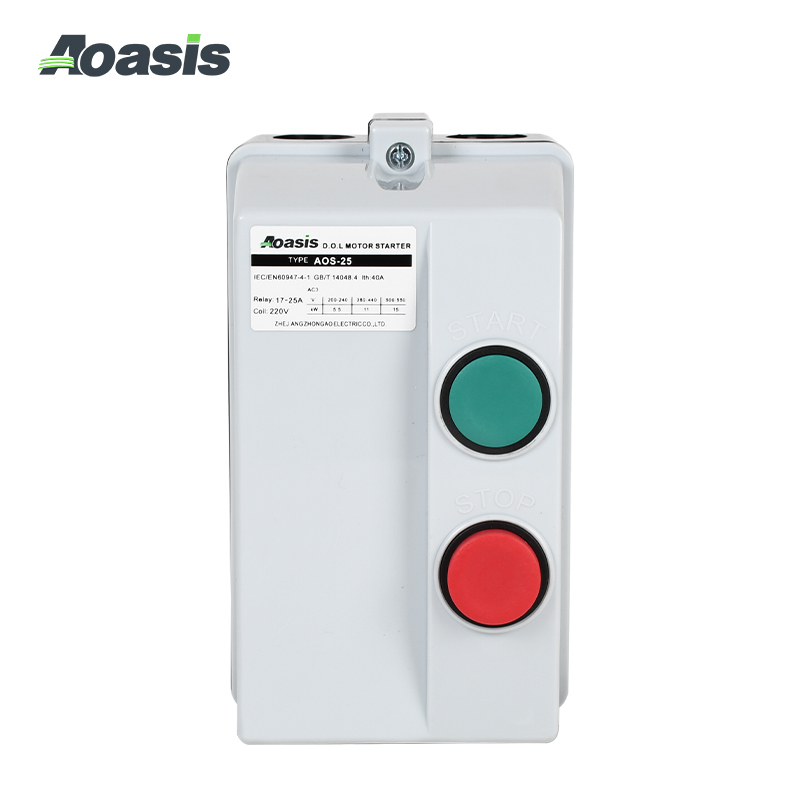

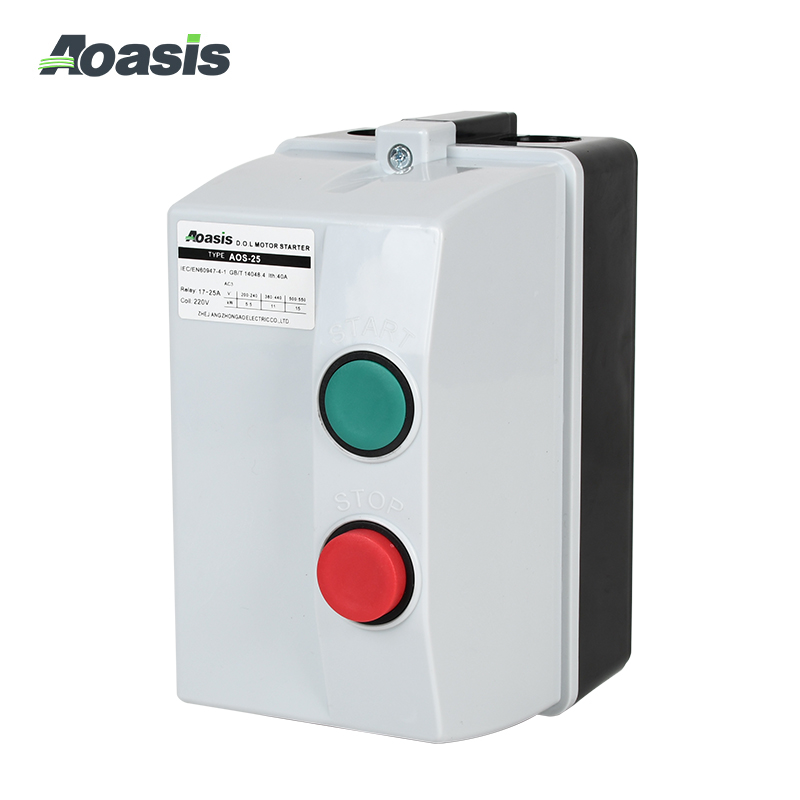

Type and Signification：
Characteristics：
● Protection Grade: IP54,water-proof, dust-proof.
● Can be equipped with indicator light(if need).
Application Condition：
● Altitude: not exceed 2000m.
● Temperature:-5℃~+40℃, average not exceed +35℃ in 24 hours.
● Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature.
● Pollution Grade: Grade lll.
● Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°。
● The product shall be installed and operated at a place without obvious shake, impact and vibration.
Technical Parameters：
|
Type |
Selected AC Contactor |
Thermal Relay |
Setting Range |
Rated Power (AC-3)
IEC60947-4-1 GB14048.4
|
|||
|
200-240V |
380-440V |
||||||
|
kW |
HP |
kW |
HP |
||||
| AOS-09 |
CJX2-09 |
JR28-13 |
1.25-2A |
0.37 |
1/2 |
0.55 |
3/4 |
|
JR28-13 |
1.6-2.5A |
0.55 |
3/4 |
0.75 |
1 |
||
|
JR28-13 |
2.5-4A |
0.75 |
1 |
1.1 |
1.5 |
||
|
JR28-13 |
4-6A |
1.1 |
1.5 |
2.2 |
3 |
||
|
JR28-13 |
5.5-8A |
1.5 |
2 |
3 |
4 |
||
|
JR28-13 |
7-10A |
2.2 |
3 |
4 |
5.5 |
||
|
AOS-12 |
CJX2-12 |
JR28-13 |
9-13A |
3 |
4 |
4 |
5.5 |
|
AOS-18 |
CJX2-18 |
JR28-13 |
12-18A |
4 |
5.5 |
5.5 |
7.5 |
|
AOS-25 |
CJX2-25 |
JR28-13 |
17-25A |
5.5 |
7.5 |
7.5 |
10 |
|
AOS-32 |
CJX2-32 |
JR28-13 |
23-32A |
7.5 |
10 |
11 |
15 |
External Dimensions(mm)：
