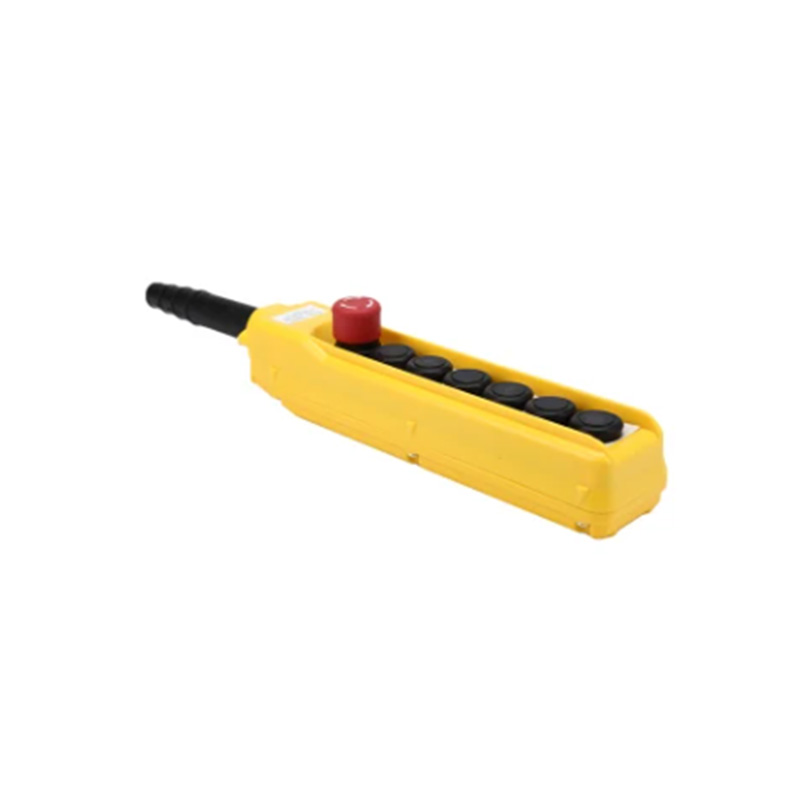

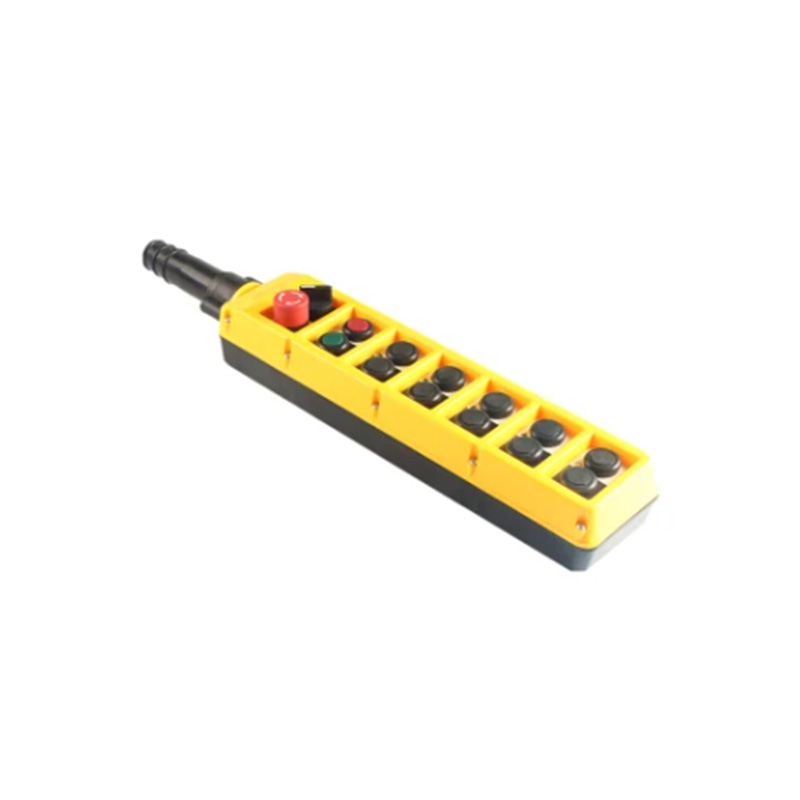

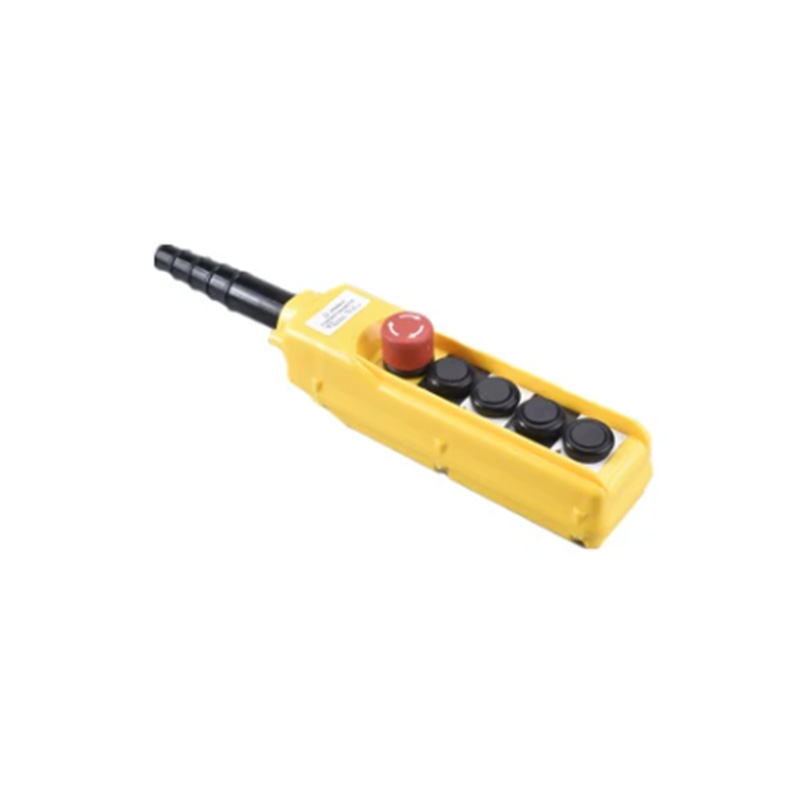

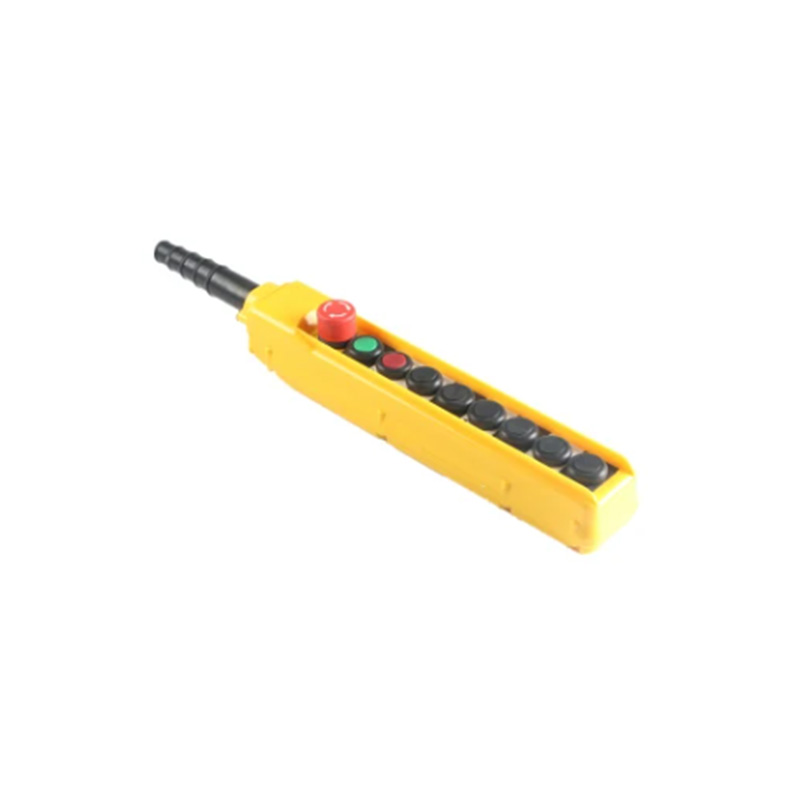

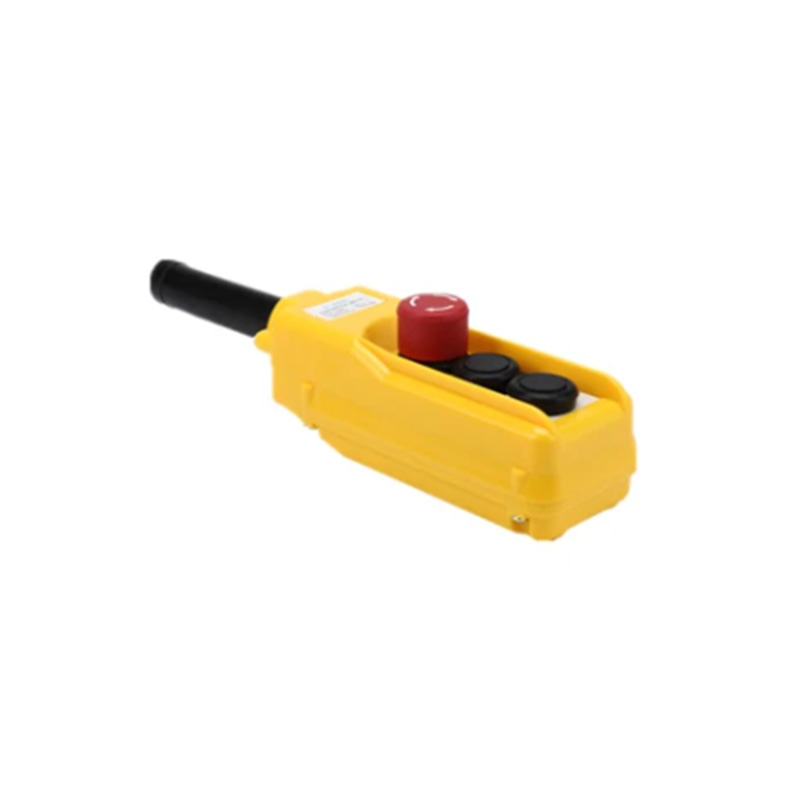

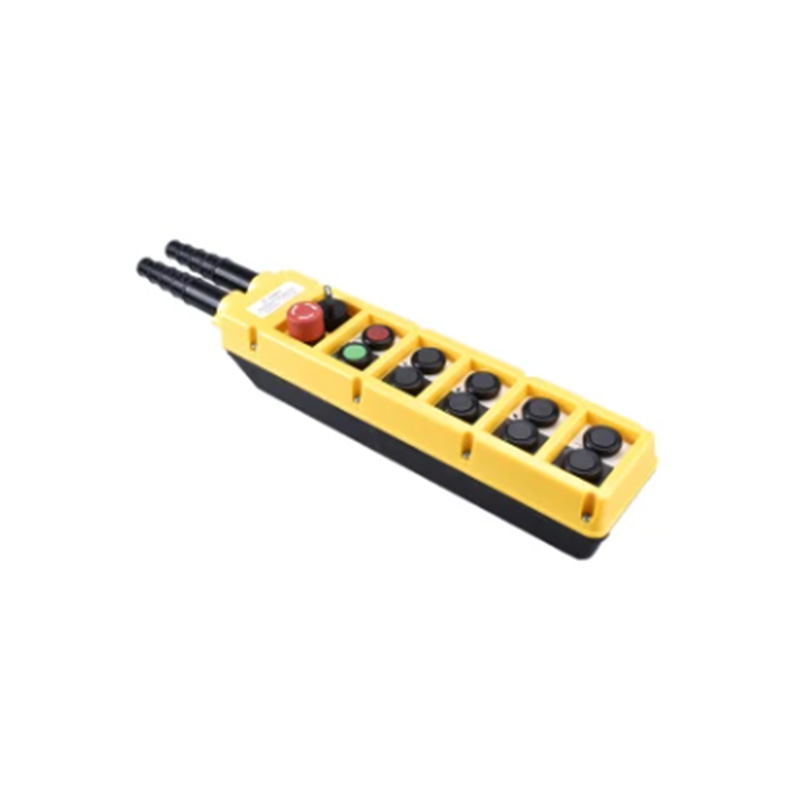

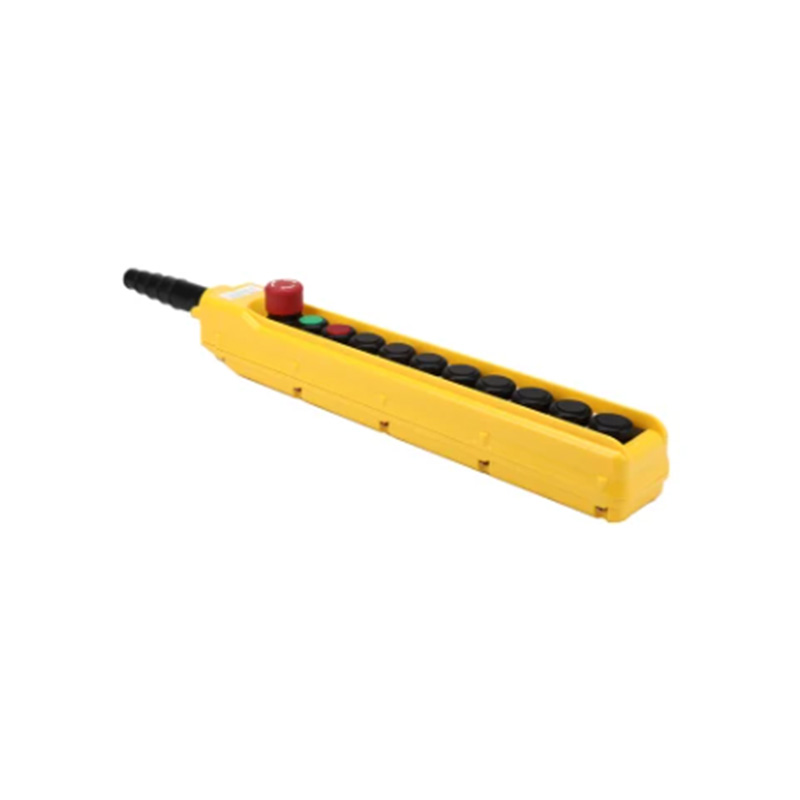

XCD6{ } series rain-proof crane control button station is a newly developed product which combined with the advantages of both china made products and imported product. The plastic cover is good-looking,strong and easy for handing.It has good structure and big area of contact.The forward and backward control can be mechanically locked in a reciprocal direction.It also can be locked in a reciprocal direction by the circuit if necessary,and is therefore more safety in operation.It also has IP65 dust proof and water proof level thus it is suitable for operating in open area,dusty environment,rainy.snowy weather conditions by wet hands for controlling the electric circuit,conveyer belt and construction apparatus. The product meats the standards of Q/YYD02-00,GB14048,5-2001 and EN60947-5-1:1997 Certification: ISO9001, SGS, CTI, ROHS

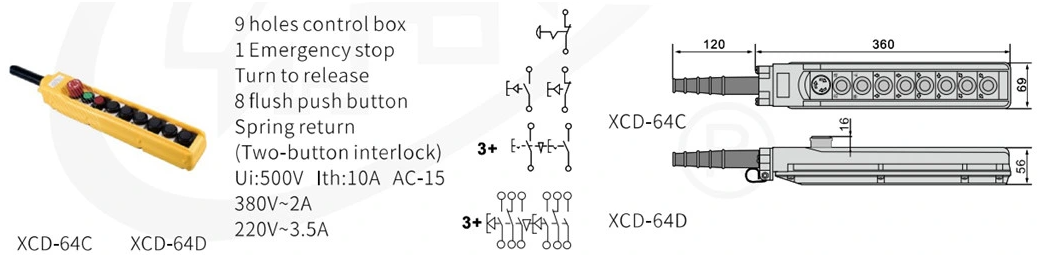

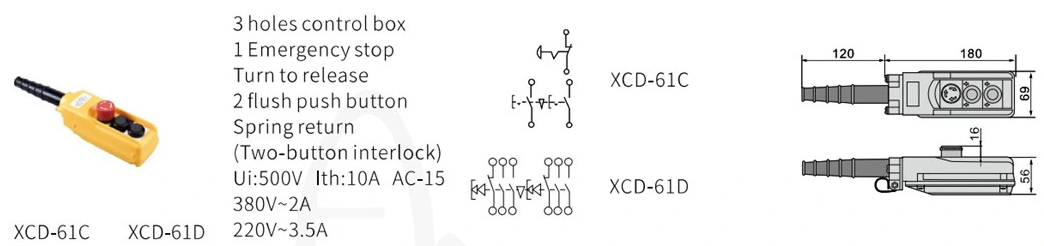

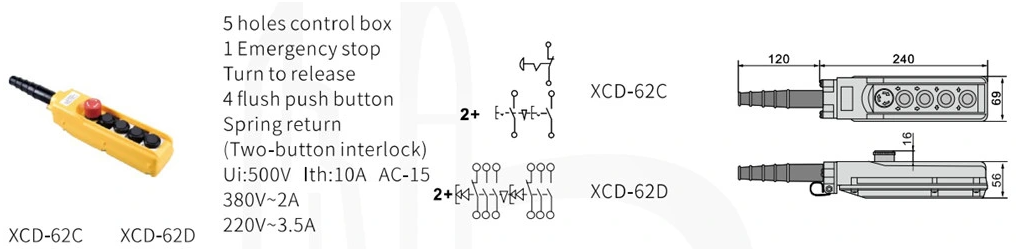

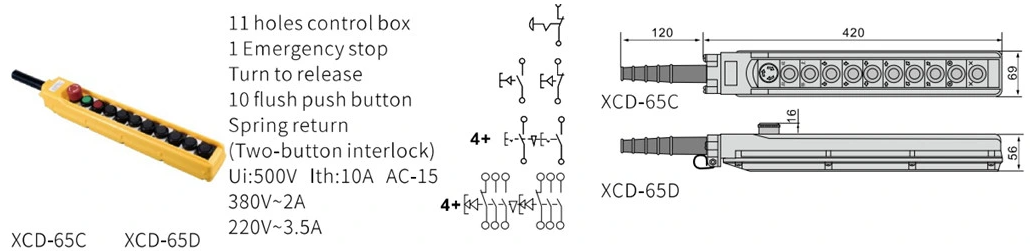

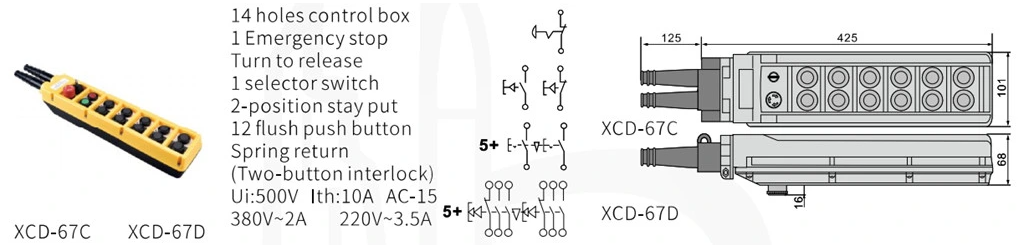

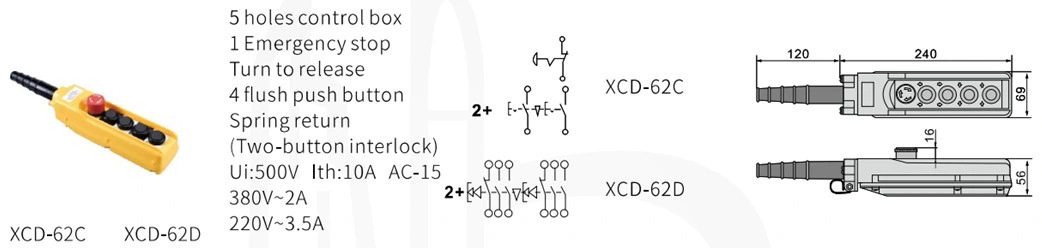

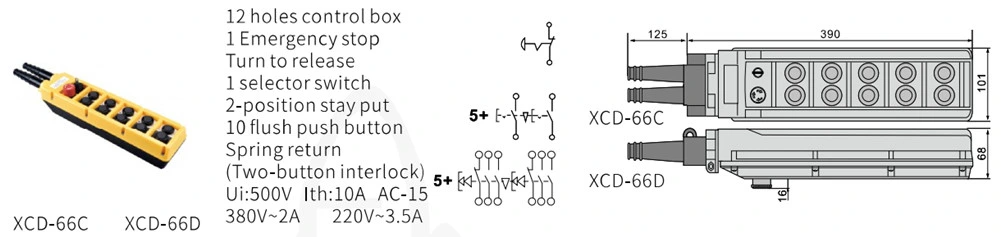

Product Selection：
Technical Parameters：
Product Name
crane push button pendant control station
Max. Current
5A
Max. Voltage
500V
Color
Orange
Ambient temperature
-25ºC~+40ºC
Frequency
50HZ
Protection
Rainproof
Product type
single speed/double speed
mechanical durability
1 million
