Feature: Simply strip the wire and push in transparent housing for visual inspection. Built-in test port.
Technical Parameters:
Type
PCT223-2P
PCT223-3P
PCT223-4P
PCT223-5P
PCT223-6P
PCT223-8P
PCT223-10P
PCT223-12P
Rated
450V 32A
450V 32A
450V 32A
450V 32A
450V 32A
450V 32A
450V 32A
450V 32A
Cross section
0.5~4mm
0.5~4mm
0.5~4mm
0.5~4mm
0.5~4mm
0.5~4mm
0.5~4mm
0.5~4mm
Wire strip length
11~12mm
11~12mm
11~12mm
11~12mm
11~12mm
11~12mm
11~12mm
11~12mm
Poles
2P
3P
4P
5P
6P
8P
10P
12P

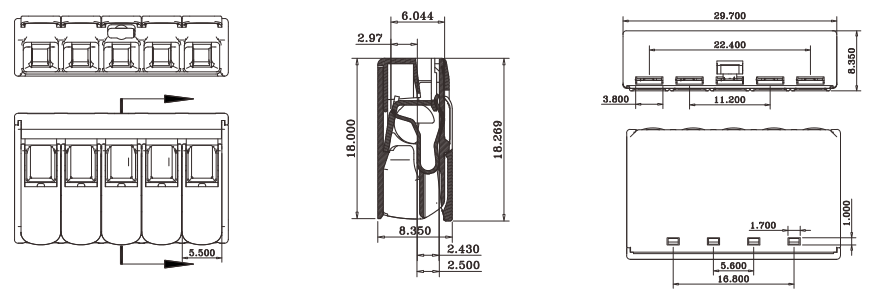

Outline Overall and Installation Dimensions (mm):
