Material: Nylon 66, with spring inside.
Usage: Peel wire coat, insert the wire in, then tighten.
Technical Parameters:
Item. No.
H (mm)
W (mm)
D (mm)
Suitable Wire (mm)
Color
SP1
15
8.7
6.5
MIN#20 x 1+#22 x 1, MAX#16 x 2

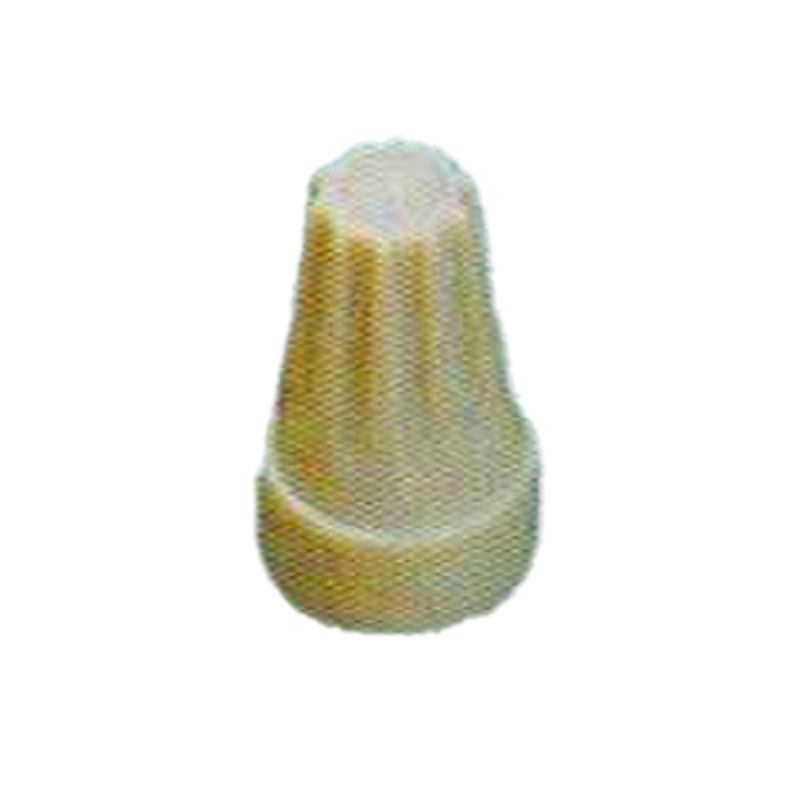

Grey
SP2
18
10.0
7.5
MIN#20 x 3, MAX#16 x 3

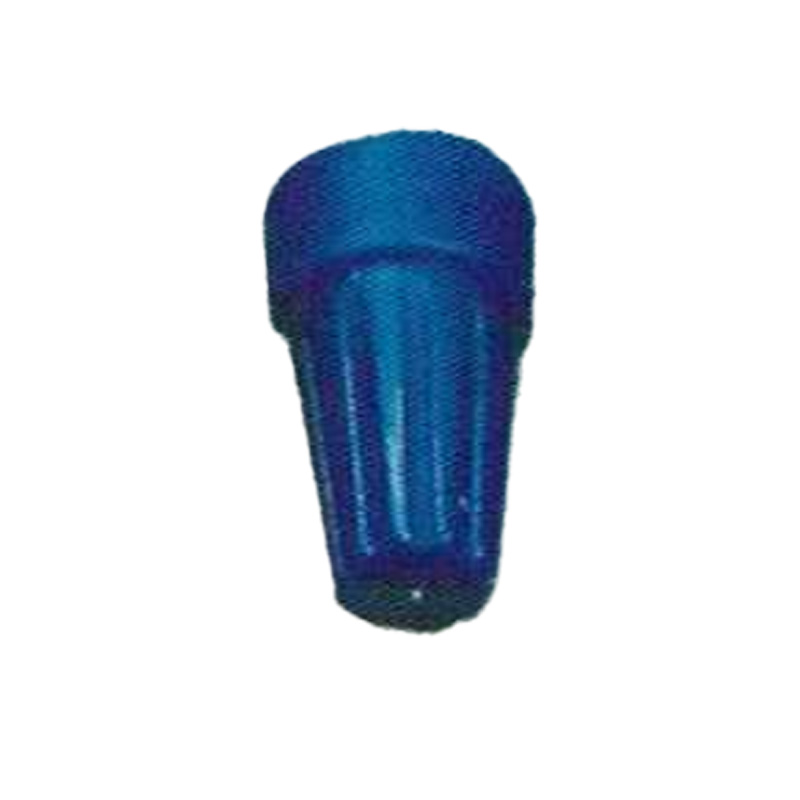

Blue
SP3
23
11.2
9.5
MIN#20 x 3, MAX#16 x 3+#18 x 1

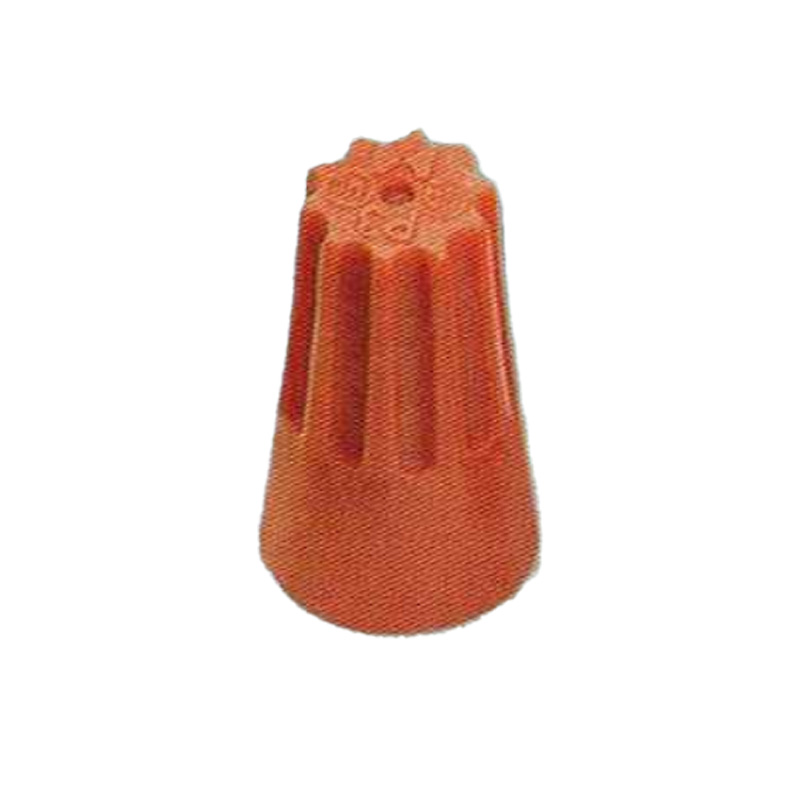

Orange
SP4
24.2
13.6
10.8
MIN#14 x 1+#18 x 1, MAX#14 x 4+#18 x 1

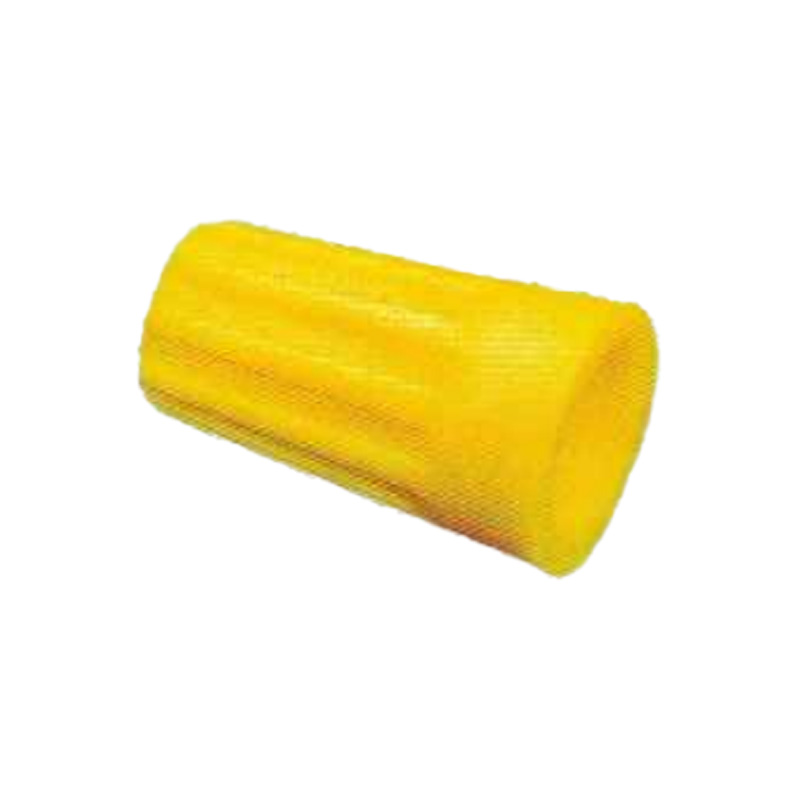

Yellow
SP6
27.8
16.1
12.7
MIN#14 x 2, MAX#10 x 2+#12 x 2

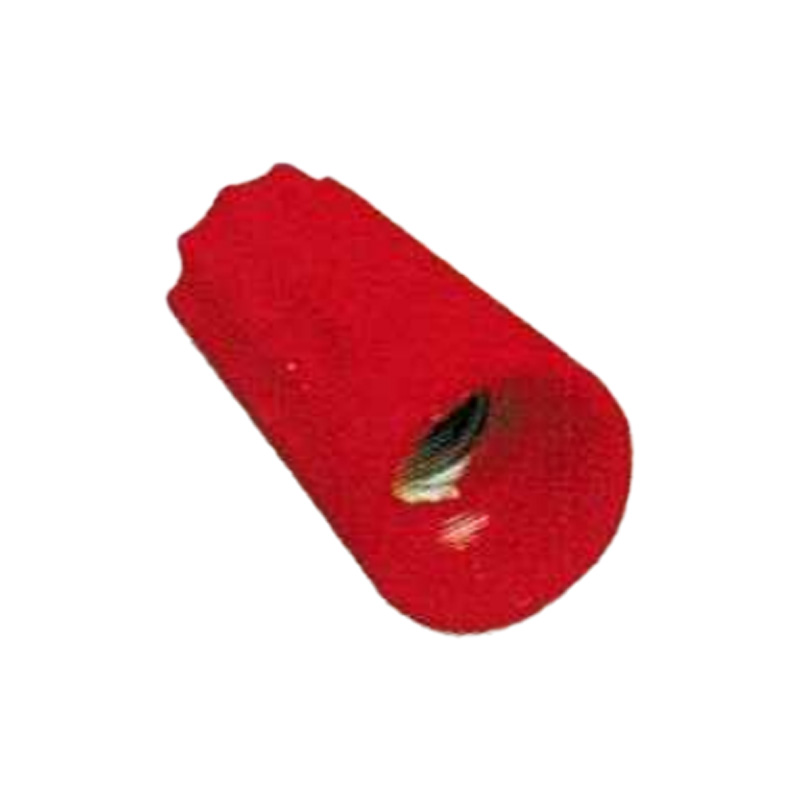

Red

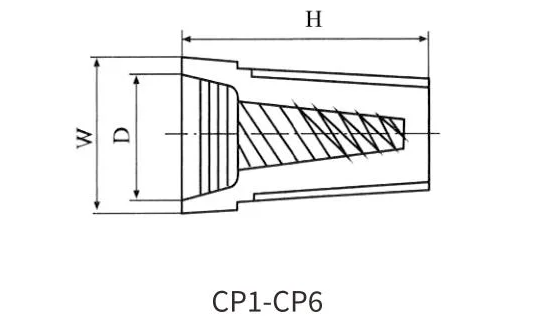

Outline Overall and Installation Dimensions (mm):
