Function: wire coat and insulation make the joint ofterminal block and wire insulateddivide the colors Water-proof Protection and insulation

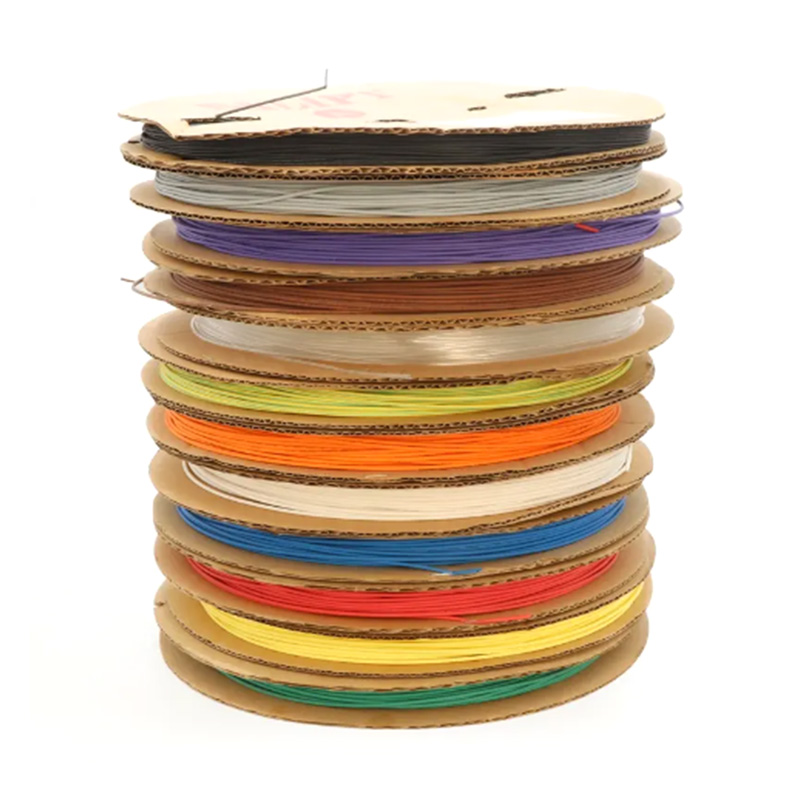

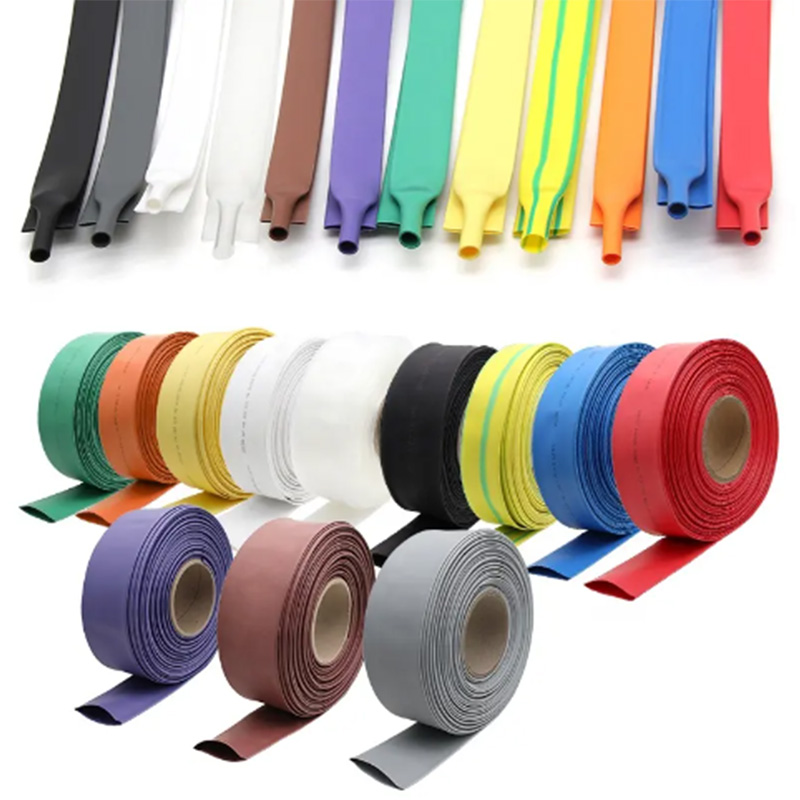

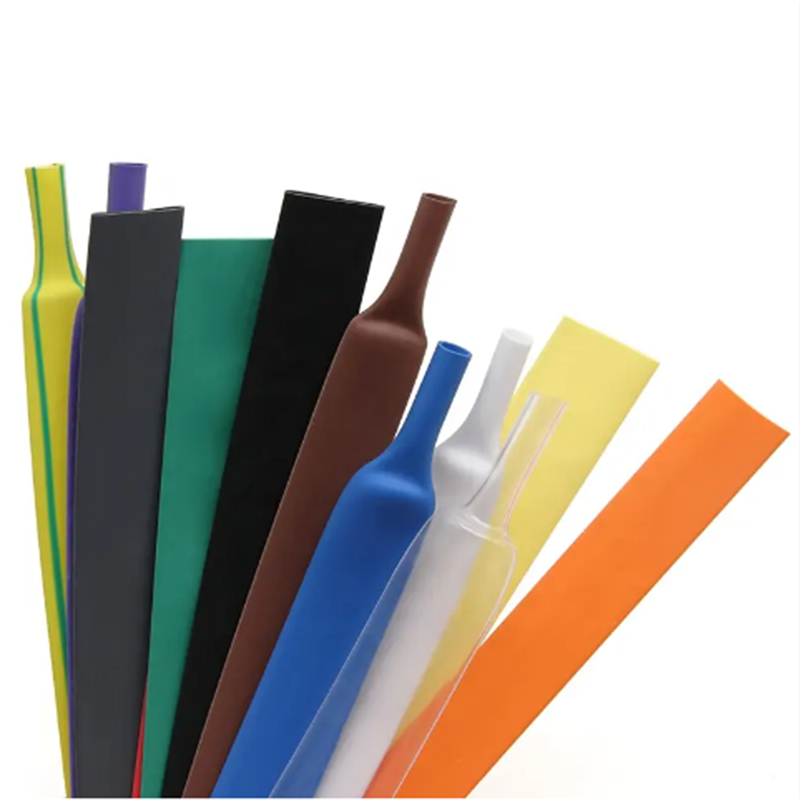

Standard color: black, white, red, blue, yellow, green, brown, grey, orange and purple
Technical Parameters:
item No
As Supplied
After Shrinking
Packing
(Mtrs/Roll)
1.D(mm)
Thickness
1.D(mm)
Thickness
DRS-1
1
0.2±0.05
0.5
0.4±0.05
400
DRS-1.5
1.5
0.2±0.05
0.75
0.4±0.05
300
DRS-2
2
0.25±0.05
1
0.45±0.1
200
DRS-2.5
2.5
0.25±0.05
1.25
0.45±0.1
DRS-3
3
0.25±0.05
1.5
0.45±0.1
DRS-3.5
3.2
0.25±0.05
1.75
0.45±0.1
100
DRS-4
4
0.25±0.05
2
0.45±0.1
DRS-5
5
0.35±0.05
2.5
0.55±0.1
DRS-6
6
0.35±0.05
3
0.55±0.1
DRS-7
7
0.35±0.05
3.5
0.55±0.1
DRS-8
8
0.35±0.05
4
0.55±0.1
DRS-9
9
0.35±0.05
4.5
0.55±0.1
DRS-10
10
0.35±0.05
5
0.6±0.1
DRS-11
11
0.35±0.05
5.5
0.6±0.1
DRS-12
12
0.35±0.1
6
0.7±0.1
DRS-13
13
0.35±0.1
6.5
0.7±0.1
DRS-14
14
0.35±0.1
7
0.7±0.1
DRS-15
15
0.35±0.1
7.5
0.7±0.1
DRS-16
16
0.35±0.1
8
0.7±0.1
DRS-17
17
0.35±0.1
8.5
0.7±0.1
50
DRS-18
18
0.4±0.1
9
0.8±0.1
DRS-20
20
0.5±0.1
10
0.9±0.1
DRS-22
22
0.5±0.1
11
0.9±0.1
DRS-25
25
0.5±0.1
12.5
0.9±0.1
DRS-28
28
0.5±0.1
14
0.9±0.1
DRS-30
30
0.5±0.1
15
1±0.2
25
DRS-35
35
0.5±0.1
17.5
1±0.2
DRS-40
40
0.5±0.1
20
1±0.2
DRS-50
50
0.5±0.1
25
1±0.2
DRS-60
60
0.6±0.1
30
1±0.2
DRS-70
70
0.6±0.1
35
1±0.2
DRS-80
80
0.6±0.1
40
1±0.2
DRS-90
90
0.6±0.1
45
1.3±0.2
DRS-100
100
0.7±0.1
50
1.3±0.2
DRS-120
120
0.7±0.1
60
1.3±0.2
DRS-150
150
0.8±0.1
75
1.6±0.2
