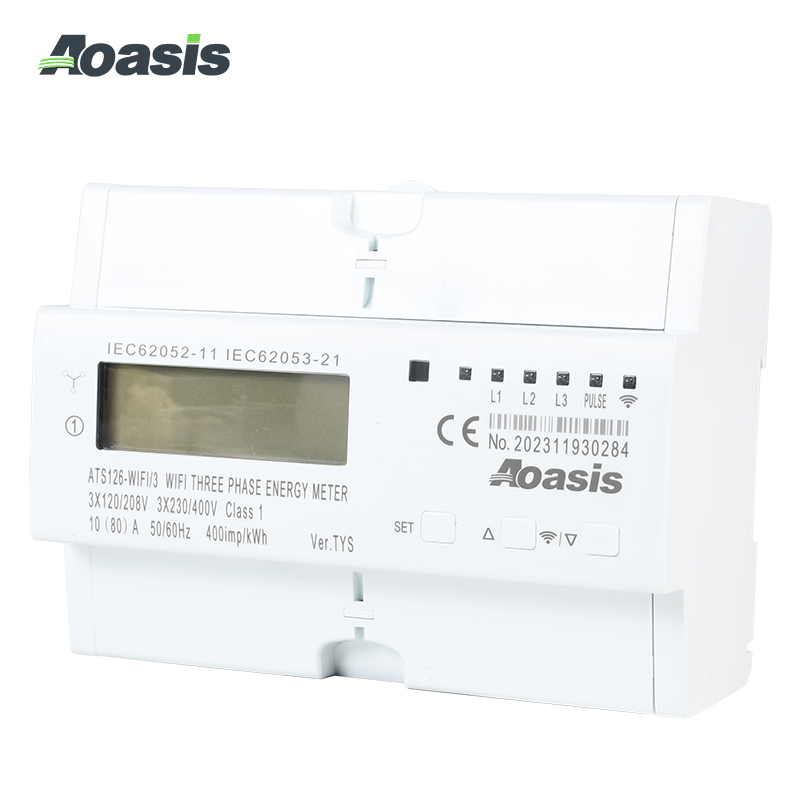

The meter is suitable for three-phase four-wire power network. The meter is designed to measure AC active energy and variable parameters. WIFI remote reading (Smart life orTUYA smart APP), it is a long-life meter, with high stability, high overload capacity, low power consumption, small size and other advantages.
· LCD display with backlight , keypad for LCD display step by step
· Bi-directional total active energy, reverse active energy measure in the total active energy
· The meter LCD also display real voltage, current, active power, reactive power , powerfactor, frequency. import active energy, export active energy, reactive energy
· Timing and delay control by APP
· Hour/Day/Month/Year history active energy consumption tracking by APP
· Check the A phase real current, A phase voltage, conjunction phase active power by APP
· Remote control on/off by APP
· Manual Control by button under lose WIF
· RS485 communication port , MODBUS-RTU protocol
· WIFI communication, can read and remote control by mobile phone APP
· lt compatible with TUYA saas system
· Pulse LED indicates working of meter, Pulse output with optical coupling isolation
· Loss phase LED indication, WIFI connection LED indication
· Energy data can store in memory chip more than 15 years after power off
· 35mm din rail installation
|
Rate voltage AC |
3x120/208V,,3x230/400V,x240/415V(0.8~1.2Un) |
||
|
Rate Current /Frequency |
5A/CT,5(60)A,10(80)A / 50Hz or 60Hz ±10% |
||
| WIFI |
802.11b/g/n |
||
|
Connection model |
CT or Direct type |
Accuracy class |
1% or 0.5% |
|
Power consumption |
<1W/10VA |
Start current |
0.004lb |
|
AC voltage withstand |
4000V/25mA for 60s |
Over current withstand |
30lmax for 0.01s |
|
IP grade |
IP20 |
Executive standard |
IEC62053-21,DIN 43880 |
|
Work temperature |
-25℃~70℃ |
Pulse output |
Passive pulse,80±5 ms |
Wire connection:
Outline dimension:
