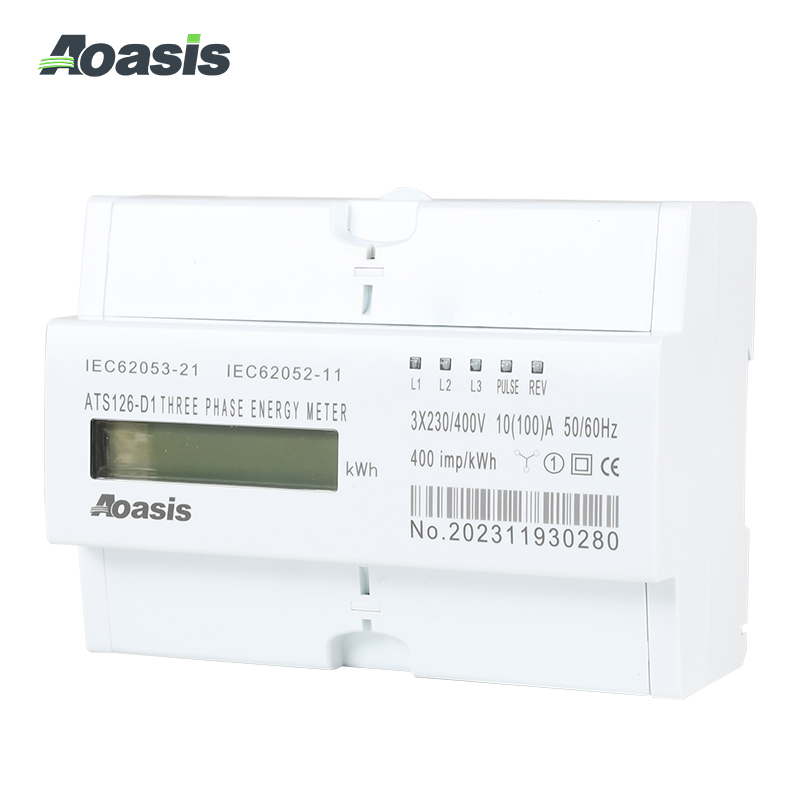

The meter is suitable for three-phase four-wire system/three-phase three-wire system/two-phase three-wire system. The meter is designed to measure AC active energy. lt is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantages.
· Mechanical step register or LCD display
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· Pulse LED indicates working of meter, Passive pulse output with optical coupling isolation
· Loss phase LED indication, Reverse connection LED indication
· For LCD display type meter, Energy data can store in memory chip more than 15 years after power off
· 35mm din rail installation
|
Rate Voltage AC
|
ATS126-D1 three phase four wire 3x120/208V, 3x220/380V,3 x230/400V 3x240/415V
|
|
Working Voltage AC
|
0.8~1.2Un
|
|
Rate Current
|
5A/CT, 1.5(6)A, 5(60)A, 10(100)A, or other as required
|
|
Frequency
|
50Hz or 60Hz
|
|
Connection Mode
|
CT Type or Direct Type
|
|
Display
|
Mechanical step register or LCD
|
|
Accuracy Class
|
1.0
|
|
Power Consumption
|
<0.5W/5VA/each phase
|
|
Start Current
|
0.004lb
|
|
AC Voltage Withstand
|
4000V/25mA for 60s
|
|
lmpulse Voltage
|
6kV 1.2 μs waveform
|
|
IP Grade
|
IP20
|
|
Constant
|
400~6400 imp/kWh
|
|
Pulse Output
|
Passive pulse, pulse width is 80 ± 5 ms
|
|
Executive Standard
|
DIN 43880, IEC62053-21, IEC62052-11
|
|
Work Temperature
|
-30°C ~70°C
|
|
Outline Dimension
|
126*93*65mm
|
Environment:
|
Operating temperature |
-25℃-55℃ |
|
Storage temperature |
-40℃~80℃ |
|
Referenoe temperature |
23℃±2℃ |
|
Relative humidity |
0 to 95%, non-condensing |
|
Altitude |
Up to2500m |
|
Warm up time |
10S |
|
Mechanical Environment |
M1 |
|
Electromagnetic Environment |
E2 |
|
Degree of pollution |
2 |

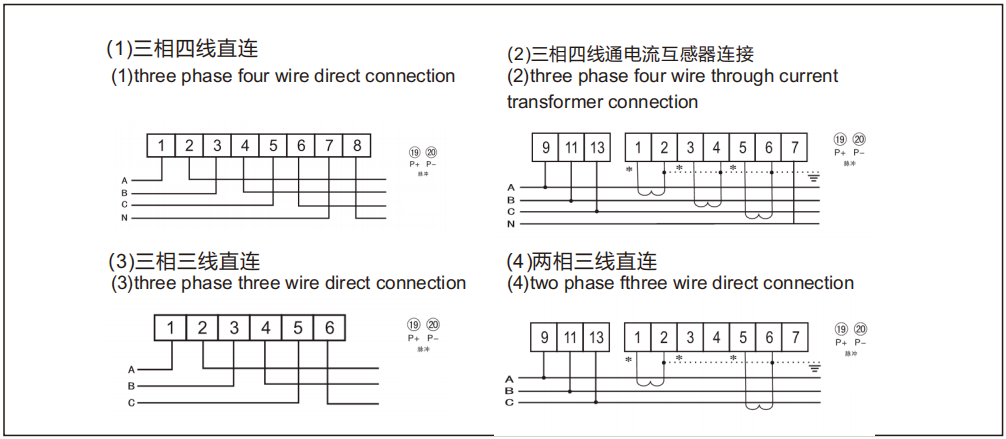

Wire connection:

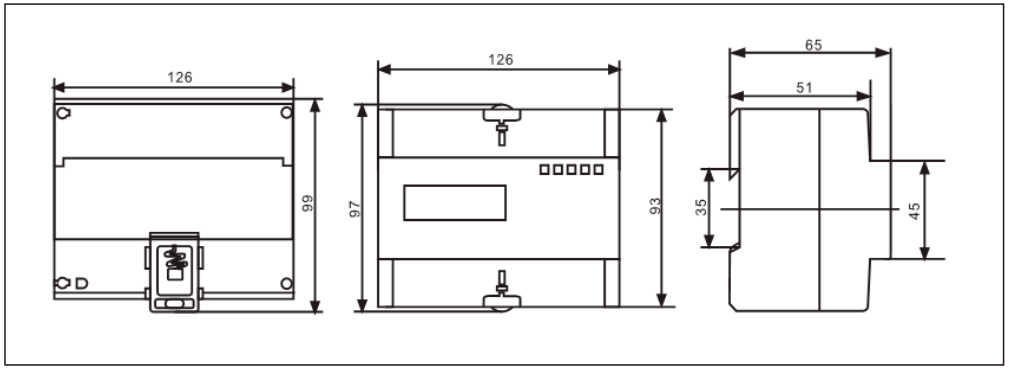

Outline dimension:
