The meter is designed to measure single-phase, three-wire AC active energy/reactive energy and variable parameter like residential, utility and industrial application. It has remote read communicatior
port RS485. It is a long life meter with the advantage of high stability, high over load capability, low power loss and small volume.
· LCD display,button for LCD display step by step
· Bi-directional total active energy, reverse active energy measure in the total energy
· The meter also display real conjunction phase voltage, active power, frequency,L1/L2 current, total
active energy, import active energy, export active energy, reactive energy
· Rs485 communication port,MODBUS-RTU protoco
· Active energy pulse LED indicates working of meter, Pulse output with optical coupling isolation
· Energy data can store in memory chip more than 15 years after power off
· 35mm din rail installation, bottom type wire connection
|
Rate Voltage AC
|
110/220v(11-1290 300v) fm2s wire
L1 and L2 line pass through meter, N line not pass through meter
|
||
|
Rate Current /Frequency
|
10(100)A / 50Hz or 60Hz ±10%
|
||
|
Communication Port
|
Rs485 port baudrate 1200-9600 bps, default is 9600bps, address 1-247, None parity, stop bits 1, data bits 8.
|
||
|
Connection Mode
|
Direct Type
|
Accuracy Class
|
1% or 0.5%
|
|
Power Consumption
|
<1W/10VA
|
Start Current
|
40mA
|
|
AC Voltage Withstand
|
4000V/25mA for 60s
|
Over Current Withstand
|
30Imax for 0.01s
|
|
IP Grade
|
IP20
|
Executive Standard
|
IEC62053-21, DIN 43880
|
|
Work Temperature
|
-25°C ~70°C
|
Pulse Output
|
Passive pulse, 80±5 ms
|

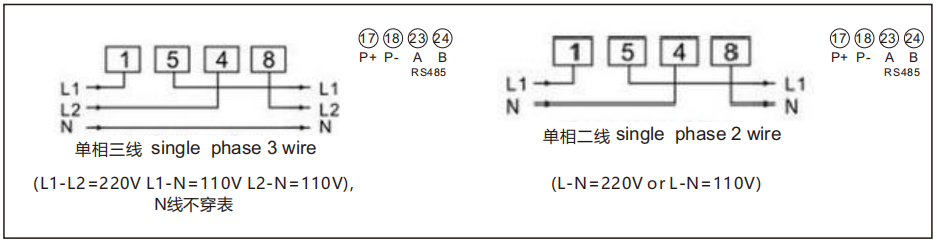

Wire connection:

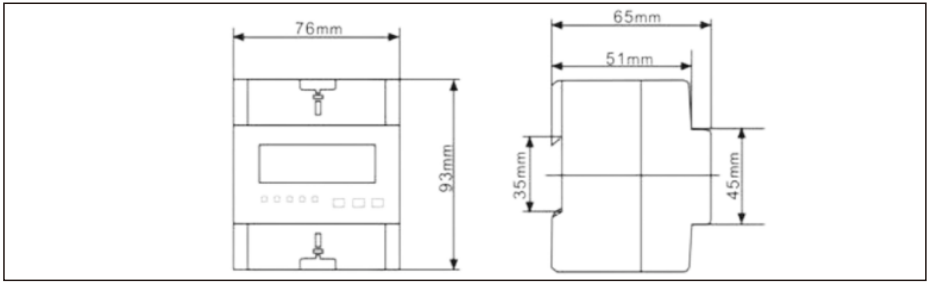

Outline dimension:
