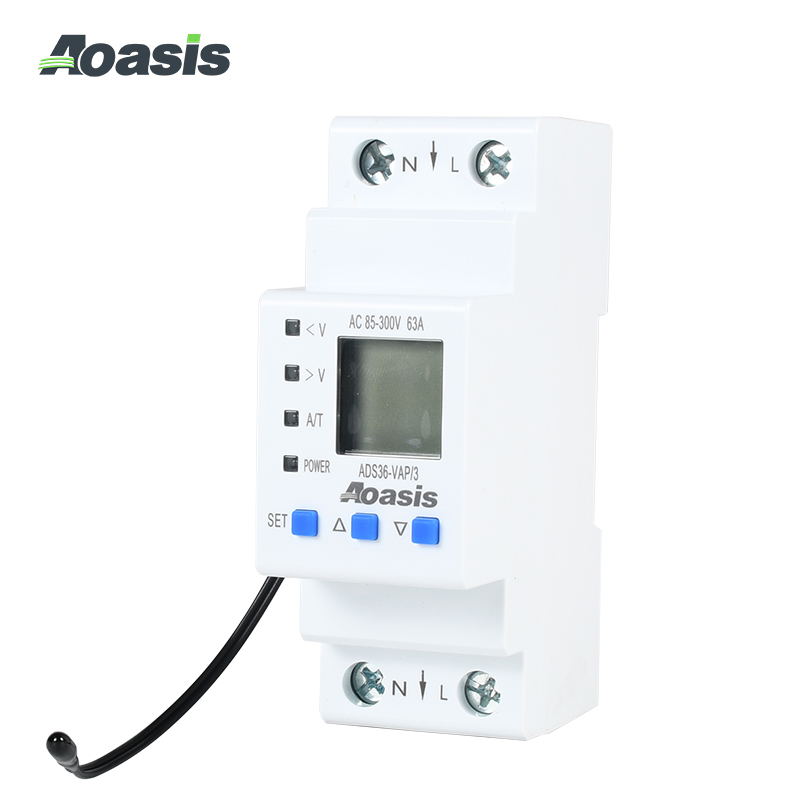

ADS36-VAP/3 type multi-function Protective energy meter is designed to measure single phase two wire AC active energy and used in overvoltage protection, under voltage protection and over-current protection and temperature limit protection。In case of over-voltage fault, under-voltage fault or over-current fault in ine. this product can instantly power off the load to prevent electrical eauipment from being burnt. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition. lt is a long use-life product with the advantage of high stability, high over load capability, low power loss and wide working voltage range
· LCD display with backlight, can display total active energy (kWh), real time current (A) , voltage(V), active power (W).
· Product self-design has function of lighting protection
· Overvoltage protection, under voltage protection and over-current protection can select auto-Reclosing mode or manual-Reclosing mode
· Automatic lower and upper temperature protection and recovery
· In case of over-voltage fault, under-voltage fault or over current fault in single phase line, the product can power off the line and can automatically restore connecting the line over a time delay after voltage of the lien is recovered to normal condition
· In case of transient over voltage in line, the product can protect the equipment from false operation
· In case that the line subjects to unstable voltage or sudden power-off and power-on due to loosened connection and other fault, the product will disconnect the line.
· When fault voltage of the line reaches the peak, the product itself will not be damaged.
· Under over-current protection mode, you also can select Malignant load protection (Pure Resistive Load limit) which is used for Apartments and Student Dormitories electric safety
· You can select the circuit output cycle switch on/off mode
· Led indication of over-voltage protection, under voltage protection and over-current protection
· Diversified design for the protection, you can closed any one of over-voltage protection, under-voltage protection and over-current protection in any time
· 35mm din rail installation
|
Input Working Voltage
|
85~300V AC
|
|
Over Voltage Protection Value
|
85-300V (default 270V)
|
|
Under Voltage Protection Value
|
85-300V (default 170V)
|
|
Over Current Protection Value
|
1-63A (default 40A) 1-80A(default 60A special order)
|
|
Rated Frequency
|
50/60Hz
|
|
Delay in Switch on After Power off
|
2-255s (default 2s)
|
|
Voltage Circuit Power Consumption
|
1W
|
|
Current Circuit Power Consumption
|
<1VA
|
|
Active Energy Display Range
|
0-9999.9kWh
|
|
Voltage/ Current/ Active Power Accurate
|
0.5%
|
|
Temperature Measure Range
|
-25ºC ~ +100ºC
|
|
Temperature Accurate
|
+2ºC
|
|
Active Energy Accurate
|
+1% (IEC62053-21)
|
|
Operating Temperature
|
-25ºC ~ +70ºC
|
|
Storage Temperature
|
-40ºC ~ +80ºC
|
|
Relative Humidity
|
85%
|
|
Altitude
|
2500m
|
|
Electromagnetic Environment
|
E2
|
|
Mechanical Life
|
100000 Cycles
|
Wire connection：
Outline dimension：
