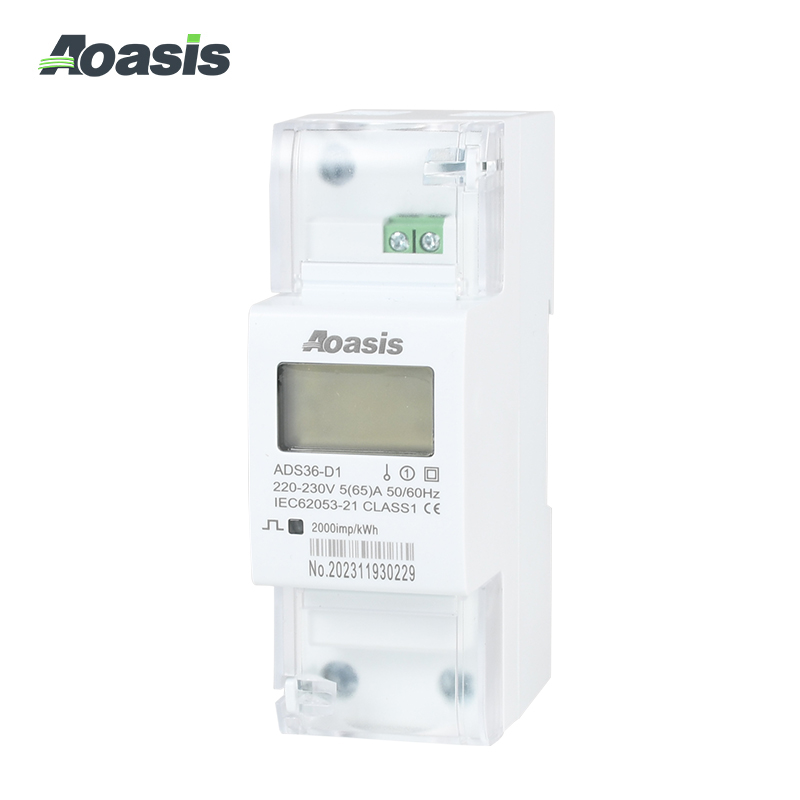

The meter is desianed to measure single-phase, two-wire AC active energy in residential, utility and industrial applications. It is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantages.
· LCD display 5+1
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· Pulse LED indicates working of meter, Passive pulse output with optical coupling isolation
· Energy data can store in memory chip more than 15 years after power off
· LCD with backlight and keypad, resettable interval energy can be reset to zero by keypad in anytime(optional function)
· 35mm din rail installation
|
Rate Voltage AC
|
110V,120V,220V, 230, 240V (0.8~1.2Un)
|
||
|
Rate Current /Frequency
|
5(60),10(100)A/50Hz or 60Hz ±10%
|
||
|
Connection Mode
|
Direct Type
|
Accuracy Class
|
0.1% or 0.5%
|
|
Power Consumption
|
<1W/10VA
|
Start Current
|
0.004lb
|
|
AC Voltage Withstand
|
4000V/25mA for 60s
|
Over Current Withstand
|
30Imax for 0.01s
|
|
IP Grade
|
IP20
|
Executive Standard
|
IEC62053-21, DIN 43880
|
|
Work Temperature
|
-25°C ~70°C
|
Pulse Output
|
Passive pulse, 80±5 ms
|

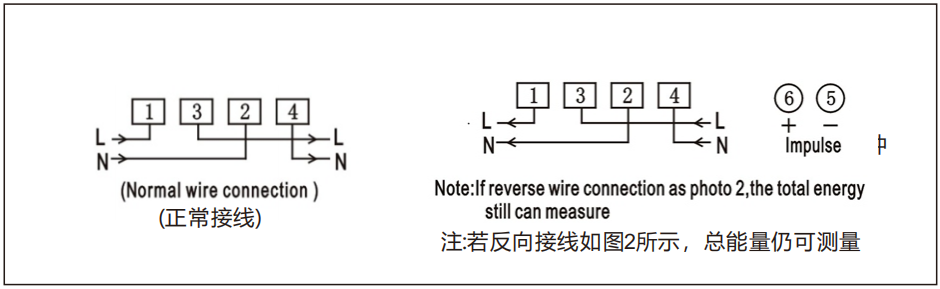

Wire connection:

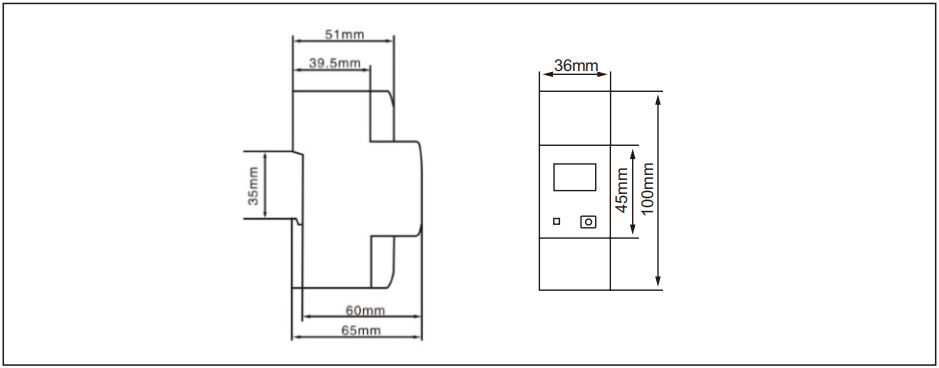

Outline dimension:
