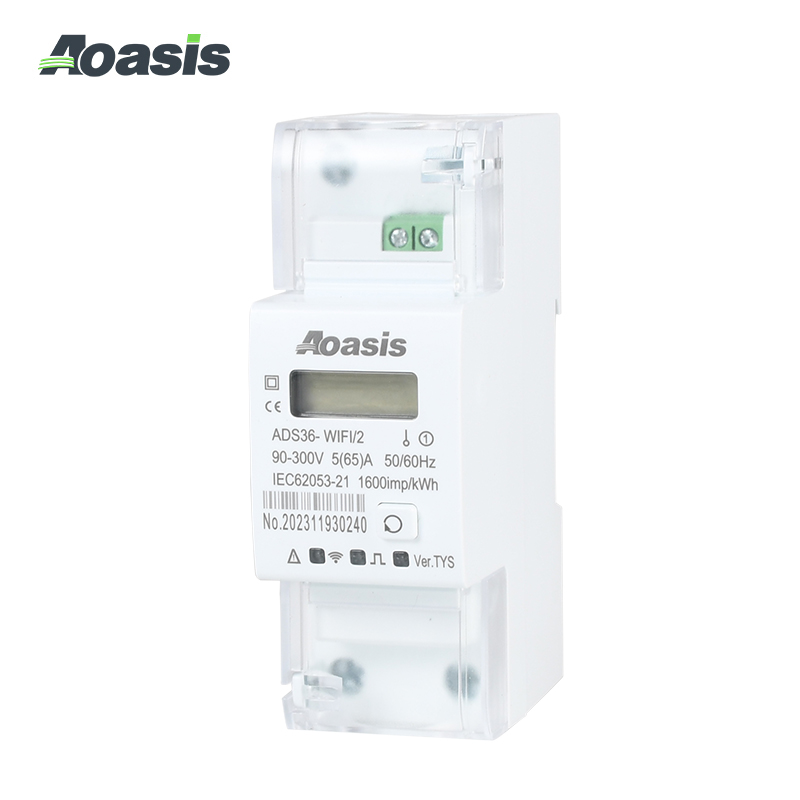

The meter is designed to measure single-phase, two-wire AC active energy and variable parameters in residential ,utility and ingustrial applications. WIFI communication can be read remotely (Smart Life or TUYA smart APP). lt is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantades.
· LCD display, button for LCD display step by step
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· Timing and delay control by APP
· Day/Month/Year history active energy consumption tracking by APP
· Check the real current, voltage active power by APP
· Remote control on/off by APP
· WIFI communication, can read and remote control by mobile phone APP
· Prepayment function, automatically cut off if the balance is used up.This function can be turned on/off manually.
· lt compatible with TUYA saas system
· Manual Control by button under lose WIFI
· Pulse LED indicates working of meter, Pulse output with optical coupling isolation
· Energy data can store in memory chip more than 15 years after power off
· 35mm din rail installation
|
Rate Voltage AC
|
90~300V (L-N)
|
||
|
Rate Current /Frequency
|
5(65)A /50Hz or 60Hz ±10%
|
||
|
WIFI
|
802.1.1b/g/n
|
||
|
Connection Mode
|
Direct Type
|
Accuracy Class
|
0.1% or 0.5%
|
|
Power Consumption
|
<1W/10VA
|
Start Current
|
0.004lb
|
|
AC Voltage Withstand
|
4000V/25mA for 60s
|
Over Current Withstand
|
30Imax for 0.01s
|
|
IP Grade
|
IP20
|
Executive Standard
|
IEC62053-21, DIN 43880
|
|
Work Temperature
|
-25°C ~70°C
|
Pulse Output
|
Passive pulse, 80±5 ms
|

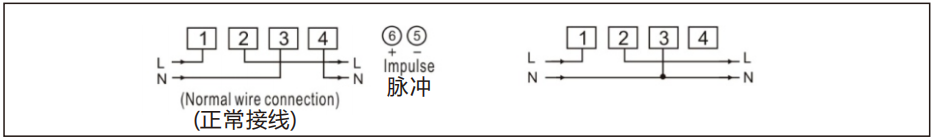

Wire connection:

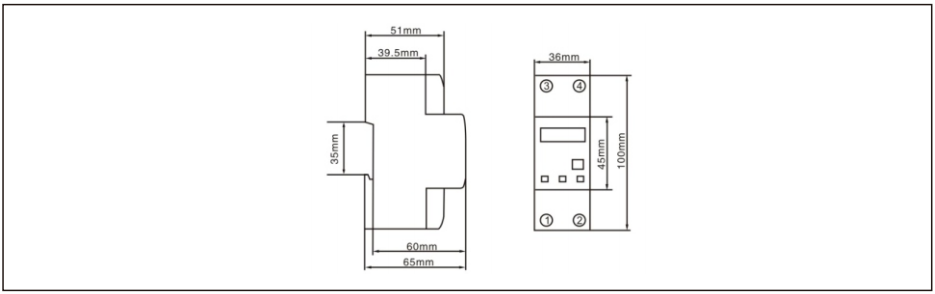

Outline dimension:
