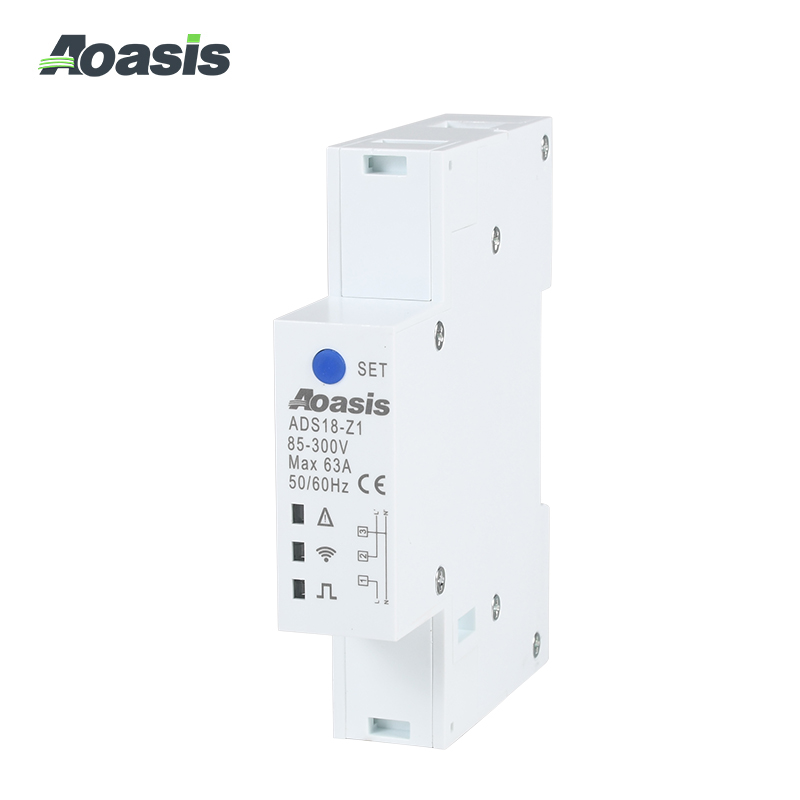

The switch is designed to remotely control the on/off of single-phase, two-wire AC power grid. lt can be remotely controlled from Zigbee communication (Smart Life or TUYA Smart APP). lt is a long-life product with high stability, high overload capacity, low power consumption, small size and other advantages.
· Voice control: Once you have this swich, you can connect it with Amazon Alexa(Amazon echo/dottap) or Google Assistant for voice control
· Wi-Fi Remote Control: You can use "Smart Life" APP in your smart phone to control the switch wirelessly with Zigbee or 4G network. no hub required
· Timing Function: Take full control of your home or office lights thanks to schedule timer that will allow you to plan the exact time to turn lights and appliances on/off automatically
· Share Device: This smart switch can have severa control sites shared by different family members. one mobile phone can also control many switches
· Manual Control by button under lose Zigbee
· 35mm din rail installation
Rate voltage AC
85~300V(L-N)
Rate Current /Frequency
63A/50Hz or 60Hz ±10%
Zigbee
EEE802.15.1
Connection mode
Direct type
Relay type
Magnetic latching
Power consumption
<2W/10VA
Start current
20mA
AC voltage withstand
4000V/25mAfor 60s
Over current withstand
30lmax for 0.01s
IP grade
IP20
Executive standard
IEC62053-21，DIN 43880
Work temperature
-25℃ ~70℃C
Led pulse output
Passive pulse, 80 ±5 ms
