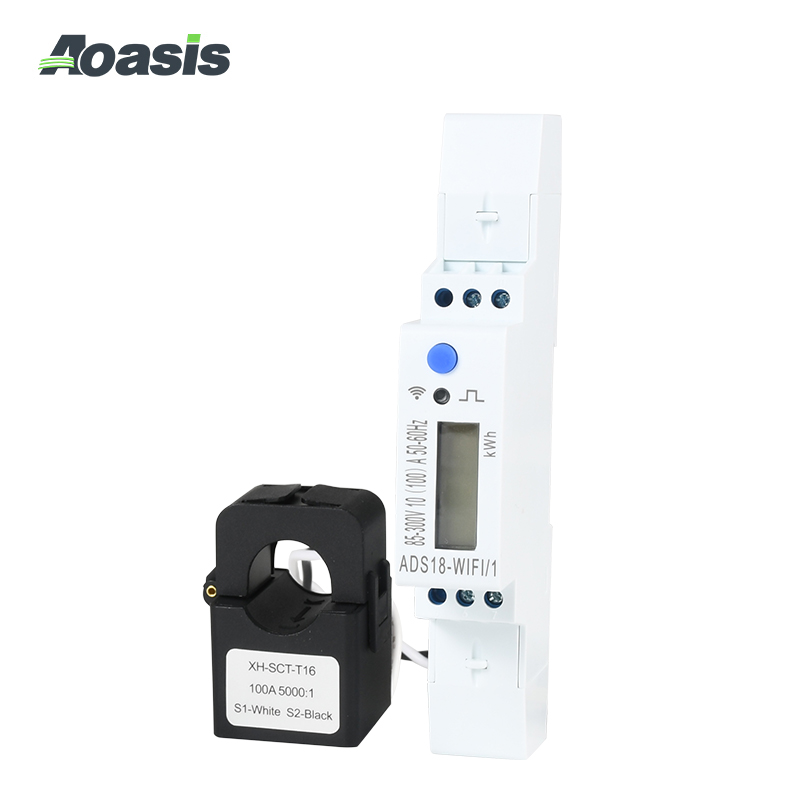

This meter is desianed to measure single-phase, two-line AC active power and variable parameters in residential, public utility and industrial fields. WIFI communication can be read remotely (Smart Life or TUYA smart APP). lt is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantages.
· LCD display with backlight, Keypad for LCD display step by step
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· The meter also display real voltage, current, active power, reactive power, power factor, frequency
· Timing and delay control by APP
· Hisstory active energy consumption tracking by APP
· Check the real current ,voltage active power by APP
· Remote control on/off by app, the meter have replay signal output to control AC contactor
· Clamp CT connection, easy for installation
· Pulse LED indicates working of meter, Pulse output with optical coupling isolation
· Energy data can store in memory chip more than 15 years after power off
· Active energy will keep in meter memory chip when WIFl connect failed. It will not loseand will upgrade after WIFI connection again
· 18mm width only 1 pole MCB dimension, 35mm din rail installation
|
Rate Voltage AC
|
85~300V (L-N)
|
||
|
Rate Current /Frequency
|
10(100)A /50Hz or 60Hz ±10%, Also can special order 100A or bigger clamp CT
|
||
|
WIFI
|
802.11b/g/n
|
||
|
Connection Mode
|
Indirect Type
|
Accuracy Class
|
1%
|
|
Power Consumption
|
<2W/10VA
|
Start Current
|
0.004lb
|
|
AC Voltage Withstand
|
4000V/25mA for 60s
|
Over Current Withstand
|
30Imax for 0.01s
|
|
IP Grade
|
IP20
|
Executive Standard
|
IEC62053-21
|
|
Work Temperature
|
-25°C ~70°C
|
Pulse Output
|
Passive pulse, 80±5 ms
|

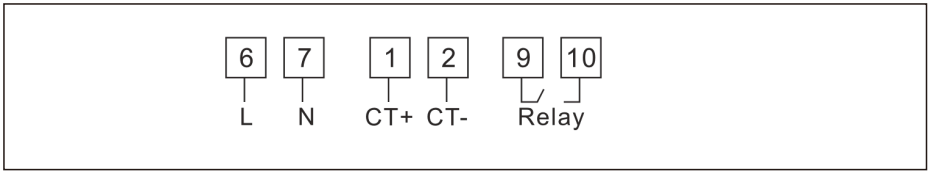

Wire connection：

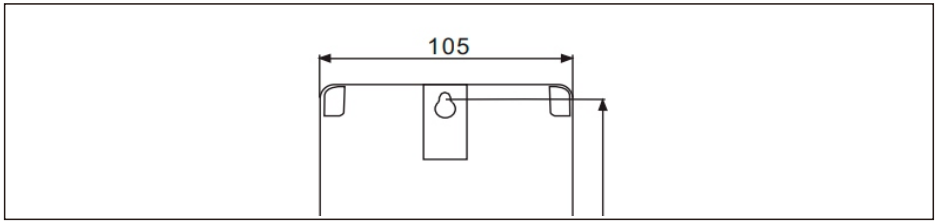

Outline dimension:
