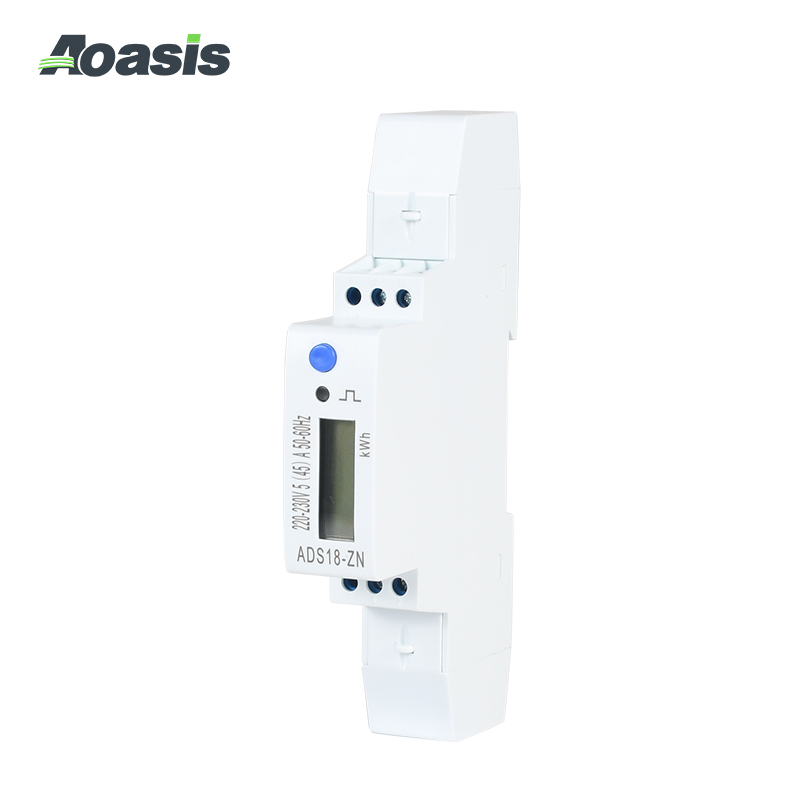

The meter is designed to measure single-phase, two-wire AC active energy in residential, utility and industrial applications.It has RS485 remote readingcommunication interfaoe . It is a long-life instrumentwith high stability. high overload capacity, low power consumption,small size and other advantages.
· LCD display with backlight, Keypad for LCD display step by step
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· The meter also display real voltage, current, active power, power factor, frequency, import a ctive energy, export active energy
· Reset energy function (the reset energy kWh display is dependent with the total energy display, this reset will not affect the total energy)
· RS485 communication port, MODBUS-RTU protocol
· Pulse LED indicates working of meter, Pulse output with optical coupling isolation
· Energy data can store in memory chip more than 15 years after power off
· 35mm din rail installation
|
Rate Voltage AC
|
110V, 120V, 220V, 230V, 240V (0.8~1.2Un)
|
||
|
Rate Current /Frequency
|
5(32)A /50Hz or 60Hz ±10%
|
||
|
Communication Port
|
Rs485 port, baud rate 1200~9600 bps, default is 9600bps,address 1~247, None parity, stop bits 1, data bits 8
|
||
|
Connection Mode
|
Direct Type
|
Accuracy Class
|
1% or 0.5%
|
|
Power Consumption
|
<2W/10VA
|
Start Current
|
0.004lb
|
|
AC Voltage Withstand
|
4000V/25mA for 60s
|
Over Current Withstand
|
30Imax for 0.01s
|
|
IP Grade
|
IP20
|
Executive Standard
|
DIN 43880
|
|
Work Temperature
|
-25°C ~70°C
|
Pulse Output
|
Passive pulse, 80±5 ms
|

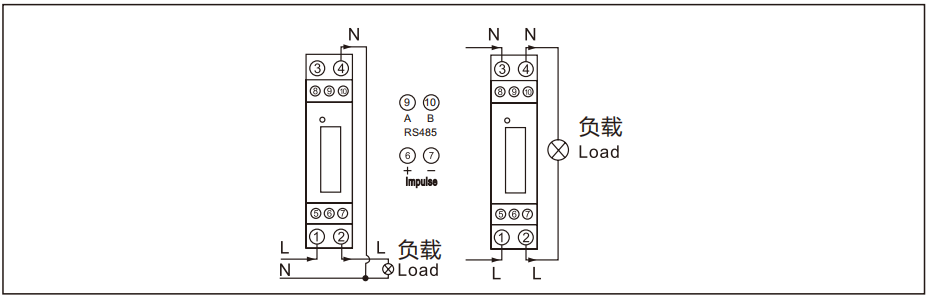

Wire connection:

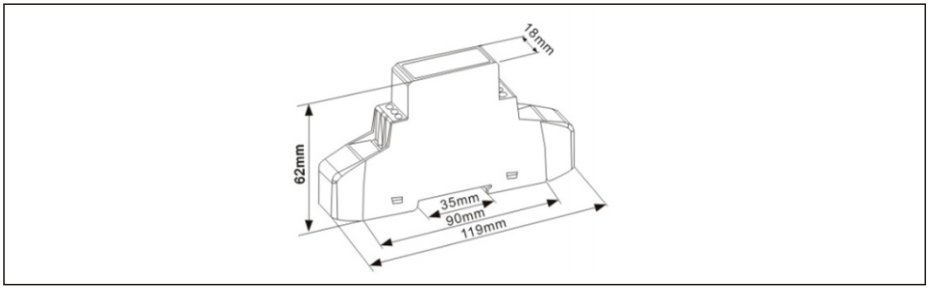

Outline dimension：
