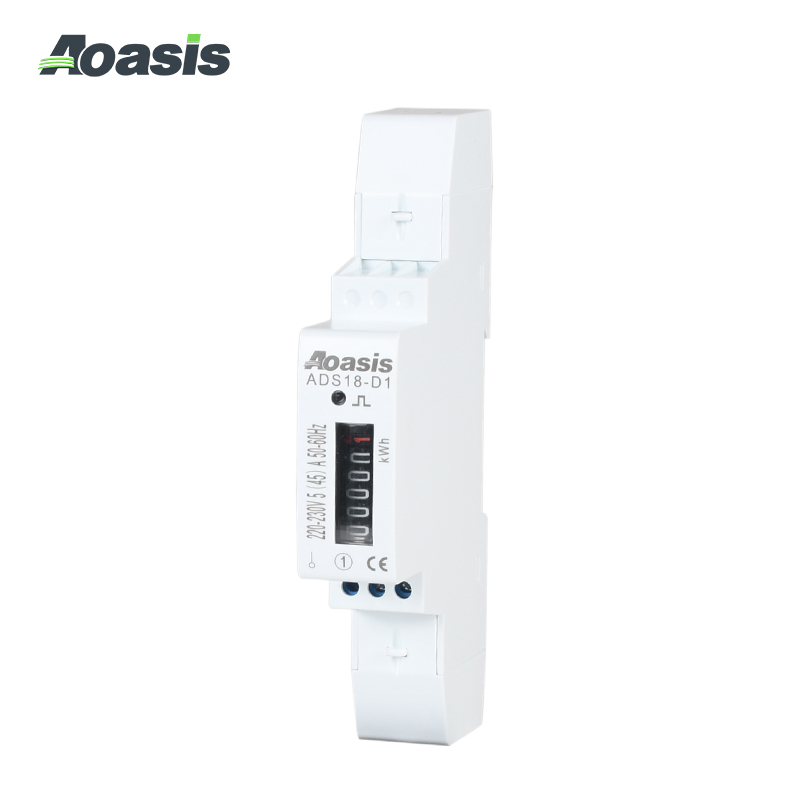

The meter is designed to measure single-phase, two-wire AC active energy in residential, utility and industrial applications. It is a long-life instrument with high stability, high overload capacity, low power consumption, small size and other advantages.
· Mechanical step register 5+1 or LCD display 6+1
· Bi-directional total active energy measurement, reverse active energy measure in the total active energy
· For LCD display type meter, Energy data can store in memory chip more than 15 years after power off
· Pulse LED indicates working of meter, Passive pulse output with optical coupling isolation 35mm din rail installation
· LCD display with backlight (optional function)
| Rate voltage AC | 110V,120V,220V,230,240V(0.8~1.2Un) | ||
| Rate Current /Frequency | 5(32)A,5(40)A,5(45)A/50Hz or 60Hz±10% | ||
| Connection mode | Direct type | Accuracy class | 1%or 0.5% |
| Power consumption | <1W/10VA | Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60s | Over current withstand | 30|max for 0.01s |
| IP grade | IP20 | Executive standard |
IEC62053-21
DIN 43880
|
| Work temperature | -25 ℃ ~70 ℃ | Pulse output | Passive pulse,80±5 ms |

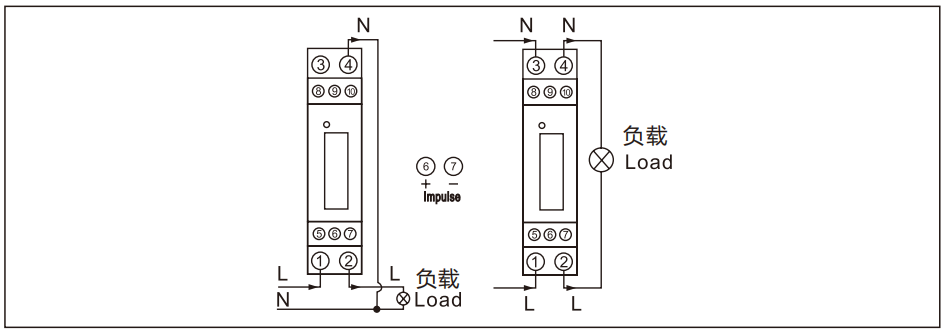

Wire connection:

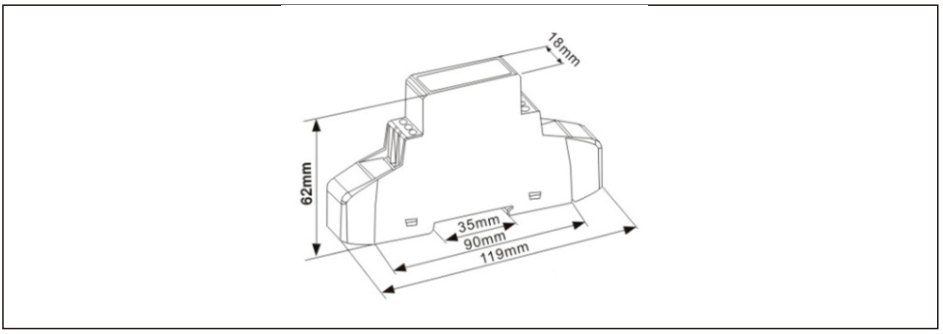

Outline dimension:
