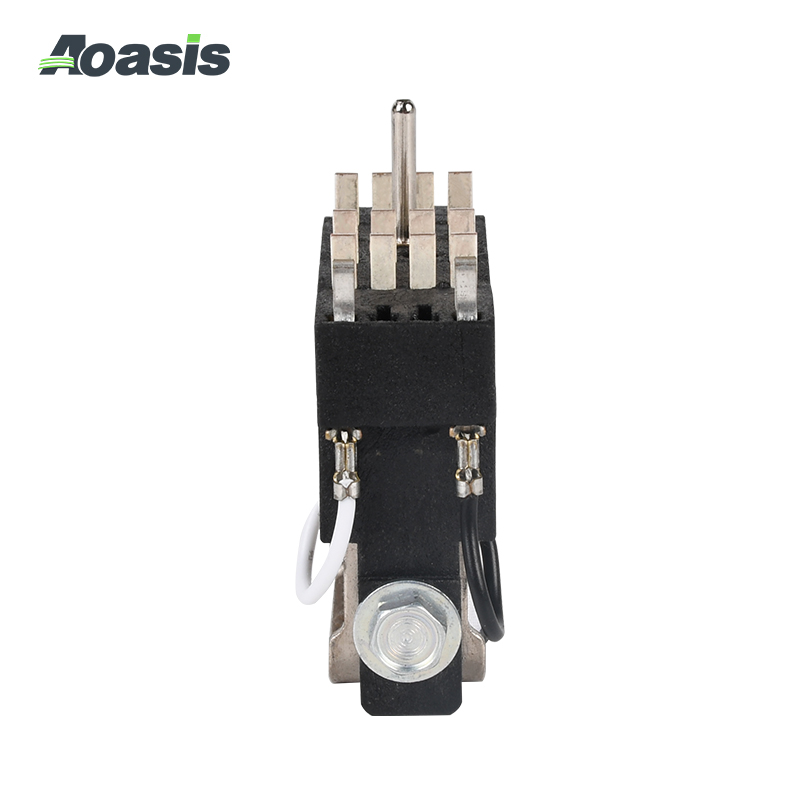

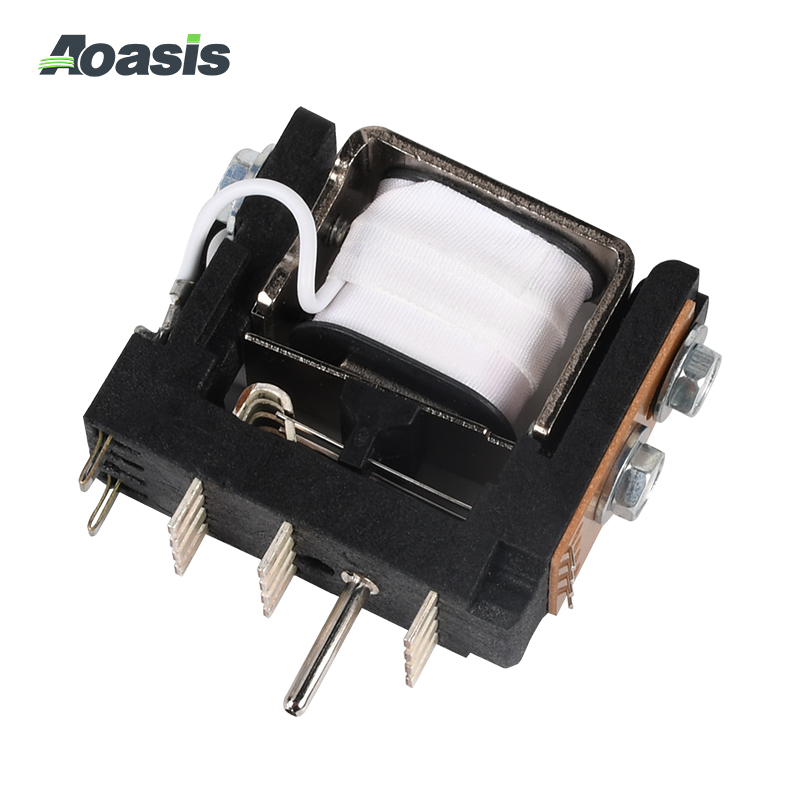

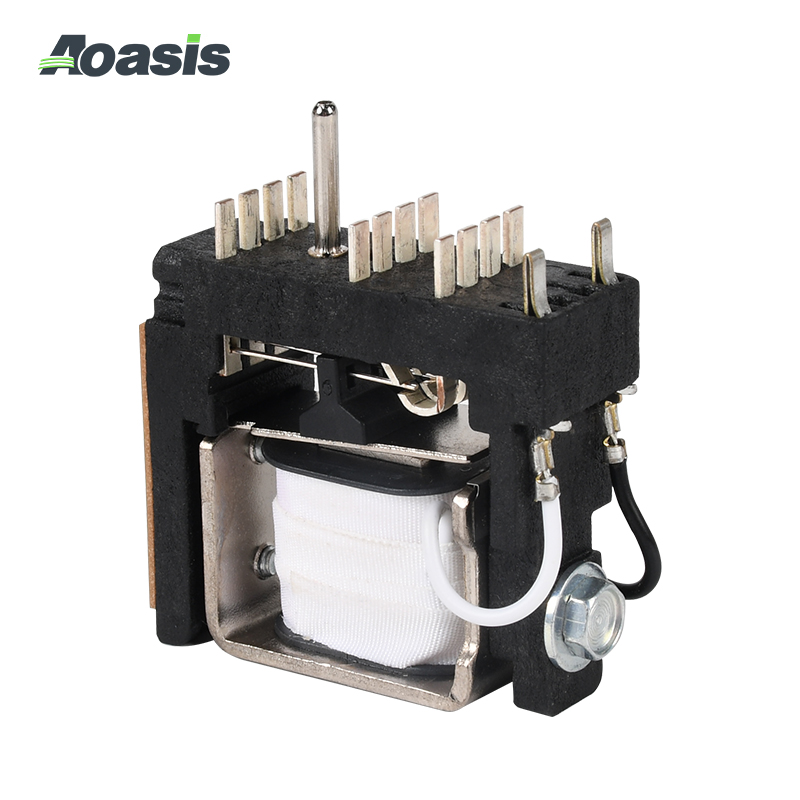

The wire contact relay was developed to meet the need for a compact high speed relay for use on 40 volts DC. The unit is available in three sizes;4 transfer contact,single and double coil. The use of transfer contacts provides a flexible capacity which eliminates the need for several different relay assemblies having various contact combinations. The relay is pluggable, employing a terminal moulding
connector which permits completion of wiring before relays are installed in a machine. The unit is read ily removable for inspection or replacement and does not require removal of screws or wires. The wire contacts were not designed for circuit interruption, but the silver alloy now in use will stand some arcing.
|
Type |
PR-30 |
DRP-6D |
| Form | --- | 二极管 Diode |
| Linear contact | 4PDT | |
| Coil voltage (V) | DC 48V | |
| Attraction time (ms) | ≤8ms Nominal voltage 40VDC | |
| Releasing time (ms) | ≤4ms Nominal voltage 40VDC | |
| Operating period (%) | 100 | |
|
Response voltage (23℃) |
DC:≤75% Nominal voltage | |
| Release voltage (23℃) | DC:≥5% Nominal voltage | |
| Installation method | Plug-in type | |
Outline Dimension：
