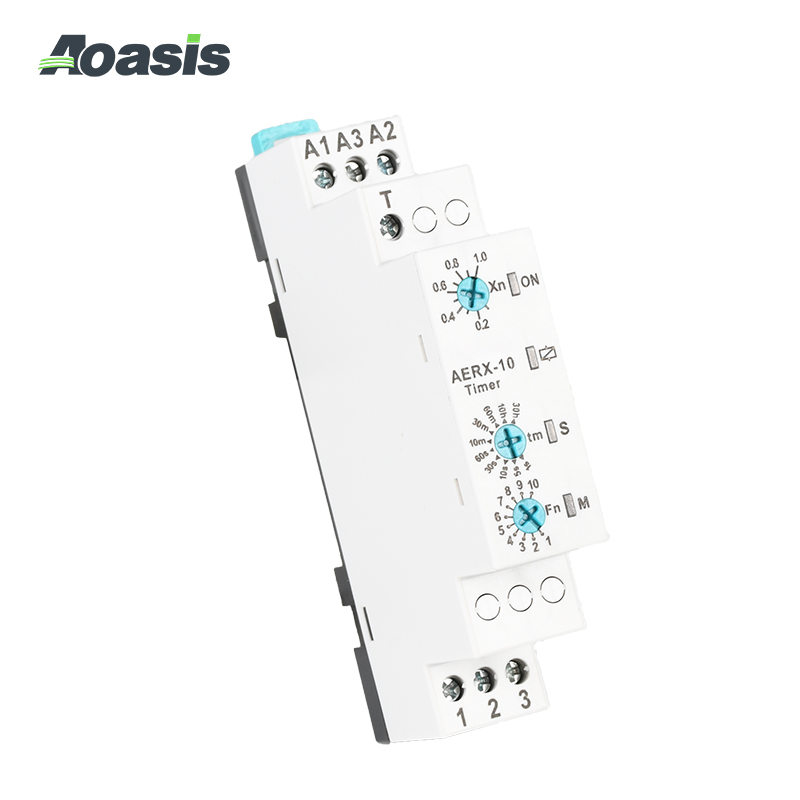

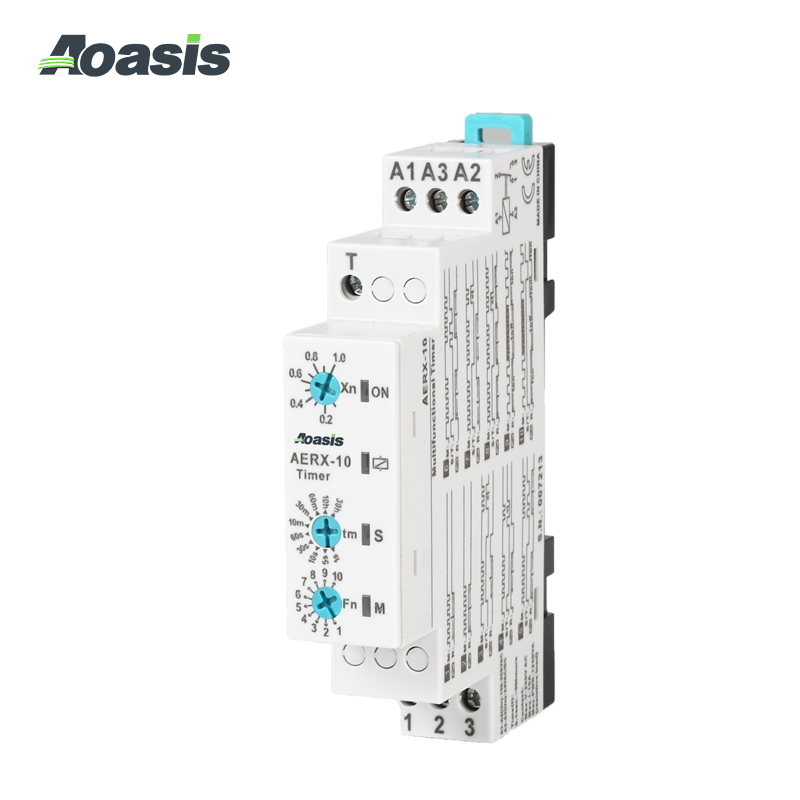

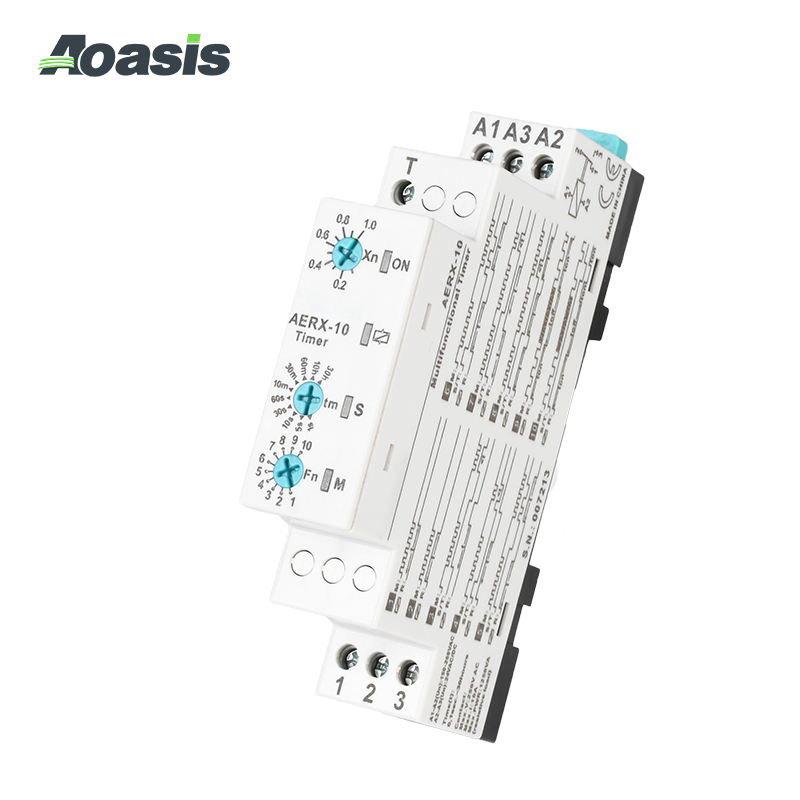

Product Description

General
AERX-10 time relay is specifically designed for controlling the time and incoming data and can be used in industry,
residential,factory facilities.

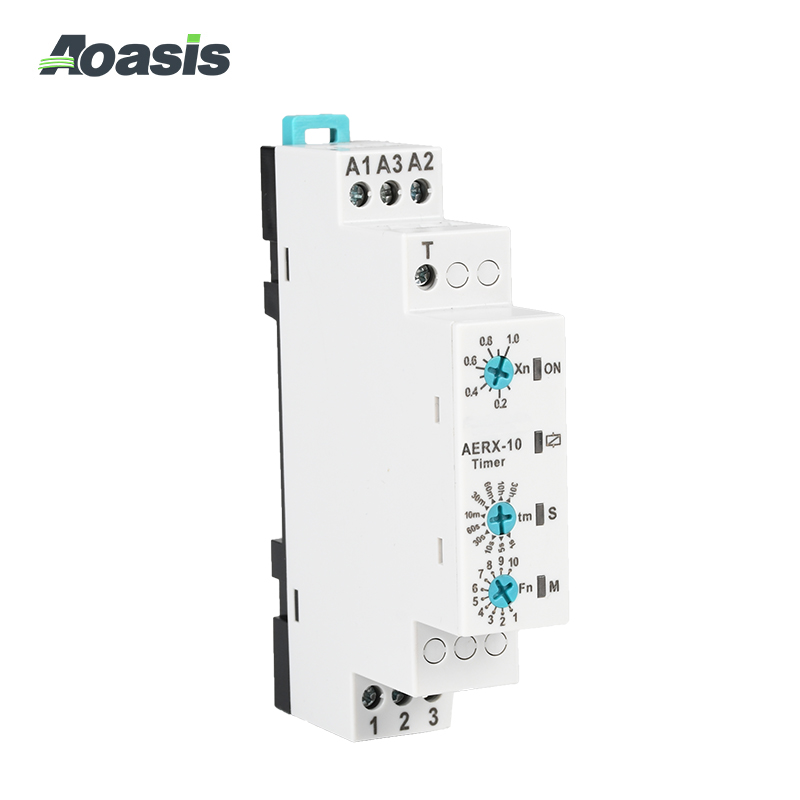

Device's Adjusting Buttons:
Function button (Fn): This button determines the functions. Please choose the desired function from the table.
Max Time button (tm): This button determines the maximum time demand. It has a maximum of 10 time value.
Time Multiply Button(Xn): It allows you to reach at intermediate values by multiplying maximum values.It has 10 step multiplying
value between 0.1-1.0

Usage of Device and Working Principle:
Please connect the device according to the diagram.
Please define the function and time settings before energising the device.
Time=Maximum time(tm) x Time Scale Factor (Xn)

Example: Lets say If the device is energised, it is desired that the relay becomes activated for 15 mins. and then should not be
deactivated until de-energised.
Adjust the fn button to 2.Then adjust the MAX button (tm) to 30 min [g] and the time scale factor button to 30m.[ 15 min= [30
min]x0.5] After the desired function and time is adjusted, the device can be energised accordingly.

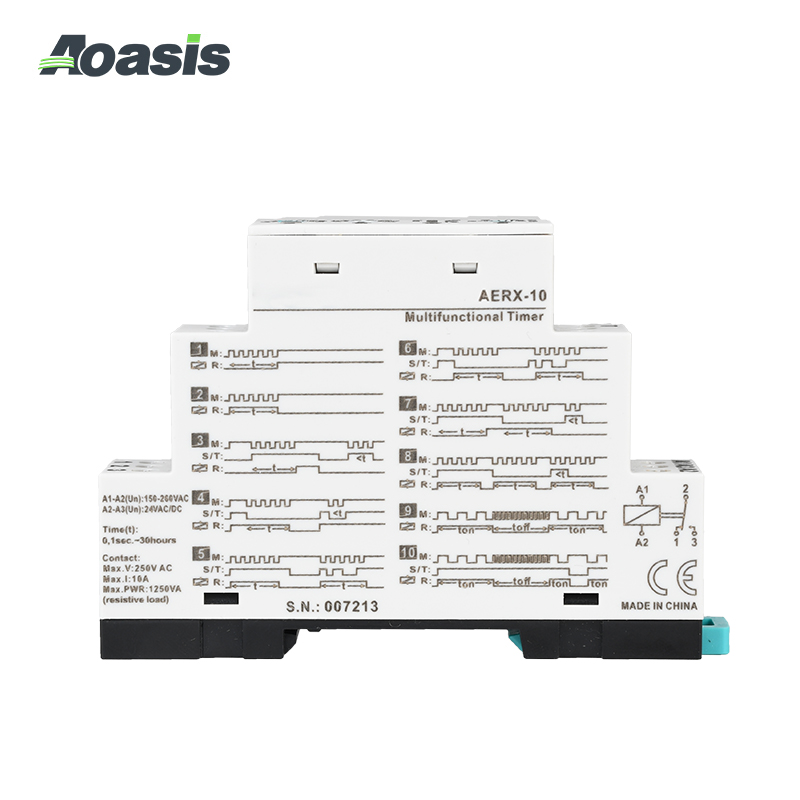

Function Button(Fn)
-1- ON Delay
After the device is powered on, the delay starts, the M Led flashes during timing, and the relay is output after the delay ends,
relay Led is on and the M Led is on.

Re-execution requires power-off reset.



Technical Parameters:

Type AERX-10
Operating Voltage(Un) 150-260VAC(A1-A2),24VAC/DC(A2-A3)
Operating Frequency 50/60Hz
Operating Power <4VA
Ambient Conditions;Humidity
-20℃…+55℃
Time 1 sec.-30 hours
Display
Relay.T switch(S).status(M)and power(On)leds
Connection type Terminal connection
Weight 68g
Contact 5A/250VAC(Rosistive load)
Mounting Assembled on the din rai
Protection Class IP20
Operating Altitude <2000meter
Cable Diameter 2.5mm².1.5mm

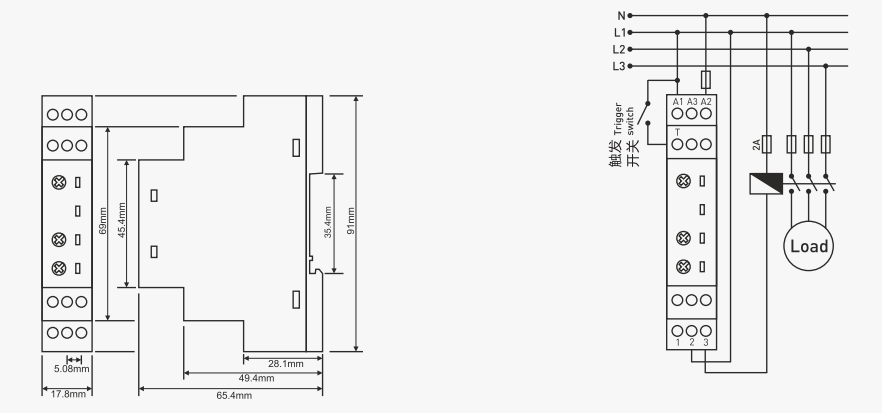

Installation dimensions and wiring requirements
