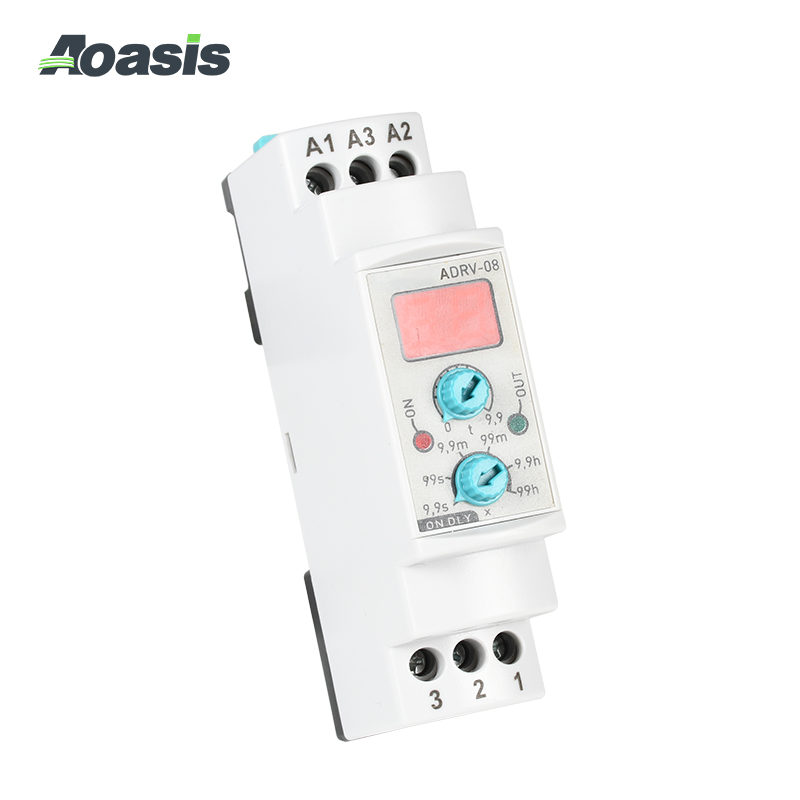

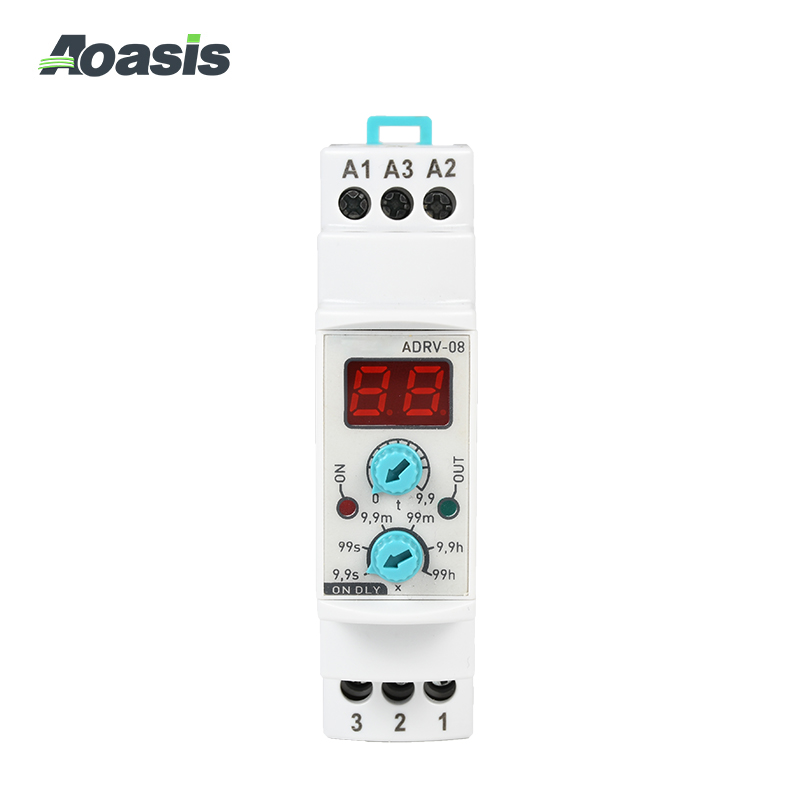

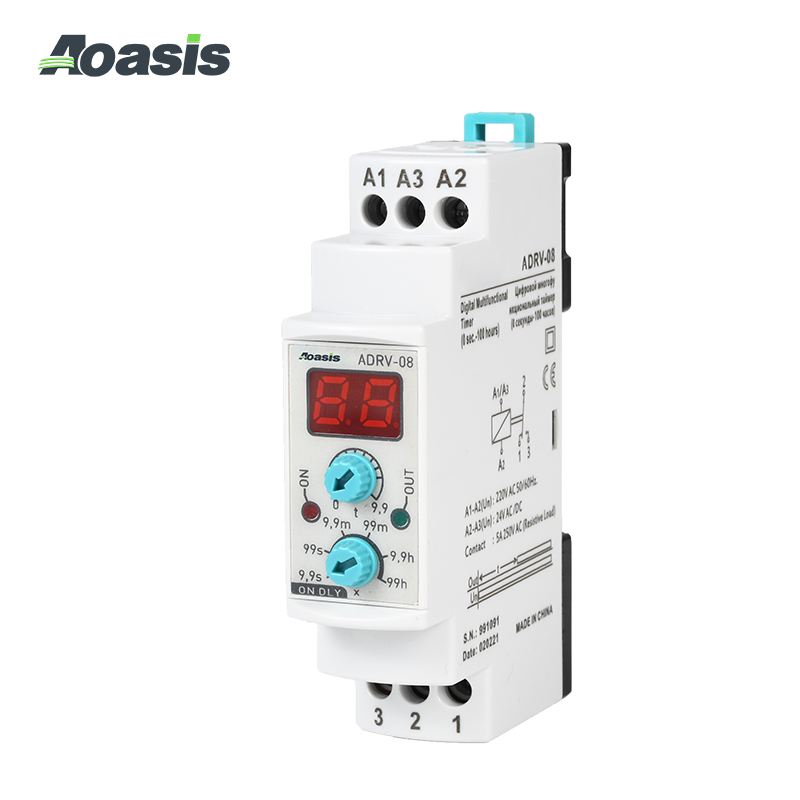

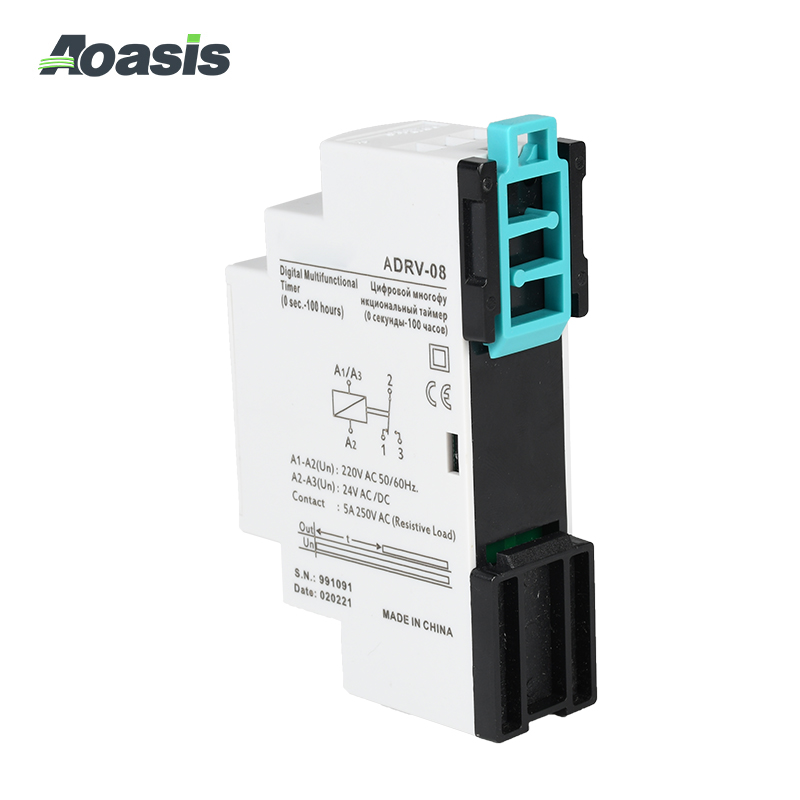

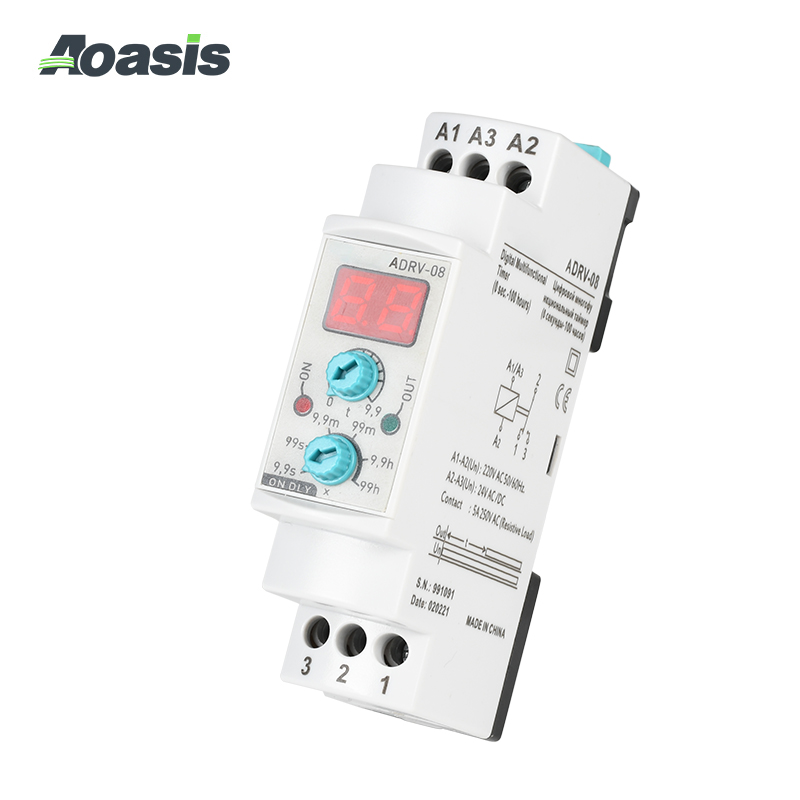

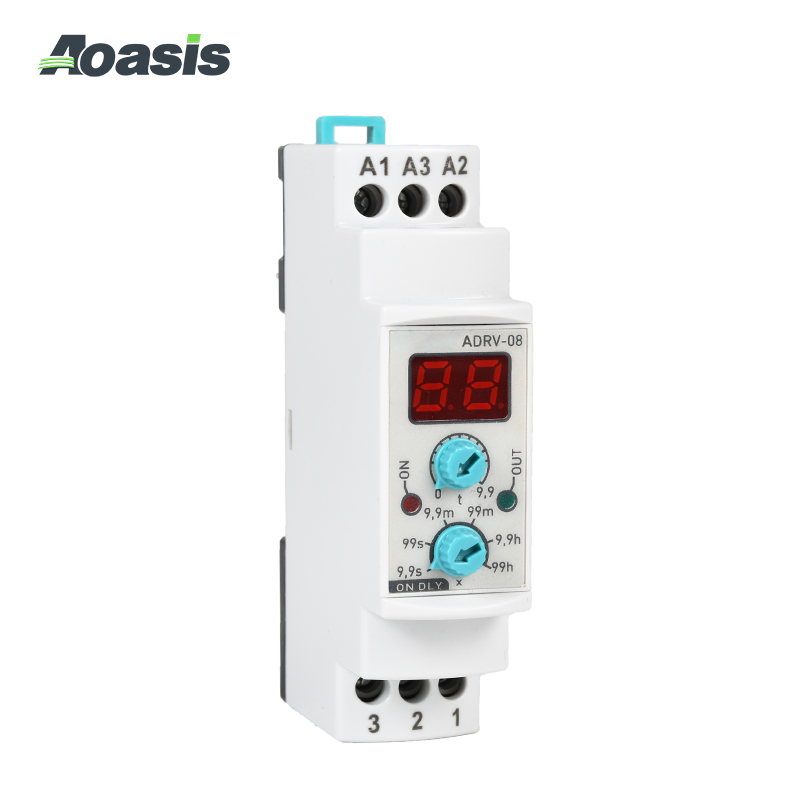

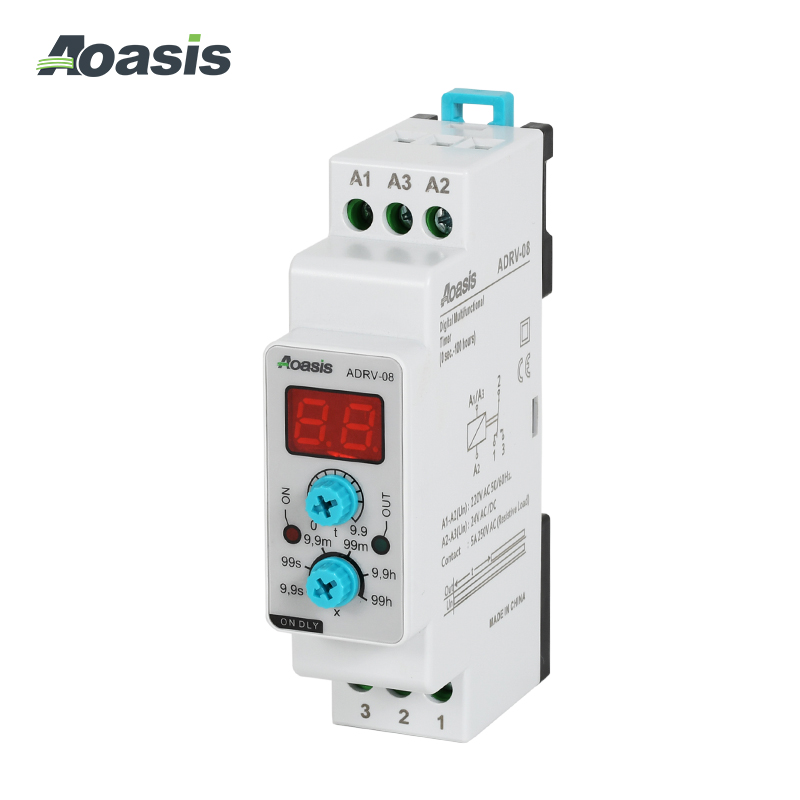

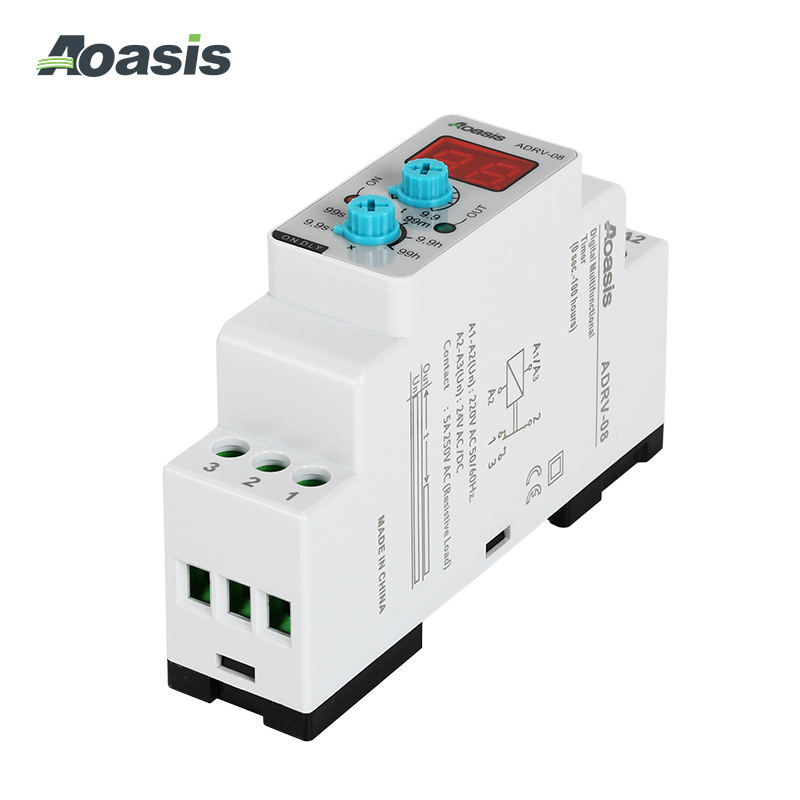

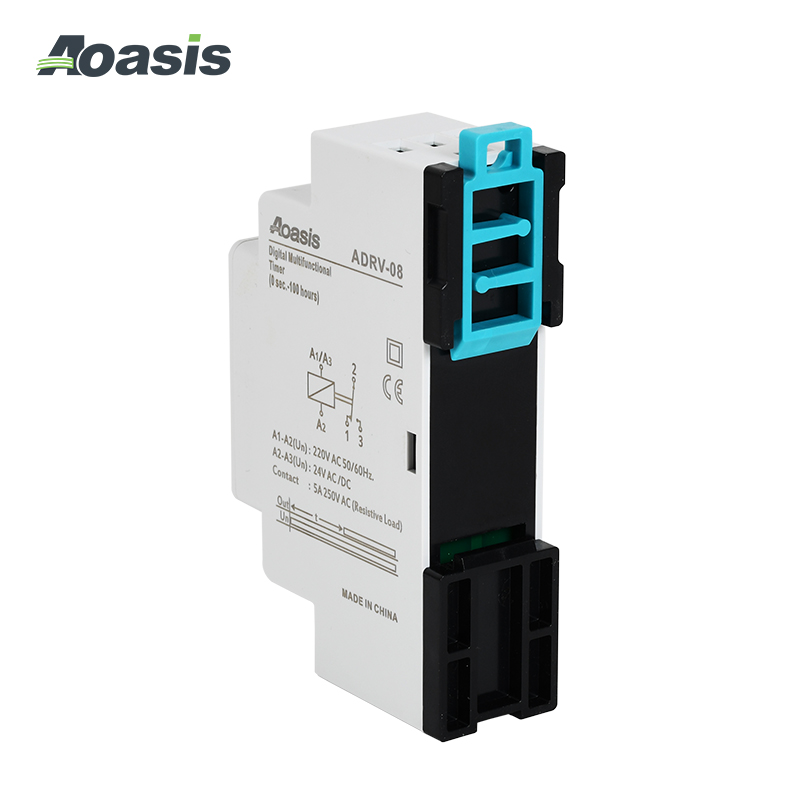

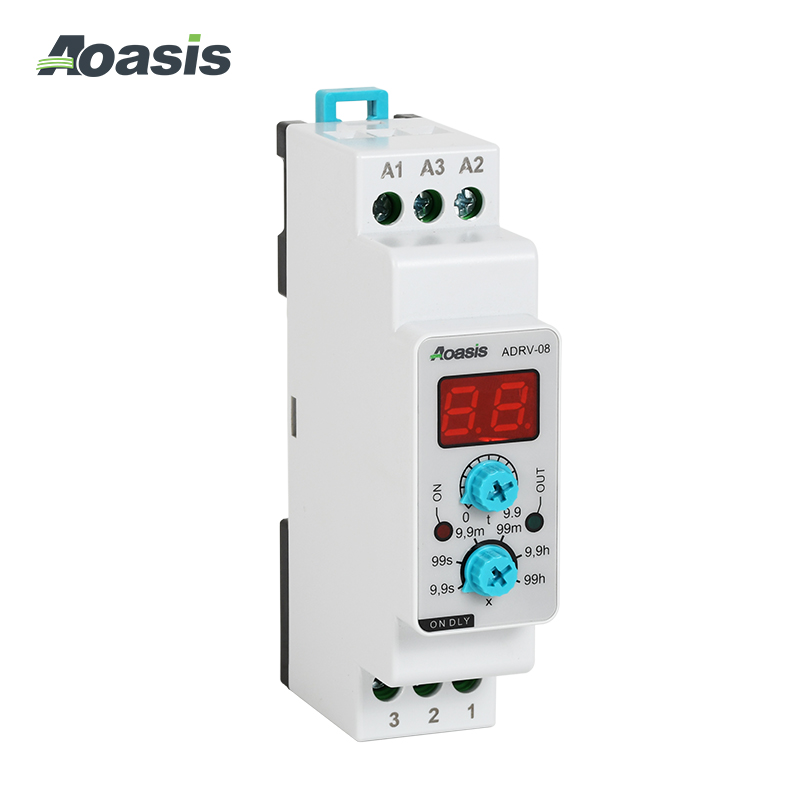

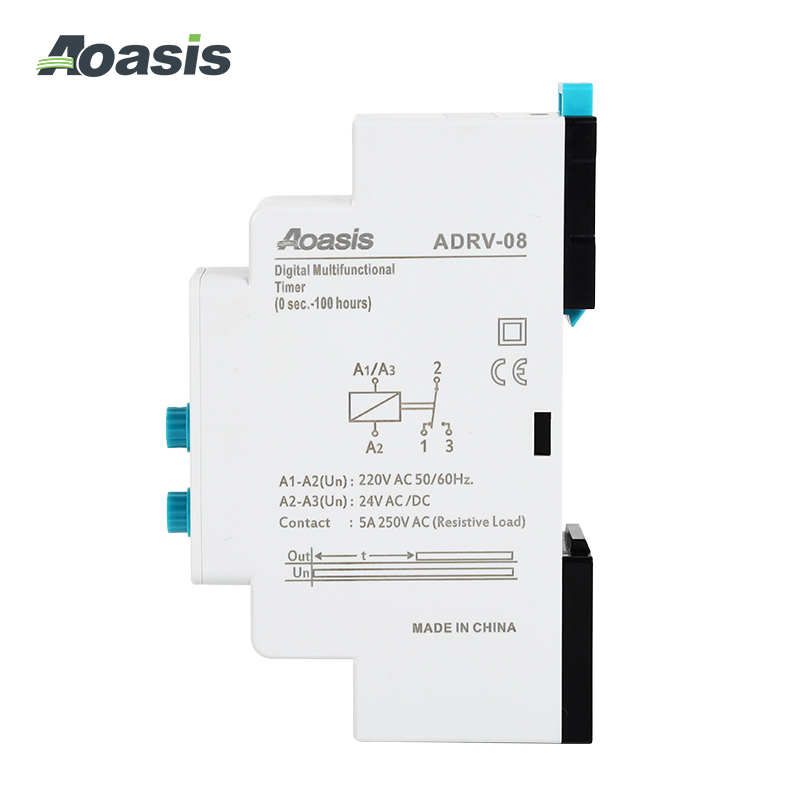

ADRV-08 Digital Timer With ON/OFF Delay
ADRV-08 Digital Timer With ON/OFF Delay
ADRV-08 Digital Timer With ON/OFF Delay
ADRV-08 Digital Timer With ON/OFF Delay
ADRV-08 Digital Timer With ON/OFF Delay
ADRV-08 Digital Timer With ON/OFF Delay
ADRV-08 Digital Timer With ON/OFF Delay

ADRV-08 Digital Timer With ON/OFF Delay

Characteristics

ADRV series triggered digital timer with ON and OFF delay is designed to be used wherever time dependent control is required.

Send Inquiry

Product Description

General
ADRV-08 digital timer is designed to be use wherever time dependent control is required.

Usage and Working Principle

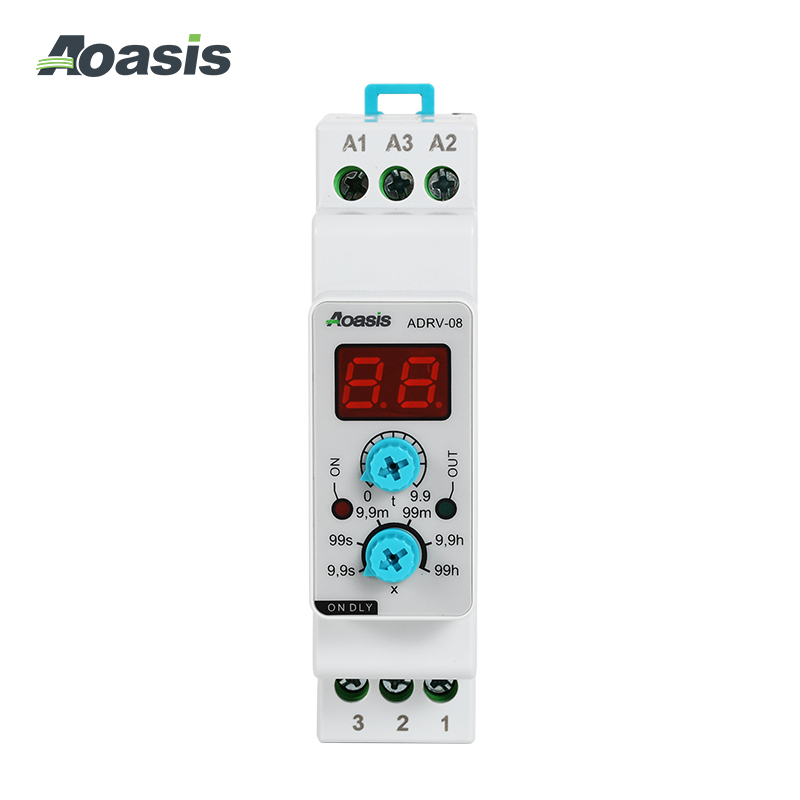

Display: Displayed here while setting the time and counting down the set time. If the operating time is set in minutes, the
rightmost point of the display flashes while the device is counting the time. t Knob: To set the working time value, move the knob
to the desired value. When setting the time, the set time is displayed on the screen. (If the time is changed while the device is
counting time, the device continues to count the new time set.) x Knob: To set the time range, move the“x" knob to the desired
value.The right side is reserved x Knob: To set the time range move the“x" knob to the desired value.9.9 sec., 99 sec., 9.9 min.,
99 min., 9.9 hors., 99 hours 6 different time periods can be set. When the time range is set while the device is powered, the
device must be de-energized and re-energized in order for the adjusted time range to be valid.

Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical
might damage the device. Make sure device works after cleaning

Warnings
Please use the device according to the manual. Don’t use the device in wet. Include a switch and circuit breaker in the assembly.

Put the switch and circuit breaker nearby the device, operator can reach easily. Mark the switch and circuit breaker as releasing connection for device.



Technical Parameters:

Type ADRV-08 ADRV-10
Operating Voltage 150V-260VAC 24V DC,or110VAC 24V DC 110Vor230VAC(A1-A2)or24VAC/DC(A2-A3
Function ON Delay                                 ON Delay or OFF Delay
Operating Frequency 50/60Hz
Operating Power <4VA <6VA
Ambient   Conditions;Humidity
20……+55℃
Time
9.9(sec),99(sec),9.9(min)
99(min),9.9(hr),99(hours)
0.1(sec)~99(min)
Display
01x2 digit,on led and out(RLY )led
Output contact 5A/250VAC (Resistive Load)
Mounting Assembld on the din rail
Operating Altitude c2000mete
Weigh 79g
Cable Diameter 2.5mm



Installation dimensions and wiring requirements
