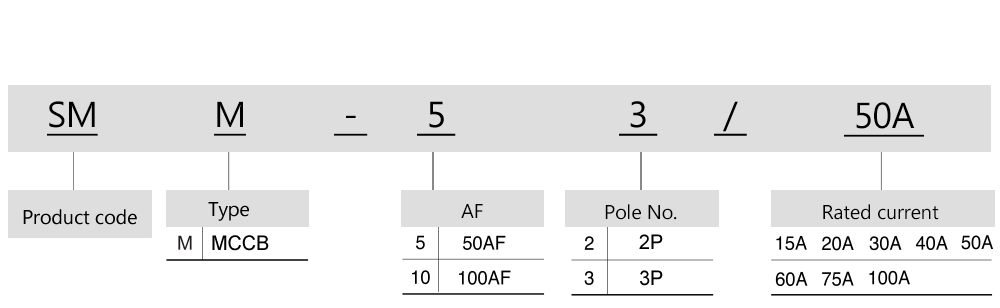

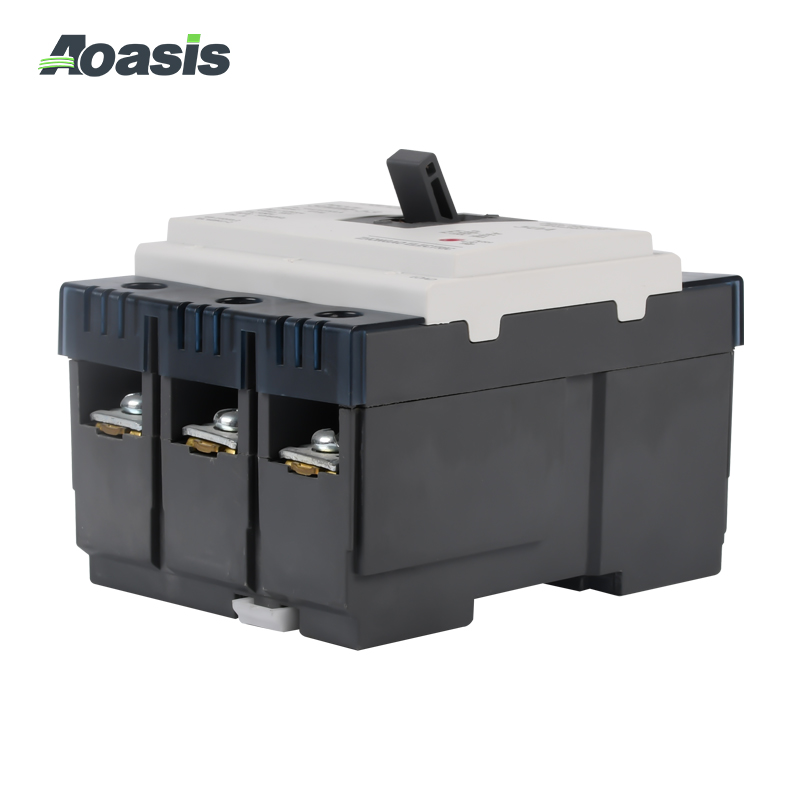

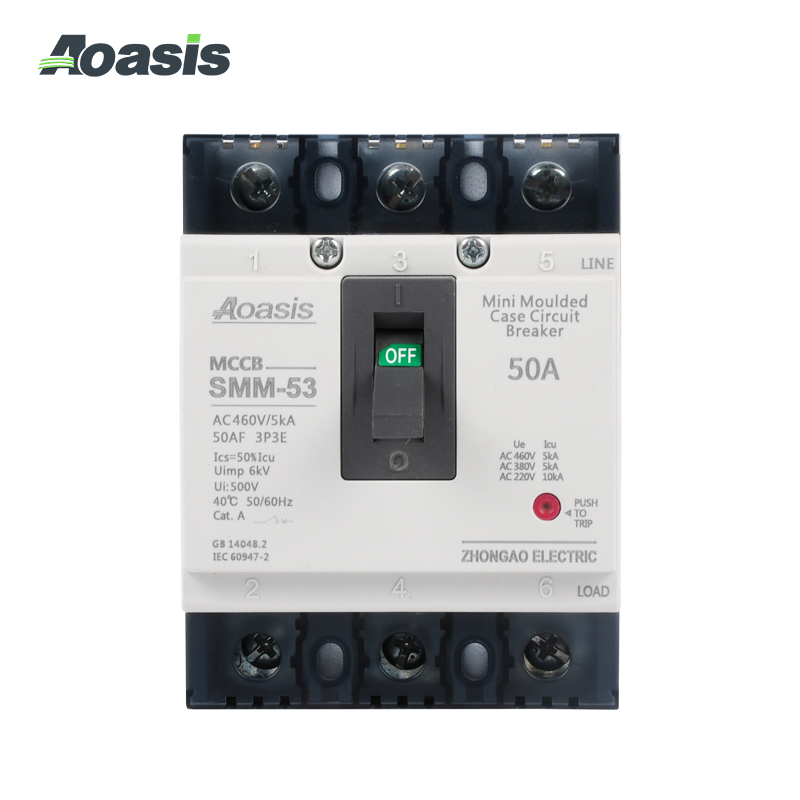

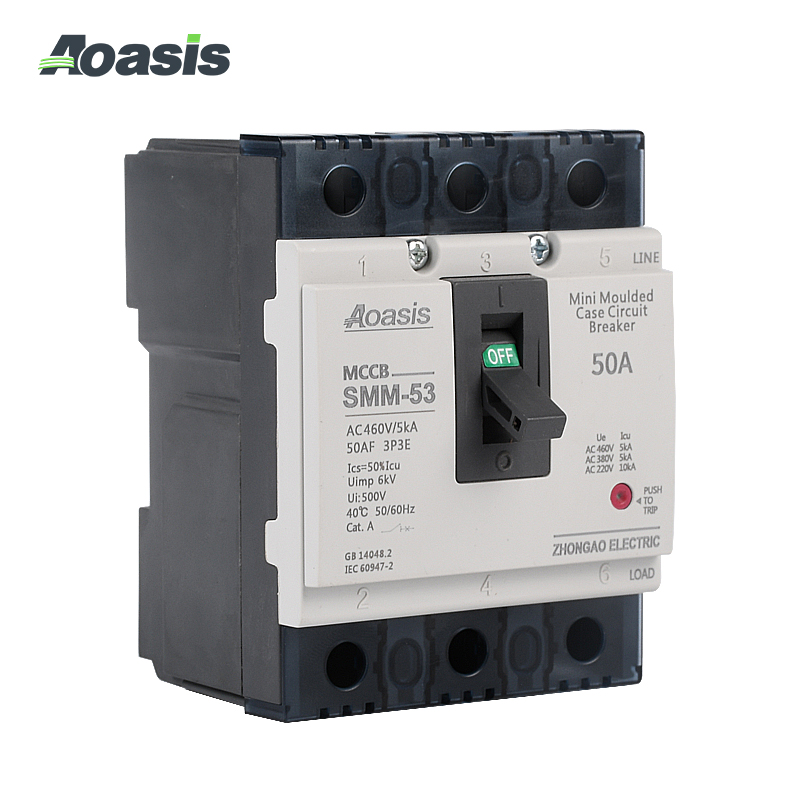

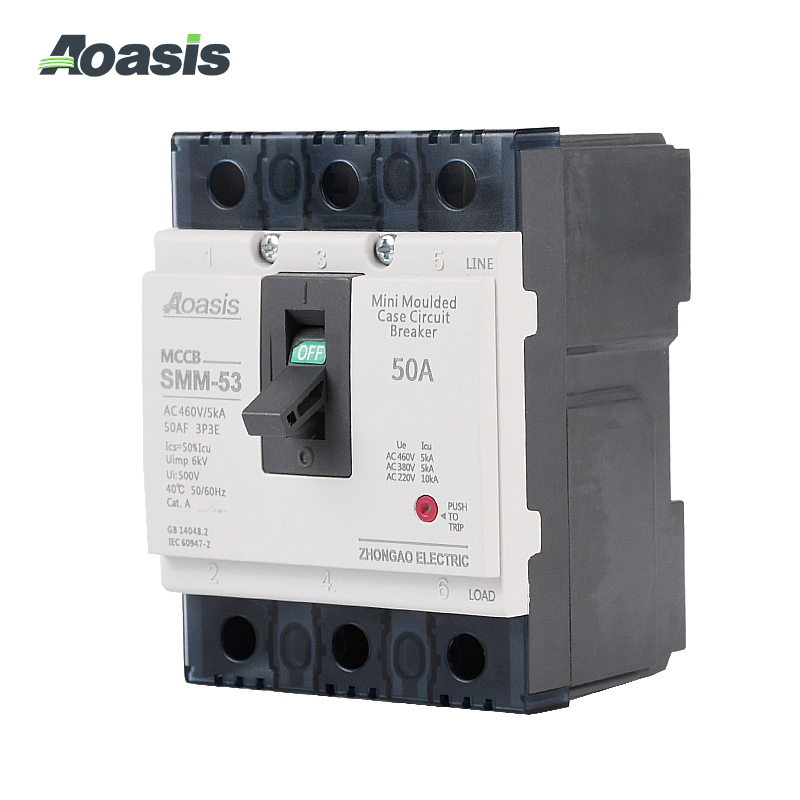

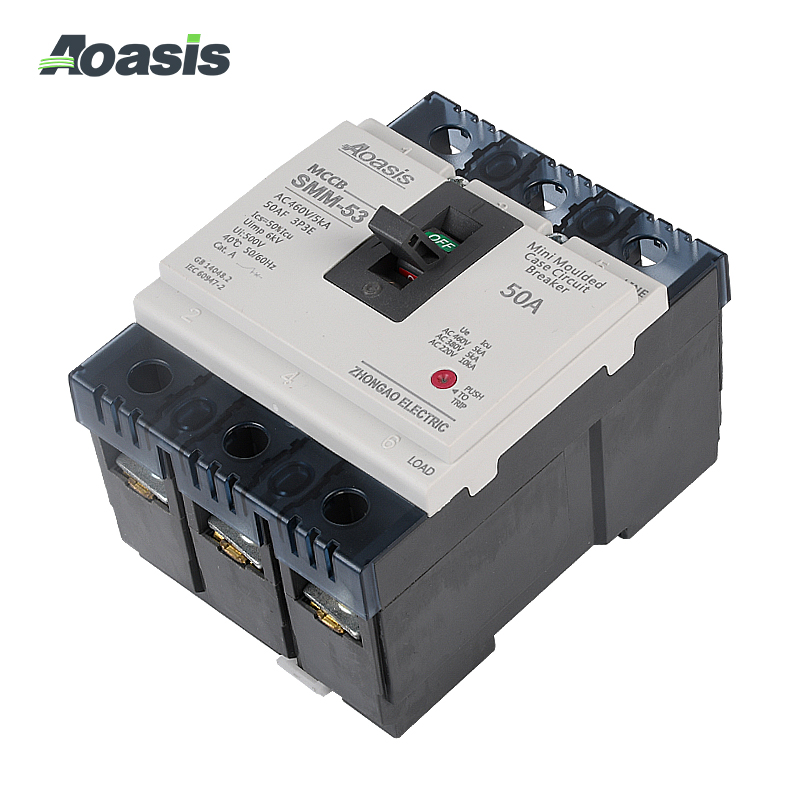

Type selection guide：
《/p>
Technical Parameter：
|
Model (AF) |
50AF |
100AF |
||||
|
Type |
SMM-52 |
SMM-53 |
SMM-102 |
SMM-103 |
||
|
Number of poles |
2 |
3 |
2 |
3 |
||
|
Rated current(A) |
15,20,30,40,50 |
60，75，100 |
||||
|
Rated voltage (ue) |
AC(V) |
220 |
220/460 |
|||
|
|
DC(V) |
- |
- |
|||
|
Rated Insulated voltage Ui(50/60Hz) (V) |
500 |
500 |
||||
|
Rated impulse voltage, Uimp kV |
6 |
6 |
||||
|
Ultimate breaking capability(lcu) GB14048.2 IEC 60947-2 |
AC 460V |
2.5 |
5 |
|||
|
|
AC 380V |
2.5 |
5 |
|||
|
|
AC 220 V |
5 |
10 |
|||
|
|
AC 100/110V |
5 |
10 |
|||
|
lcs=%×lcu |
50% |
50% |
||||
|
Dimensions (mm)
|
a |
50 |
75 |
50 |
75 |
|
|
|
b |
96 |
96 |
96 |
96 |
|
|
|
c |
60 |
60 |
60 |
60 |
|
|
|
d |
80 |
80 |
80 |
8 |
|
|
Weight(kg) |
0.31 |
0.41 |
0.43 |
0.6 |
||

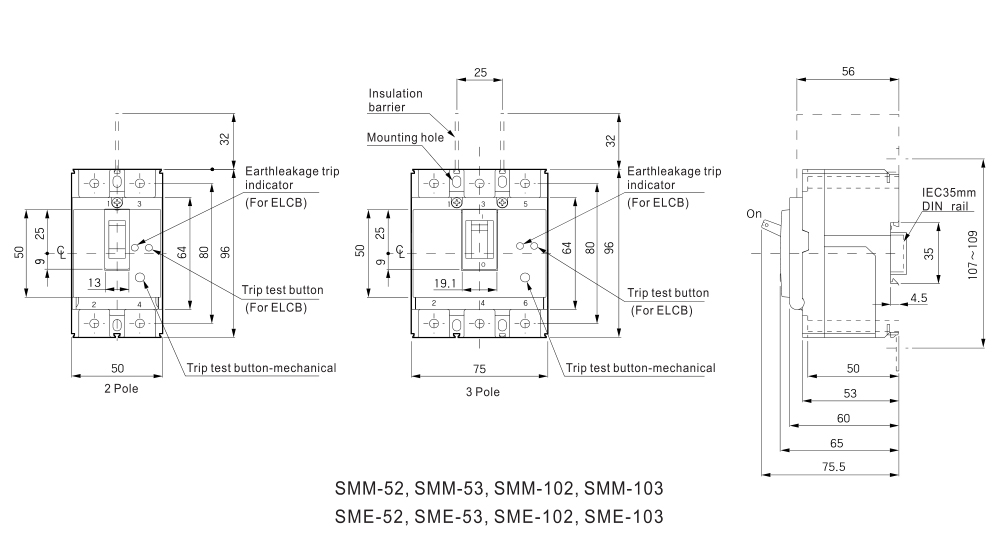

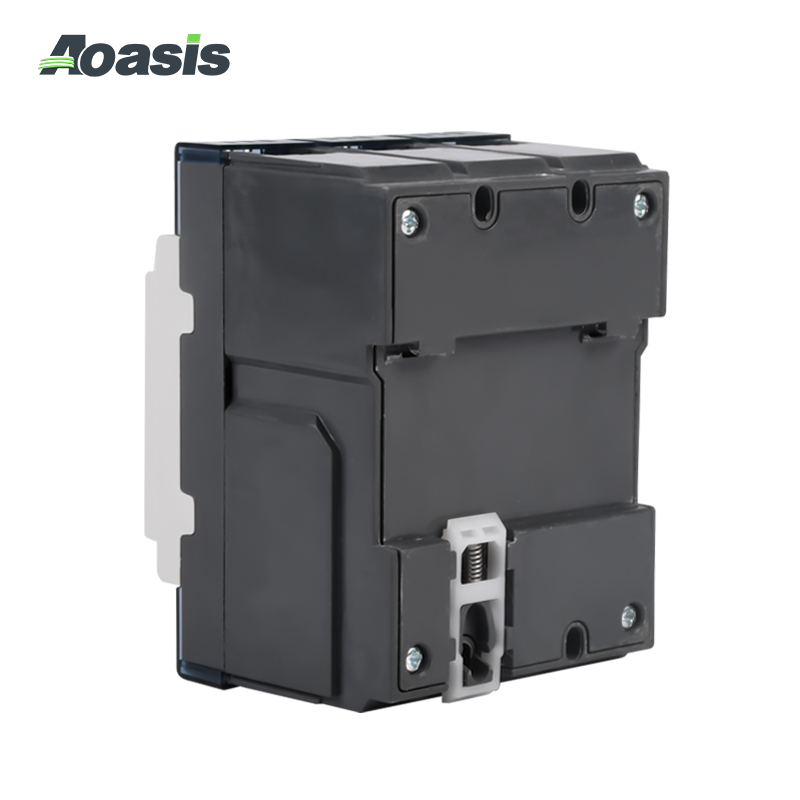

Overall and Installation：
 |
|

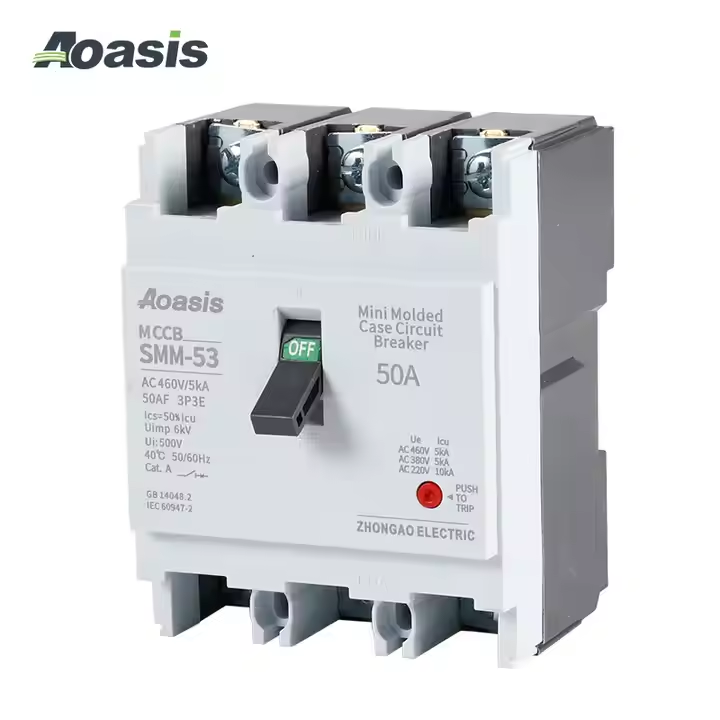

Dimensions：50AF&100AF MCCB/ELCB |
