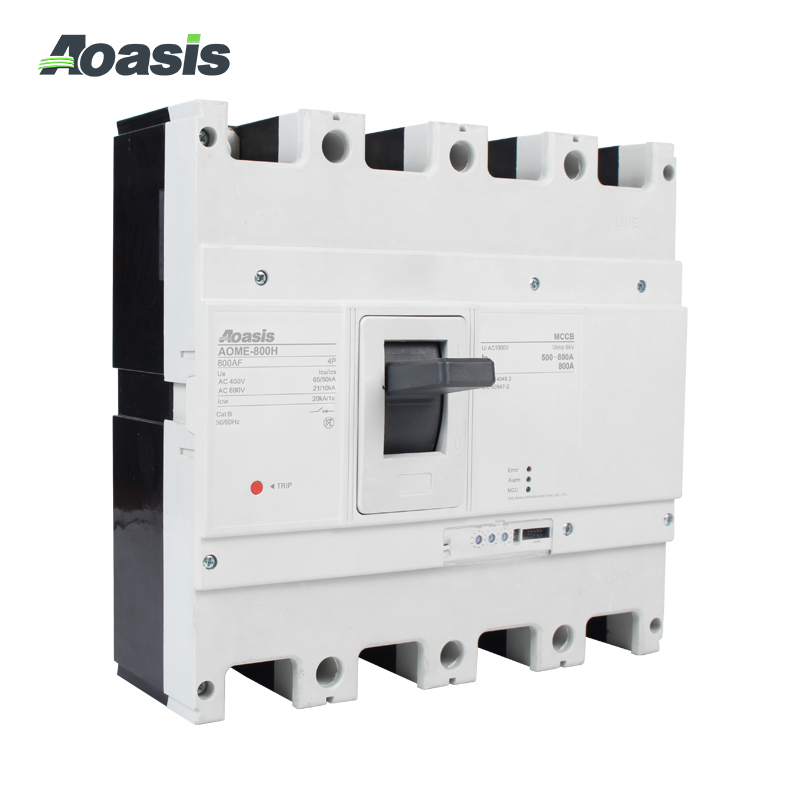

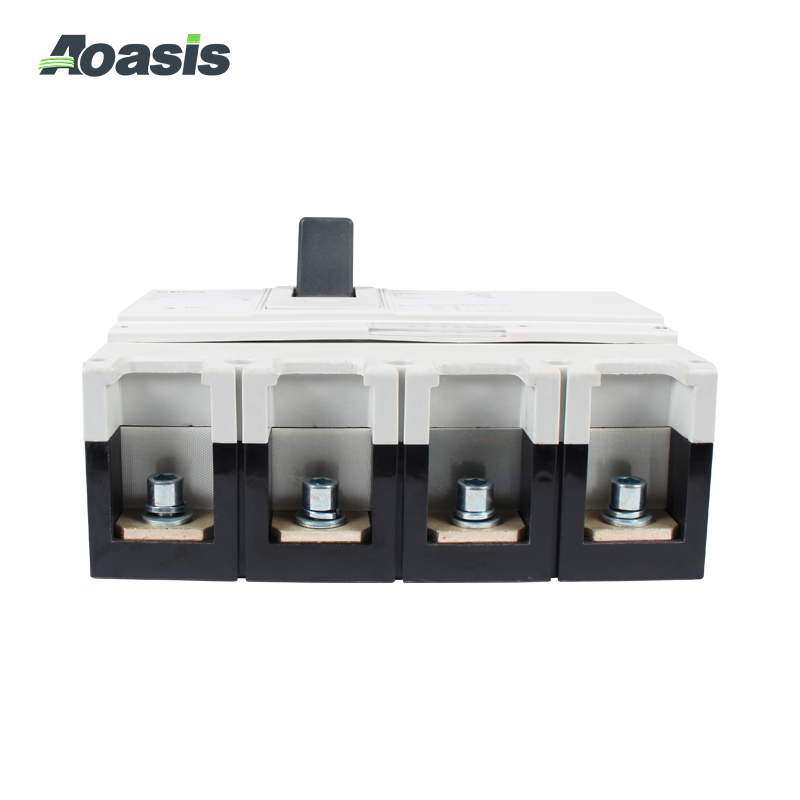

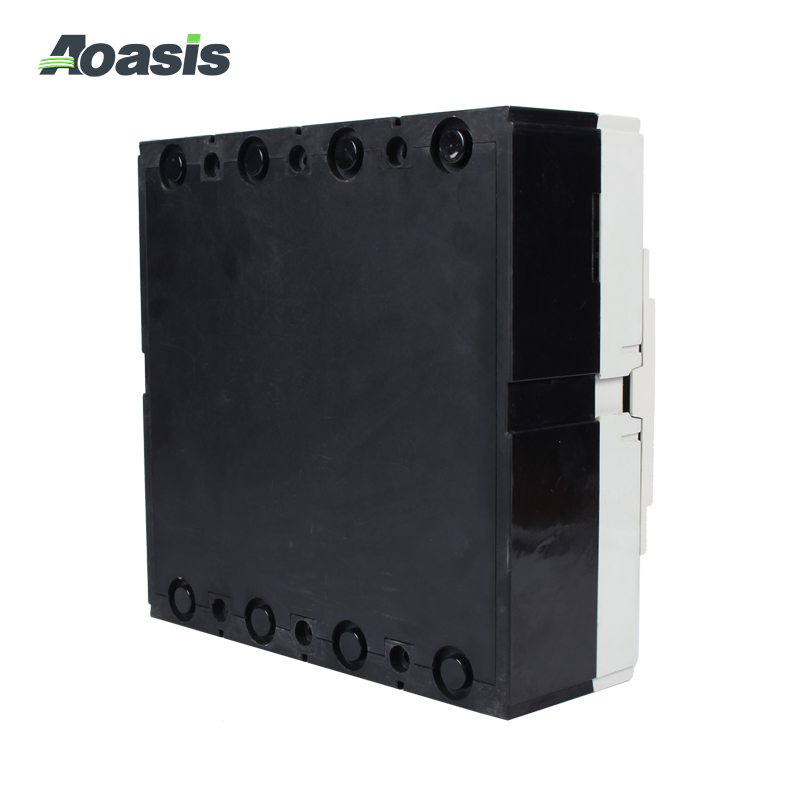

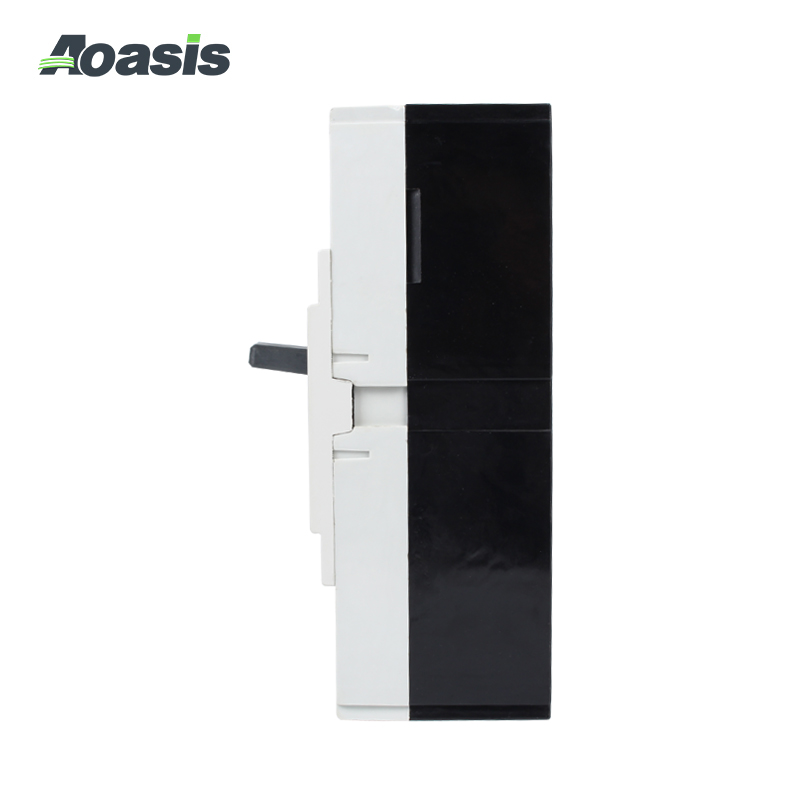

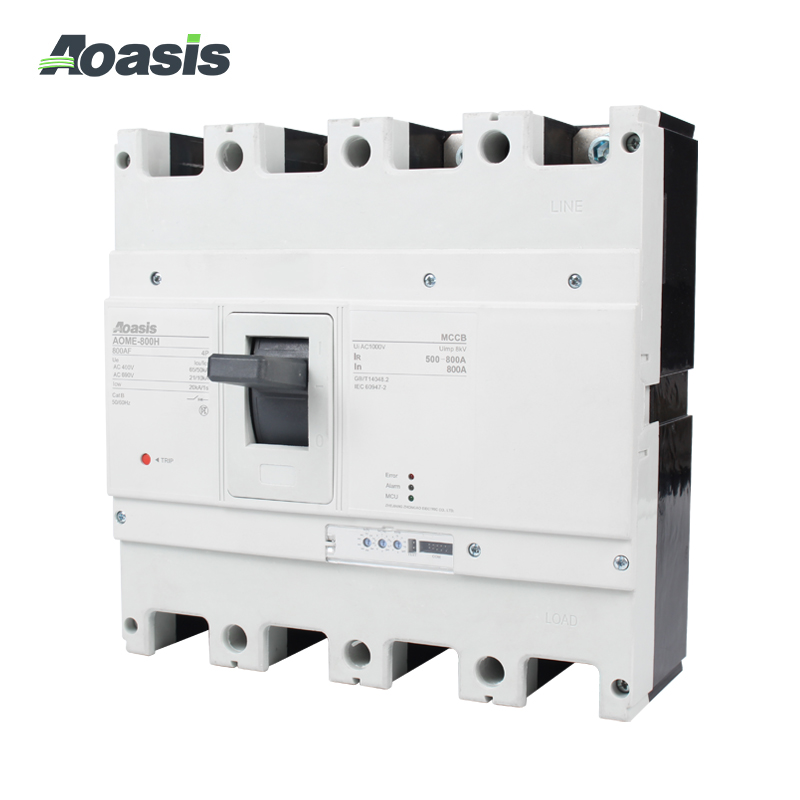

AOME-800/1000/1250-3P/4P Intelligent Electric Adjustable

AOME-800/1000/1250-3P/4P Intelligent Electric Adjustable

Characteristics

Product overview：
AOME series electronic circuit breakers are applicable for low-voltage power systems of AC 50Hz, rated operating voltage up to 1000V and rated operating current from 16A to 1250A.
Product features:
● Circuit breaker can be equipped with undervoltage release, shunt release, auxiliary contacts, alarm contacts, electric operating mechanism, rotary operating handle and other accessories.
● Circuit breaker has protection functions of overload long delay. short-circuit short delay and short-circuit instantaneous protection, the user can set the required protection characteristics (user only needs to operate the DlP switch for settings of protection function parameters).
● Circuit breaker has ground fault and thermal analog protection functions, pre-alarm indication over-current indication, load current indication, digital current analysis technology, and it can achieve a higher level of protection.

Send Inquiry

Product Description

Ambient and installation conditions：
● Below 2000 meters above sea level;
● Ambient medium temperature should be within -5 ℃ to +40 ℃ (+45 ℃ for marineproducts);
● lt can withstand the effect of damp air;
● lt can withstand the effect of salt fog or oil mist;
● lt can withstand the effect of moulds;
● lt can withstand the effect of nuclear radiation;
● The max inclination is 22.5 degree;
● lt still can work reliably when the ship subjects to normal vibration;
● lt can still work reliably if the product subjects to the earthquake (4g).
● Places where the surrounding medium is free from explosion danger, and far awayfrom gas or conductive dust that would erode the metal or destroy the insulation;
● Keep away from rain or snow.

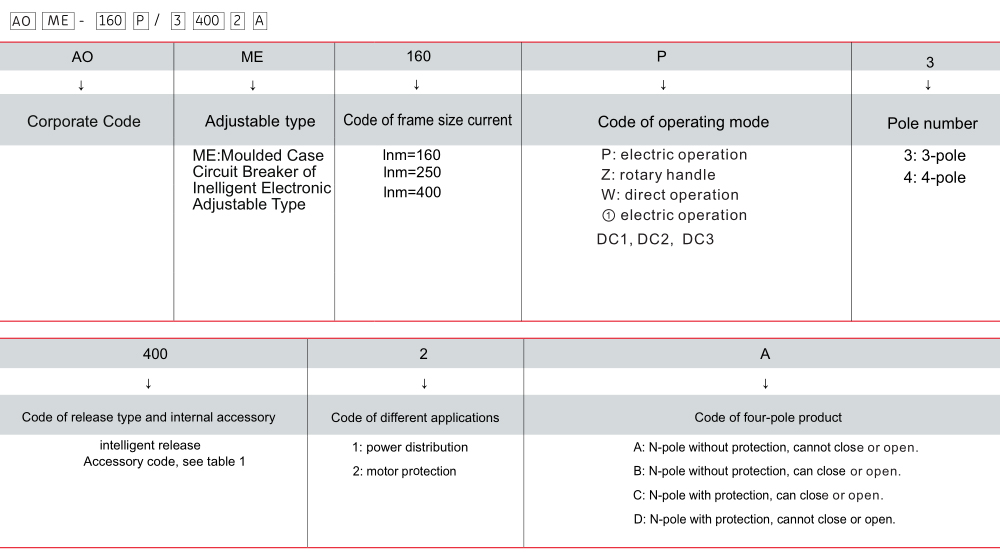

Product selection guide：

Main performance indexes：

Type		AOME-800	AOME-1000	AOME-1250
Pole		3P,4P	3P,4P	3P,4P
Rated current (A)		500-800	630-1000	850-1250
Rated voltage		AC400V	AC400V	AC400V
Rated insulation voltage		AC1000V	AC1000V	AC1000V
Short-circuit breaking capacity (KA)Icu/Ics	AC 400V	65/50	65/50	65/50
Operating cycle number	ON	1000	1000	1000
	OFF	4000	4000	4000
Outline dim. (mm) a-b-c-ca	3P	210-257-103-155	210-257-103-155	210-257-103-155
	4P	280-257-103-155	280-257-103-155	280-257-103-155
Weight (kg)	3P	5.7	5.7	5.7
	4P	7.5	7.5	7.5
Electric operating device (MD)		●	●	●
External driving operating handle		●	●	●
Automatic release		Electronic type	Electronic type	Electronic type
