AOM, AOML, AOMR and AOME, AOMEL series of circuit breakers are new upgraded circuit breakers researched and developed by the company combined with the advantages of similar international products and demand of domestic and international markets. With insulation voltage up to 1000V, the circuit breaker is applicable for distribution systems of AC50Hz, rated working voltage 690V and rated working current from 10A to 800A, used to distribute electric power energy, protect circuits and power equipment against overload, short circuit, undervoltage and so on, also can be used for infrequent startup of motor and protect it from overload, short circuit or undervoltage.It is featured with small size, high breaking, short flashover, etc, is the ideal product for users. It can be vertically installed or horizontally installed.
Product features：
Feature 1: U-shaped static contact
Feature 2: modularized accessories
Feature 3: miniaturized frame
Feature 4: contact repulsion device (patented technology)
Feature 5: intelligence
Feature6: modularized arc extinguishing system
Feature 7: unification
Ambient and installation conditions：
l Below 2000 meters above sea level;
l Ambient medium temperature should be within -5℃to +40℃(+45℃for marine products);
l lt can withstand the effect of damp air;
l lt can withstand the effect of moulds;
l lt can withstand the effect of nuclear radiation;
l The max inclination is 22.5 degree;
l lt still can work reliably when the ship subjects to normal vibration;
l lt can still work reliably if the product subjects to the earthquake (4g).
l Places where the surrounding medium is free from explosion danger, and far away from gas or conductive dust that would erode the metal or destroy the insulation;
l keep away from rain or snow.

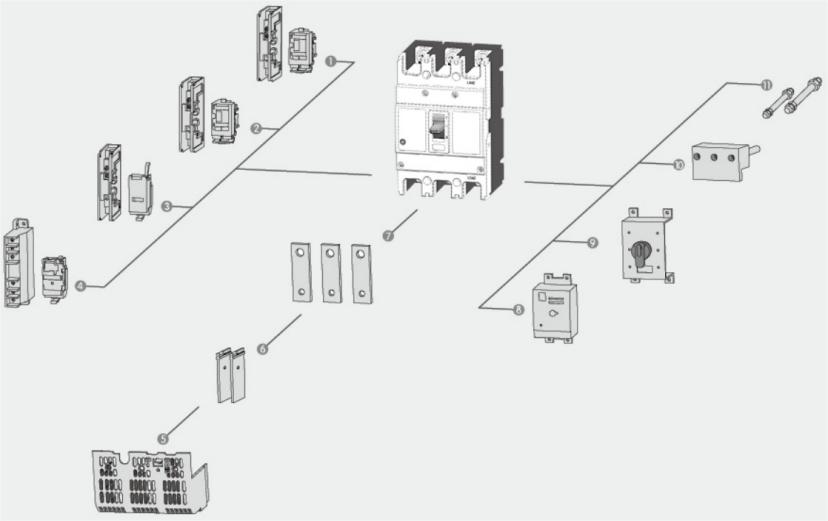

Components of circuit breaker:
|
1、Auxiliary switch |
5、Terminal cap |
9、Manual operation |
|
2、Alarm switch |
6、Phase partition |
10、Plug-in type back-board wiring |
| 3、Shunt release | 7、Front-board wiring | 11、##4SUlZT aSdVi[d`Y |
| 4、Undervoltage release | 8、Electric operation | - |
Product selection guide：
|
AO |
M |
125 |
S |
P |
4 |
|||
|
↓ |
↓ |
↓ |
↓ |
↓ |
↓ |
|||
|
Corporate Code
|
Moulded-cas circuit breake
|
Frame size
|
Current class
|
Code of control circuit source voltage |
Pole number |
|||
|
|
|
125 160 250 400
630800
Note: 125 is upgraded type of 63 frame 160 is upgraded type of 100 frame 250 is upgraded type of 225 frame 630 is upgraded type of 400 frame |
125
160 250 400 630 800 1000 1250 |
S
10/7.5 20/15 25/18 50/35 50/35 50/35 一 一 |
M
36/18 36/18 50/35 50/35 50/35 50/35 一 一 |
H
50/50 65/50 65/65 65/65 70/50 70/50 70/50 |
□： P:electric operation Z:rotary handle W:direct operation |
3:3-pole 4:4-pole |
|
30 |
125A |
2 |
A |
|
↓ |
↓ |
↓ |
↓ |
|
Release type and internal accessory
|
Rated current (A)
|
Application
|
Code of four-pole product
|
|
The first digit represents release type
2:Instantaneous release only; 3:complex release Note The last two digits are the code of accessories (see accessory table) |
125 16,20,32,40,50,63,80,100,125
160 16,20,32,40,50,63,80,100,125,140,160 250 100,125,140,160,180,200,225,250
400 250,315,350,400,630500,630
800 500,630,700,800 |
1:power distribution
2:motor protection |
A:N-pole without protection,cannot close or open B:N-pole without protection,can close and open C:N-pole with protection,can close and open
D:N-pole with protection,cannot close or open |
|
Q1 |
D1 |
Q |
2 |
|||
|
↓ |
↓ |
↓ |
↓ |
|||
|
Aocessory voltage
|
Electric operation voltage
|
Installation methods
|
nstall wiring board or not
|
|||
|
Undervoltage release
Q1:AC220V
Q2:AC 240V Q3:AC 380V Q4:AC415V
|
Shunt release
F1:AC 220V F2:AC 380V F3:DC 110V F4:DC 24V |
Auxiliary alarm
J1:AC 125V J2:AC 380V J3;DC 110V J4:DC 24V |
DC1 electric operation
D1:AC220V D2:AC 230V D3:AC 380V D4:AC400V
|
DC3 electric operation
D5:AC 230V
D6:AC 110V D7:DC 220V D8:DC 110V D9:AC 110-240V D10:DC 100-220V
|
Q:Front-board
H:Back-board C:Plug-in type |
1:No
2:Yes |
|
Note:Adaptable voltages for two electric operations Please refer to the introduction of extemal accessory
|
||||||
Main performance indexes：
|
Type |
AOM-125S |
AOM-125M |
AOM-125H |
AOM-160S |
AOM-160M |
AOM-160H |
||
|
Pole |
1P,2P,3P,4P |
2P,3P,4P |
||||||
|
Rated current(A) |
16,20,32,40,50,63,80,100,125 |
16,20,32,40,50,63,80,100,125,140,160 |
||||||
|
Rated voltage |
AC 400V |
AV 400V |
||||||
|
Rated insulation voltage |
AC 1000V |
AC 1000V |
||||||
|
Short-circuit breaking capacity (KA)Icu/Ics |
AC 400V |
25/15 |
36/18 |
50/50 |
30/15 |
36/18 |
2P:30/50 3P/4P:50/50 |
|
|
Operating cycle number |
ON |
6000 |
3000 |
|||||
|
OFF |
9000 |
7000 |
||||||
|
Outline dim. (mm)
a-b-c-ca
|
1P |
25-130-68-90 |
/ |
/ |
/ |
|||
|
2P |
50-130-68-90 |
60-155-68-90 |
60-155-68-90 |
60-155-88-115 |
||||
|
3P |
75-130-68-90 |
90-155-68-90 |
90-155-68-90 |
90-155-88-115 |
||||
|
4P |
100-130-68-90 |
120-155-68-90 |
120-155-68-90 |
120-155-88-115 |
||||
|
Weight (kg) |
1P |
0.25 |
0.3 |
/ |
/ |
/ |
||
|
2P |
0.5 |
0.55 |
1.0 |
1.1 |
||||
|
3P |
0.55 |
0.65 |
1.1 |
1.2 |
||||
|
4P |
0.65 |
0.8 |
1.4 |
1.5 |
||||
|
Electric operating device (MD) |
● |
● |
||||||
|
External driving operating handle |
● |
● |
||||||
|
Automatic release |
Thermal electromagnetic type |
Thermal electromagnetic type |
||||||
