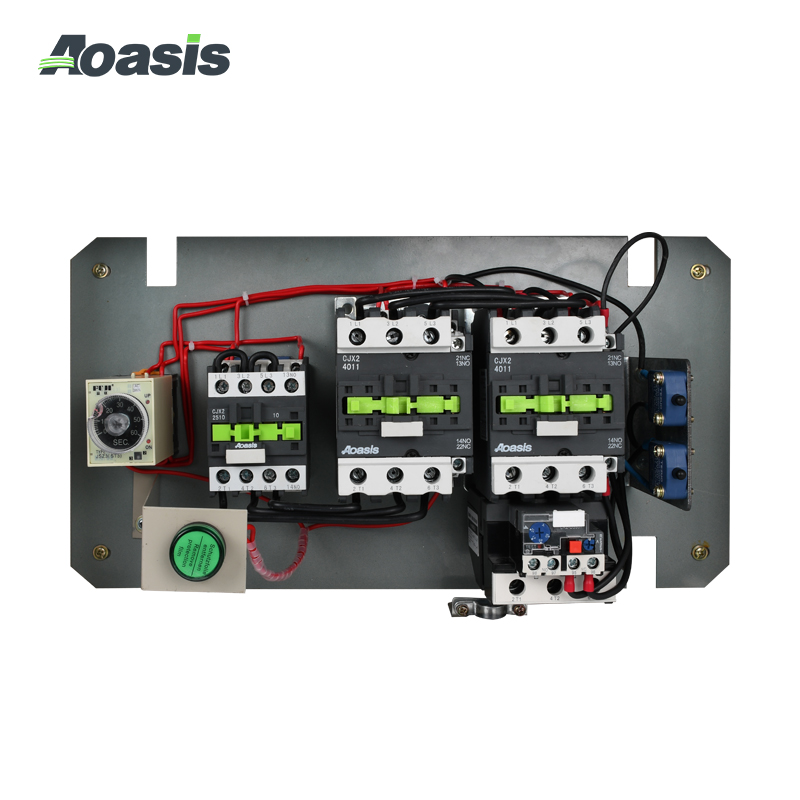

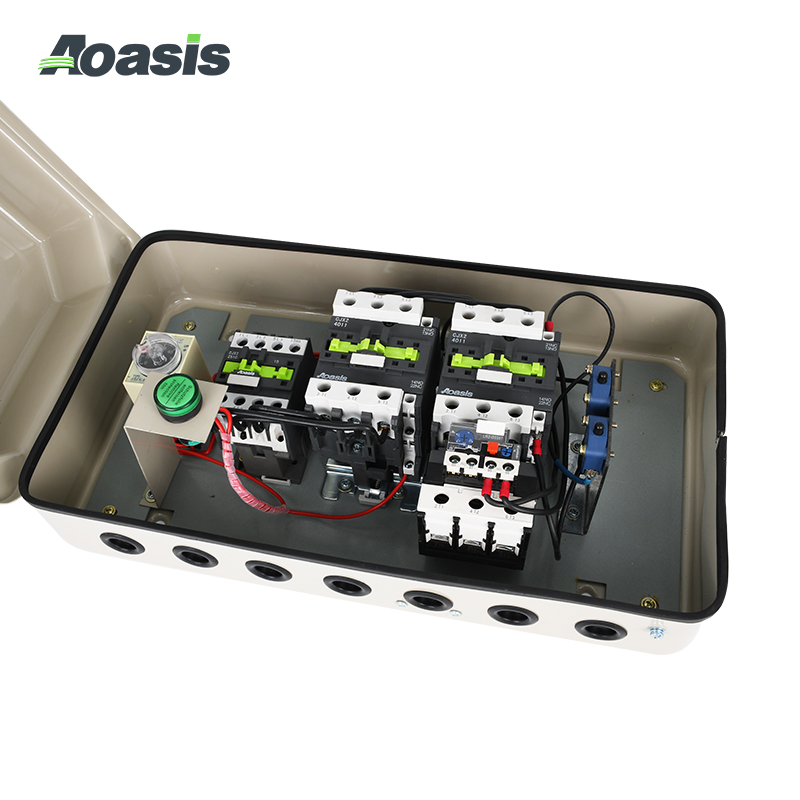

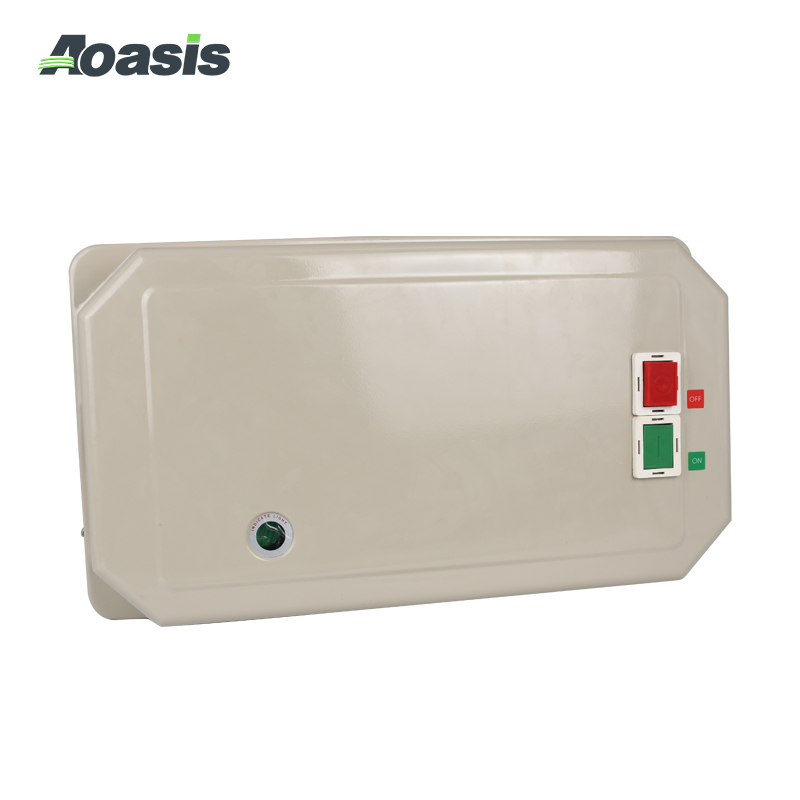

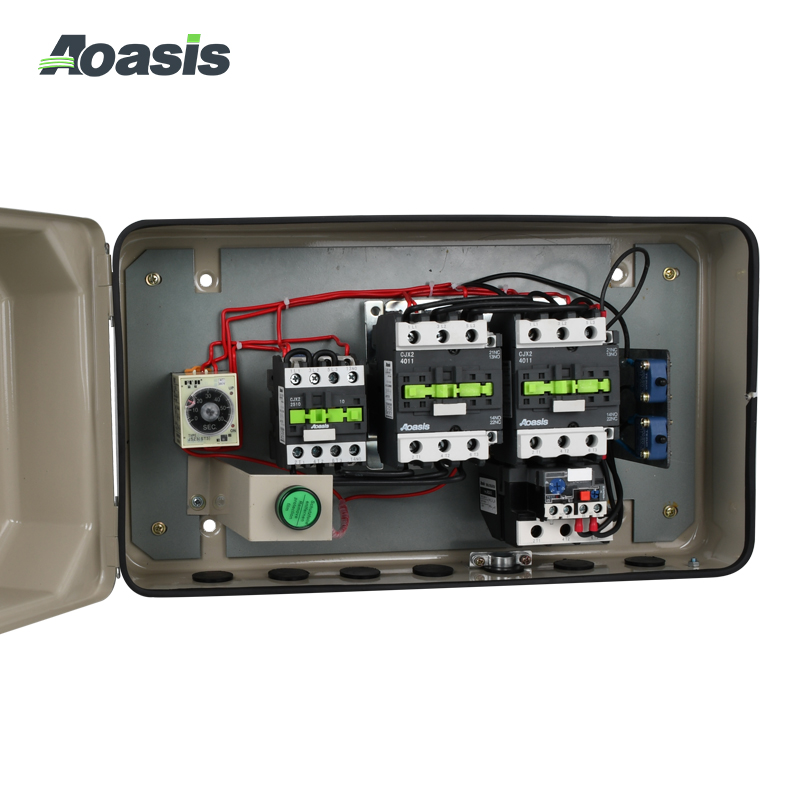

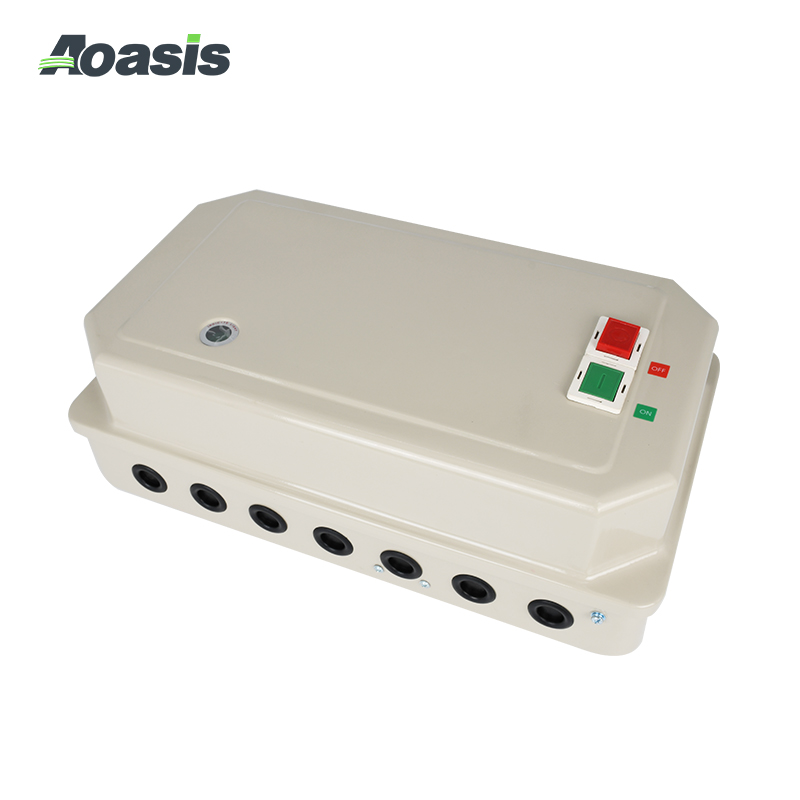

QJX2 Series star-delta reduced voltage starter is suitable for starting motor in the circuit of AC 50/60Hz, voltage up to 380V and current up to 95A. It is a motor starter which provided with timer for automatic changeover of star-delta to reduce the voltage and current of motor starting.
Notice：Please note enclosed or open type when placing order.
Normal working conditions and installation conditions:
Temperature: -5°C ~ +40°C, average temperature not exceed +35°C in 24 hours.
Altitude: Do not exceed 2000m.
Air Condition: Atmospheric relative humidity can’t exceed 50% at ambient air temperature of +40℃,and the higher relative humidity may be allowed at lower temperatures. For example, when the ambient air degree is 20℃, the relative humidity can reach 90%. Because of the occasional condensation
phenomenon of the product due to the temperature changes, the user should take special protective measures.
Pollution Grade: Grade 3.
Installation category：III Class.
Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed ±5°.
Impact shock: The product shall be installed and operated at a place without obvious shake, impact and vibration.
Main parameter and technical characteristic:
|
Model |
Rated Insulated Voltage Ui (V) |
Ie under Intermittent Duty (A) |
Max. Power of Motor can be controlled(kW) |
Thermal Overload Relay |
Model Specification of AC contactor |
||||||
|
380V |
660V |
220V |
380V |
660V |
Type |
Setting Current
Range
|
Y Operate KM1 |
Operate KM3 |
Isolation with KM2 |
||
|
QJX2-09 |
690 |
09 |
09 |
4 |
7.5 |
10 |
JR28-13 |
7-10 |
CJX2-0910 |
CJX2-0901 |
CJX2-0910 |
|
QJX2-12 |
12 |
8.9 |
5.5 |
11 |
13 |
JR28-13 |
9-13 |
CJX2-0910 |
CJX2-1201 |
CJX2-1210 |
|
|
QJX2-18 |
18 |
10.6 |
7.5 |
15 |
18.5 |
JR28-13 |
12-18 |
CJX2-1210 |
CJX2-1801 |
CJX2-1810 |
|
|
QJX2-25 |
25 |
18 |
11 |
18.5 |
25 |
JR28-13 |
17-25 |
CJX2-1810 |
CJX2-2501 |
CJX2-2510 |
|
|
QJX2-32 |
32 |
21 |
15 |
25 |
33 |
JR28-13 |
23-32 |
CJX2-1810 |
CJX2-3201 |
CJX2-3210 |
|
|
QJX2-40 |
40 |
34 |
18.5 |
33 |
50 |
JR28-33 |
30-40 |
CJX2-2510 |
CJX2-4011 |
CJX2-4011 |
|
|
QJX2-50 |
50 |
39 |
25 |
45 |
63 |
JR28-33 |
37-50 |
CJX2-4011 |
CJX2-5011 |
CJX2-5011 |
|
|
QJX2-65 |
65 |
42 |
30 |
55 |
63 |
JR28-33 |
48-65 |
CJX2-4011 |
CJX2-6511 |
CJX2-6511 |
|
|
QJX2-80 |
80 |
49 |
37 |
63 |
80 |
JR28-33 |
63-80 |
CJX2-5011 |
CJX2-8011 |
CJX2-8011 |
|
|
QJX2-95 |
95 |
49 |
45 |
80 |
80 |
JR28-33 |
80-93 |
CJX2-6511 |
CJX2-9511 |
CJX2-9511 |
|
Motor Power Controllable by The Starte：
|
Rated Current of 380V 3-phase Squirrel-cage Motor Power（kW） |
Adapted Product Model |
Thermal Relay Matched with Star-delta Pressure Reducing Starter |
Matching Fuse |
||
|
Pe (kW) |
le (A) |
A 0.58 (le) |
|||
| 7.5 | 15.5 | 8.9 | QJX2-09 |
JR28-13 |
20 |
| 9 | 18.5 | 10.7 |
QJX2-12 |
JR28-13 |
20 |
| 10 | 20 | 11.6 |
QJX2-12 |
JR28-13 |
20 |
| 15 | 30 | 17.4 |
QJX2-18 |
JR28-13 |
32 |
| 18.5 | 37 | 21.5 |
QJX2-25 |
JR28-13 |
50 |
| 22 | 41 | 25.5 |
QJX2-32 |
JR28-13 |
63 |
| 25 | 52 | 30.2 |
QJX2-32 |
JR28-13 |
63 |
| 30 | 60 | 34.8 |
QJX2-40 |
JR28-33 |
80 |
| 33 | 68 | 39.5 |
QJX2-40 |
JR28-33 |
80 |
| 37 | 72 | 41.8 |
QJX2-50 |
JR28-33 |
100 |
| 40 | 79 | 45.8 |
QJX2-50 |
JR28-33 |
100 |
| 45 | 85 | 49.3 |
QJX2-50 |
JR28-33 |
100 |
| 51 | 98 | 56.3 |
QJX2-65 |
JR28-33 |
125 |
| 55 | 105 | 60.9 |
QJX2-65 |
JR28-33 |
125 |
| 59 | 112 | 65 |
QJX2-80 |
JR28-33 |
125 |
| 63 | 117 | 67.9 |
QJX2-80 |
JR28-33 |
125 |
| 75 | 138 | 80 |
QJX2-95 |
JR28-33 |
160 |
| 80 | 147 | 85.3 |
QJX2-95 |
JR28-33 | 160 |
Outline and installation dimension:

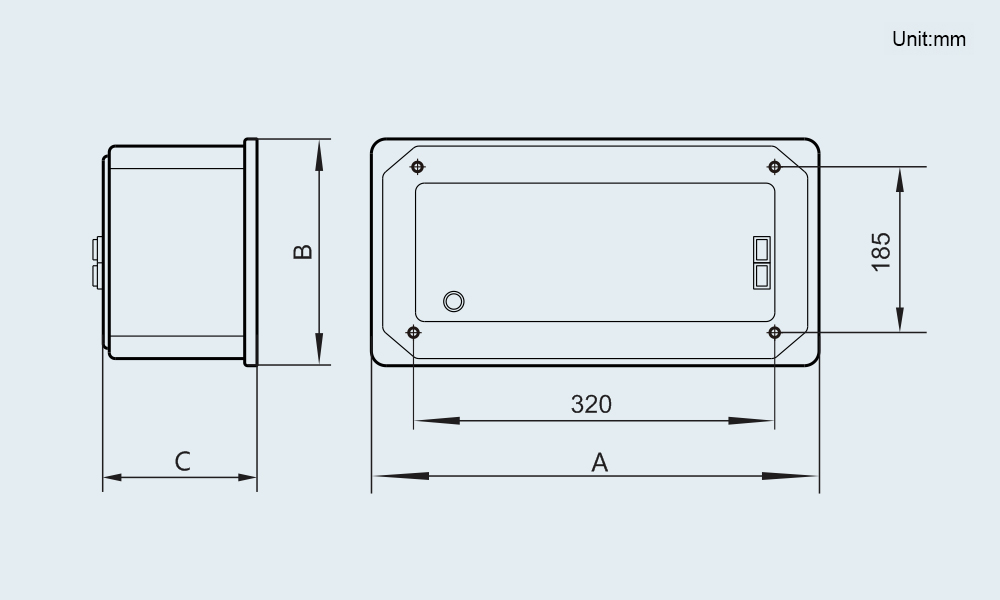

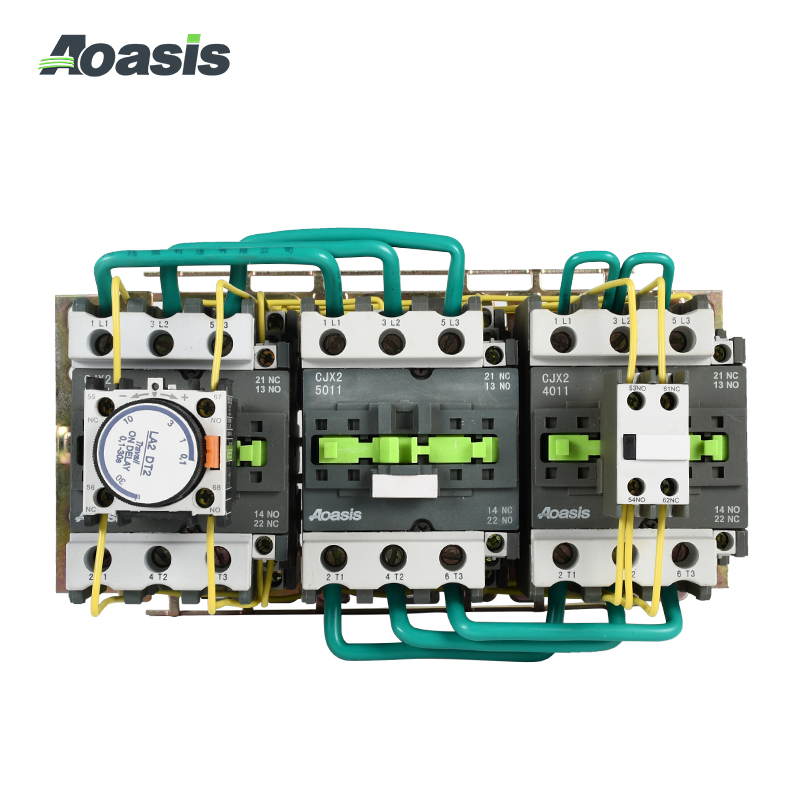

QJX2-09~32 Open type:
|
Model |
QJX2-09 |
QJX2-12 |
QJX2-18 |
QJX2-25 |
QJX2-32 |
|
A |
140 |
140 |
140 |
174 |
174 |
|
C |
140 |
149 |
154 |
164 |
169 |

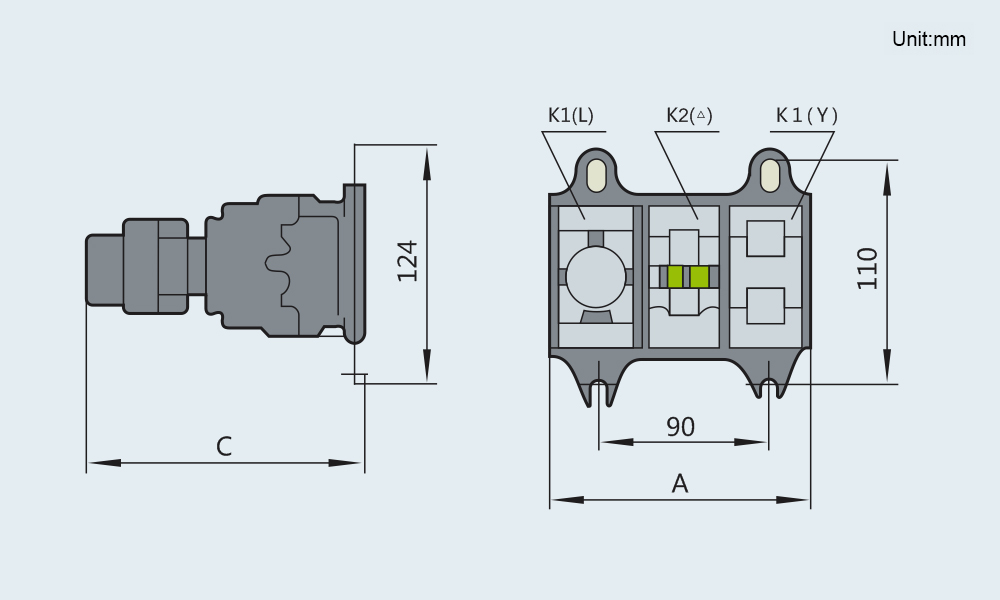

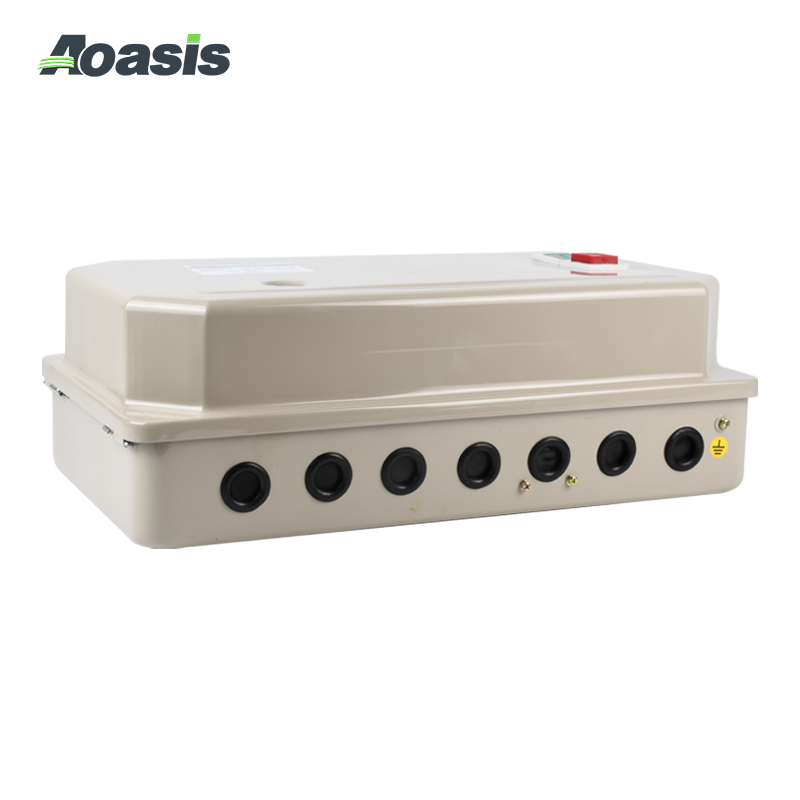

QJX2-09~32 Enclosed type:
|
Model |
QJX2-09 |
QJX2-12 |
QJX2-18 |
QJX2-25 |
QJX2-32 |
|
A |
370 |
||||
|
B |
235 |
||||
|
C |
102 |
||||
