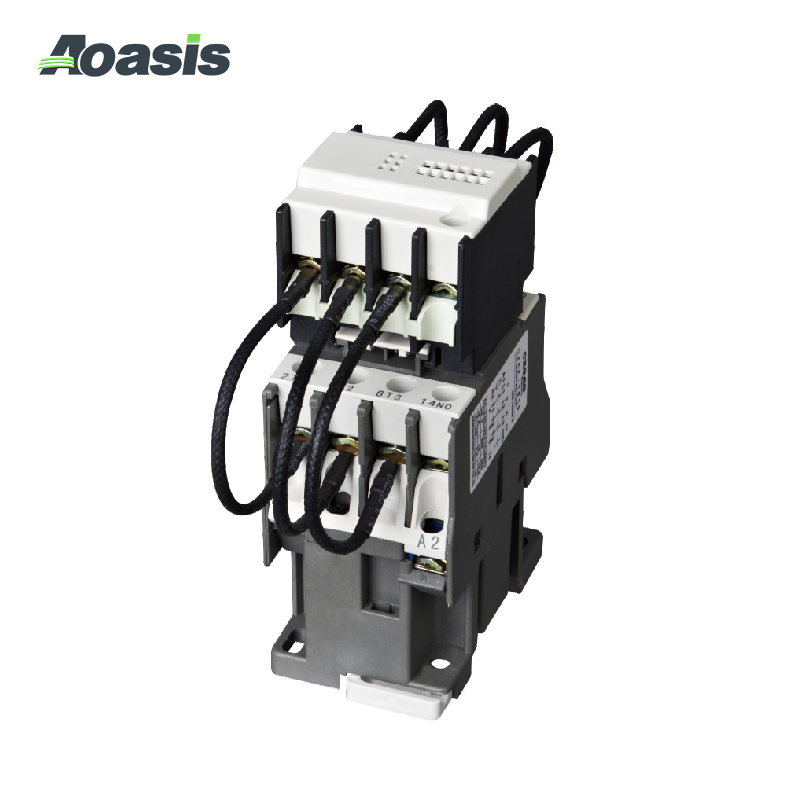

CJ19 switching capacitor type contactor is used in power network of AC 50Hz or 60Hz,voltage up to 400V, for operating or switching LV capacitor control device in LV reactive power circuit. With anti surge device, it can reduce impact of closing surge and prevent from overload as breaking.
MainTechnical parameter：
|
Parameter |
Type |
|||||||||
|
CJ19-25 |
CJ19-32 |
CJ19-43 |
CJ19-63 |
CJ19-95 |
CJ19-115 |
CJ19-150 |
CJ19-170 |
|||
|
Controllable Capacitor Capacity (Kvar) |
220V |
6 |
9 |
10 |
15 |
28.8(240V) |
34.5(240V) |
46(240V) |
52(240V) |
|
|
380V |
12 |
18 |
20 |
30 |
50(400V) |
60(400V) |
80(400V) |
90(400V) |
||
|
Rated Insulated Voltage(V) |
500 |
690 |
||||||||
|
Rated Operating Voltage(V) |
220/240, 380/400 |
|||||||||
|
Stipulated Heating Current(A) |
25 |
32 |
43 |
63 |
95 |
200 |
200 |
275 |
||
|
Rated Working Current AC-6b and 400VA |
17 |
23 |
29 |
43 |
72.2(400V) |
87(400V) |
115(400V) |
130(400V) |
||
|
Prevention Capacity on Closing Surge |
20le |
|||||||||
|
Control Supply Voltage(V) |
110,127,220,380 |
|||||||||
|
Auxiliary Contacts, Stipulated Heating Current (A) |
10 |
|||||||||
|
Highest Operating Frequency(Time/Hour) |
120 |
|||||||||
|
Electrical Life(10000 times) |
10 |
2 |
||||||||
|
Mechanical Life(10000 times) |
100 |
20 |
||||||||
Dimensions(mm)：
Circuits Diagram：
CJ19-25~170
