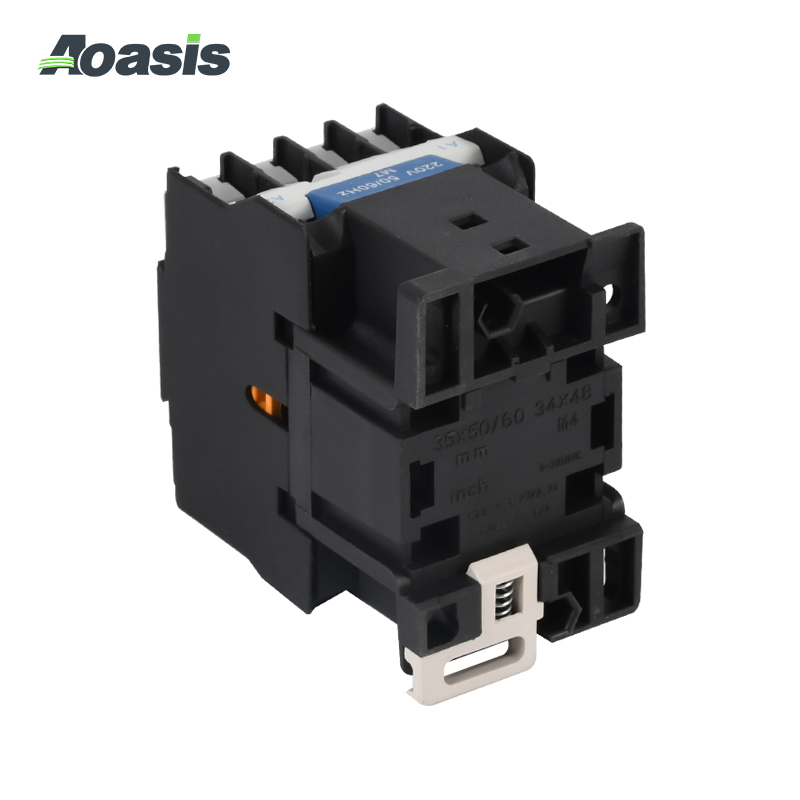

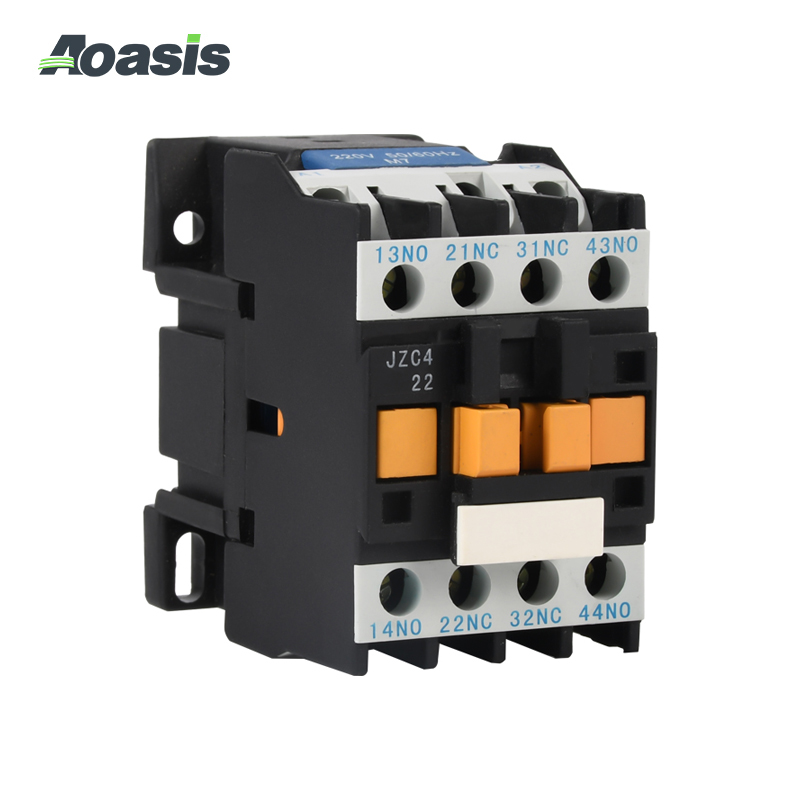

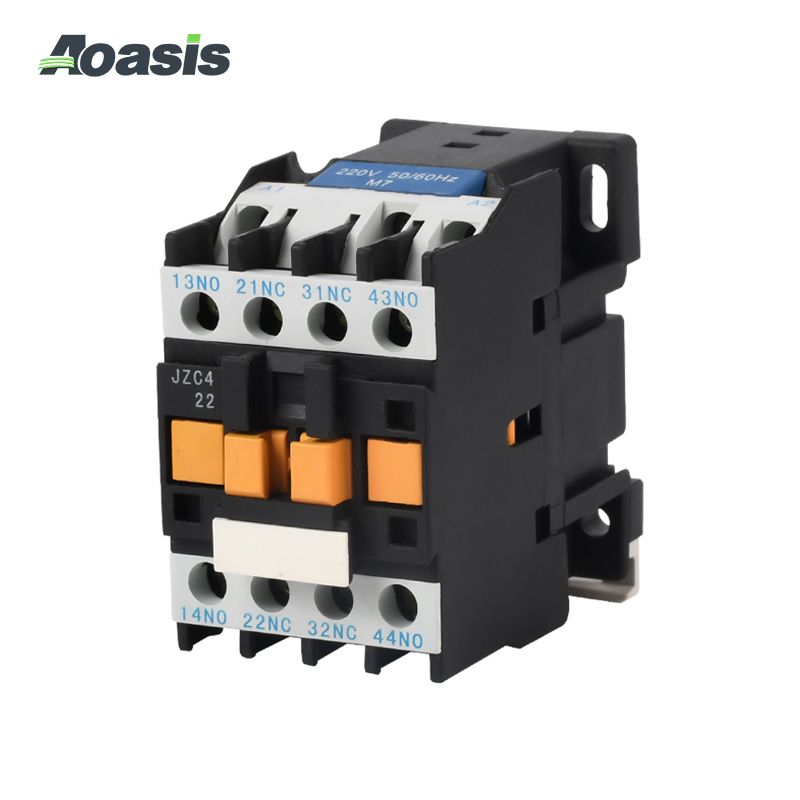

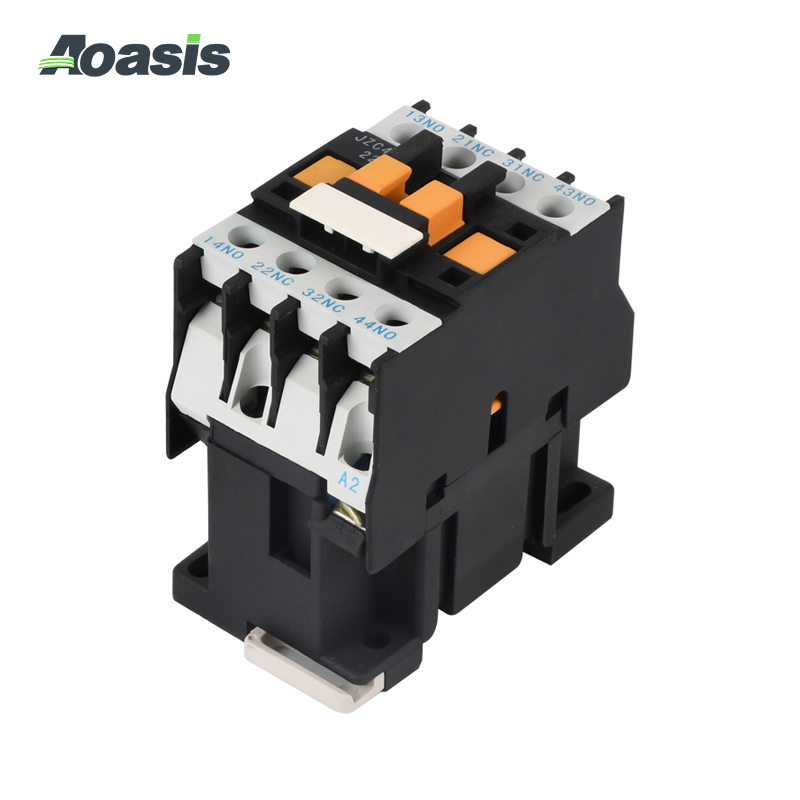

JZC4 seres contactor relays are mainly used in AC/DC control circuits to control various electromagnetic circuits,enhance signals and transmit signals.
The product conforms to the GB14048.4, IEC60947-4-1standards.
|
Type |
AC |
JZC4-40 |
JZC4-31 | JZC4-22 |
|
DC |
JZC4-40Z | JZC4-31Z | JZC4-22Z | |
|
Contacts Arrangement |
4NO | 3NO+1NC | 2NO+2NC | |
|
Rated Insulated Voltage(V) |
690 | |||
|
Stipulated Heating Current(A) |
10 | |||
|
Rated Operating Current(A) |
6 | |||
|
Electrical Life(Million time) |
1 | |||
|
Mechanical Life(Million time) |
8 | |||
|
Highest Operating Frequency(Time/Hour) |
2/S | |||

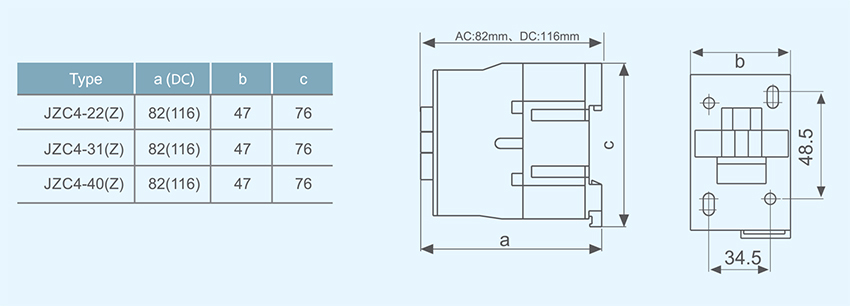

Dimensions(mm):
Circuits Diagram：
