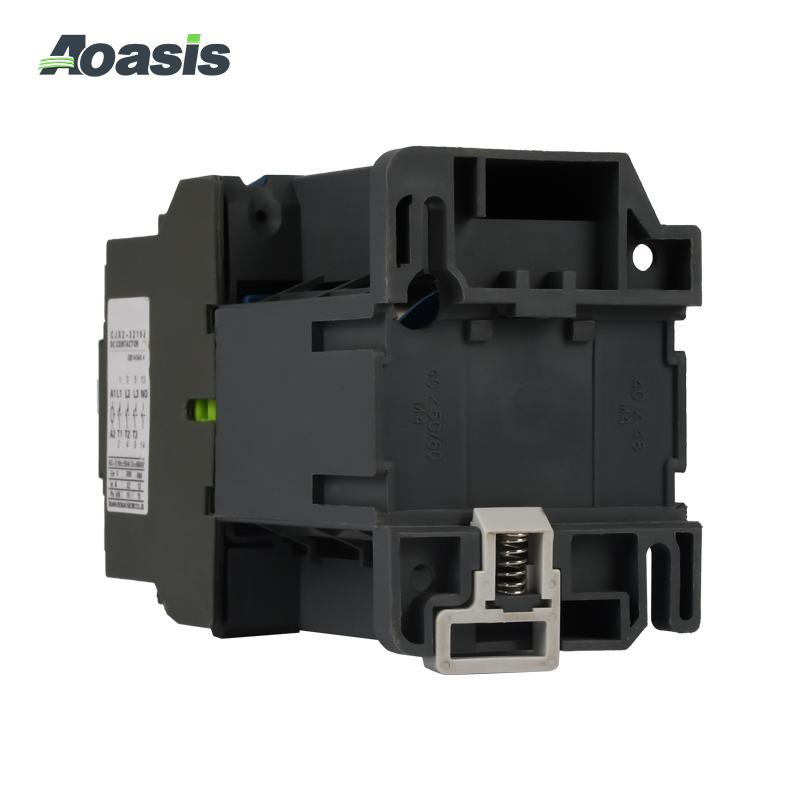

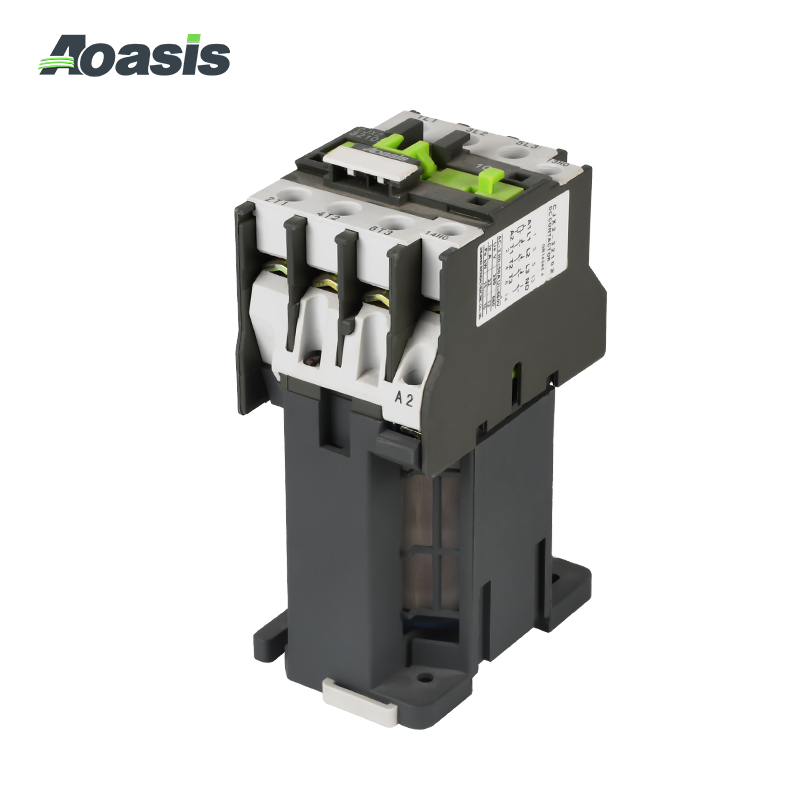

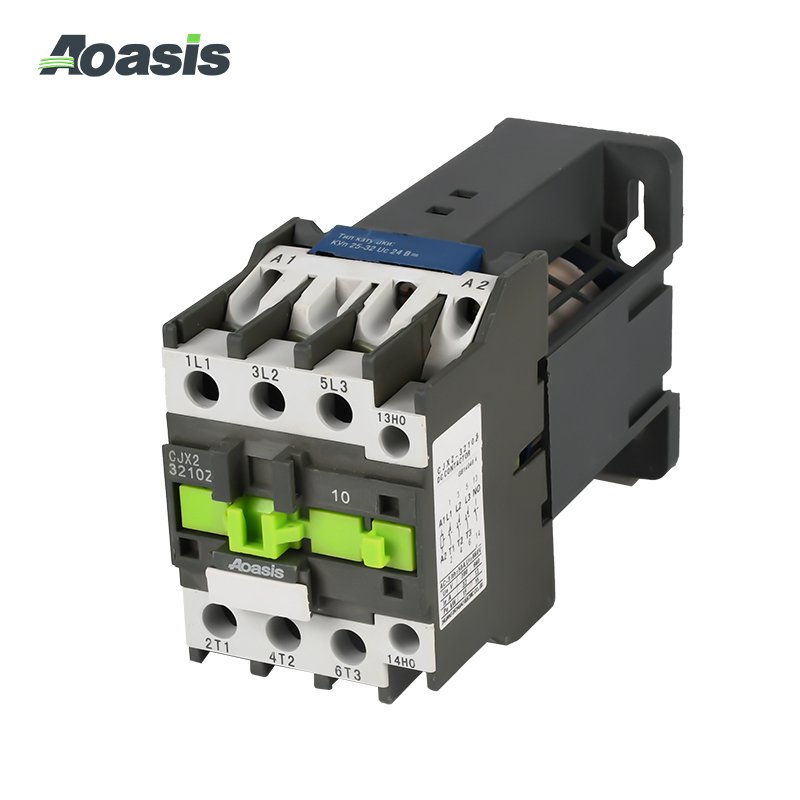

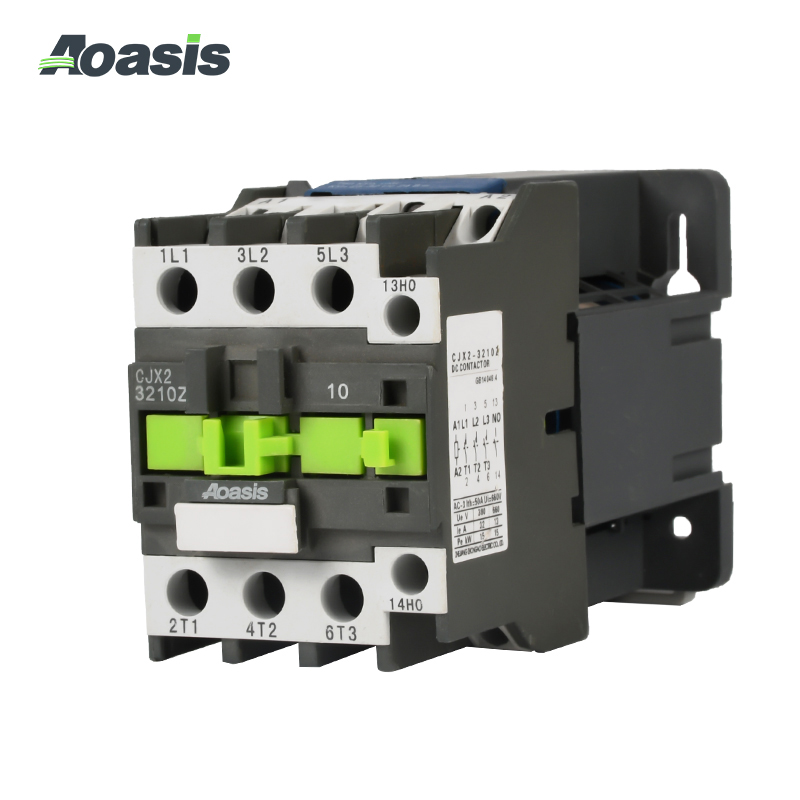

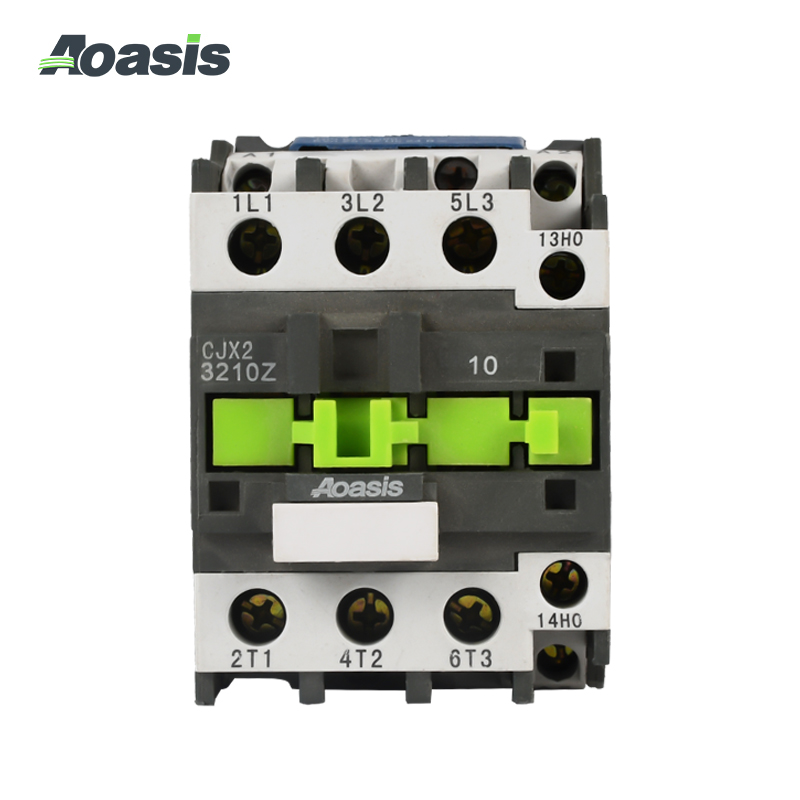

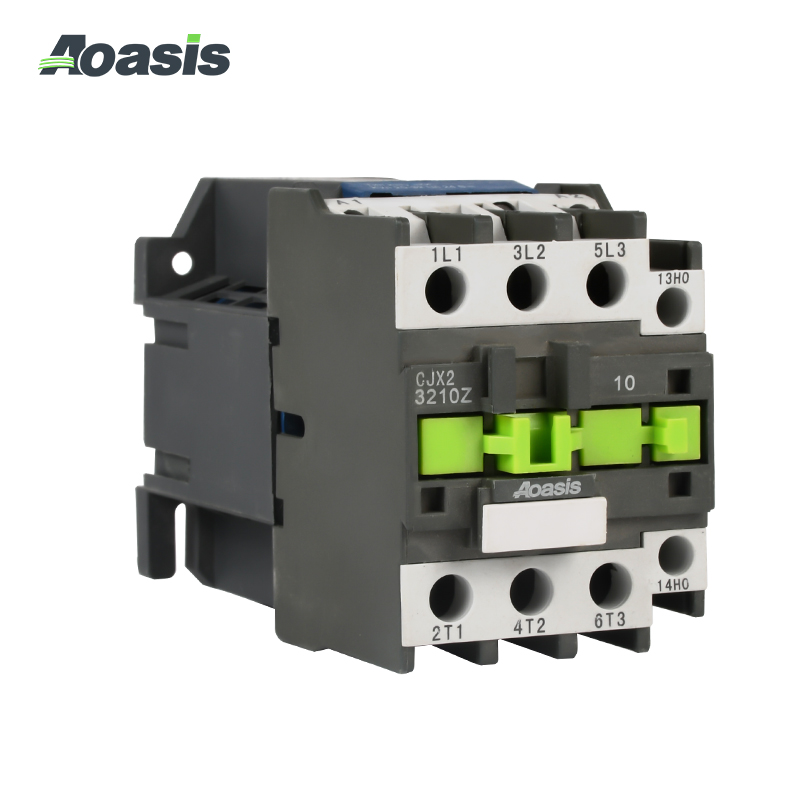

CJX2-Z DC Contactor It is suitable for circuits with rated voltage up to 690V and rated current up to 95A, and can be used to make and break the circuit load, which can fully meet the special requirements of electric locomotives, diesel locomotives and electric EMUs and circuit control systems.Widely used in DC power control, battery storage circuit, capacitor circuit and other control systems.
Technical parameters：
|
Type |
|
CJX2-09Z |
CJX2-12Z |
CJX2-18Z |
CJX2-25Z |
CJX2-32Z |
CJX2-40Z |
CJX2-50Z |
CJX2-65Z |
CJX2-80Z |
CJX2-95Z |
|
Rated Power kW/HP(AC-3) IEC60947-4-1 GB14048.4 |
200-240V |
2.2/3 |
3/4 |
4/5.5 |
5.5/7.5 |
7.5/10 |
11/15 |
15/20 |
18.5/25 |
22/30 |
25/35 |
|
380-440V |
4/5.5 |
5.5/7.5 |
7.5/10 |
11/15 |
15/20 |
18.5/25 |
22/30 |
30/40 |
37/50 |
45/60 |
|
|
500-550V |
5/7 |
7.5/10 |
9/12 |
1/20 |
18.5/25 |
30/40 |
37/50 |
37/50 |
45/60 |
45/60 |
|
|
660-690V |
5.5/7.5 |
7.5/10 |
10/13.5 |
15/20 |
18.5/25 |
30/40 |
37/50 |
37/50 |
45/60 |
45/60 |
|
|
Conventional Thermal Current Ith:(A) |
25 |
25 |
32 |
40 |
50 |
60 |
80 |
80 |
110 |
130 |
|
Dimensions(mm)：
 |
|
CJX2-25Z/32Z |
Circuits Diagram：
