Technical parameters：
|
Type |
Rated Current 400V(AC-3) |
Rated Power of Three-phase Motor(50/60Hz)AC-3(kW) |
||||||
|
220V 230V |
380V 400V |
415V |
440V |
500V |
660V 690V |
1000V |
||
|
CJX2-F1154 |
115 |
30 |
55 |
59 |
59 |
75 |
80 |
65 |
|
CJX2-F1504 |
150 |
40 |
75 |
80 |
80 |
90 |
100 |
65 |
|
CJX2-F1854 |
185 |
55 |
90 |
100 |
100 |
110 |
110 |
100 |
|
CJX2-F2254 |
225 |
63 |
110 |
110 |
110 |
129 |
129 |
100 |
|
CJX2-F2654 |
265 |
75 |
132 |
140 |
140 |
160 |
160 |
147 |
|
CJX2-F3304 |
330 |
100 |
160 |
180 |
200 |
200 |
220 |
160 |
|
CJX2-F4004 |
400 |
110 |
200 |
220 |
250 |
257 |
280 |
185 |
|
CJX2-F5004 |
500 |
147 |
250 |
280 |
295 |
355 |
335 |
335 |
|
CJX2-F6304 |
630 |
200 |
335 |
375 |
400 |
400 |
450 |
425 |
|
CJX2-F7804 |
780 |
220 |
400 |
425 |
425 |
450 |
475 |
450 |

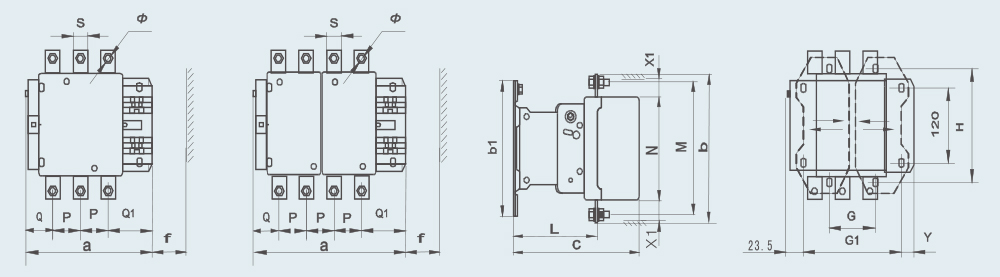

Dimensions(mm)：
 |
|
CJX2-F400/4004/500/5004 |
|
CJX2F |
a |
P |
Q |
Q1 |
S |
Φ |
f |
b |
b1 |
M |
N |
C |
L |
G |
G1 |
H |
Φ1 |
Y |
X1 |
|
|
500V≤ |
>500V |
|||||||||||||||||||
|
400 |
213 |
48 |
43 |
74 |
25 |
M10 |
151 |
206 |
209 |
181 |
158 |
219 |
145 |
80（66-102） |
170（156-192） |
180 |
8.5 |
19.5 |
15 |
20 |
|
4004 |
261 |
48 |
43 |
74 |
25 |
M10 |
151 |
206 |
209 |
181 |
158 |
219 |
145 |
80（66-150） |
170（156-240） |
180 |
8.5 |
67.5 |
15 |
20 |
|
500 |
233 |
50 |
46 |
77 |
30 |
M10 |
169 |
238 |
209 |
208 |
172 |
232 |
146 |
80（66-120） |
170（156-210） |
180 |
8.5 |
39.5 |
15 |
20 |
|
5004 |
288 |
50 |
46 |
77 |
30 |
M10 |
169 |
238 |
209 |
208 |
172 |
232 |
146 |
140（66-175） |
230（156-265） |
180 |
8.5 |
39.5 |
15 |
20 |
