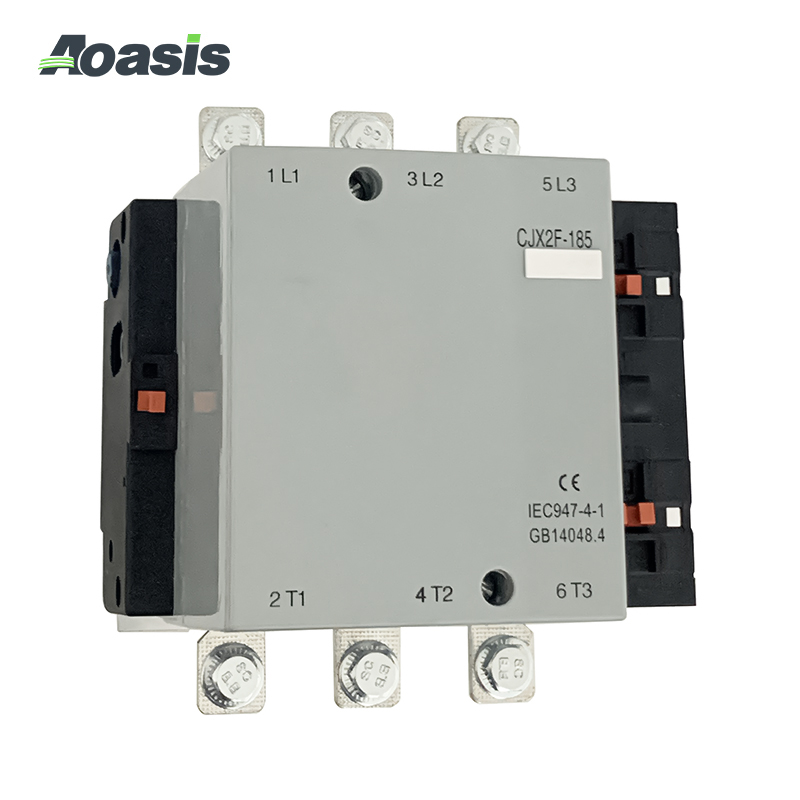

CJX2-F series Large CapacityAC contactor is mainly used for AC 50Hz or 60Hz, with working voltage up to660V and working current up to 800A. It is used for long distance connection and breaking current. It is also suitable for frequent start and control of electric motor. It can be combined with auxiliary contact group, air delay head, mechanical interlock, and then form mechanical interlock contactor, star-delta starter, and suitable thermal overload relay. An electromagnetic starter is designed to protect from possibility of operating an overload circuit.
Technical parameters:
|
Type |
CJX2-F115 |
CJX2-F150 |
CJX2-F185 |
CJX2-F225 |
CJX2-F265 |
CJX2-F330 |
|
|
Rated Current |
Ie max AC-3(Ue≤440V) |
115A |
150A |
185A |
225A |
265A |
330A |
|
Ie max AC-1(θ≤40℃) |
200A |
250A |
275A |
315A |
350A |
400A |
|
|
Main Contacts(NO) |
3、4 |
3、4 |
3、4 |
3、4 |
2、3、4 |
2、3、4 |
|
|
Rated Insulated Voltage(Ui) |
1000V |
1000V |
1000V |
1000V |
1000V |
1000V |
|
|
Rated Impulse Withstand Voltage |
8kV |
8kV |
8kV |
8kV |
8kV |
8kV |
|
|
Rated Operational Voltage (Ue)max |
1000V |
1000V |
1000V |
1000V |
1000V |
1000V |
|
|
Standards-compliant |
IEC60947-4-1, GB14048.4, EN60947-4-1 |
|
|||||
|
Conventional Thermal Current Ith(θ≤40℃) |
200A |
250A |
275A |
315A |
350A |
400A |
|
|
Operation Frequency(times/h) |
AC-1，AC-2，AC-3 |
1200 |
1200 |
1200 |
1200 |
1200 |
600 |
|
AC-4 |
300 |
300 |
300 |
300 |
300 |
300 |
|
|
Rated Power(AC-3) |
220/240V |
30kW |
40kW |
55kW |
63kW |
75kW |
100kW |
|
380/400V |
55kW |
75kW |
90kW |
110kW |
132kW |
160kW |
|
|
415V |
59kW |
80kW |
100kW |
110kW |
140kW |
180kW |
|
|
440V |
59kW |
80kW |
100kW |
110kW |
140kW |
200kW |
|
|
500V |
75kW |
90kW |
110kW |
129kW |
160kW |
200kW |
|
|
660/690V |
80kW |
100kW |
110kW |
129kW |
160kW |
220kW |
|
|
1000V |
65kW |
65kW |
100kW |
100kW |
147kW |
160kW |
|
|
Connection/Wiring
Operation Voltage (θ≤55℃） |
Number of Lines Line Size(mm2) |
2 20×3 |
2 25×3 |
2 25×3 |
2 32×3 |
2 32×4 |
2 30×5 |
|
Cable with Splicing(mm2) |
95 |
120 |
150 |
185 |
240 |
240 |
|
|
Cable with Connector(mm2) |
95 |
120 |
150 |
185 |
240 |
- |
|
|
Screw Diameter |
Φ6 |
Φ8 |
Φ8 |
Φ10 |
Φ10 |
Φ10 |
|
|
Tightening Torque(N.m) |
10 |
18 |
18 |
35 |
35 |
35 |
|
|
Equipped With Fuse Protector (SCPD) |
Type |
RT16-2 250A |
RT16-2 355A |
RT16-3 425A |
RT16-3 500A |
RT16-3 630A |
RT16-3 800A |

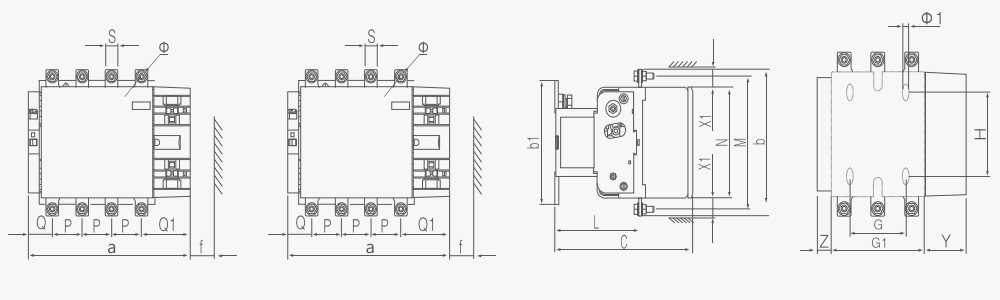

Dimensions(mm):
CJX2-F115/1154-330/3304
|
CJX2-F |
a |
p |
Q |
1 |
s |
φ |
f |
b |
b1 |
M |
N |
C |
L |
G |
H |
φ1 |
G1 |
Z |
Y |
x1 |
|
|
500V≤ |
>500V |
||||||||||||||||||||
|
115 |
163.5 |
37 |
29.5 |
60 |
15 |
M6 |
131 |
162 |
137 |
147 |
124 |
171 |
107 |
80 |
120-106 |
6.5 |
106 |
13.5 |
44 |
10 |
15 |
|
1154 |
200.5 |
37 |
29.5 |
60 |
15 |
M6 |
131 |
162 |
137 |
147 |
124 |
171 |
107 |
80 |
120-106 |
6.5 |
143 |
13.5 |
44 |
10 |
15 |
|
150 |
163.5 |
40 |
26 |
57.5 |
20 |
M8 |
131 |
170 |
137 |
150 |
124 |
171 |
107 |
80 |
120-106 |
6.5 |
106 |
13.5 |
44 |
10 |
15 |
|
1504 |
200.5 |
40 |
25 |
55.5 |
20 |
M8 |
131 |
170 |
137 |
150 |
124 |
171 |
107 |
80 |
120-106 |
6.5 |
143 |
13.5 |
44 |
10 |
15 |
|
185 |
168.5 |
40 |
29 |
59.5 |
20 |
M8 |
130 |
174 |
137 |
154 |
127 |
181 |
113.5 |
80 |
120-106 |
6.5 |
111 |
13.5 |
44 |
10 |
15 |
|
1854 |
208.5 |
40 |
29 |
59.5 |
20 |
M8 |
130 |
174 |
137 |
154 |
127 |
181 |
113.5 |
80 |
120-106 |
6.5 |
151 |
13.5 |
44 |
10 |
15 |
|
225 |
168.5 |
48 |
21 |
51.5 |
25 |
M10 |
130 |
197 |
137 |
172 |
127 |
181 |
113.5 |
80 |
120-106 |
6.5 |
111 |
13.5 |
44 |
10 |
15 |
|
2254 |
208.5 |
48 |
17 |
47.5 |
25 |
M10 |
130 |
197 |
137 |
172 |
127 |
181 |
113.5 |
80 |
120-106 |
6.5 |
151 |
20.5 |
44 |
10 |
15 |
|
265 |
201.5 |
48 |
39 |
66.5 |
25 |
M10 |
147 |
203 |
145 |
178 |
147 |
213 |
141 |
96 |
120-106 |
6.5 |
140 |
20.5 |
38 |
10 |
15 |
|
2654 |
244.5 |
48 |
34 |
66.5 |
25 |
M10 |
147 |
203 |
145 |
178 |
147 |
213 |
141 |
96 |
120-106 |
6.5 |
186 |
20.5 |
38 |
10 |
15 |
|
330 |
213 |
48 |
43 |
74 |
25 |
M10 |
147 |
206 |
145 |
181 |
158 |
219 |
145 |
96 |
120-106 |
6.5 |
154.5 |
20.5 |
38 |
10 |
15 |
|
3304 |
261 |
48 |
43 |
74 |
25 |
M10 |
147 |
206 |
145 |
181 |
158 |
219 |
145 |
96 |
120-106 |
6.5 |
202.5 |
20.5 |
38 |
10 |
15 |
