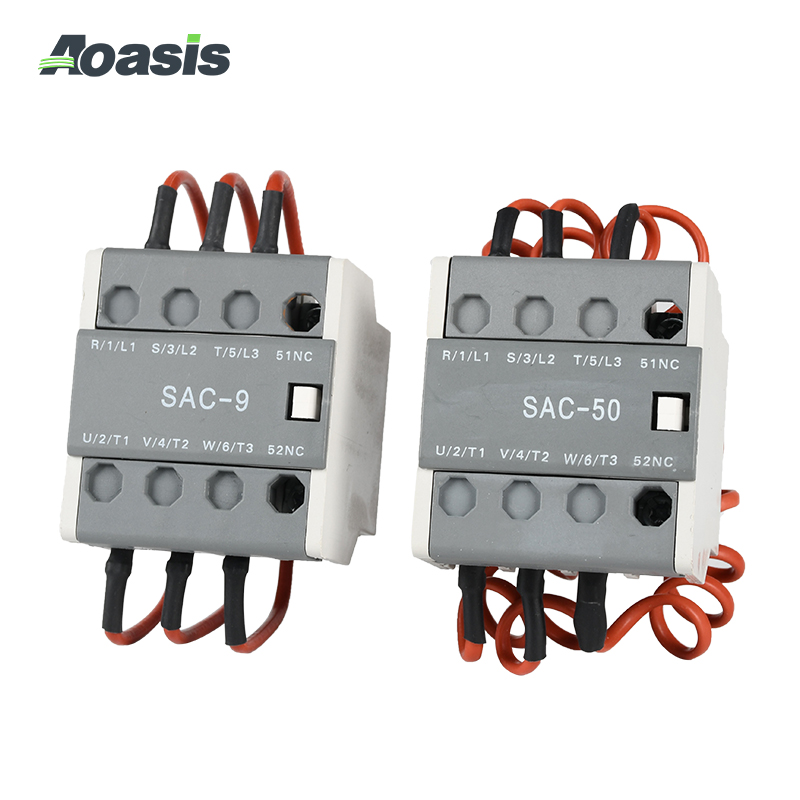

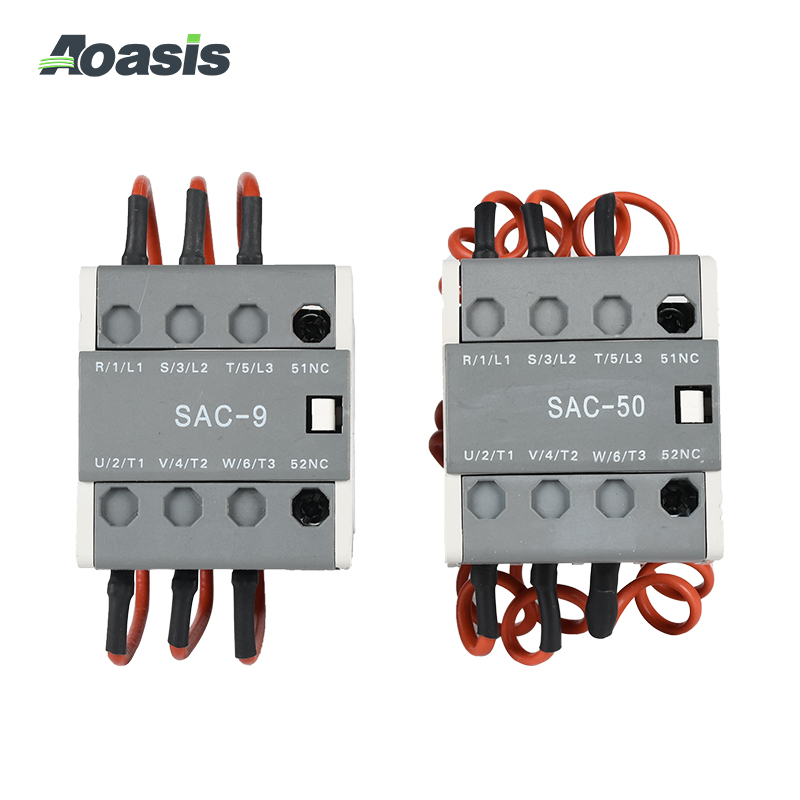

Capacitor Unit is connected to terminals of the contactor to reduce the high lnrush current.
| Type |
Contactor |
Maximum operating power (kVar) |
Rated Current |
||
| 220-240V | 400-440V |
550-600V |
|||
| SAC-9 | SMC-9 | 5 | 9.7 | 14 | 14 |
| SMC-12 | 6.7 | 12.5 | 18 | 18 | |
| SMC-18 | 8.5 | 16.7 | 24 | 24 | |
| SMC-22 | 10 | 18 | 26 | 26 | |
| SMC-32 | 15 | 25 | 36 | 36 | |
| SMC-40 | 20 | 33.3 | 48 | 48 | |
| SAC-50 | SMC-50 | 22 | 40 | 58 | 58 |
| SMC-65 | 25 | 45.7 | 66 | 66 | |
| SMC-75 | 29.7 | 54 | 78 | 78 | |
| SMC-85 | 35 | 60 | 92 | 92 | |
Note:
● When the switch is closed, condenser must be discharged before recharged.(Maximum residual voltage at terminals≤50V);
● To prevent short current, gG type fuse must be 1.5~2 times than rated current.
● Damping resister that can limit the inrush current upto 60xIn is connected to the mechanism that closed earlier than the main contact of the contactor;
● Eliminate the switching surge;
● No heat loss by the serial resistor;
● Improving the performance of the capacitor system.
