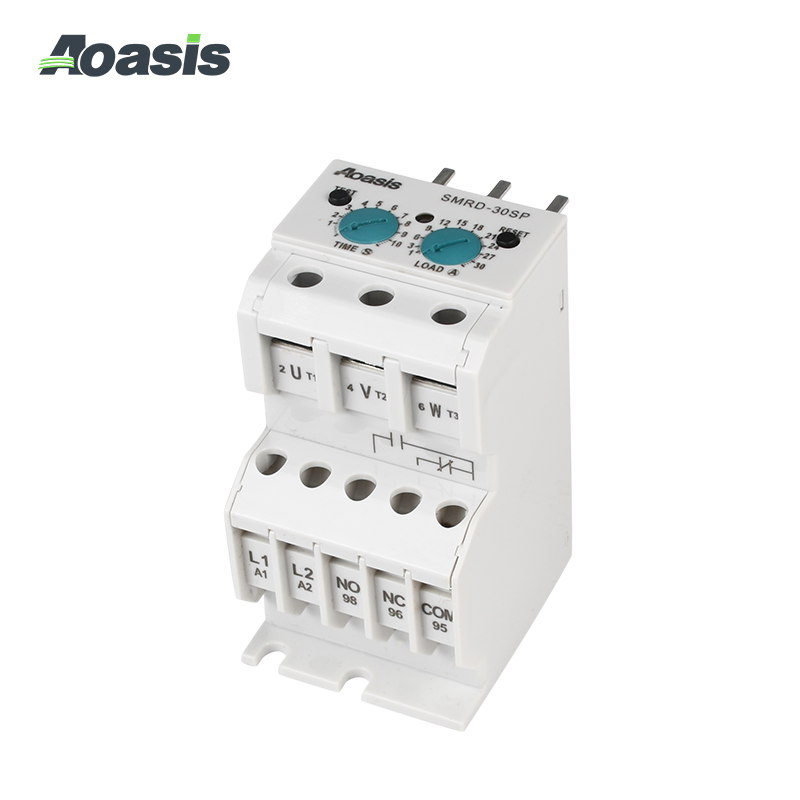

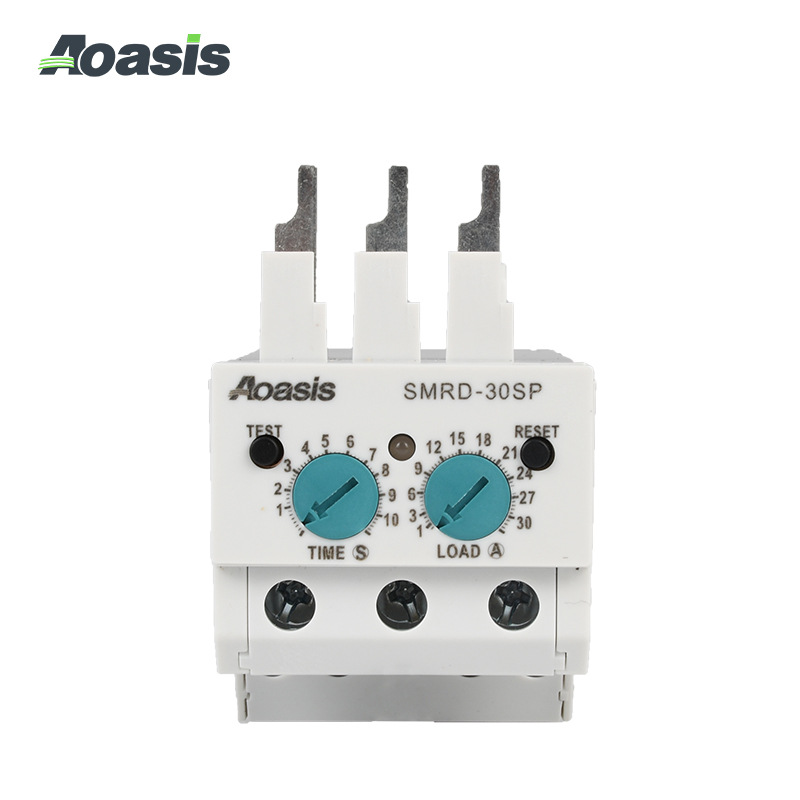

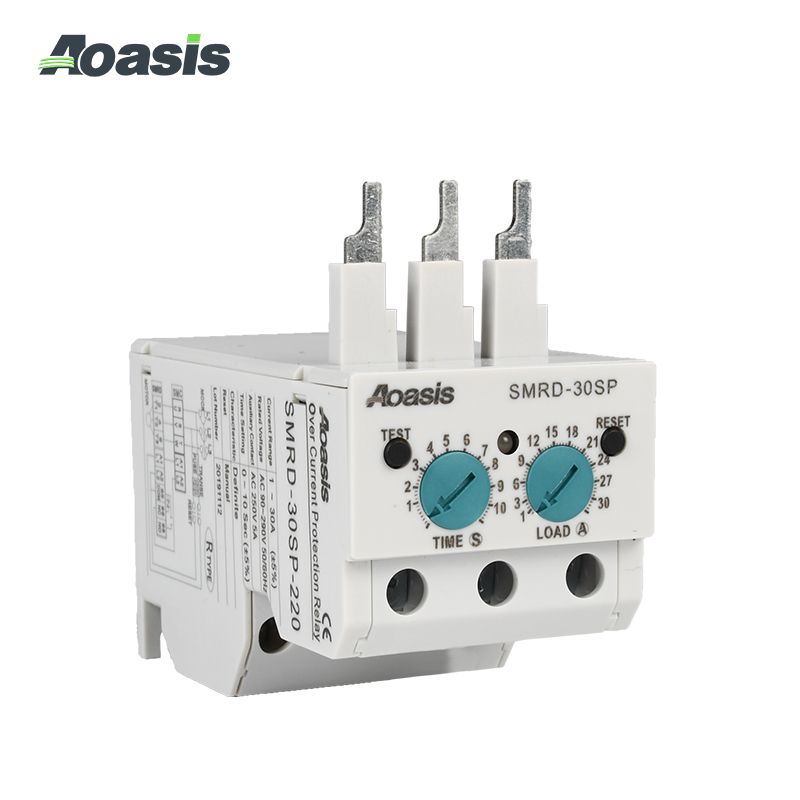

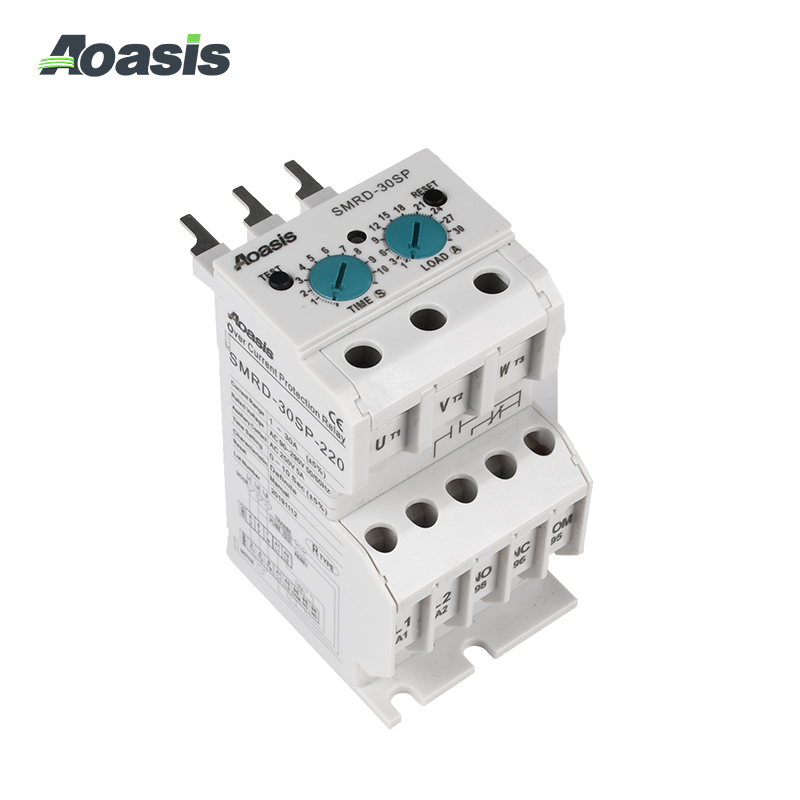

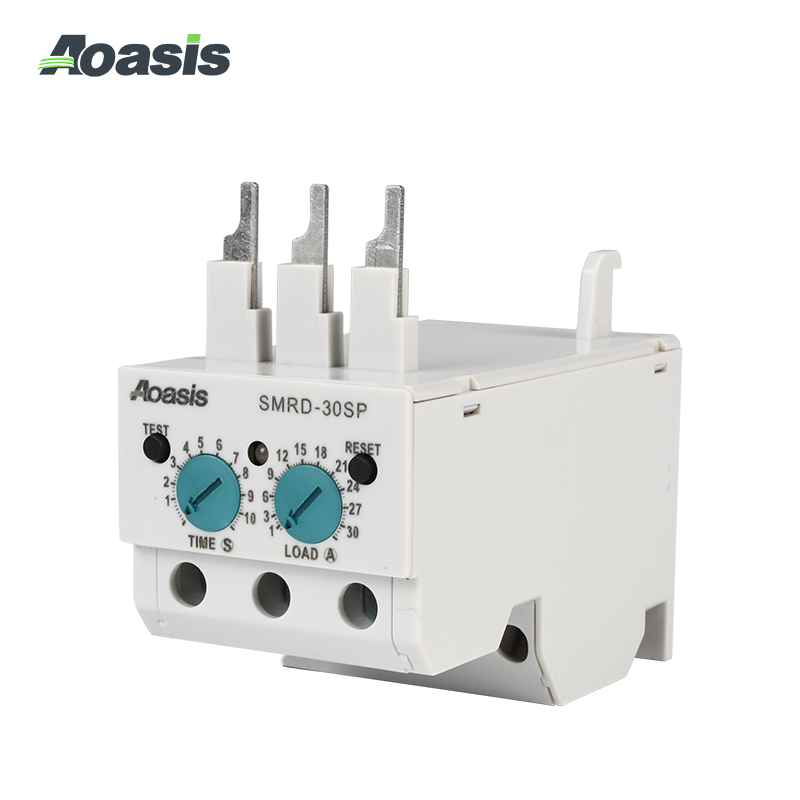

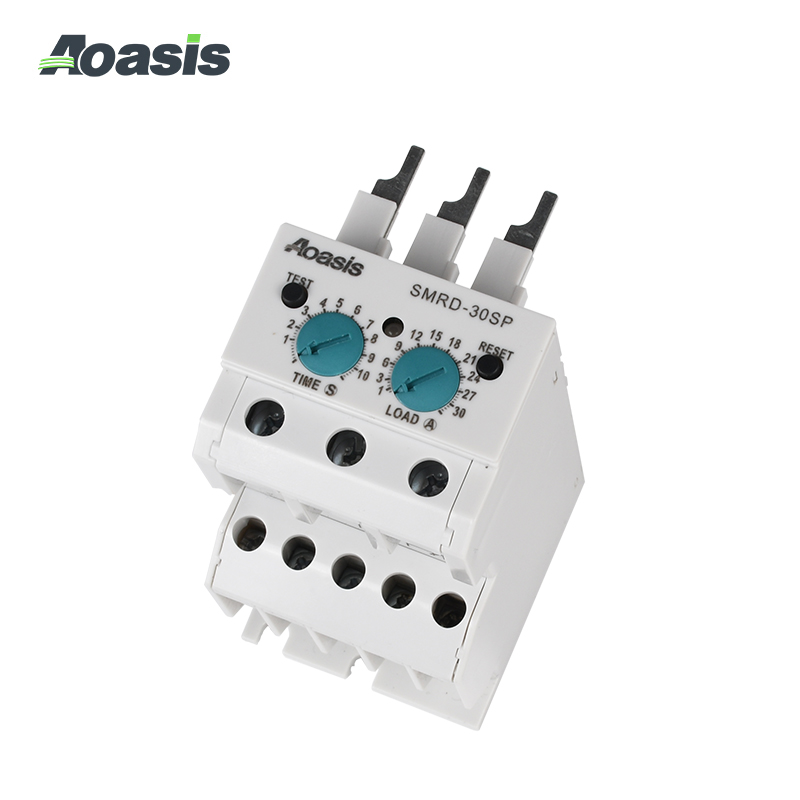

Used for：
Low volage induced electromotor(600V level) protective relay
break-down watch current relay
alternative replacement for the existing relay
Type and Signification
Product feature：
● Protection against over-current,phase-out and locked-rotor
● The startup delay or operation delay can be set separately
● Adopt relay suitable for vibration and short circuit
● Wide voltage range setting
● Confirm operation display and running current(LED)
● Manual(immediate)/automatic reset
● Fault protection function
● Ultra low power consumption
Technical Parameters
|
TYPE |
SMRD-01EP、06EP、30EP |
SMRD-01EP、06EP、30EP |
SMRD-50EP |
||||
|
Can be equipped with contactor |
SMC-09~22 |
SMC-32~48 |
|||||
|
Specifications and codes |
10 | 30 | 01 | 06 | 30 | 50 | |
|
Setting current（A） |
0.5~10 | 1~30 | 0.1~1 | 0.5~6.5 | 1.5~30 | 5~50 | |
|
Performance characteristic |
Constant time-lag |
||||||
|
Power（kW） |
230~240V |
1.5 | 3.7 | ~0.05 | 0.12~0.75 | 0.55~3.7 | 1.5~7.5 |
|
380~460V |
3.7 | 7.5 | ~0.15 | 0.25~1.5 | 1.5~7.5 | 3.7~11 | |
|
Defensive function |
Overcurrent |
O-time |
|||||
|
Default phase |
O-time |
||||||
|
Locked rotor |
O-time + D-time |
||||||
|
Delay time |
0.5~12s |
0.5~30s |
|||||
|
Reset feature |
Manual / Electric Reset |
||||||
|
Operating voltage |
Voltage |
180~260V AC |
90~260 V AC (*380V,440 AC/DC) |
||||
|
Frequency |
50/60Hz |
||||||
|
Auxiliary contactor |
Output contactor |
1C | |||||
|
Status |
Order（COM/95-NC/96-NO/98）/ Type B（1a 97,98/1b 95,96） | ||||||
|
Capacity |
AC 250V / 5A Resistivity |
||||||
|
Insulation resistance |
50MΩ or Higher than megohm DC 500V |
||||||
|
Compression strength |
2kV, 50/60Hz, 1min |
||||||
|
Ambient temperature |
Stockpile |
-25℃ ~ 70 ℃ |
|||||
|
Operation |
-90℃ ~ 80 ℃ |
||||||
|
Humidity |
45% ~ 85% RH |
||||||
|
Indicating action |
Red LED: Display pverload action |
Green LED(P.L): Display power supply / Red LED(O.L): Display overload action |
|||||
Outline Dimension:
