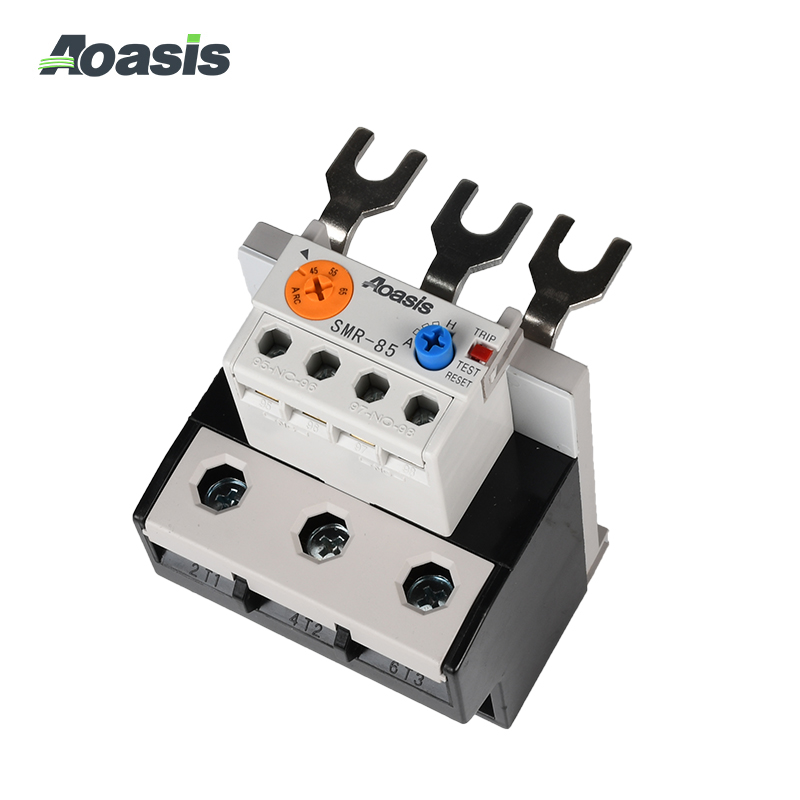

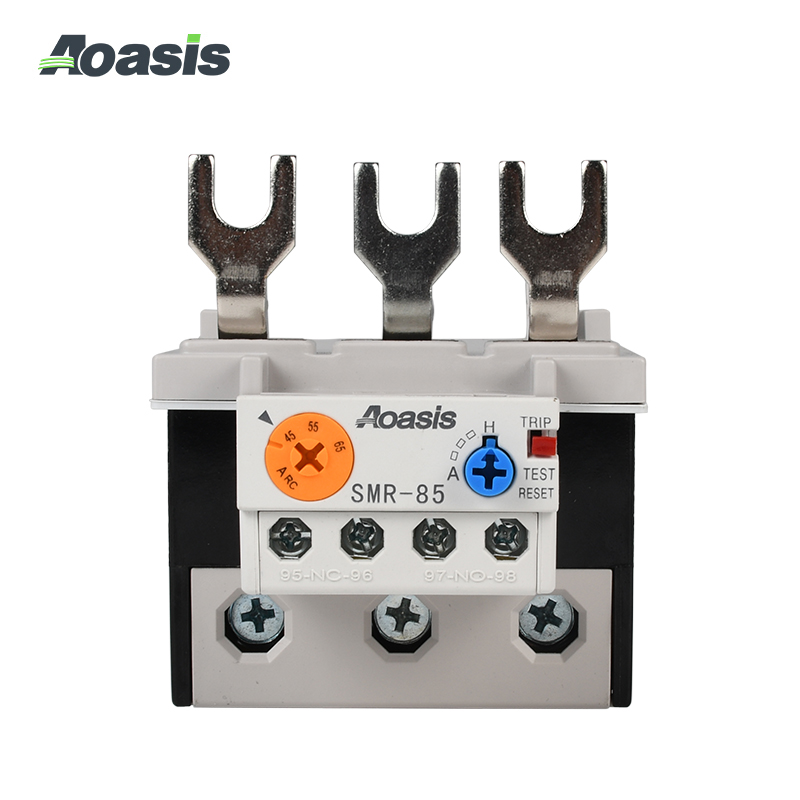

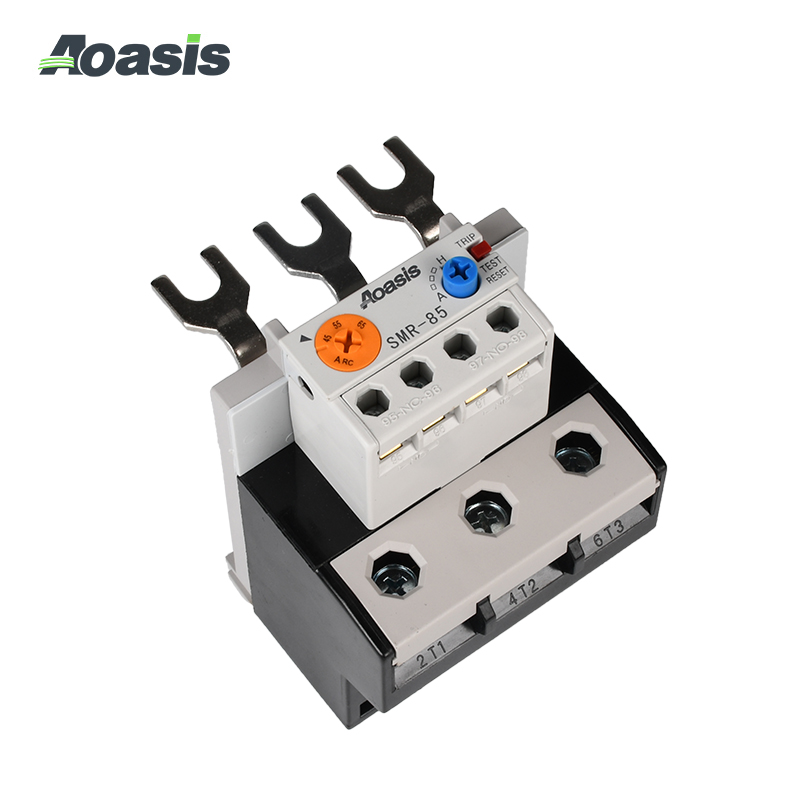

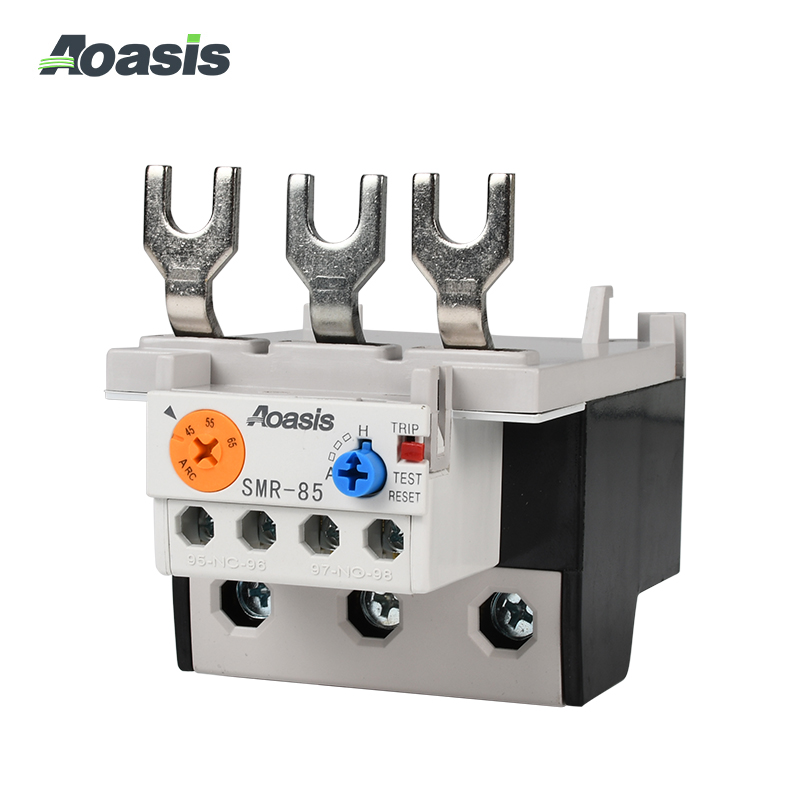

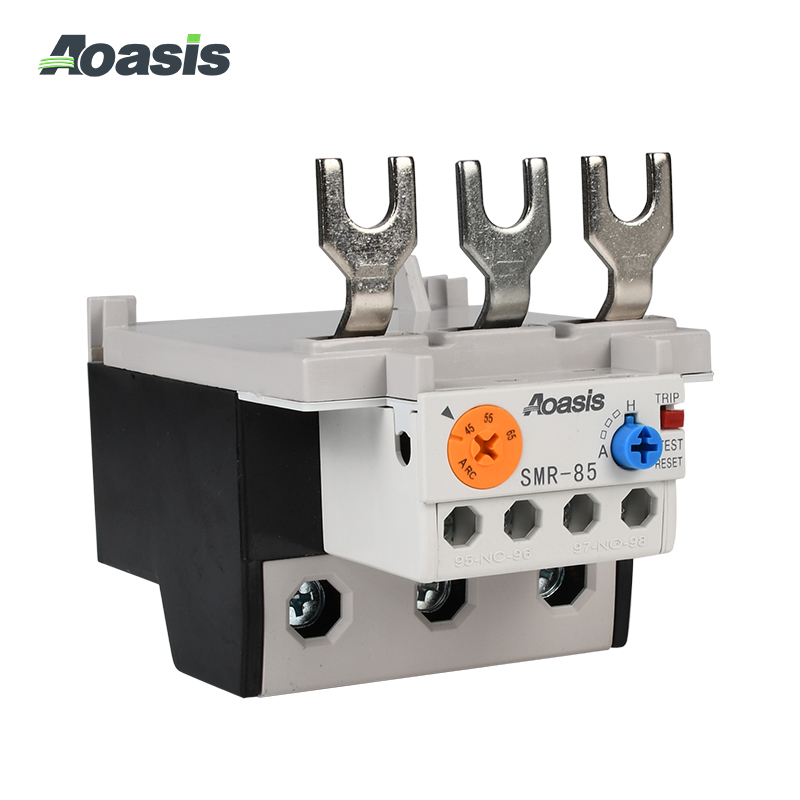

SMR- □□ type thermal overload relay is mainly used in the electric system with AC 50Hz-60Hz, rated operation voltage up to 660V,current to 800A. It is used to protect AC three-phase asynchronous motor against overload and open-phase. This products can be properly combined with contactors and installed in an enclosure as motor starter to protect the motor from overload and open phase.

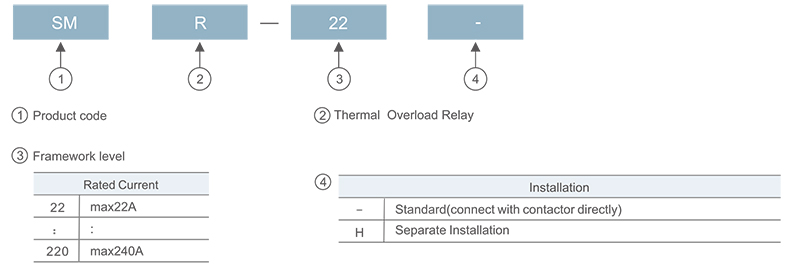

Type and Signification：
Characteristics：
● When the thermal overload relay tripped, the trip indicator will go up 2-3mm;When the thermal overload relay on the mode of manual reset ,you can put on the reset button to reset.
● Automatic reset:put on the reset button and turn 90°anticlockwise.
● Main circuit terminal and control circuit terminal is clearly distinguished to avoid wrong wiring by manual.
Technical Parameters：
|
Type |
SMR-85 |
SMR-100 |
|
Return Mode |
Manual or Auto return |
|
|
Current Setting Range |
Setting Range (A) |
Setting Range (A) |
|
34-50 45-65 54-75 63-85
|
34-50 39-57 43-65 54-80 65-100 85-125 |
|
|
Contact Arrangement |
1NO+1NC |
|
|
Model of Matching Contactors |
SMC-50, SMC-65, SMC-75, SMC-85 |
SMC-100, SMC-125 |

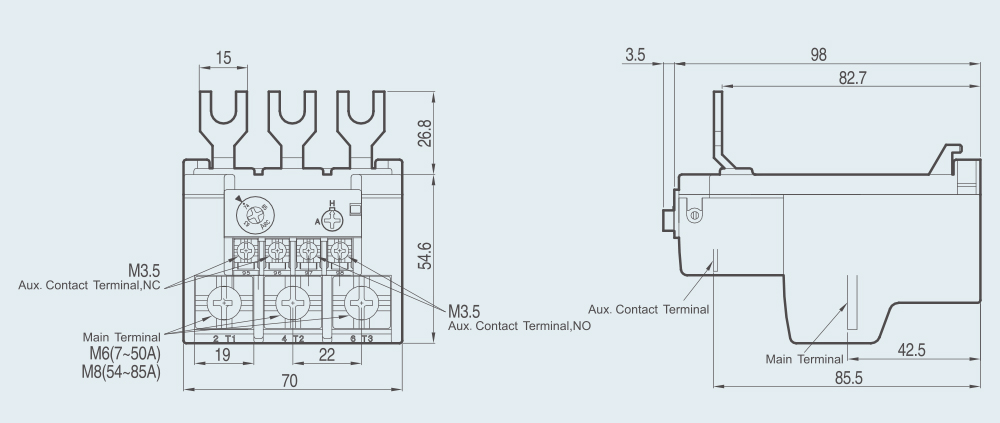

Dimensions(mm)：
 |
| SMR-85 |
