● 3 pairs of main contacts.

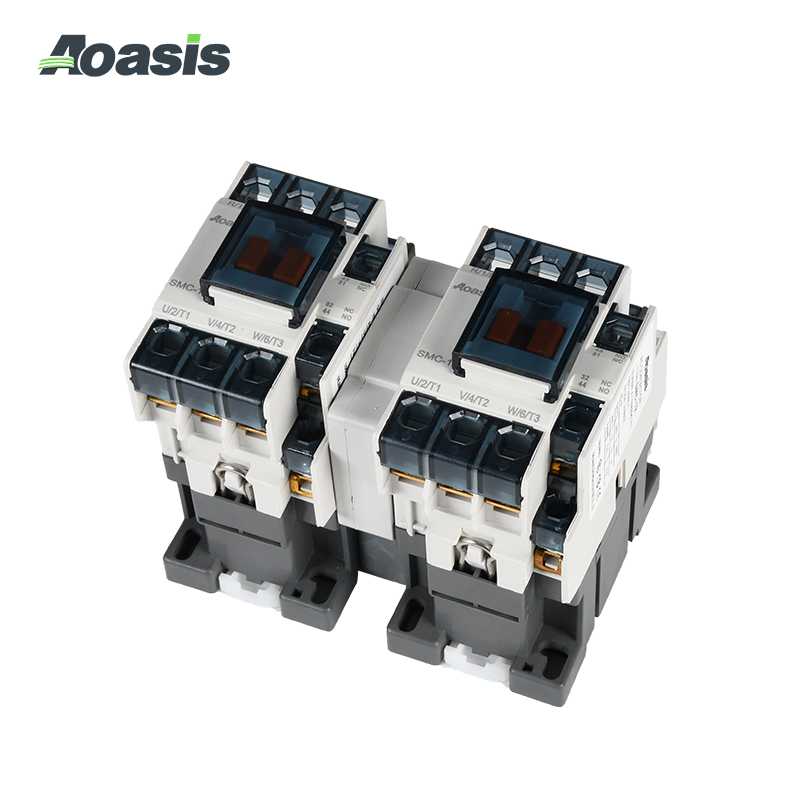

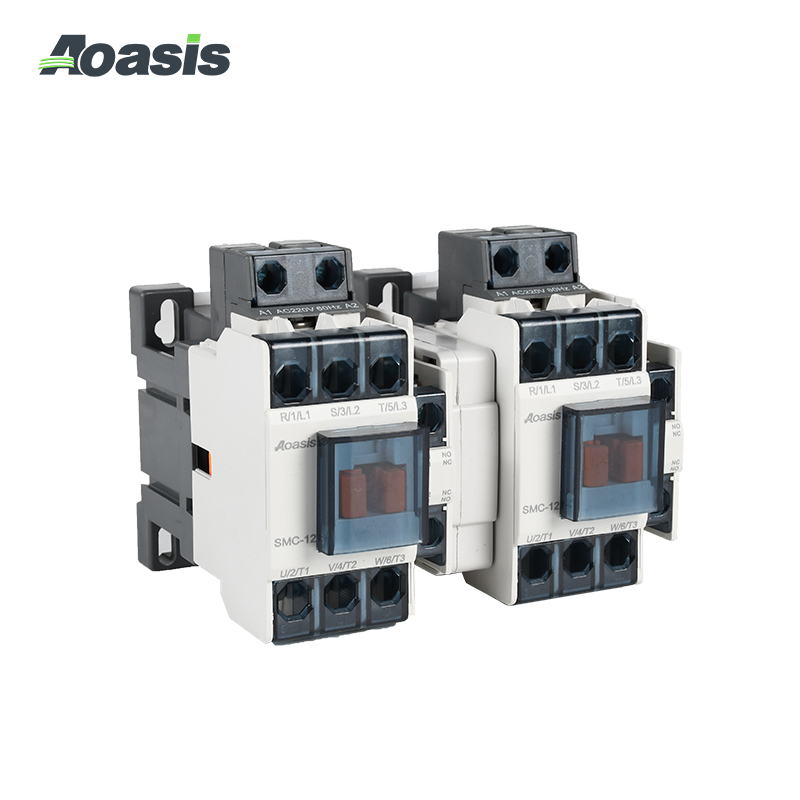

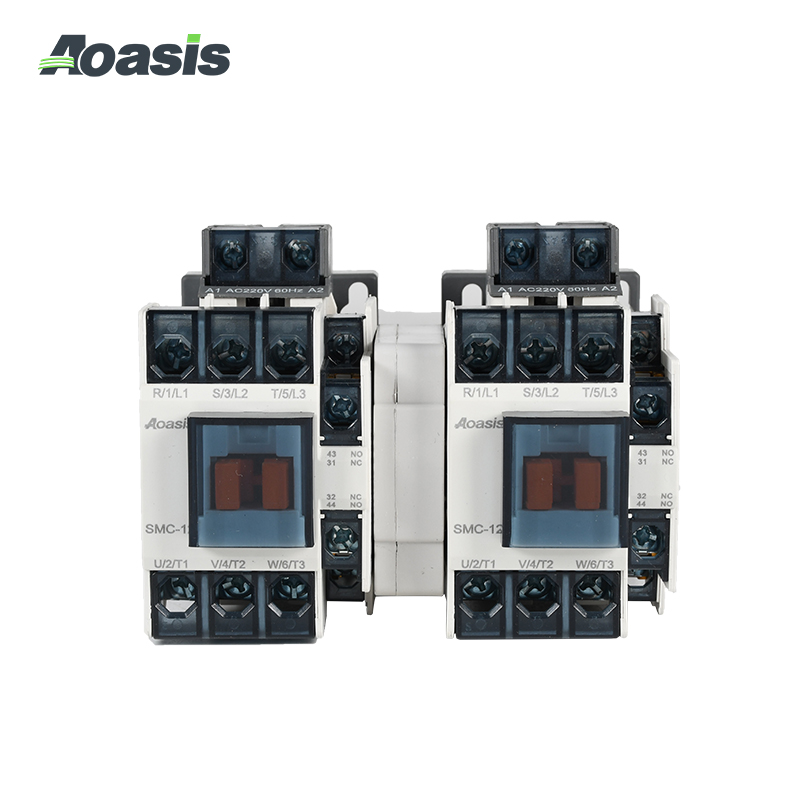

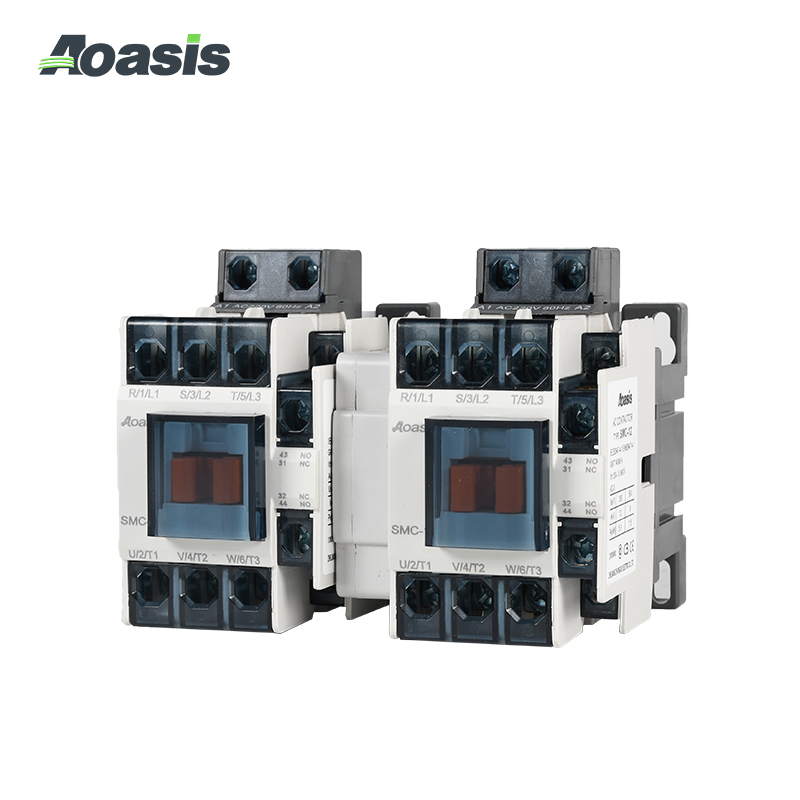

● Mechanical interlock unit.
● Design of anti-electric shock cover.
● Installation of guide rail or screw.
● The accessory can be mounted on the top or at side.
● Be connected with the thermal overioad relay directly.
Technical parameters：
|
Type |
Rated Current |
AC3(IEC60947) |
Ac1 Ith |
Aux.Contacts |
|||
|
200-240V |
380-440V |
500-550V |
660-690V |
||||
|
SMC-9N |
9A |
2.5kW 11A |
4kW 9A |
4kW 7A |
4kW 5A |
25A |
Optional |
|
SMC-12N |
12A |
3.5kW 13A |
5.5kW 12A |
7.5kW 12A |
7.5kW 9A |
25A |
Optional |
|
SMC-18N |
18A |
4.5kW 18A |
7.5kW 18A |
7.5kW 13A |
7.5kW 9A |
40A |
Optional |
|
SMC-22N |
22A |
5.5kW 22A |
11kW 22A |
15kW 22A |
15kW 18A |
40A |
Optional |
|
SMC-32N |
32A |
7.5kW 32A |
15kW 32A |
18.5kW 28A |
18.5kW 20A |
50A |
Optional |
|
SMC-40N |
40A |
11kW 40A |
18.5kW 40A |
22kW 32A |
22kW 23A |
60A |
Optional |
|
SMC-50N |
50A |
15KW 55A |
22kW 50A |
30kW 43A |
30kW 28A |
80A |
Optional |
|
SMC-65N |
65A |
18.5KW 65A |
30kW 65A |
33kW 60A |
33kW 35A |
100A |
Optional |
|
SMC-75N |
75A |
22kW 75A |
37kW 75A |
37kW 64A |
37kW 42A |
110A |
Optional |
|
SMC-85N |
85A |
25kW 85A |
45kW 85A |
45kW 75A |
45kW 45A |
135A |
Optional |
|
SMC-100N |
100A |
30kW 100A |
55kW 100A |
55kW 85A |
55kW 65A |
150A |
Optional |
Coil Voltage AC50/60Hz：
24、48、110、220/230、380/400、420/440V
Mechanical Interlock Unit:
Combination Chart:
Dimensions(mm)：
