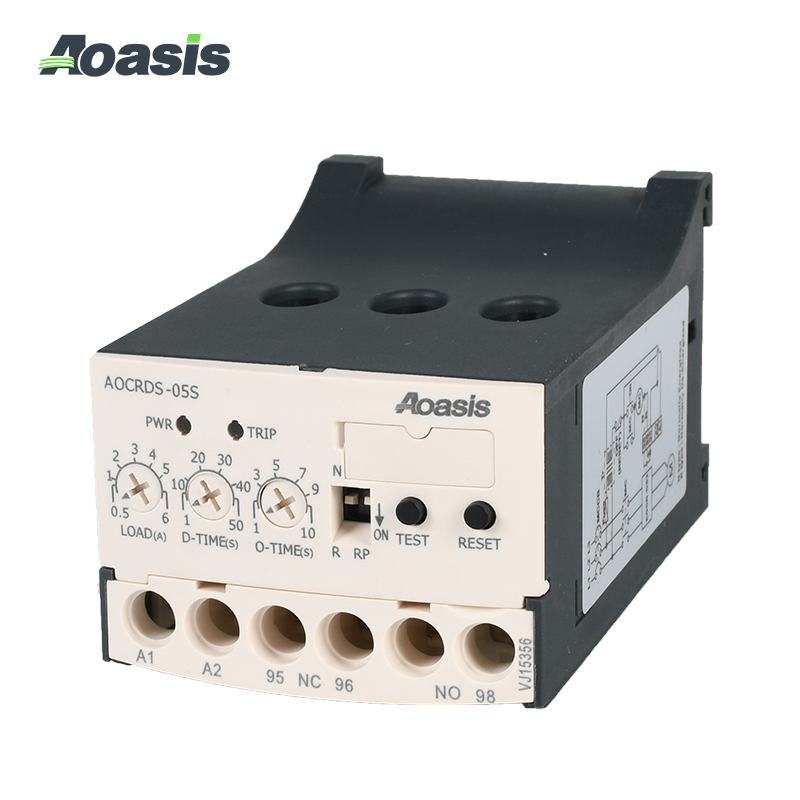

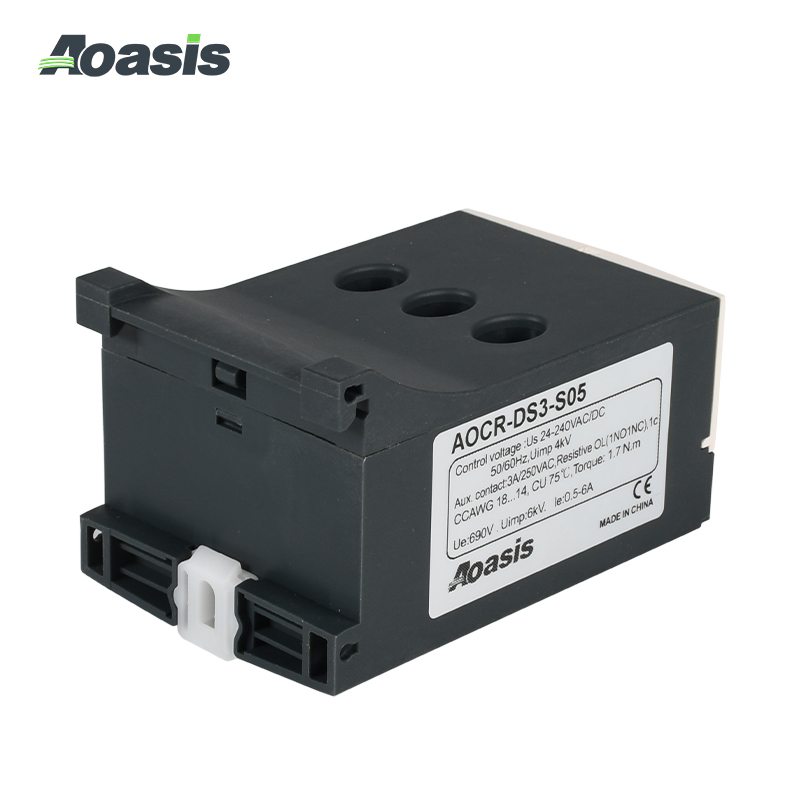

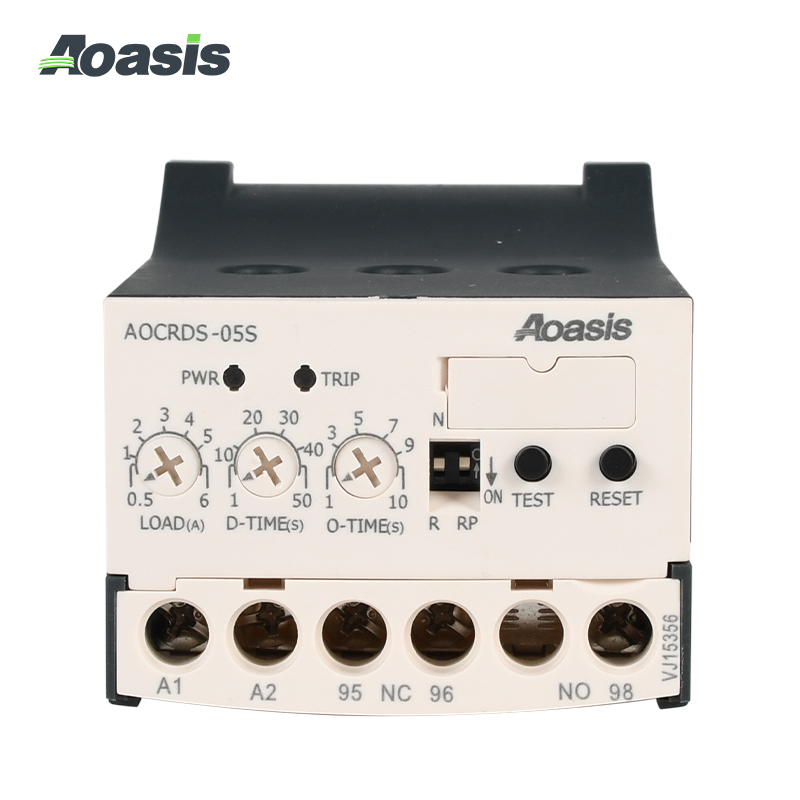

Ordering requirements：
1、MCU(Microprocessor Control Unit)
2、Employing two independent outputs(1a1b)ultra-slim motor
3、Multiple Protection Functions
4、Independently Adjustable Starting Trip Delay & Operating Time
5、PWR & Trip Indication LED
6、Trip Indication and Trip Cause Display
7、Manual Instantaneous / Electrical Remote Reset
8、Low Energy Consumption
※(No Volt Release / Fail-safe Operation)→N Type
※(T):(Terminal Type)
※AC / DC Power Supply Universal
※DS,DST:3-Phase Dedicated
※DIP SW to Select N-R Type and Reverse Phase
※Protection ON/ OFF
Protection：
|
Model |
Protective tem
|
Time
Characteristics |
Time Setting
|
||||
|
Over Current
|
Stall |
Phase Loss
|
Reverse Phase
|
Start D-TIME |
Trip O-TIME |
||
|
DS |
〇 |
〇 |
〇 |
〇 |
Definite time
|
0～50 sec |
1～10 sec |
|
DST |
〇 |
〇 |
〇 |
〇 |
Definite time
|
1～50 sec |
1～10 sec |
|
Protective ltem |
Operating Time |
|
Over Current |
After the set O-Time Operation |
|
Stal |
4 set or less |
|
Phase Loss |
After the set D-Time Operation |
|
Reverse Phase |
0.1 set |
Technical Parameters：
|
Current Setting
|
Type
|
Range
|
|
|
05 |
0.5~6A |
||
|
30 |
1~50sec |
||
|
60 |
1~10sec |
||
|
TIME
|
Starting
|
D-TIME |
0.2～30 sec |
|
Operation
|
O-TIME |
0.2～10 sec |
|
|
Rese |
Manual /Electric Reset |
||
|
Indicato |
LED |
||
|
Control Voltage
|
Voltage Range
|
220 |
24V-240VAC/DC |
|
Frequency |
50/60Hz |
||
|
Outpu
|
Contact |
2-SPDT(1a1b) |
|
|
Condition
|
N Type |
When powered,95+96 Open,974 F98 Close
|
|
|
R Type |
When powered,95-+96 Close,97--98 Open
|
||
|
Contacts |
151250VAC电阻5A/250VAC Resistive |
||
|
Mounting |
35mm DIN-Rail/Pane |
||
Outline and Installation Dimensions:
