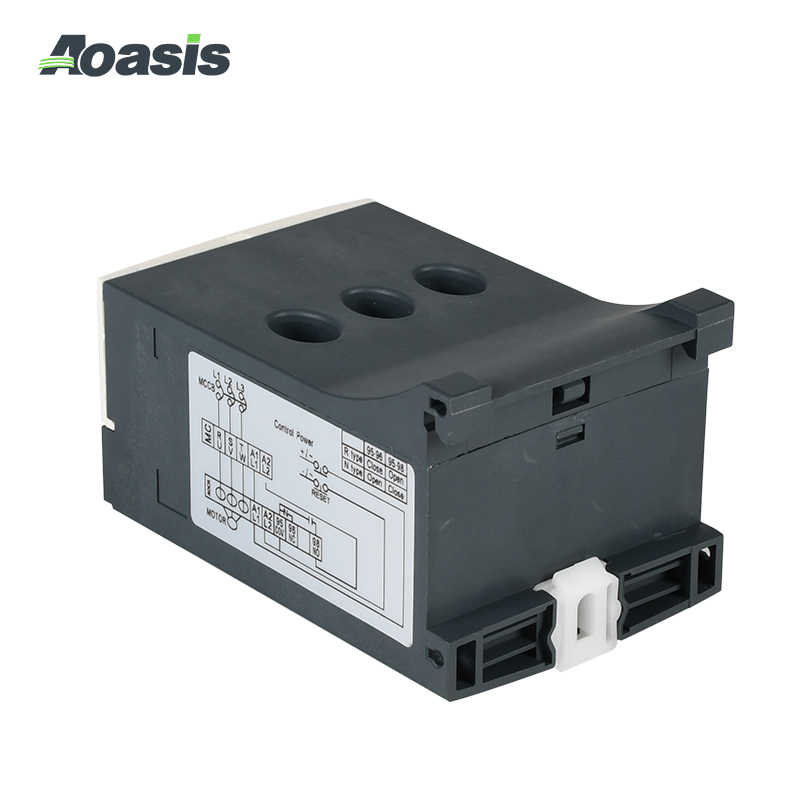

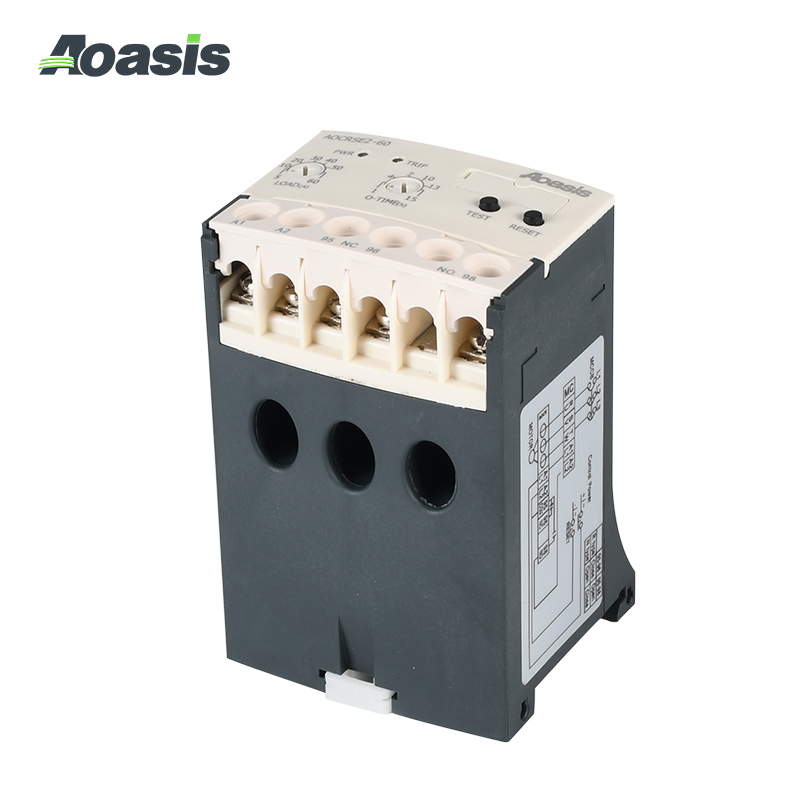

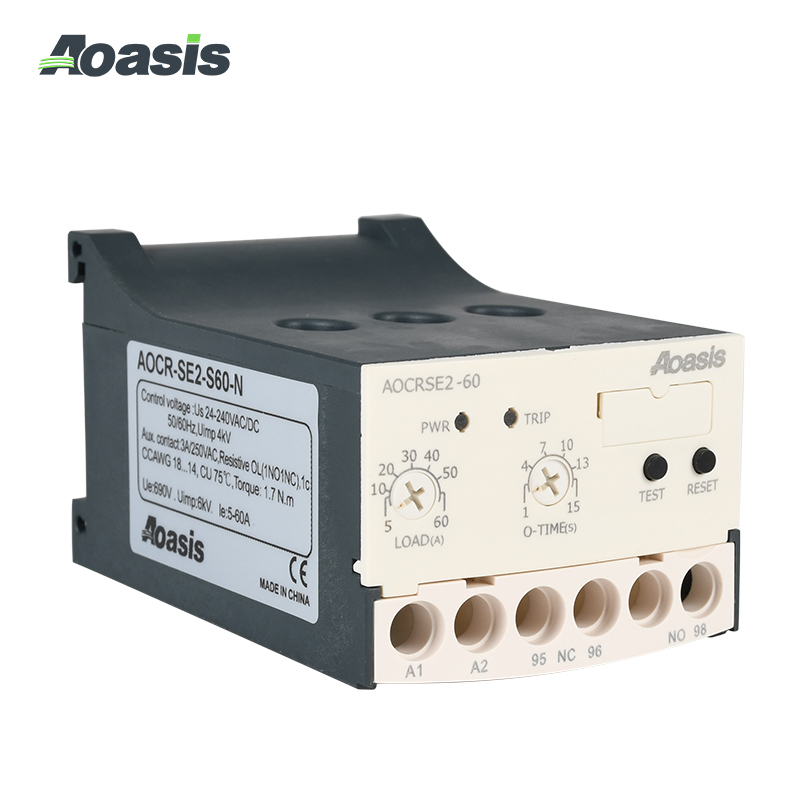

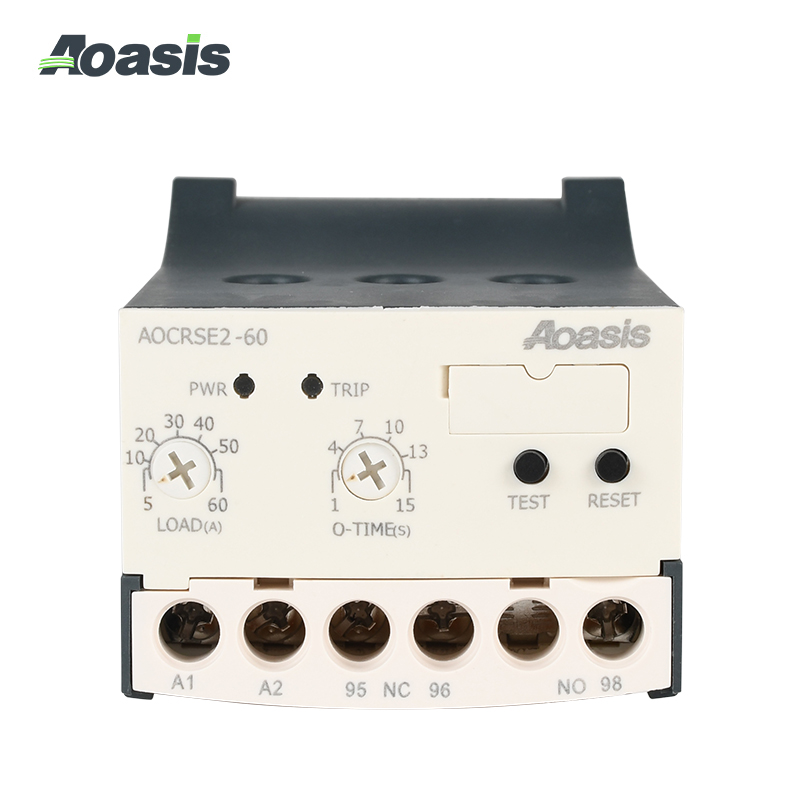

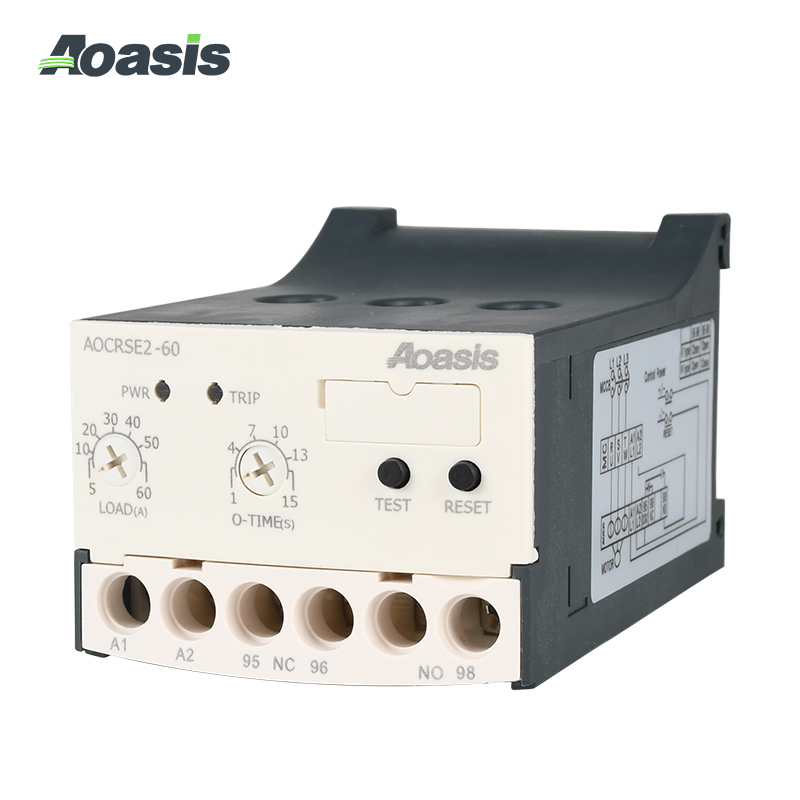

1、Compact Design
2、Overload / Phase Loss / Locked Rotor protection
3、D-Time/O-Time Integrated
4、Manual / Electric Reset
5、Low Energy Consumption
6、（No Volt Release / Fail-safe Operation)→N Type
7、Direct start / Suitable for small motor protection
8、wiring simple
Ordering requirements：
Protection：
|
Protective Item |
Operating (Trip) Time |
|
Over-current |
O-TIME |
|
Phase Loss |
O-TIME |
|
Locked Rotor |
O-TIME |
Used for：
Universal motor protection suitable for small motor protection.
Technical Parameters:
|
Current Setting
|
Type
|
Range
|
|
|
05 |
0.5~6A |
||
|
30 |
3～30A |
||
|
60 |
5～60A |
||
|
Operation
|
O-TIME |
0.2～15 sec |
|
|
Reset
|
Manual/Electric Reset
|
||
|
Indicator
|
LED |
||
|
Control Voltage
|
Voltage Range
|
24 |
AC/DC24V |
|
Frequency |
50/60Hz |
||
|
Output
|
Contact |
1-SPDT(1C |
|
|
Condition
|
N Type
|
When powered,95+F96 Open,95 H98 Close |
|
|
When powered,95+96 Close,95 H98 Open |
|||
|
R Type
|
|||
|
Contacts |
AC250V/3A(Resistive) |
||
|
Mounting |
35mm Din Rai |
||
Outline and Installation Dimensions：
