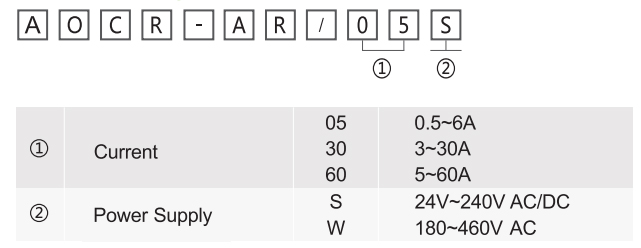

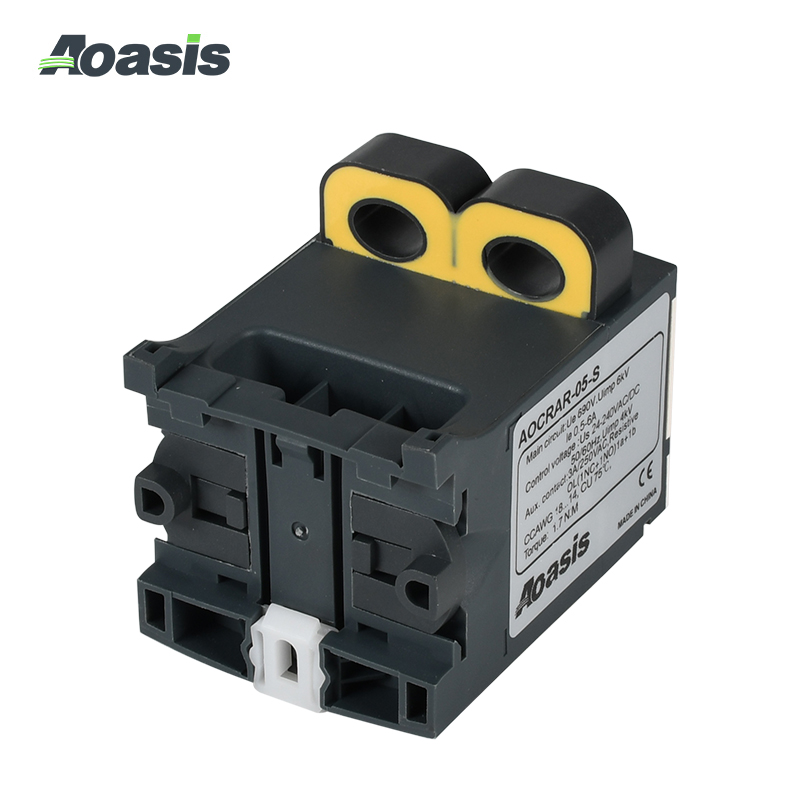

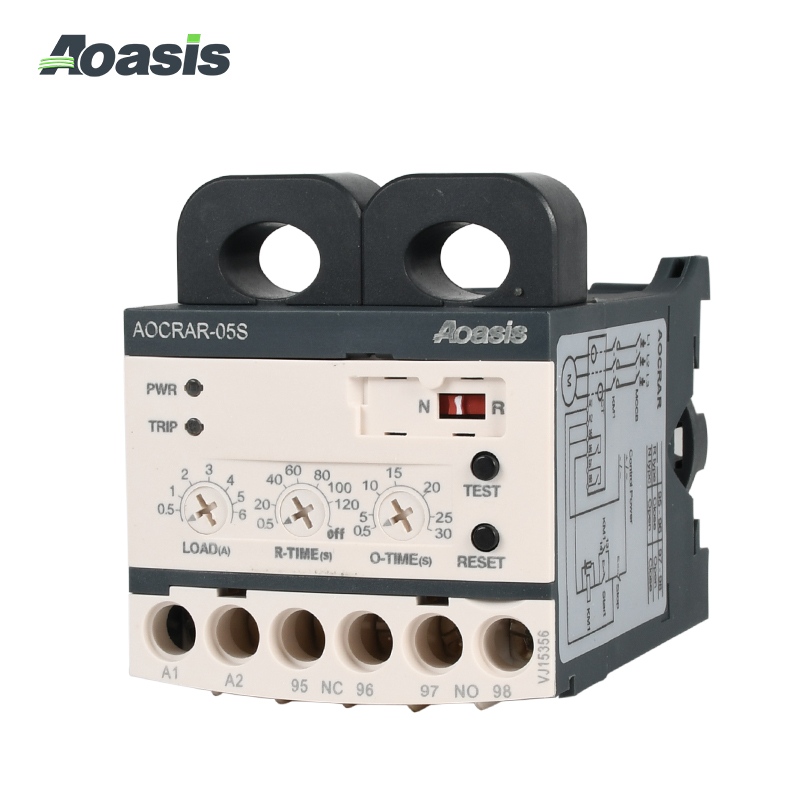

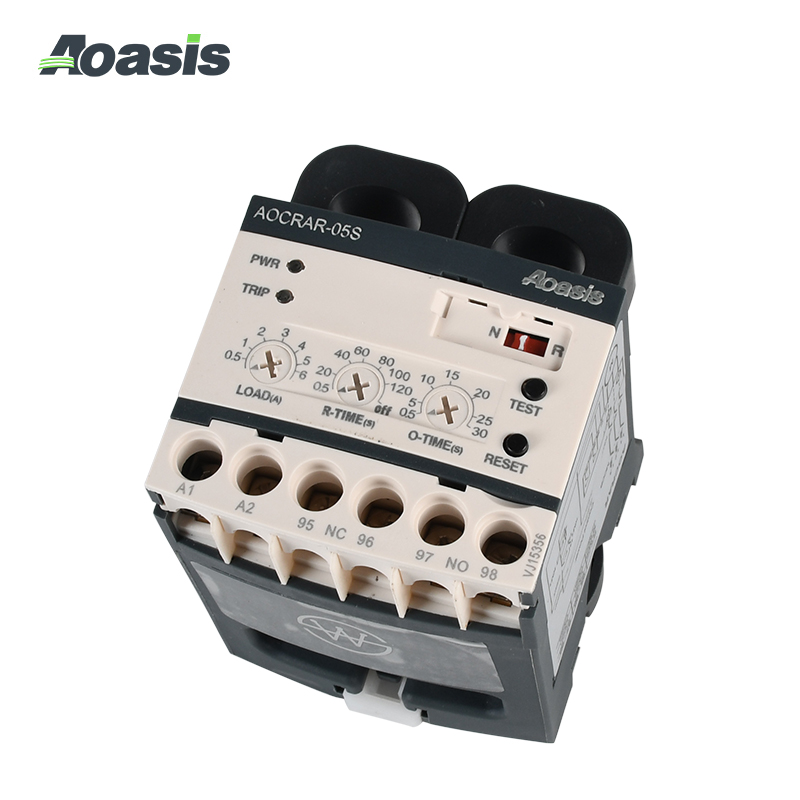

Ordering requirements：
1、Overload / Phase Loss / Locked Rotor protection
2、Independently Adjustable Starting Trip Delay & Operating Time
3、Wide Current Range:0.1~600A
4、PWR& Trip Indication LED
5、Low Energy Consumption
6、Manual /Electric Reset
7、（No Volt Release/ Fail-safe Operation)→N Type
8、Single-phase, three-phase available
Used for：
Automatic reset function / Suitable for unattended equipment
Protection：
|
Protective Item |
Operating (Trip) Time |
|
Over-current |
O-TIME |
|
Phase Loss |
O-TIME |
|
Locked Rotor |
O-TIME+D-TIME |
Technical Parameters：
|
Current Setting |
Type |
Range |
|
|
05 |
0.5~6A |
||
|
30 |
3～30A |
||
|
60 60～600
|
5~60A Use an external CT(secondary 5A)over 60A with 05 type
|
||
|
Time
|
Operating
|
O-TIME
|
0.2～30 sec |
|
Recovery
|
R-TIME
|
0.2～120 sec/OFF |
|
|
Rese |
Manual /Electric Reset |
||
|
Indicator |
LED |
||
|
Control
Voltage |
Voltage range
|
S |
24V~240V AC/DC |
|
W |
180～460V AC |
||
|
Frequency |
50/60Hz |
||
|
Output
|
Contac |
2-SPDT(1a1b) |
|
|
Condition
|
N Type
|
When powered,95F96 Open,97-F98Close
|
|
|
R Type
|
When powered,95++96 Close,97+F98 Open
|
||
|
Humidity
|
30～85%RH,Not-condensate
|
||
|
Mounting
|
35mm DIN-Rail /Panel
|
||

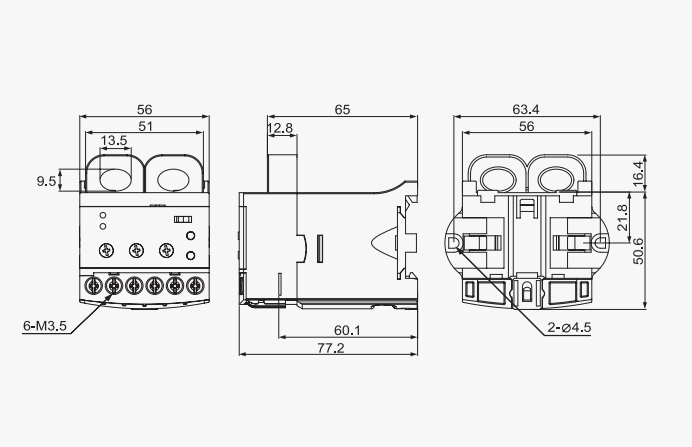

Outline and Installation Dimensions：
